Page 1: Washing Machine

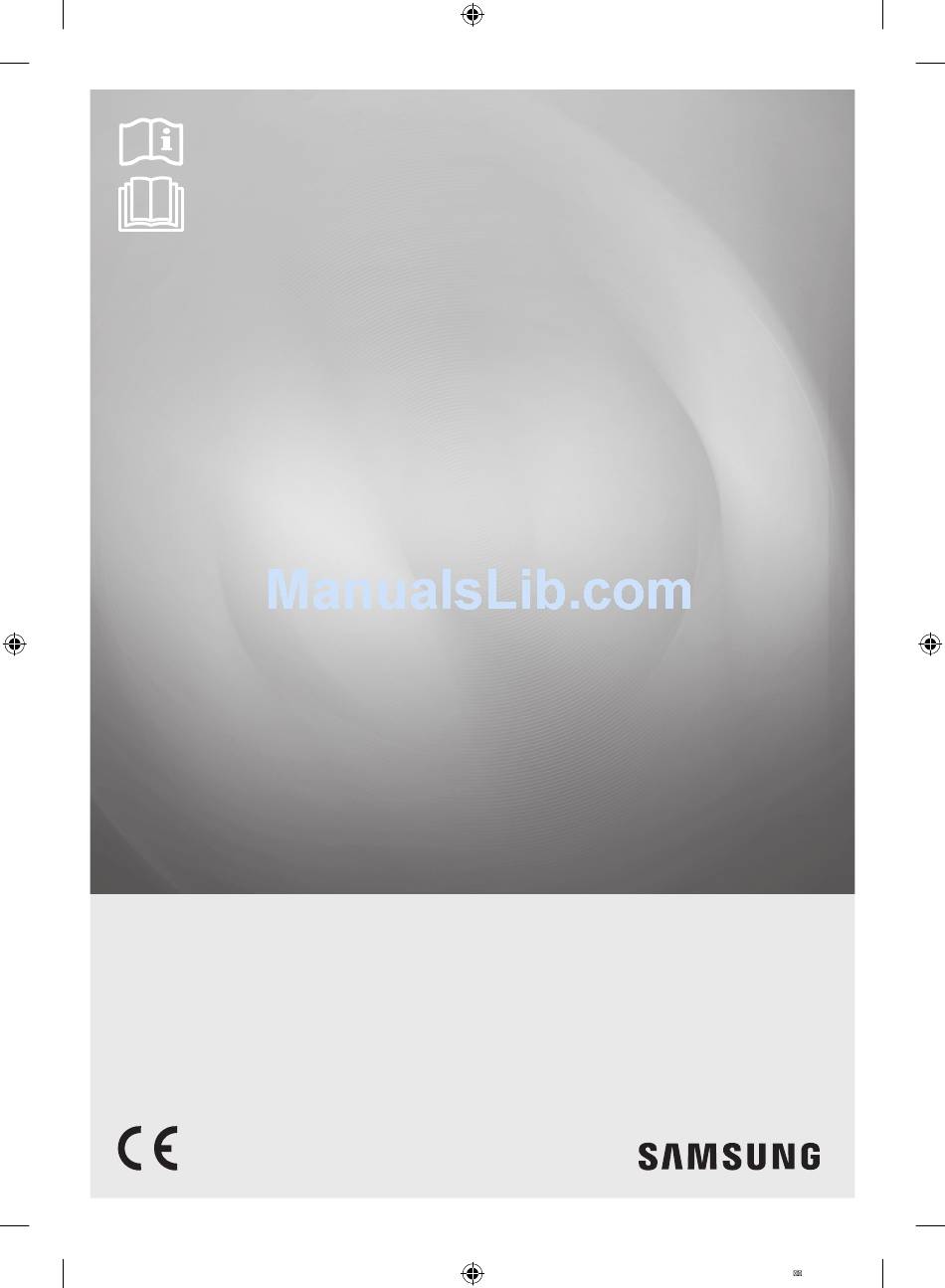

WD12F9C9U4* Washing machine User manual imagine the possibilities Thank you for purchasing this Samsung product. Untitled-1 1 2015-11-06 4:25:09... -
Page 2: Table Of Contents
Content Safety information What you need to know about the safety instructions Important safety symbols What the icons and signs in this user manual mean: ........... . .4 Important safety precautions Instructions about the WEEE Setting up your washing machine... - Page 3 Cleaning your washing machine Eco Drum Clean Cleaning procedures ................. . 37 Eco Drum Clean auto alarm function .
-
Page 4: Safety Information
Safety information Congratulations on your new Samsung washing machine. This manual contains important information on the installation, use and care of your appliance. Please take some time to read this manual to take full advantage of your washing machine’s many benefits and features. -
Page 5: Important Safety Precautions
Important safety precautions WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following: Do not let children (or pets) play in or on your product. The product door does not open easily from the inside and children may be seriously injured if trapped inside. - Page 6 CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
- Page 7 WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated. Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
- Page 8 WARNING: Critical installation WARNINGS The installation of this appliance must be performed by a qualified technician or service company. • Failure to do so may result in electric shock, fire, an explosion, problems with the product, or injury. The appliance is heavy, therefore take care when lifting it. Plug the power cord into an AC 220 - 240 V / 50 Hz wall socket or higher and use the socket for this appliance only.
- Page 9 CAUTION: Installation CAUTIONS This appliance should be positioned in such a way that the power plug is easily accessible. • Failure to do so may result in electric shock or fire due to electric leakage. Install your appliance on a solid, level floor that can support its weight. •...
- Page 10 • Failure to do so may result in electric shock or fire. If any foreign substance enters into the appliance, unplug the power plug and contact you nearest Samsung Customer Service. • This may result in electric shock or fire.
- Page 11 Do not spray volatile material such as insecticide onto the surface of the appliance. • As well as being harmful to humans, this may result in electric shock, fire or problems with the product. Do not place objects that generate electromagnetic fields near the washing machine. •...
-
Page 12: Instructions About The Weee
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. For information on Samsung’s environmental commitments and product specific regulatory obligations e.g. REACH visit: samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html English - 12... -
Page 13: Setting Up Your Washing Machine
Carefully unpack your washing machine, and make sure you’ve received all of the parts shown below. If your washing machine was damaged during shipping or if you do not have all of the parts, contact the Samsung Customer Service or your Samsung dealer. -
Page 14: Meeting The Installation Requirements
Meeting the installation requirements Electrical supply and grounding WARNING: Never use an extension cord. Use only the power cord that comes with your washing machine. When preparing the installation, ensure that your power supply offers: • An AC 220 - 240 V / 50 Hz fuse or circuit breaker •... -
Page 15: Drain
Drain Samsung recommends a standpipe height of 65 cm. The drain hose must be routed through the drain hose clip to the standpipe. The standpipe must be large enough to accept the outside diameter of the drain hose. The drain hose is attached at the factory. -
Page 16: Installing Your Washing Machine
Installing your washing machine CAUTION: Do not plug the power cord into a wall socket before the installation is complete. WARNING: Packaging materials can be dangerous to children; keep all packaging material (plastic bags, polystyrene, etc.) well out of the reach of children. STEP 1 - Selecting a location Before you install the washing machine, make sure the location: •... -
Page 17: Connecting The Water Supply Hose
STEP 3 - Adjusting the levelling feet When installing your washing machine, ensure that the power plug, the water supply, and the drain are easily accessible. 1. Slide the washing machine into position. 2. Loosen all the lock nuts with the wrench. 3. - Page 18 3. First, loosen the four screws on the adaptor using a '+’ type screwdriver. part (D) part (E) Next, hold and turn following the arrow until there is a 5 mm gap. (*): 5 mm 4. Connect the adaptor to the water tap by tightening all the screws firmly while lifting the adaptor upwards.
-
Page 19: Connecting The Drain Hose
Connecting the hot water supply hose (selected models) 1. Connect the red L-shaped arm fitting for the hot water supply hose to the hot water supply intake at the back of the washing machine. Then part (A) tighten it by turning clockwise by hand. - Page 20 3 seconds. STEP 7 - Running Calibration Mode Your Samsung washing machine detects the weight of the laundry automatically. For a more accurate weight detection, it is recommended running Calibration Mode immediately after installing the washing machine. Follow the steps below to run Calibration Mode.
-
Page 21: Using Your Washing Machine
Using your washing machine With your new Samsung washing machine, the hardest part of doing laundry will be deciding which load to wash first. Detergent and Additives Information Using the proper detergent The type of detergent you should use is based on the type of fabric (cotton, synthetic, delicate items, wool), colour, wash temperature, and degree of soiling. - Page 22 1. Pull out the detergent drawer at the top left of the washing machine. 2. Add the recommended amount of laundry detergent into the main wash detergent compartment before starting your washing machine. To use liquid detergent, use the liquid detergent container (refer to the "Using liquid detergent (selected models)"...
-
Page 23: Using Liquid Detergent (Selected Models)
Using liquid detergent (selected models) liquid detergent container (A) To use liquid detergent, place the into the main wash detergent compartment of the detergent drawer and pour liquid detergent into the liquid detergent container. Do not exceed the MAX line on the liquid detergent container. After a wash, some liquid detergent may remain in the detergent drawer. -
Page 24: Basic Instructions
Basic instructions 1. Turn on the water supply to the washing machine. 2. Add your laundry loosely into the drum without overfilling it. CAUTION: Do not overload the washing machine. To determine the load capacity for each type of laundry, refer to the "Determining the load capacity" section on page 36. Do not wash water-proof items in a normal cycle except with the Outdoor Care cycle. -
Page 25: Using The Control Panel
Using the control panel 9 10 1. Cycle Selector Select the tumble pattern and spin speed for the cycle. For more information on each cycle, refer to the "Using the Cycle Selector" section on page 27. 2. LCD display Displays the remaining wash cycle time, all cycle information, and error codes. 3. - Page 26 8. Intensive Wash button Press this button when the laundry is heavily soiled and needs to be washed intensively. The cycle time is increased for each cycle. 9. Pre Wash button Press this button to prewash your laundry before the main wash cycle. The Pre Wash function is only available with the Cotton, Synthetics, Super Eco Wash and Baby Care cycles.
-
Page 27: Using The Cycle Selector
Using the Cycle Selector Cycle Usage For averagely or lightly soiled cottons, bed linen, table linen, underwear, towels, Cotton shirts, etc. For averagely or lightly soiled blouses, shirts, etc., made of polyester (diolen, trevira), Synthetics polyamide (perlon, nylon) or other similar blends. A high temperature wash and extra rinse cycles ensure that no detergent remains Baby Care to harm your baby’s skin. -
Page 28: Eco Display
Eco Display The Eco Display function is eco-friendly, automatically decreasing the brightness of the LCD backlight if you do not touch the controls on your washing machine for the specified period of time. Activating/Deactivating Press the Start/Pause button, and then the Eco Display function is automatically activated after 1 minute. Unless you press the Start/Pause button, the Eco Display function cannot be activated. -
Page 29: Delay End
Delay End You can set the washing machine to finish your wash automatically at a later time, choosing a delay of between 3 to 19 hours (in 1 hour increments). The hour displayed indicates the time when the wash will finish. 1. -
Page 30: Eco Bubble
Eco Bubble The Eco Bubble function creates bubbles inside the drum that help the detergent penetrate into the fabric faster and more effectively. The Eco Bubble function produces cleaner results in less time and even protects the fabric from damage. The Eco Bubble function is activated by default for all cycles except for the Eco Drum Clean cycle and you can activate/deactivate this function if necessary. -
Page 31: Air Wash
Air Wash The Air Wash function refreshes garments through Samsung’s unique air-washing technology without the need for water. Refer to the chart below for the usage and cycle time of each Air Wash cycle. Cycle Usage Cycle time Use this cycle to remove bad odors from the Deodorization 29 min. -
Page 32: Doing Laundry
Doing laundry Doing laundry using the Cycle Selector Your new washing machine makes washing laundry easy, using Samsung’s automatic control system "Fuzzy Control". When you select a wash cycle, the machine will set the correct temperature, washing and drying time, and washing speed. - Page 33 11. Press the Start/Pause button to start the wash. The progress indicator will light up and the remaining time for the cycle will appear on the display. Both the total cycle time and the number of rinse cycles in the Cotton cycle may vary depending on the amount of laundry.
- Page 34 Using the drying options All drying options except for the Time Dry option detect the weight of the laundry in order to display a more accurate drying time and dry the laundry more effectively. Refer to the chart below to select the appropriate drying option according to the type and amount of laundry and the moisture you want to leave.
-
Page 35: Doing Laundry Manually
Doing laundry manually You can do laundry manually without using the Cycle Selector. 1. Turn on the water supply to the washing machine. 2. Open the door. 3. Add your laundry loosely into the drum without overfilling it. 4. Close the door. 5. - Page 36 Prewashing cotton Your new washing machine, combined with modern detergents, will give perfect washing results, saving you energy, time, water and detergent. However, if your cotton is particularly dirty, perform a prewash cycle with a protein-based detergent. Determining the load capacity Do not overload the washing machine or your laundry may not wash properly.
-
Page 37: Cleaning Your Washing Machine
Cleaning your washing machine Keeping your washing machine clean improves its performance, reduces the need for unnecessary repairs, and lengthens its life. CAUTION: Never use the Eco Drum Clean cycle when laundry is in the washing machine. This may result in damage to the laundry or a problem with the washing machine. -
Page 38: Eco Drum Clean Auto Alarm Function
Eco Drum Clean auto alarm function After a wash, if it is detected that cleaning the drum is required, the Eco Drum Clean alarm screen will appear for 60 minutes. In this case, remove Eco Drum Clean the laundry from the washing machine and clean the drum by running the Eco Drum Clean cycle. -
Page 39: Draining The Washing Machine In An Emergency
Draining the washing machine in an emergency If there is a power outage, drain all remaining water before removing your laundry. 1. Unplug the washing machine from the electrical outlet. 2. Open the filter cover (A) by using a coin or key. 3. -
Page 40: Cleaning The Debris Filter
Cleaning the debris filter We recommend cleaning the debris filter at least 5 or 6 times a year, or when the "5E" error code is displayed. If foreign substances accumulate at the debris filter, the performance of the Eco Bubble function will be reduced. CAUTION: Before cleaning the debris filter, make sure to unplug the washing machine from the electrical outlet. -
Page 41: Cleaning The Detergent Drawer And Drawer Recess
Cleaning the detergent drawer and drawer recess 1. Press the release lever (A) on the inside of the detergent drawer and pull the detergent drawer out. 2. Remove the release lever (A) and the liquid detergent guide from the detergent drawer. 3. -
Page 42: Maintaining Your Washing Machine
Maintaining your washing machine Repairing a frozen washing machine If the temperature drops below freezing and your washing machine is frozen: 1. Unplug the washing machine from the electrical outlet. 2. Pour warm water over the water tap to loosen the water supply hose(s). 3. -
Page 43: Troubleshooting And Information Codes
Troubleshooting and information codes Check these points if your washing machine... PROBLEM SOLUTION • Make sure your washing machine is plugged in. • Make sure the door is firmly closed. Will not start • Make sure the water supply tap(s) are turned on. Make sure to press the Start/Pause button. -
Page 44: Information Codes
The cooling cycle automatically runs to decrease the internal temperature. Wait until the cooling cycle finishes. For any codes not listed above, or if the suggested solution doesn’t fix the problem, call the Samsung Customer Service or your Samsung dealer. -
Page 45: Cycle Chart
Cycle chart Cycle chart user option) DETERGENT CYCLE Max load (kg) Max Temp (˚C) Spin Speed (MAX) rpm Prewash Wash Softener Cotton 1400 Synthetics 1200 Baby Care 1400 15' Quick Wash Eco Drum Clean Deodorization Sanitization Cotton Dry Synthetics Dry Super Eco Wash 1200 Outdoor Care... -
Page 46: Appendix
Appendix Fabric care chart The following symbols provide garment care directions. The care labels include four symbols in this order: washing, bleaching, drying and ironing (and dry cleaning when necessary). The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow the care label directions to maximize garment life and reduce laundery problems. -
Page 47: Specifications
Specifications TYPE FRONT LOADING WASHING MACHINE MODEL NAME WD12F9C9U4* WASH AND SPIN CAPACITY 12.0 kg DRY CAPACITY 8.0 kg DIMENSIONS W600×D600×H850 (mm) WATER PRESSURE 50 kPa ~ 800 kPa WATER VOLUME 78 ℓ NET WEIGHT 77 kg 220 V 150 W WASHING 240 V 150 W... -
Page 48: Sheet Of Household Combined Washer-Driers
Sheet of household combined washer-driers According to Regulation (EU) No. 96/60/EC “ * “ Asterisk(s) means variant model and can be varied (0-9) or (A-Z). Samsung Model Name WD12F9C9U4* Energy Efficiency Class A (most efficient) to G (least efficient) Energy Consumption Washing, spinning, and drying 8.16... - Page 49 Memo Untitled-1 49 2015-11-06 4:25:22...
- Page 50 Memo Untitled-1 50 2015-11-06 4:25:22...
- Page 51 Memo Untitled-1 51 2015-11-06 4:25:22...
- Page 52 QUESTIONS OR COMMENTS? COUNTRY CALL OR VISIT US ONLINE AT 0330 SAMSUNG (7267864) www.samsung.com/uk/support EIRE 0818 717100 www.samsung.com/ie/support DC68-03357H-02 Untitled-1 52 2015-11-06 4:25:22...
