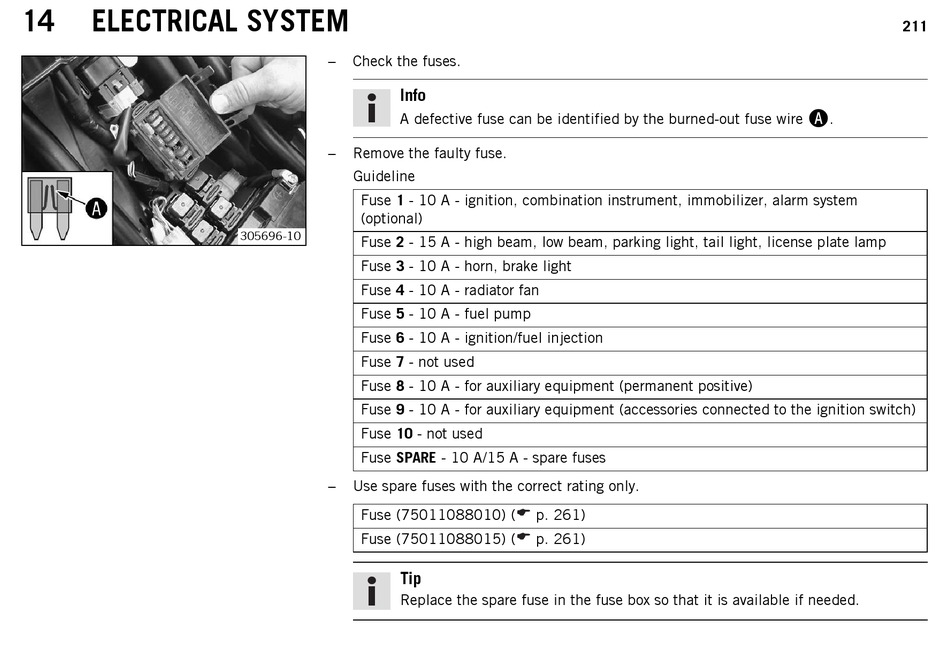

14 ELECTRICAL SYSTEM
–
Check the fuses.
Info
A defective fuse can be identified by the burned-out fuse wire
–
Remove the faulty fuse.
Guideline
Fuse 1 - 10 A - ignition, combination instrument, immobilizer, alarm system
(optional)
305696-10
Fuse 2 - 15 A - high beam, low beam, parking light, tail light, license plate lamp
Fuse 3 - 10 A - horn, brake light
Fuse 4 - 10 A - radiator fan
Fuse 5 - 10 A - fuel pump
Fuse 6 - 10 A - ignition/fuel injection
Fuse 7 - not used
Fuse 8 - 10 A - for auxiliary equipment (permanent positive)
Fuse 9 - 10 A - for auxiliary equipment (accessories connected to the ignition switch)
Fuse 10 - not used
Fuse SPARE - 10 A/15 A - spare fuses
–
Use spare fuses with the correct rating only.
Fuse (75011088010) (
Fuse (75011088015) (
Tip
Replace the spare fuse in the fuse box so that it is available if needed.
p. 261)
p. 261)
