Part List - Makeblock mDrawBot Kit User Manual

※Warning: Keep this kit out of the reach of children or animals.
Small parts may cause choking or serious injur y if swallowed.
19

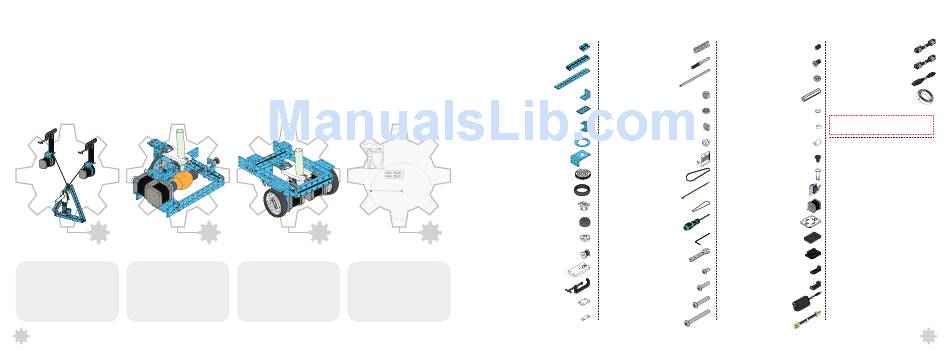

mSpider mEggBot
·
· mSpider is one form of this four-in-one mEggBot is one form of this four-in-one
drawbot which enables you to draw on drawbot which enables you to draw on
a blackboard or a wall. Refer here to an egg or a ping-pong. Refer here to see
the assembly of mEggBot.
see the assembly of mSpider.
2
24 31
mCar Wiring and Software
·
· mCar is one form of this four-in-one To enable the Drawbot to move, it's
drawbot which enables you to draw on the required to use the software mDraw with
ground. Refer here to see the assembly of the Drawbot. Refer here to see the
mCar. instruction for wiring, software, and
related details.
1× Beam0824-032
2× Beam0824-096
3× Beam0324-184
3× Bracket 3×3
3× Plate 3×6
1× Bracket U1
4× Timing Pulley Slice 90T
2× 42BYG Stepper Motor Bracket
2× Plastic Timing Pulley 90T
2× Tire 90T B
1× Caster Wheel
2× Rubber Blanket
35
2× Shaft Connector 4mm
2× Timing Pulley 18T
1× Pen Holder and V Clamp
2× 2 inch G Clamp
1× Plastic Hinge
1× Plastic Hinge Gasket

Part List

1× Spring 0.6×6×50 6× Headless Set Screw M3×5
1× Threaded Shaft 4×39mm 8× Countersunk Screw M3×8
1× Circle Shaft 4×80mm 50× Nut M4
2× Shaft Collar 4mm 4× Nylon Stud M4×30
5× Flange Bearing 4×8×3mm 2× Plastic Ring 4×8×1mm
1× Square Nut M4 8× Plastic Ring 4×7×3mm
3× Nylon Cap M4 4× Plastic Ring 4×7×10mm
1× Polyester Thread(8m) 2× Plastic Rivet R4060
2× Timing Belt 112MXL 4× Plastic Rivet R4120
1× 9g Micro Ser vo Pack
10× Nylon Cable Tie 2×100
1× Rubber Bank 2× 42BYG Stepper Motor
1× Cross&2.5mm HEX Screwdriver 2× Base Bracket
1× Batter y Holder
1× HEX Key 1.5mm
1× Makeblock Orion
1× Wrench 5mm&7mm
2× Me Stepper Motor Driver
26× Screw M4×8
1× RJ25 Adapter
42× Screw M4×16
1× AC/DC Adapter 12V2A
5× Screw M4×22
1× 9g Ser vo Extension Cord
1× Screw M4×35
2× 6 P6C RJ25 Cable-20cm
1× 6 P6C RJ25 Cable-35cm
1× Micro USB Cable
1× tape 100cm（Paper）
※All pictures in this manual do not
represent the actual scale of them.
3
