3.2 CONNECTOR DIAGRAM

The PCI-DIO96 I/O connector is a 100-pin type connector accessible from the rear of
the PC at the expansion backplate See Figure 3-1 below for the board pin out.

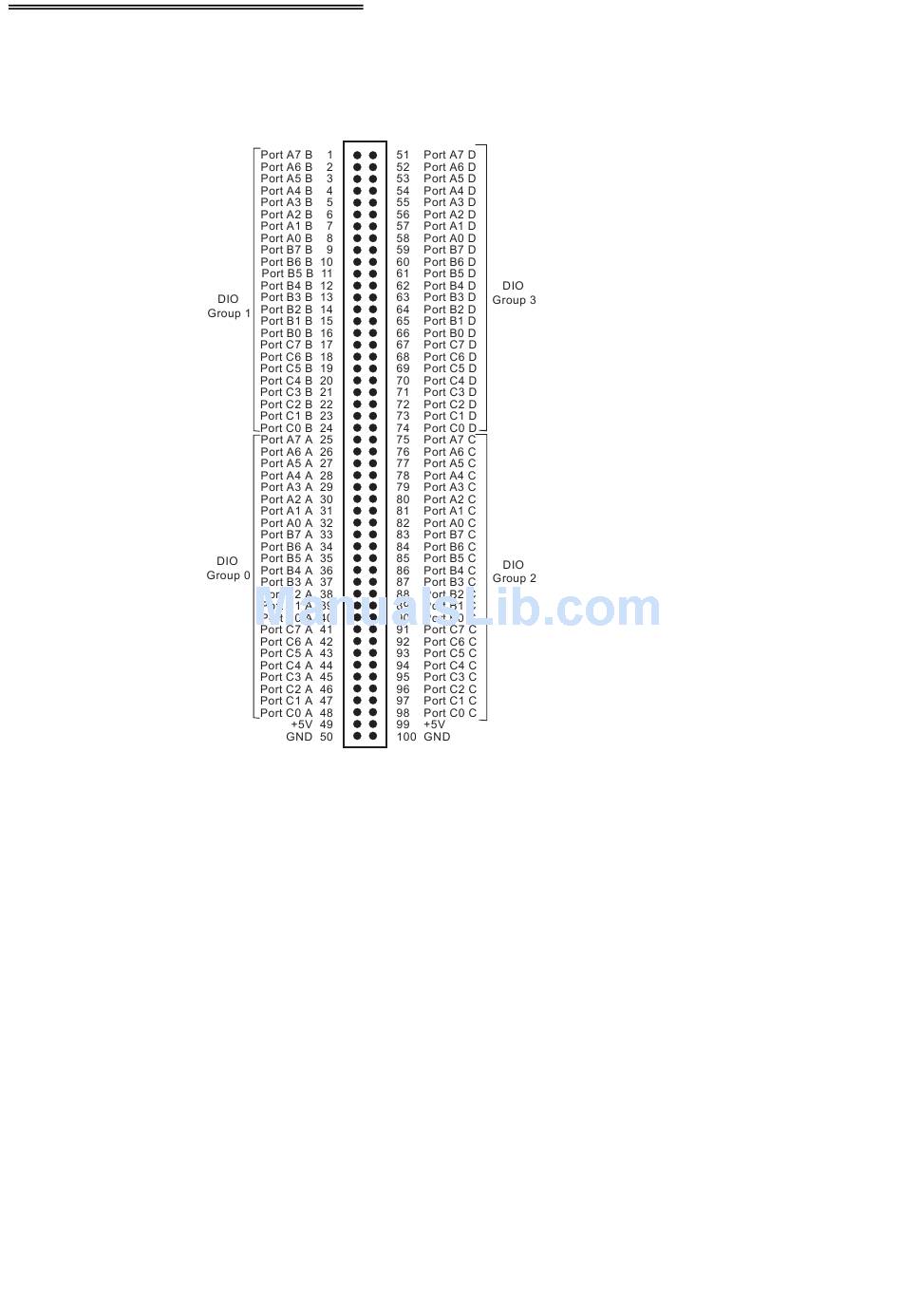

Figure 3-1. PCI-DIO96 100-Pin Connector Pin Out
3
