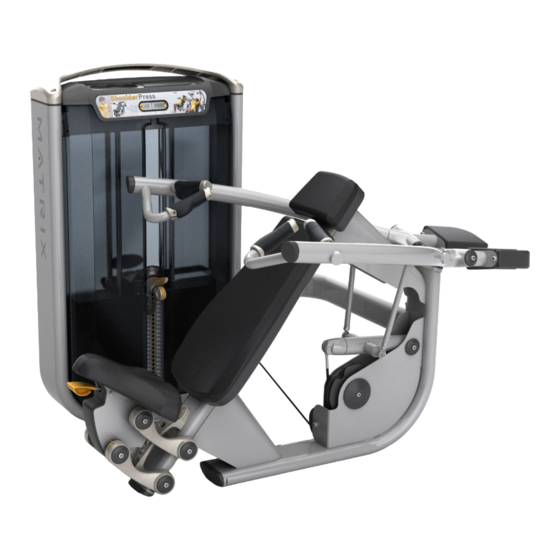

Matrix G7-S23 Owner's Manual

Ultra single-station strength
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

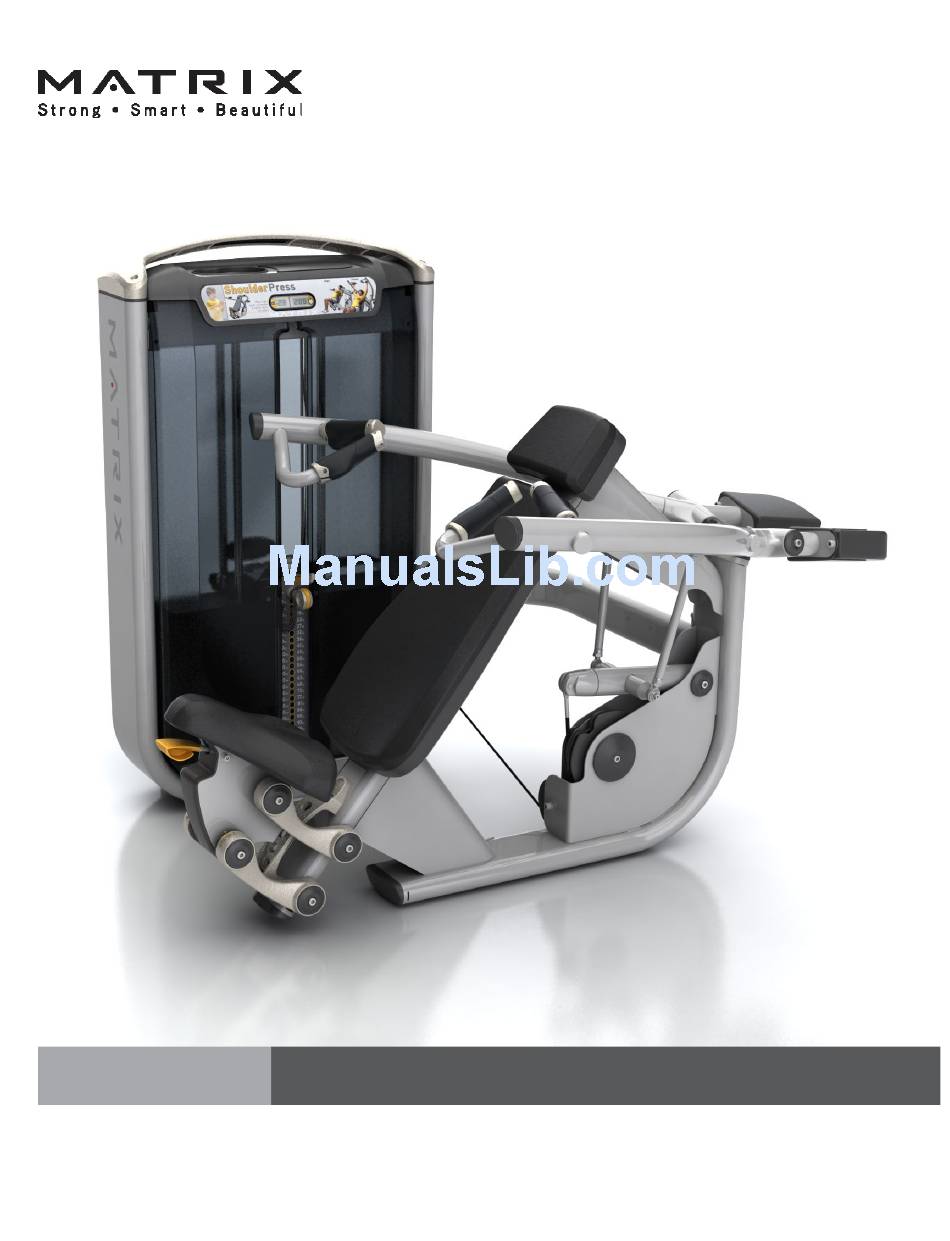

OWNERS MANUAL
ULTRA Single-Station Strength
G7-S23 Shoulder Press

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G7-S23 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Matrix G7-S23

Summary of Contents for Matrix G7-S23

  • Page 1 OWNERS MANUAL ULTRA Single-Station Strength G7-S23 Shoulder Press...

  • Page 2: Table Of Contents

    Table Of Contents Safety, General Care & Maintenence ........................3 Getting Started (Product Specifications) ......................5 Assembly Information .............................6 Markings ..................................7 Parts List ...................................8 Installation & Assembly: Value Line Part 1 Weight Stack & User Frame Assembly ..................10 Part 2 CAM/Cable Assembly ........................14 Part 3 Seat Assembly ..........................

  • Page 3: Safety, General Care & Maintenence

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INFORMATION It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or supervising personnel on proper usage of the equipment. It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. WARNING: SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW THESE PRECAUTIONS TO AVOID INJURY! Never allow children on strength training equipment. Teenagers must be supervised at all times while using this equipment.

  • Page 5: Getting Started (Product Specifications)

    GETTING STARTED EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST EXERCISE PLACARD PRODUCT SPECIFICATIONS TECH SPECS Maximum User Weight 136 kg / 300 lbs. Maximum Training Weight 109 kg / 240 lbs. Product Weight 375 kg / 827 lbs. Overall Dimensions (L x W x H) 166.5 x 144.5 x 165.3 cm / 65.6"...

  • Page 6: Assembly Information

    UNPACKING Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your Ma- trix product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the machine.

  • Page 7: Markings

    MARKINGS WARNING LABEL LOCATIONS...

  • Page 8: Parts List

    Parts List DESCRIPTION M10 Nylock Nut Weight Stack M10 Flat Washer M10 X 75L Socket Head Cap Screw Upper Connecting Tube Lower Connecting Tube M10 X 30L Socket Head Cap Screw M10 Saddle Washer User Frame M10 X 45L Socket Head Cap Screw Pulley Weight Stack Cable M10 X 55L Socket Head Cap Screw...
  • Page 9 Parts List DESCRIPTION M8 Flat Washer Counter Weight Head Rest Assembly M10 X 75L Button Head Cap Screw Back Pad Assembly M10 X 20L Hex Bolt Rear Shroud Left Front Shroud Right Front Shroud M8 X 60L Socket Head Cap Screw Top Cap...

  • Page 10: Part 1 Weight Stack & User Frame Assembly

    ASSEMBLY PART 1: USER FRAME ASSEMBLY STEP 1 | USER FRAME INSTRUCTIONS & NOTES DESCRIPTION QUANITY M10 Nylock Nut Weight Stack M10 Flat Washer M10 X 75L SHC Upper Connecting Tube Lower Connecting Tube M10 X 30L SHC Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .
  • Page 11 ASSEMBLY PART 1: USER FRAME ASSEMBLY STEP 2 | USER FRAME INSTRUCTIONS & NOTES DESCRIPTION QUANITY M10 X 30L SHC M10 Saddle Washer User Frame View A • Install the user frame hardware as shown, being sure to orient the saddle washer as shown in View A.
  • Page 12 ASSEMBLY PART 1: USER FRAME ASSEMBLY STEP 3 | WEIGHT STACK CABLE INSTRUCTIONS & NOTES DESCRIPTION QUANITY M10 Flat Washer M10 X 45L SHC Pulley Weight Stack Cable Torque to: 77 N-m/57 ft-lbs.
  • Page 13 ASSEMBLY PART 1: USER FRAME ASSEMBLY STEP 4 | PIVOT BLOCK ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY M10 X 55L SHC Pivot Block Assembly Hand thread M10 bolts and leave loose ***Note: Pivot Block is symmetrical*** Axles must be red Loctited (Loctite 272) and torqued to: 180 N-m/133 ft-lbs.

  • Page 14: Part 2 Cam/Cable Assembly

    ASSEMBLY PART 2: CAM/CABLE ASSEMBLY STEP 1 | CAM & CABLE ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY M10 Nylock Nut M10 Flat Washer Large Pivot Cap M10 X 105L SHC Tighten to 77 N-m/57 ft-lbs. Separate CAM to assemble weight stack cable as shown. Capture cable with forked clip and orient as shown.

  • Page 15: M10 Flat Washer

    ASSEMBLY PART 2: CAM/CABLE ASSEMBLY STEP 2 | SWINGARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY M10 Nylock Nut M10 Flat Washer M10 X 105L SHC Swingarm Medium Pivot Cap Tighten to 77 N-m/57 ft-lbs. 19 17...

  • Page 16: User Frame

    ASSEMBLY PART 2: CAM/CABLE ASSEMBLY STEP 3 | CABLE TO SWINGARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY M6 Nylock Nut User Frame Cable (Pre-assembled to CAM) M6 Shoulder Bolt Torque to 16 N-m/142 in-lbs. CAM must be oriented as shown...

  • Page 17: Part 3 Seat Assembly

    ASSEMBLY PART 3: SEAT ASSEMBLY STEP 1 | SEAT LINK ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY Medium Pivot Cap M8 X 25L SHC Seat Link Axle Spring Seat Tighten to 39 N-m/29 ft- lbs. Ensure bottom links are assembled correctly by testing spring tension Outer tab of spring must be secured behind frame reaction bar...
  • Page 18 ASSEMBLY PART 3: SEAT ASSEMBLY STEP 2 | SEAT ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY Medium Pivot Cap M8 X 25L SHC Seat Link Axle Spring Rotate seat to engage pull pin Assemble upper axles, links and pivot caps Tighten to 39 N-m/29 ft-lbs.

  • Page 19: Part 4 Arm Assembly

    ASSEMBLY PART 4: ARM ASSEMBLY STEP 1 | TIE ROD TO SWINGARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY Tie Rod (Right Side Not Shown) M6 Flat Washer (Right Side Not Shown) M6 X 12L SHC (Right Side Not Shown) Torque to 16 N-m/142 in-lbs.
  • Page 20 ASSEMBLY PART 4: ARM ASSEMBLY STEP 2 | LEFT AND RIGHT* ARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY Wave (Spring) Washer Left Arm Snap Ring Small Pivot Cap M10 X15L SHC Right Arm *Only left arm assembly is shown Apply blue Loctite 242 and tighten to 77 N-m/57 ft-lbs.

  • Page 21: M6 Flat Washer

    ASSEMBLY PART 4: ARM ASSEMBLY STEP 3 | TIE ROD TO ARM ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY M6 Flat Washer (Right Side Not Shown) M6 X 12L SHC (Right Side Not Shown) Torque to 16 N-m/142 in-lbs.

  • Page 22: M8 Flat Washer

    ASSEMBLY PART 4: ARM ASSEMBLY STEP 4 | COUNTER WEIGHT ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY M8 X 20L SHC M8 Flat Washer Counter Weight...
  • Page 23 ASSEMBLY PART 4: ARM ASSEMBLY STEP 5 | ARM POSITIONING INSTRUCTIONS & NOTES DESCRIPTION QUANITY Optional Jig Arm Leveling & Positioning fixture Before fully tightening the pivot block, ensure that the arms are symmetrical about the centerline of the machine. The left and right hand grips should be at the same height to each other and be equidistant to the centerline of the user.

  • Page 24: Part 5 Pad Assembly

    ASSEMBLY PART 5: PAD ASSEMBLY STEP 1 | BACK PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY Head Rest Assembly M10 X 75L BHC Back Pad Assembly 42 41 Install the pad as shown. Tighten to 27 N-m/20 ft-lbs.
  • Page 25 ASSEMBLY PART 5: PAD ASSEMBLY STEP 2 | BOTTOM PAD ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY M10 X 20L Hex Bolt Install the pad as shown. Tighten to 27 N-m/20 ft-lbs.

  • Page 26: Part 6 Plastics Assembly

    ASSEMBLY PART 6: PLASTICS ASSEMBLY STEP 1 | SHROUD ASSEMBLY ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY Rear Shroud Left Front Shroud Right Front Shroud Install the weight stack shrouds as shown.
  • Page 27 ASSEMBLY PART 6: PLASTICS ASSEMBLY STEP 2 | TOP CAP ASSEMBLY INSTRUCTIONS & NOTES DESCRIPTION QUANITY M8 X 60L SHC Top Cap I M PO RTA NT NOTI CE Install the top cap and connect rep counter plug as shown. PLEASE NOTE: Torque to 17 N-m/147 in-lbs.
  • Page 28 Matrix Fitness 1600 Landmark Drive Cottage Grove WI 53527 matrixfitness.com Toll-free 866.693.4863 Facsimilie 608.839.8687 ULTRA Shoulder Press Owners Guide rev.1.2 Copyright© 2014 Matrix Fitness...
