Connections To Appliance - Slant/Fin EUTECTIC EC10DV Series Installation Instructions Manual

TRDV SERIES

CONNECTIONS TO APPLIANCE

Using Figures 10 and 11 complete the following steps:
1. Connect the appliance adapter to the vent pipe as per joint
assembly.
2. Apply a bead of sealant around the appliance flue collar.
3. Slide the appliance adapter over the appliance flue collar.
4. Tighten the gear clamp of the appliance adapter around the
flue collar.
5. Seal the seam in the adapter with sealant.
6. Install burner air adapter.

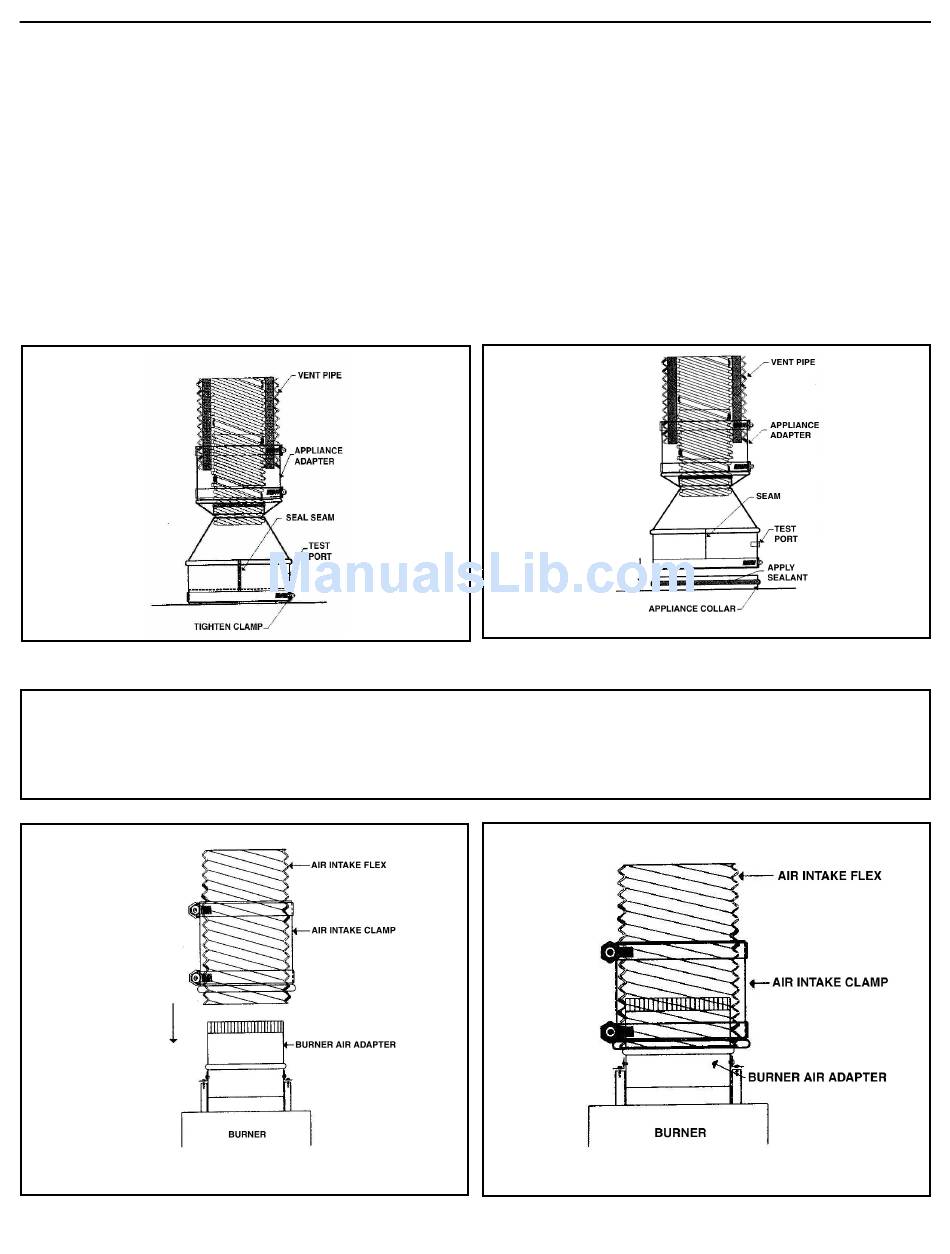

FIGURE 10: Connection to appliance
Utilize the appliance adapter
test port for combustion testing.
FIGURE 12: Connection to burner
7. Air intake piping is field supplied and must be installed accord-
ing to local code requirements. Galvanized flue pipe or Flex L
air intake piping can be used. For optional Flex L air intake pip-
ing, stretch the air intake flex to desired length and slide over
the air intake collar. Slide the end of the air intake piping over
the burner air adapter. Seal the connection with aluminum tape
and secure using air intake clamp. Beaded end of the air intake
clamp should go first over burner air adapter. See figures 12-13
on the bottom of this page.
8. A vacuum relief valve must be installed on the air intake side of
the venting system. Locate the vacuum relief valve as close as
possible to burner inlet. Follow the vacuum relief (draft regula-
tor) manufacturer's instructions for installation. See figures 14
and 15 for vacuum relief valve.
FIGURE 11: Connection to appliance
FIGURE 13: Connection to burner
7
