CONNECTIONS TO THE OUTSIDE TERMINAL

Use Figure 8 and Figure 9 to complete the following steps.
1. Slide the inner section over the vent pipe.
2. Connect the inner adapter to the vent pipe as per joint
assembly.
3. Apply a bead of sealant around the terminal flue collar.
4. Slide the appliance adapter over the flue collar.
5. Tighten the gear clamp of the terminal adapter around the flue
collar.
6. Seal the seam in the adapter with sealant.

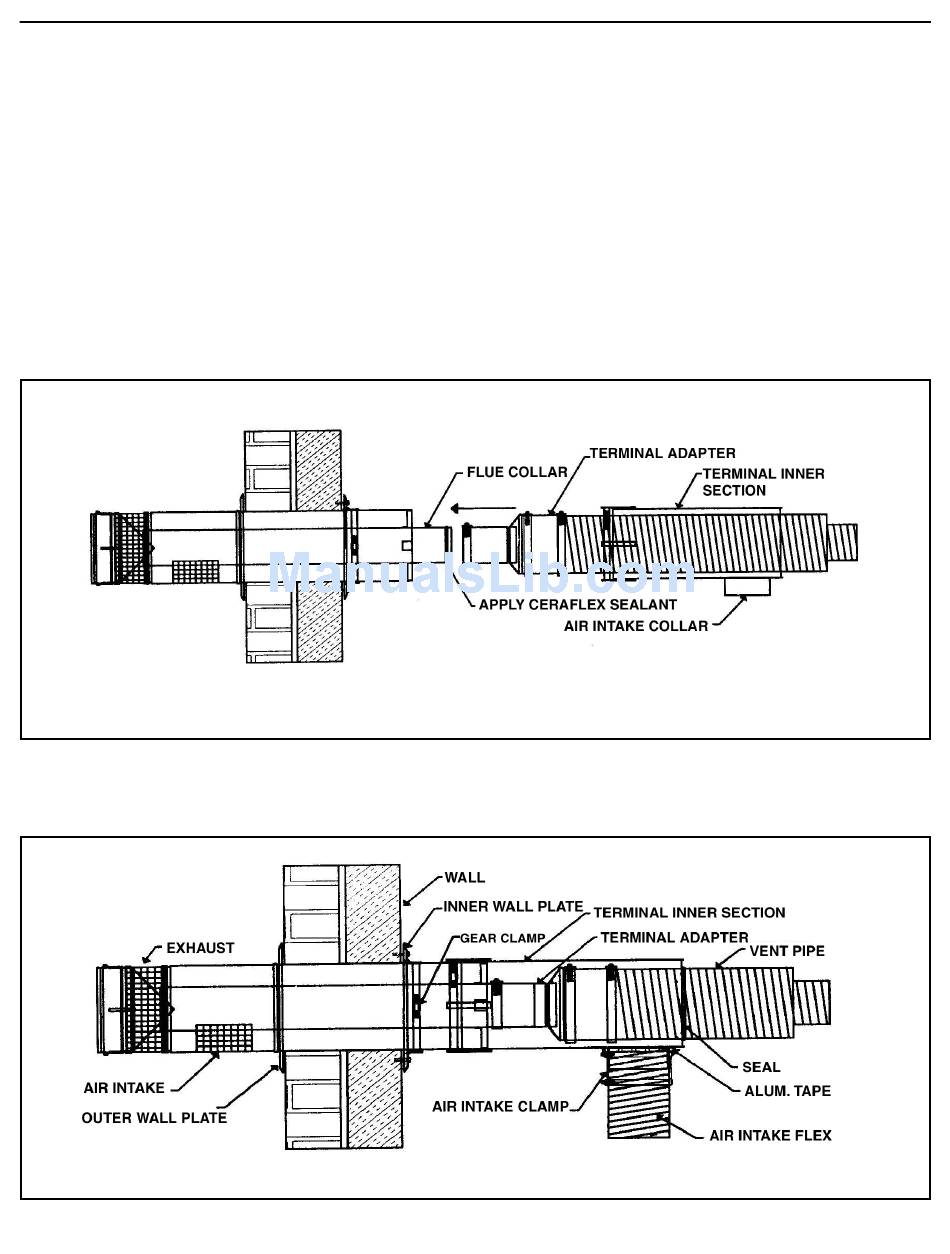

FIGURE 8: Vent terminal to flue pipe connection
FIGURE 9: Connection to fresh air intake
7. Slide the inner section over the outer section and secure by
tightening the gear clamp.
8. Air intake piping is field supplied and must be installed
according to local code requirements. Galvanized flue pipe or
Flex L air intake piping can be used. For optional Flex L air
intake piping, stretch the air intake flex to desired length and
slide over the air intake collar. Seal the connection with the
aluminum tape and secure using air intake clamp. Beaded end
of (Figure 7) the air intake clamp should go first over the air
intake collar.
9. All seams and gaps should be sealed. For the Flex L piping,
seal the gap between the vent pipe and the inner section with
silicone sealant.
