Pasm In Your Browser - Promise Technology SMARTSTOR ns2300n Quick Start Manual

PASM in your Browser

To log into PASM in your browser:
1. Start your Browser.
2. In the Browser address field, type in the IP address of the SmartStor.
See "Finding the SmartStor's IP Address" on page 10.
Note that the IP address shown below is only an example. The IP address
you type into your browser will be different.
• PASM uses an HTTP connection . . . . . . . . . . . . . . . . . . . . . . .http://
• Enter the SmartStor's IP address . . . . . . . . . . . . . . . 192.168.1.194
Together, your entry looks like this: http://192.168.1.194

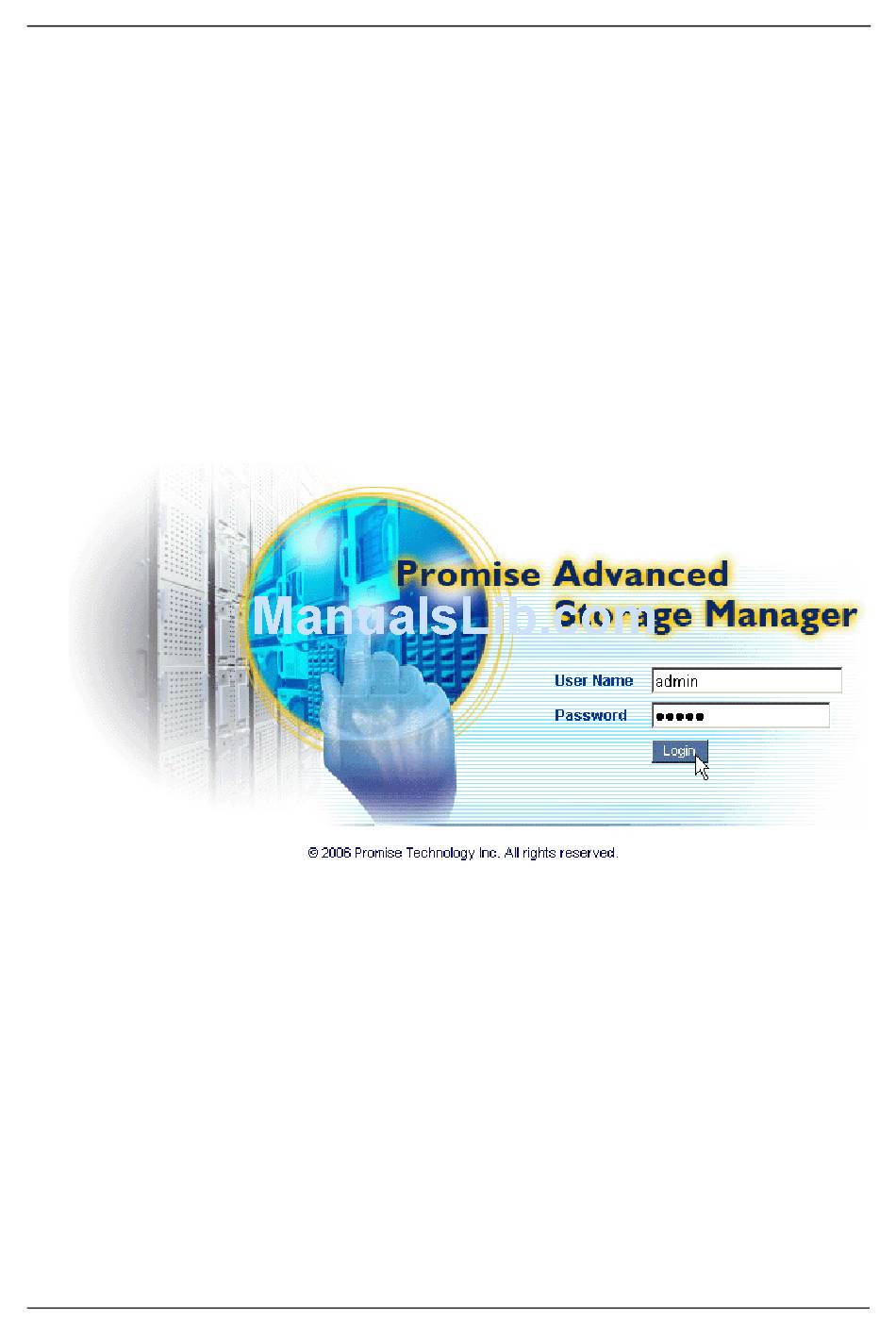

The PASM login screen displays.
3. Type admin in both the User Name and Password fields, then click the
Login button.
The user name and password are case sensitive.
For more information about PASM, see Chapter 6 of the SmartStor
NS4300N User Manual on the CD.
11
Step 8: Connecting to PASM
