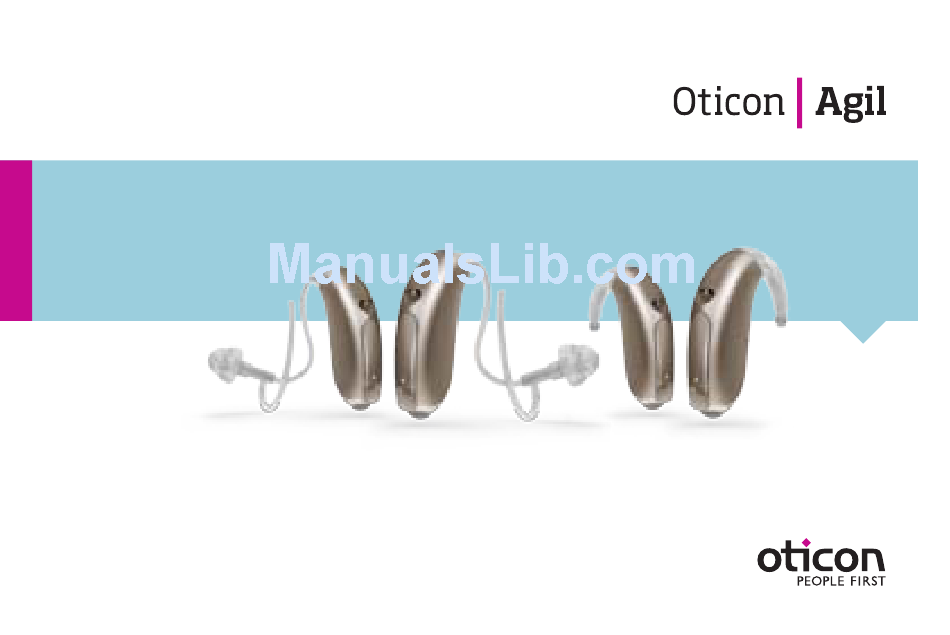

- Page 1 InstructIons for use miniBtE...
-
Page 2: Thank You
thank you Thank you for choosing our product as your means to better hearing. To support your efforts, we have put great care and attention into making sure that your new hearing instrument has the highest quality and is easy to use and maintain. We recommend that you read this manual carefully to achieve the maximum benefit of your new hearing instrument. - Page 3 Indications for use The hearing instrument is intended to amplify and transmit sound to the ear and hereby compensate for mild to moderate–to–severe impaired hearing.
- Page 4 Important notIcE Please familiarise yourself with the entire contents of this booklet before using your hearing instru ment. It contains instructions and important informa tion about the use and handling of your hearing instru ment and batteries.
-
Page 5: Table Of Contents
Instrument view miniBTE with Corda Instrument view miniBTE with Ear Mould Warnings Activating the hearing instrument for the first time Changing batteries Turning your instrument ON and OFF Left/Right ear marking Putting on your hearing instruments with a Corda... - Page 6 Handling of Corda Cleaning your hearing instrument with Corda (thin tube) Daily maintenance with Corda (thin tube) Domes Changing the Corda Dome Daily maintenance with Corda Micro Mould Cleaning the ear mould Avoiding heat, humidity and chemicals Using your hearing instrument Common problems and their solutions Wireless accessories International Warranty...
-
Page 7: Instrument View Minibte With Corda 2
Instrument view miniBtE with corda Microphone openings Your Earpiece: Thin tube Micro Mould Dome Push-button Plus Dome Sound outlet Open Dome: Small Medium Ear grip Battery door Large Battery Size 312... - Page 8 Important notIcE Open the battery compartment fully to allow air to circulate whenever you are not using your hearing instrument, especially at night!
-
Page 9: Instrument View Minibte With Ear Mould
Instrument view miniBtE with Ear mould Microphone openings Sound hook Plastic Tube Push-button Ventilations openings Sound outlet Battery door Ear mould Battery Size 312... - Page 10 Important notIcE Open the battery compartment fully to allow air to circulate whenever you are not using your hearing instrument, especially at night!
-
Page 11: Warnings
Warnings You should familiarize yourself fully with the following general warnings and the entire contents of this booklet before using your hearing instrument. Usage of hearing instruments • Hearing instruments should be used only as directed and adjusted by your Hearing Care Professional. - Page 12 • Batteries have occasionally been mistaken for pills. Therefore check your medicine carefully before swallowing any pills. • Never put your hearing instrument or batteries in your mouth for any reason, as they are slippery and could be swallowed by accident. • Most hearing instruments can be supplied with a tamper-resistant battery compart- ment upon request.
- Page 13 Active implants • Oticon shows caution and advise to follow the guideline as recommended by manufac- turers of implantable defibrillators and pacemakers regarding use of mobile phones. • If you wear an active implant, then keep the hearing instruments more than 15 cm away from the implant e.g.
- Page 14 X-ray, CT, MR, PET scanning and electrotherapy • Remove your hearing instrument for example during X-ray, CT / MR / PET scanning electrotherapy or surgery as your hearing instruments may be damaged when exposed to strong fields. Possible side effects • Hearing instruments or ear moulds may cause an accelerated accumulation of ear wax.
-
Page 15: Activating The Hearing Instrument For The First Time
activating the hearing instrument for the first time A hearing instrument is a miniature electronic device that runs on special batteries. To activate the hearing instrument, you must insert a fresh battery in the battery compartment. The hearing instrument will start up when the battery door is closed. It will take a few seconds until sound is produced. -
Page 16: Changing Batteries
changing batteries Your hearing instrument battery size is 312. A worn out battery should be removed immediately and disposed according to local regulations. You will hear 2 beeps when it is time to change the battery. This pre-warning will be repeated in moderate intervals until the battery runs out. - Page 17 To replace the battery, follow these instructions: • Open the battery door completely by pushing the raised edge in the bottom of the instrument. Remove the old battery. To assist with the handling of the batteries, the magnet at the end of the MultiTool can be used to help you. • Remove the sticky label from the + side of the new battery.
-
Page 18: Turning Your Instrument On And Off
turning your instrument on and oFF Turn on your hearing instrument by closing the battery door completely with the battery in place. When the battery door is closed the instrument will start up by playing a jingle. This indicates that the battery is working and the instrument is operating. Turn off your hearing instrument by opening the battery door slightly until a click is felt. -
Page 19: Left/Right Ear Marking
Left/right ear marking Hearing instruments are fitted to the uniqueness of each ear, which means if you have two instruments then your left hearing instrument is programmed differently from your right. That is why it is important to distinguish between the left hearing instrument and the right. -
Page 20: Putting On Your Hearing Instruments With A Corda
putting on your hearing instruments with a corda (thin tube) Dome Putting on your hearing instrument with a thin tube correctly every time, takes practice: 1. Place the hearing instrument behind your ear. 2. Hold the bend of the tube between your thumb and index finger. -
Page 21: Putting On Your Instrument With Ear Mould
putting on your instrument with ear mould 1. Place the tip of the ear mould in your ear canal, twisting slightly, making sure that the top part of the ear mould (A) is pushed behind and under the fold (B) of your ear. 2. -
Page 22: Push-Button
push-button Your hearing instrument has a push-button. If you have one instrument, the push button can be used for switching between different programs. If you have two instruments, the push-button can be used for both adjusting the volume and switching between programs. Finally, the push-button can be used to mute the instrument. - Page 23 The push-button on your hearing instrument can be programmed to one of 3 functionalities. Left Right only program shift: Press shortly to change program. only volume control: (Only if you have two instruments!) Press shortly to adjust the volume. Both volume control and program shift: (Only if you have two instruments!) Press shortly to adjust the volume and press long (about 2 seconds) to shift program.
-
Page 24: Programs (Optional)
programs (optional) Your hearing instrument can have up to 4 different programs. The number and type of programs available in your hearing instrument is programmed by your Hearing Care Professional. When switching between the different programs, your hearing instrument will beep. The number of beeps will indicate which program you are using. - Page 25 Press the push-button to switch forwards in the program cycle, e.g. from P1–P2. If you have two instruments, then: The RIGHT hearing instrument switches forwards in the program cycle, e.g. P1–P2. The LEFT hearing instrument switches backwards in the program cycle, e.g. P2–P1. An overview and description of the hearing programs available in your hearing instrument is placed on the last page of this manual.
-
Page 26: Volume Control (Optional)
Volume control (optional) Only when using two instruments a volume control can be activated. The volume control allows you to adjust the volume in specific listening situations to the level you feel comfortable with. When pressing the push-button on one instrument, the volume is adjusted in both instruments simultaneously. -
Page 27: Mute (Optional)
mute (optional) Use the mute function if you need to silence the instrument while you have the instrument on. Push the button for a minimum of 3 seconds to mute the instrument. To reactivate the instrument, push the button briefly again. Push 3 sec. -
Page 28: Tamper-Resistant Battery Door (Optional)
tamper-resistant battery door (optional) A special battery door may be installed with your hearing instrument which protects against unintended operation of the battery door and battery. This is strongly recommended for infants, small children and people with learning difficulties. The battery door is designed only to be opened by using a tool. Use a small screwdriver to open the door by inserting it into the indent on the door side and then tip it. -
Page 29: Auto Phone (Optional)
auto phone (optional) The hearing instrument may have an Auto Phone functionality. When the hearing instrument is close to a telephone receiver, the Auto Phone will activate a Phone Program. When the Phone Program is activiated you will hear a number of beeps. When you end your telephone conversation, the hearing instrument will automatically return to the previous program. - Page 30 WarnIng If you use an Autophone magnet: • Keep magnets out of reach of children and pets. If a magnet is swallowed, see a doctor immediately. • Do not wear the magnet in a breast pocket and always keep it 30 cm away from active implanatable devices such as pacemakers, defibrillators etc.
-
Page 31: Caring For Your Hearing Instrument
caring for your hearing instrument Your ear canal produces ear wax (cerumen) which may clog up the sound outlet or the ventilation opening of your ear mould. To prevent wax accumulation from causing a change in performance, the guidelines in this section should be followed: When handling a hearing instrument, keep it over a soft surface to avoid damage if you drop it. - Page 32 Cleaning the instrument A range of dedicated cleaning tools is prepared for the special purpose of cleaning the instrument. These should be used to ensure the best care and performance of your hearing instruments. multitool Wire loop Magnet Cover Brush Handle The MultiTool contains a brush and a wire loop for the special purpose of cleaning wax from the ear mould.
- Page 33 Handling of corda Corda is a thin tube mounted as the hearing instrument sound output. If your hearing instrument is configured with a Corda solution you must refer to this section to ensure correct maintenance and cleaning procedures. How to change Corda (thin tube) 1.
- Page 34 cleaning your hearing instrument with corda (thin tube) To remove cerumen from the thin tube: • Pull tube out of the hearing instrument (1). • Insert the cleaning tool in the tube all the way through (2+3). • Remove the tool and push the tube into the hearing instrument (4).
- Page 35 Daily maintenance with corda (thin tube) Domes The dome should not be cleaned. When you require a fresh, clean dome, remove the existing one and put on a fresh one. We recommend the dome to be replaced at least once a month or as directed by your Hearing Care Professional.
- Page 36 changing the corda Dome The dome is easy to replace. Hold the widest part of the dome and pull it off from the connections joint on the tube (1). Place the new dome on the speaker (2) and ensure that it is fastened securely (3). Important notIcE The dome is made of a soft material.
- Page 37 Daily maintenance with corda micro mould The Mould should be cleaned regularly: • The vent in the mold is cleaned by pressing the brush through the hole while twisting it slightly. Replace the brush when necessary. Just pull it out of the tool and insert a new fresh brush.
- Page 38 HanDLIng oF corDa Important notIcE • Only use parts designed for your hearing instruments. • The cleaning tools should only be used for cleaning the tubing when it is detached from the hearing instrument and not on the ear. • The dome must be properly attached to the thin tube before inserting it in your ear. Failure to follow the instructions could result in injury.
-
Page 39: Cleaning The Ear Mould
cleaning the ear mould • Clean away any traces of wax from around the sound outlet with the brush. Hardened sediments can be removed by the wire loop in the MultiTool. • Clean the ventilation opening by pressing the brush through the hole while twisting it slightly. - Page 40 Washing the ear moulds The ear moulds should be washed regularly: • Disconnect the ear mould and the tubing from the sound hook of the hearing instrument as shown. ✓ ✗ Always hold the hook firmly, when pulling off the ear mould and tubing.
- Page 41 • Make sure the ear mould and tubing are completely dry before they are reconnected to the hearing instrument. Be careful that left ear mould and tubing are connected to the hearing instrument with left ear marking and vice versa for the right ear instrument.
- Page 42 avoiding heat, humidity and chemicals Your hearing instrument must never be exposed to extreme heat e.g. left inside a parked car in the sun. They must never be exposed to a lot of moisture e.g. steam baths, showers or heavy rain. Nor must they be dried in microwave ovens or other ovens. Wipe the batteries carefully if moisture is present as it may affect their performance.
-
Page 43: Using Your Hearing Instrument
using your hearing instrument It takes time to adjust to a new hearing instrument. How long this adjustment takes differs from person to person. It will depend on a number of factors, such as whether you have had a hearing instrument before and the degree of your hearing loss. Seven easy steps to better hearing 1. - Page 44 When listening to the TV or the radio, start out by listening to news commentators since they usually speak clearly, then try other TV programs. If you find it difficult to listen to TV or radio, ask your Hearing Care Professional for more information regarding the Oticon ConnectLine system and other available accessories.
- Page 45 “end of the line”. If you find it difficult to use the telephone, ask your Hearing Care Professional for more information regarding the Oticon ConnectLine system and other available accessories.
- Page 46 The varying degree of disturbance can be due to the nature of your particular mobile phone. If you find it difficult to obtain a good result while using your mobile telephone, ask your Hearing Care Professional for more information regarding the Oticon ConnectLine system and other available accessories.
- Page 47 7. Use your hearing instruments all day long The best way to ensure better hearing is to practice listening until you can wear your hearing instruments comfortably all day. In most cases, you will not get the full benefit of the hearing instruments if you use them infrequently. Your hearing instruments will not restore normal hearing.
-
Page 48: Common Problems And Their Solutions
common problems and their solutions Symptom Possible causes no sound Worn-out battery Clogged sound outlet Clogged sound outlet Intermittent Clogged sound outlet or reduced sound Clogged sound outlet Moisture Worn-out battery Squealing Hearing instruments inserted improperly noise Ear wax accumulated in ear canal If none of the above solutions solves the problem, ask your Hearing Care Professional for assistance. - Page 49 Solutions Change battery pg. 16 Clean corda thin tube pg. 33 Clean ear mould pg. 39 Clean corda thin tube pg. 33 Clean ear mould pg. 39 Wipe battery and instrument with dry cloth pg. 42 Change battery pg. 16 Reinsert hearing instruments pg.
-
Page 50: Wireless Accessories
This will allow you to receive audio signals from TV, phones, music players, PC or an external microphone wireless through your hearing instruments. For detailed information on the ConnectLine system ask your Hearing Care Professional or visit www.oticon.com... -
Page 51: International Warranty
International Warranty Your hearing instruments are covered by a limited warranty issued by the manufacturer for a period of 12 months from the date of delivery. This limited warranty covers manu- facturing and material defects in the hearing instrument itself, but not accessories such as batteries, tubing, earwax filters etc. -
Page 52: Warranty Certificate
Warranty certificate Name of Owner: Dispenser: Dispenser Address: Dispenser Phone: Purchase Date: Warranty Period: Month: Model Left: Serial no.: Model Right: Serial no.: Battery Size: 312... -
Page 53: Mobile Phone
mobile phone Some hearing instrument users have reported a buzzing sound in their hearing instru- ments when they are using mobile phones, indicating that the mobile phone and hearing instrument may not be compatible. According to the ANSI C63.19 standard (ANSI C63.19–2006 American National Standard Methods of Measurement of Compatibility Between Wireless Communications Devices and Hearing Aids), the compatibility of a particular hearing aid and mobile phone can be predicted by adding the rating for the hearing aid immunity to the rating for the mobile... - Page 54 Important notIcE The performance of individual hearing instruments may vary with individual mobile phones. Therefore, please try this hearing instrument with your mobile phone or, if you are purchasing a new phone, be sure to try it with your hearing instrument prior to your purchase.
-
Page 55: Technical Information
technical information The hearing instrument contains a radio transmitter using short range magnetic induction technology working at 3.84 MHz. The magnetic field strength of the transmitter is < –42 dBμA/m @ 10m. The emission power from the radio system is well below international emission limits for Human Exposure. - Page 56 The hearing instrument contains a module with: fCC ID: u28eBBTe01 IC: 1350B–eBBTe01 The device complies with Part 15 of the FCC rules and RSS–210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2.
- Page 57 Hereby, Oticon A/S declare that this hearing instrument is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Declaration of conformity is available at: Oticon A/S Kongebakken 9 DK-2765 Smørum Denmark www.oticon.com 0543 0682 Waste from electronic...
-
Page 58: Settings Overview For Your Hearing Instrument
settings overview for your hearing instrument Hearing Instrument Left Right Volume control Program shift Mute Volume control indicators Beeps at min /max volume Clicks when changing volume Beeps at preferred volume Battery indicators Low battery warning... - Page 59 Hearing Program Description Program...
- Page 62 People first People First is our promise to empower people to communicate freely, interact naturally and participate actively...
