DieHard 28.71323 Operator's Manual
  1. Manuals
  2. Brands
  3. DieHard Manuals
  4. Battery Charger
  5. 28.71323
  6. Operator's manual

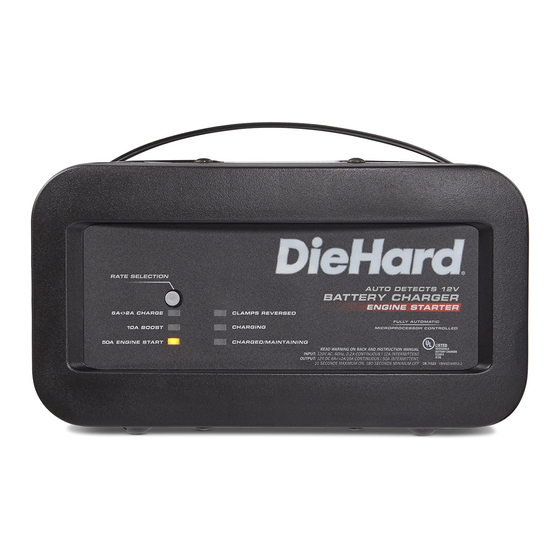

DieHard 28.71323 Operator's Manual

12v battery charger & engine starter
Hide thumbs
Table of Contents

Advertisement

Quick Links

OPERATOR'S MANUAL / MANUAL DEL USUARIO
12V Battery Charger
& Engine Starter
Cargador de baterías 12V
y arrancador
CAUTION:
Read and follow all safety
rules and operating instructions
before every use of this product.
SAVE THESE INSTRUCTIONS.
Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.
Model / Modelo:
28.71323
Lea y siga todas las reglas
de seguridad e instrucciones de uso
antes de cada uso de este producto.
GUARDE ESTAS INSTRUCCIONES.
ATENCIÓN:
0099001395-01

Advertisement

Table of Contents
loading

Related Manuals for DieHard 28.71323

Summary of Contents for DieHard 28.71323

  • Page 1 OPERATOR’S MANUAL / MANUAL DEL USUARIO 12V Battery Charger & Engine Starter Cargador de baterías 12V y arrancador Model / Modelo: 28.71323 CAUTION: ATENCIÓN: Read and follow all safety Lea y siga todas las reglas rules and operating instructions de seguridad e instrucciones de uso before every use of this product.
  • Page 2 DIEHARD THREE-YEAR FULL WARRANTY ® When operated and maintained according to all supplied instructions, if this DieHard ® product fails due to a defect in material or workmanship within 3 years from the date of purchase, return it to any DieHard outlet in the United States for free replacement.

  • Page 3: Table Of Contents

    CONTENTS IMPORTANT SAFETY INSTRUCTIONS ................4 PERSONAL SAFETY PRECAUTIONS................4 ASSEMBLY INSTRUCTIONS ..................5 GROUNDING AND AC POWER CORD CONNECTIONS ..........5 CONTROL PANEL ......................5 OPERATING INSTRUCTIONS ..................5 MAINTENANCE AND CARE ..................7 TROUBLESHOOTING ....................7 BEFORE RETURNING FOR REPAIRS ................8 CONTENIDOS INSTRUCCIONES IMPORTANTES DE SEGURIDAD ...........9 PRECAUCIONES DE SEGURIDAD PERSONAL ............10 INSTRUCCIONES DE MONTAJE ................10 CONEXIONES A TIERRA Y ENERGÍA DE CA .............10...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING – RISK OF EXPLOSIVE GASES WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL OPERATION. FOR THIS REASON, IT IS IMPORTANT THAT YOU FOLLOW THESE INSTRUCTIONS EACH TIME YOU USE THE CHARGER.

  • Page 5: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Remove all cord wraps and uncoil the cables prior to using the battery charger. GROUNDING AND AC POWER CORD CONNECTIONS This battery charger is for use on a nominal USING AN EXTENSION CORD 120 volt. The plug must be plugged into an The use of an extension cord is not outlet that is properly installed and recommended.
  • Page 6 (NEG, N, -) battery post (i.e., jumper MAINTAINING A BATTERY cable) (not provided). The 28.71323 charges and maintains 12 volt 4. Connect the POSITIVE (RED) clamp to batteries, keeping them at full charge. the POSITIVE (POS, P, +) battery post.

  • Page 7: Maintenance And Care

    4. If the engine fails to start, boost the NOTE: If the engine does turn over but never battery for 5 more minutes before starts, there is not a problem with the starting attempting to crank the engine again. system; there is a problem somewhere else with the vehicle.

  • Page 8: Before Returning For Repairs

    PROBLEM POSSIBLE CAUSE REASON/SOLUTION Short or no start cycle Drawing more than the Engine Crank time varies with the amount when cranking engine. Start Rate. of current drawn. If cranking draws more than the Engine Start Rate, crank time may be less than 3 seconds.
