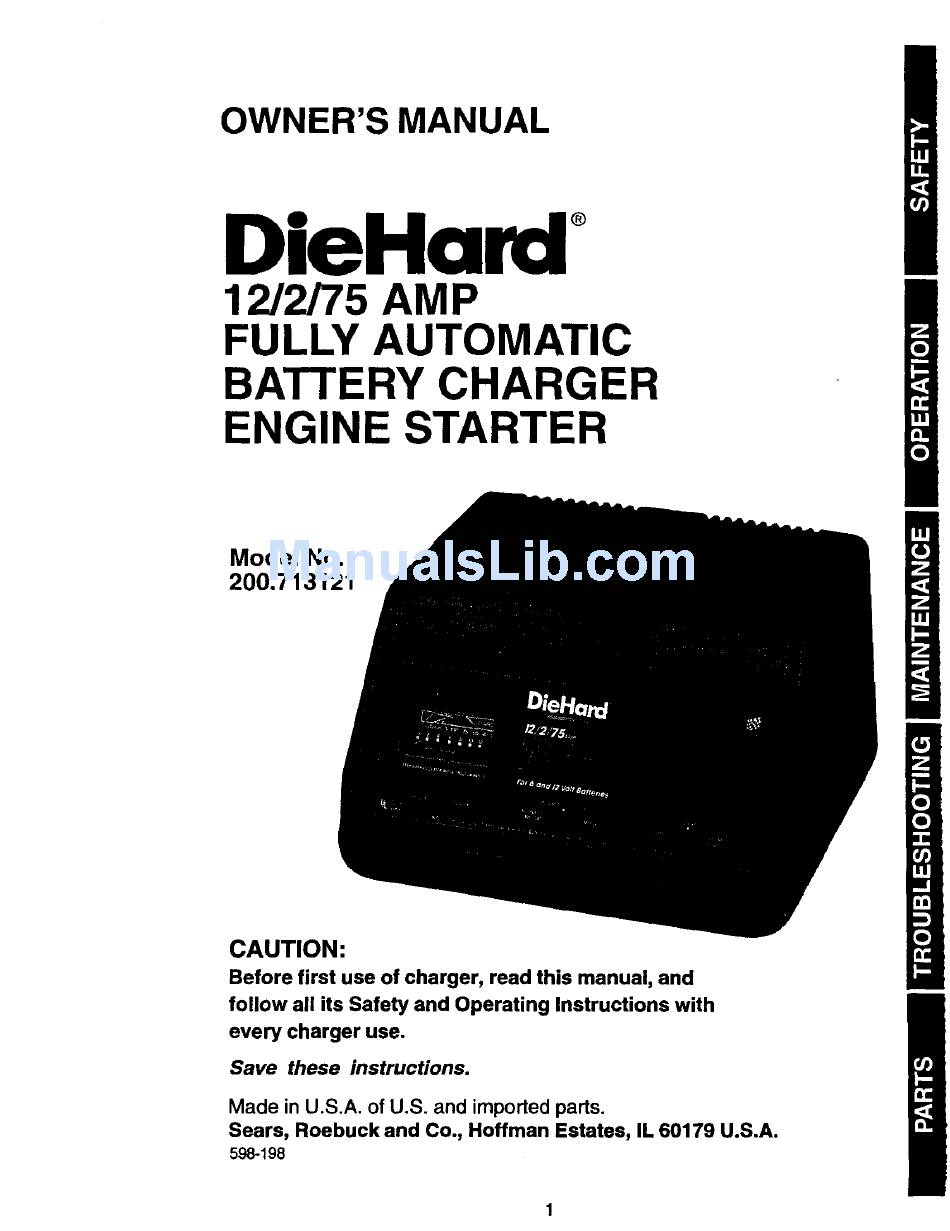

OWNER'S MANUAL
®
12/2/75 AMP
FULLY AUTOMATIC
BATTERY CHARGER
ENGINE STARTER
Model No.
200.713121
CAUTION:
Before first use of charger,
read this manual, and
follow all its Safety and Operating
Instructions
with
every charger use.
Save
these instructions.
Made in U.S.A. of U.S. and imported pads.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
598-198
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DieHard 200.713121
Summary of Contents for DieHard 200.713121
- Page 1 OWNER'S MANUAL ® 12/2/75 AMP FULLY AUTOMATIC BATTERY CHARGER ENGINE STARTER Model No. 200.713121 CAUTION: Before first use of charger, read this manual, and follow all its Safety and Operating Instructions with every charger use. Save these instructions. Made in U.S.A. of U.S. and imported pads. Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
-
Page 2: Table Of Contents
PARTS ........................Wiring Diagram ....................Please read this Owner's Manual before using your Battery Charger The DieHard model 200.713121, Fully Automatic Battery Charger/Engine Starter, offers a wide range of features for home or light commercial use. This manual will show you how to use your charger safely and effectively. -
Page 3: Safety
WARNING: To reduce the risk of HELP US HELP YOU -- explosion, explosive gases, or injury Remember: while using your battery charger, follow • Place charger as far away from battery the precautions listed below: being charged as the charger cables •... -
Page 4: Operation
Personal Safety Precautions For your own personal safety, please follow the following precautions: Remove all personal metal items Wear complete eye and clothing protection when working with lead- from your body, such as rings, acid batteries. bracelets, necklaces, and watches while working with a lead-acid •... -
Page 5: Before Using Your Battery Charger
is impodant to understand your charger's requirements. This section will tell you about your charger's electrical requirements and how to prepare a battery for charging. ASSEMBLING YOUR CHARGER Included with your battery charger are two cord wrap posts for storage of the clamp cables. -
Page 6: Preparing Your Battery To Be Charged
It is important that you read and follow these guidelines while you are preparing to charge your battery. caps while charging, and Make sure that you have a 12 volt or 6 volt lead-acid battery. Set the selector recommended rates of charge. switch to match the voltage rating of Wear safety glasses. - Page 7 AMMETER: Charge Type: The ammeter indicates the measured • Use the MANUAL setting only if you amount of amperes being drawn by the check the charging progress frequently. battery. When you first start charging a The charger will not stop charging when battery, the reading will be high, with the battery reaches full charge, possibly the needle near 12 using the 12 amp...
-
Page 8: Charging Your Battery
Fordeep cycle batteries,you may wish to allowthe batteryanotherone or two hoursof chargingafter the LED glows to obtaina maximumcharge. When usingthe AUTOMATICcharge rates,the LEDwill cycle on and off indicatingthe charger is maintaining the battery'sstate-of-charge. CHARGING YOUR BA'I-rERY NEGATIVE GROUNDED SYSTEM Charging your battery inside Figure A the vehicle:... -
Page 9: Outside Vehicle
10. When the batteryis fully charged, POSRIVE first unplugthe chargerpower cord. Then, standingawayfrom the battery, removethe charger clampfrom the chassis first, then from the battery POWER post. 24", 6 GAUGE CABLE 11. Clean andstore the batterycharger in a dry location. GROUNDED POWER Charging... -
Page 10: Using The Engine Start Feature
Your battery charger can be used to jump start your car if the battery is low. Follow these instructions on how to use the ENGINE START feature. 4. After the engine starts, unplug the 1. Connect the charger to the battery and vehicle as instructed in the "Charging charger power cord from the AC outlet. -
Page 11: Calculating Charge Time
Battery Rating Method Use the following table to more accurately determine the time it will take to fully charge a battery that is initially at 50% State-of-Charge. Identify your battery type and its associated Charge Time in the table. Common battery types are: •... -
Page 12: Maintenance And Care
Charge Time Needed if Amp-Hours is Known • Find the Charge Factor for your battery in the table on page 11. • Multiply by the Amp-Hour rating of the battery. • Divide by the Charger Setting (either 2 Amp or 12 Amp). •... -
Page 13: Troubleshooting
Performance problems often result from little things that you can fix yourself. Please read through this chart for a possible solution if a problem occurs. Clamps not making good Check for poor connection at battery. Make No ammeter reading connection. sure clamps and posts are clean. -
Page 14: Parts
This section shows an illustration of your battery charger. Use it to become familiar with where all the parts are located, and what they look like. Item Description Part Number Item Description Part Number Handle Transformer 93026483 3599000270 Switch-left DPDT Diode Asm Kit 2299000976 0499000060... -
Page 15: Wiring Diagram
_313_... - Page 16 For information about troubleshooting Call toll-freefrom anywhere in the U.S.A. 7 am to 4:30 pm CST Monday through Friday 1-800-732-7764 For the repair or replacement parts you need Call 7 am - 7 pm, 7 days a week 1-800-366-PART (1-800-366-7278) For the location of an authorized Sears Service Center in your area Call 24 hours a day, 7 days a week...
