DieHard 28.71341 Operator's Manual

6v/12v automatic battery charger & engine starter
Hide thumbs
Table of Contents

Advertisement

Quick Links

OPERATOR'S MANUAL / MANUAL DEL USUARIO
CAUTION:
Read and follow all safety
rules and operating instructions
before every use of this product.
SAVE THESE INSTRUCTIONS.
Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.
6V/12V Automatic

Battery Charger

& Engine Starter
Cargador de baterías
automático 6V / 12V
Model / Modelo:
28.71341
Lea y siga todas las reglas
de seguridad e instrucciones de uso
antes de cada uso de este producto.
GUARDE ESTAS INSTRUCCIONES.
y arrancador
ATENCIÓN:
0099001449-00

Advertisement

Table of Contents
loading

Related Manuals for DieHard 28.71341

Summary of Contents for DieHard 28.71341

  • Page 1: Battery Charger

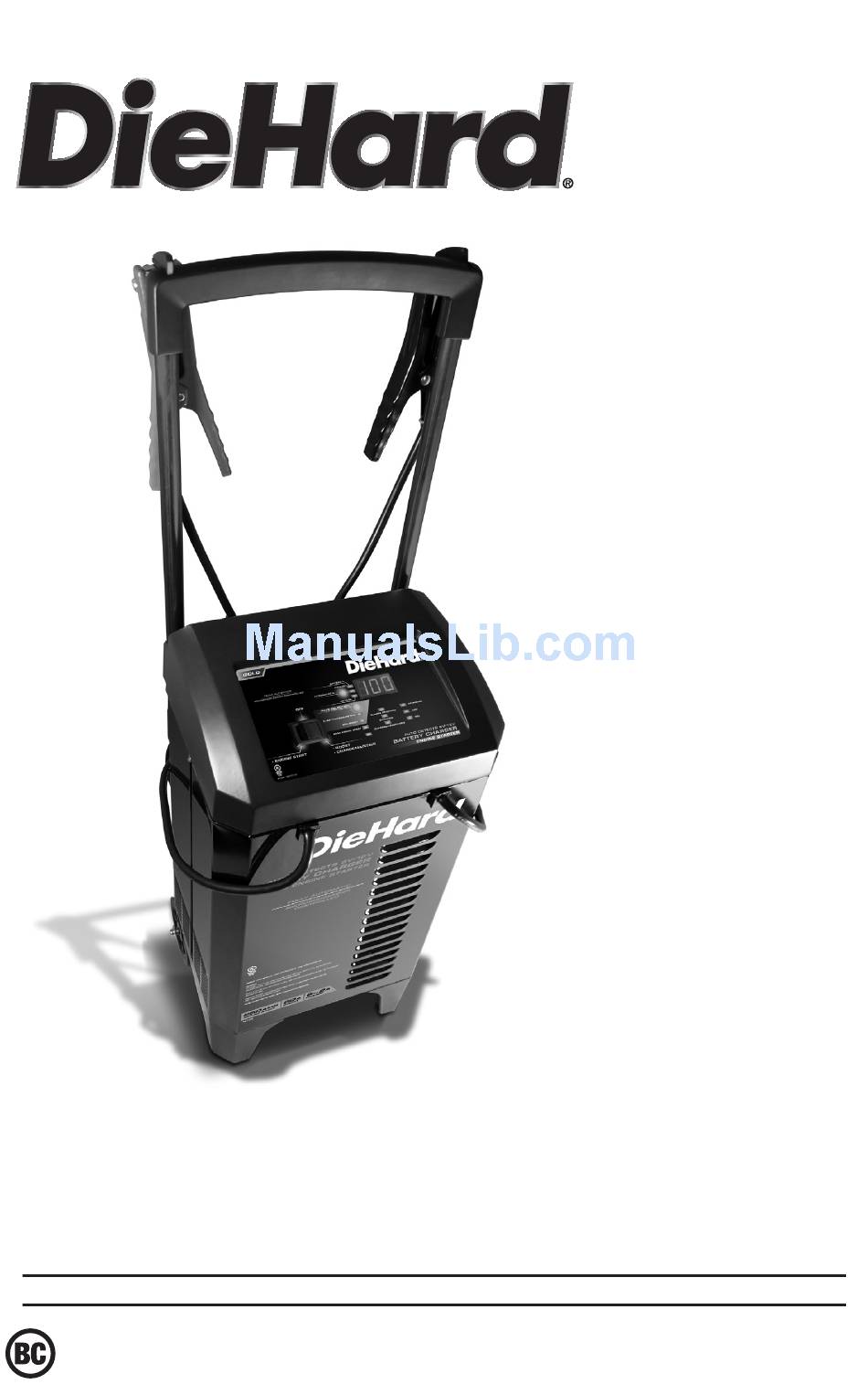

    Battery Charger & Engine Starter Cargador de baterías automático 6V / 12V y arrancador Model / Modelo: 28.71341 CAUTION: ATENCIÓN: Read and follow all safety Lea y siga todas las reglas rules and operating instructions de seguridad e instrucciones de uso before every use of this product.
  • Page 2 DIEHARD THREE-YEAR FULL WARRANTY ® When operated and maintained according to all supplied instructions, if this DieHard ® product fails due to a defect in material or workmanship within 3 years from the date of purchase, return it to any DieHard outlet in the United States for free replacement.

  • Page 3: Table Of Contents

    CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................4 PERSONAL SAFETY PRECAUTIONS ..................4 PREPARING TO CHARGE ......................5 CHARGER LOCATION ......................... 5 DC CONNECTION PRECAUTIONS ..................... 5 FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN VEHICLE ........5 FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE VEHICLE ........... 6 GROUNDING AND AC POWER CORD CONNECTIONS ............

  • Page 4: Important Safety Instructions

    1. IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS. 1.1 SAVE THESE INSTRUCTIONS – 1.8 Do not disassemble charger; take it to This manual contains important safety a qualified serviceman when service or and operating instructions. repair is required. Incorrect reassembly may result in a risk of electric shock or fire. 1.2 Do not expose the charger to rain or snow.

  • Page 5: Preparing To Charge

    3. PREPARING TO CHARGE 3.1 If necessary to remove battery from battery without removable cell caps, such vehicle to charge, always remove as valve regulated lead acid batteries, grounded terminal from battery first. Make carefully follow manufacturer’s recharging sure all accessories in the vehicle are off, instructions.

  • Page 6: Follow These Steps When Battery Is Outside Vehicle

    7. FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE VEHICLE A SPARK NEAR THE BATTERY MAY connect NEGATIVE (BLACK) charger clip CAUSE A BATTERY EXPLOSION. TO to free end of cable. REDUCE THE RISK OF A SPARK NEAR 7.5 Do not face battery when making final THE BATTERY: connection.

  • Page 7: Operating Instructions

    NOTE: During charging, the display will LED INDICATORS go into sleep mode and will not show the CLAMPS REVERSED (red) LED percentage of charge or voltage of the flashing: The connections are reversed. battery. To turn the display back on, press CHARGING (yellow/orange) LED lit: the Display button.
  • Page 8 8. With the charger plugged in and 5. Crank the engine until it starts or 5 connected to the battery of the seconds pass. If the engine does not vehicle, set the switch to the Boost or start, wait 3 minutes before cranking Charge/Maintain position.

  • Page 9: Maintenance And Care

    MAINTAINING A BATTERY connections or other unanticipated conditions could cause excessive current The 28.71341 charges and maintains draws. As such, occasionally monitoring your 6 and 12 volt batteries, keeping them at battery and the charging process is required. full charge.

  • Page 10: Before Returning For Repairs

    ERROR DESCRIPTION REASON/SOLUTION CODE The charger detected that the The charger automatically shuts the current off if battery may be getting too hot it detects the battery may be getting too hot. Have (thermal runaway). the battery checked or replaced. If you get an error code, check the connections and settings and/or replace the battery.
