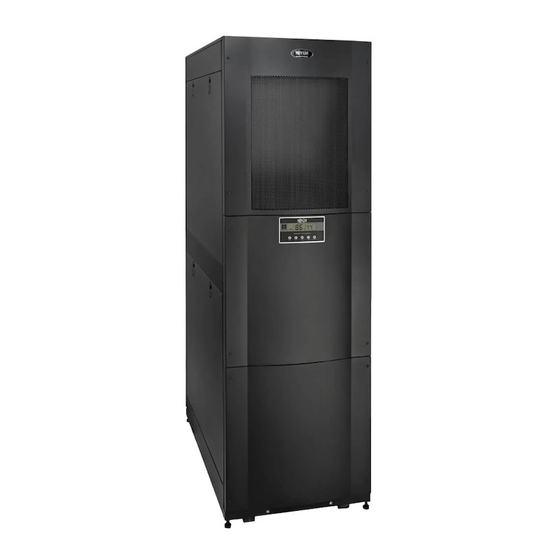

Tripp Lite SRCOOL33K Unpacking Instructions

Self-Contained
Air Conditioning Unit
Models: SRCOOL33K, SRXCOOL33K
Read All Instructions and

Warnings Before Unpacking.

WARNING: The air conditioning unit is extremely heavy.
Do not attempt to unpack or move the unit without
assistance. Until properly installed and stabilized, the unit
is prone to tipping and could cause property damage and/or
personal injury. Do not push or pull the unit while unpacking.
Do not attempt to remove the unit from the pallet without the
assistance of at least three other persons. Do not push the
unit from the sides as this may create a tipping hazard.
1

Inspect the shipping container(s)

for visible damage. The container(s)
include a Tip and Tell device that will
indicate if the unit has been tipped,
mishandled or overturned during
transit. If you determine that the unit
has been damaged, contact Tripp Lite
for assistance. Do not use the unit if it
has been damaged or mishandled.
1
4
Remove the bolts from the shipping
brackets securing the unit to the pallet,
then remove the shipping brackets from
the cooling unit. Raise the leveling feet.
Warning: Be extremely careful, as
the unit could shift unexpectedly.
X2
4
UNPACKING INSTRUCTIONS
2

Cut the plastic straps on the outside

of the carton. Confirm that the unit is
stable and cut the box as shown on
opposite corners. Remove any wrapping
or interior cushioning material.
STAPLES
2
5
Attach ramps to pallet. Insert ramp
mounting tabs into mounting groove
on pallet. Position ramps so they are
aligned with the unit's wheels. For
added safety, Tripp Lite recommends
that you secure the ramps to the pallet
with user-supplied screws.
SIDE VIEW
5
Copyright © 2013 Tripp Lite. All rights reserved.
SRCOOL33K & SRXCOOL33K Shipping Specifications
Gross shipping weight (lb/kg)
Shipping dimensions (HWD/in)
Shipping dimensions (HWD/cm)
Using a forklift or pallet jack, move the unit as close as
possible to its permanent installation site before unpacking it
(See Installation Manual for site selection instructions).
3
STRAPS
6
6
1111 W. 35th Street, Chicago, IL 60609 USA
www.tripplite.com/support
775/351.53
85.5 x 26.5 x 46.85
217.17 x 67.31 x 119
Confirm that the model name and
rating at the rear of the cabinet match
the unit you ordered. Examine the
cabinet for any damaged parts. The
container should include the unit's
Installation Manual, Owner's Manual
and 4 Air Ducts.
Position at least two persons at the
front and two persons at the rear of
the unit. Slowly push the unit off the
shipping pallet, down the ramp and to
the floor.
