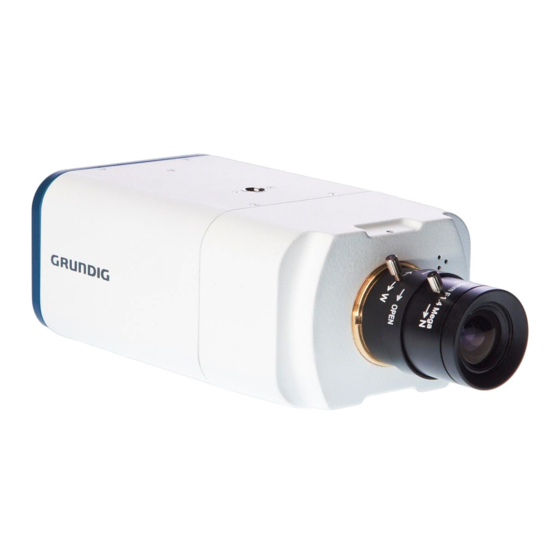

Owner's Manual
Cameras & Domes
GCA-B0002B
GCA-B0302B
GCA-B0002B.52.1.14.06.2012
© ASP AG
1/3" CCD Colour Camera, 650L, 230VAC
1/3" CCD Colour Camera, 650L, 12VDC/24VAC
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GCA-B0002B and is the answer not in the manual?

Questions and answers

Related Manuals for Grundig GCA-B0002B

Summary of Contents for Grundig GCA-B0002B

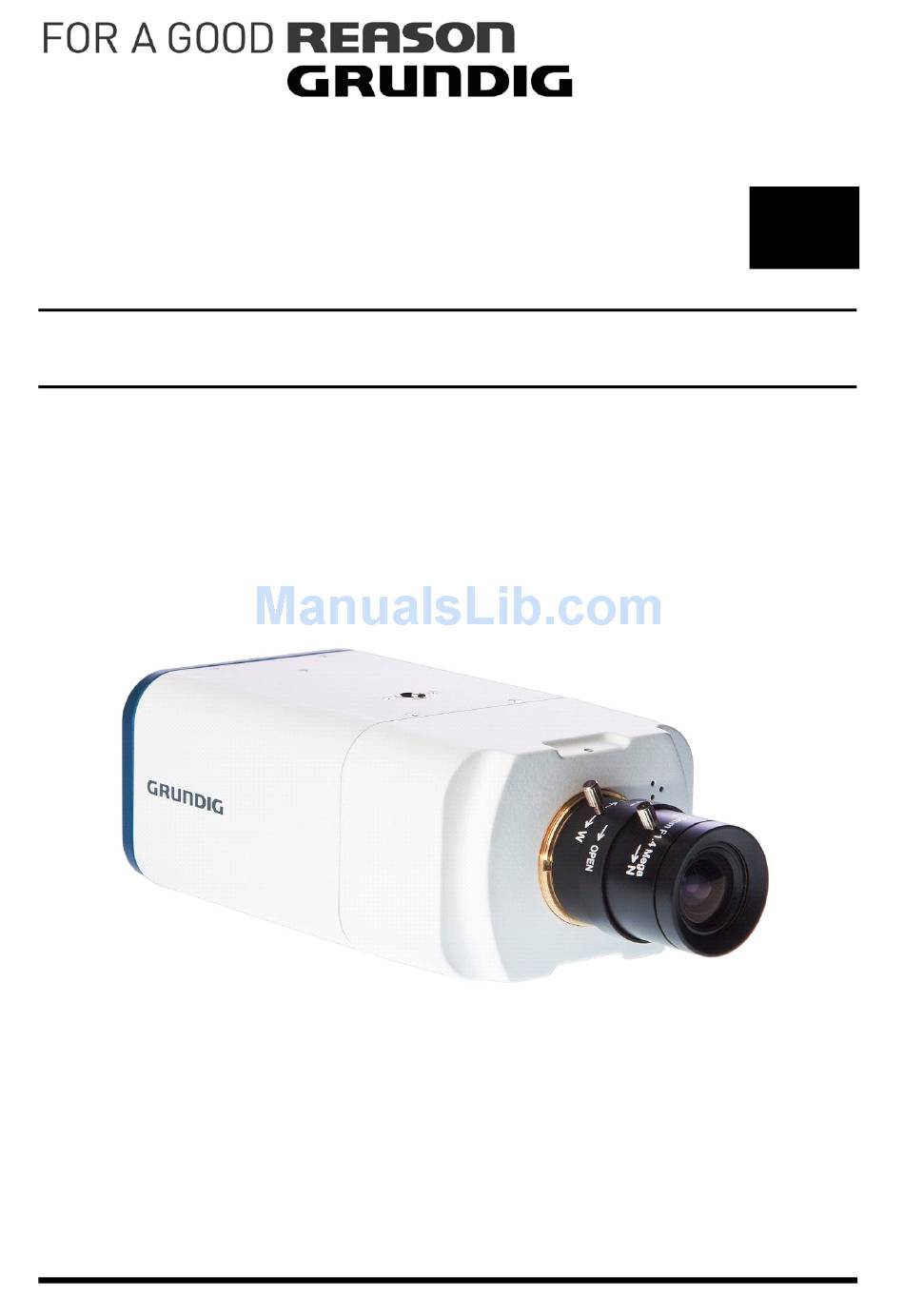

  • Page 1 Owner's Manual Cameras & Domes GCA-B0002B 1/3" CCD Colour Camera, 650L, 230VAC GCA-B0302B 1/3" CCD Colour Camera, 650L, 12VDC/24VAC GCA-B0002B.52.1.14.06.2012 © ASP AG...

  • Page 3: Table Of Contents

    Content: 1. Available Versions 2. Important Safety Instructions 3. Package Contents 4. Installation 1. Camera Overview 2. Lens Mounting 3. Back Focus Adjustment 4. Power Connection 5. OSD Control Keys 6. OSD Menu 1. LENS 2. SHUTTER/ AGC 3. WHITE BAL (White Balance) 4.

  • Page 4: Available Versions

    Continued use in such a condition may cause fire or electric shock. If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in any way. (GRUNDIG is not liable for problems caused by unauthorised modifications or attempted repair.) To prevent fire or electric shock, do not expose the inside of this device to rain or moisture.

  • Page 5: Camera Overview

    1. AUTO IRIS Connector: Auto iris lens connector 2. POWER LED: Red light indicates good power connection. 3. VIDEO OUT (BNC Connector): For video output 4. For GCA-B0002B: 230V AC Connector / For GCA-B0302B: DC 12V/AC 24V Connector 5. OSD Control Keys 4.2.

  • Page 6: Back Focus Adjustment

    4.3. Back Focus Adjustment When to adjust the back focus: Back Focus refers to the distance from the rear lens element to the camera focal plane. It is only required to adjust the back focus only when the focus cannot be adjusted throughout its zoom range.

  • Page 7: Power Connection

    Step 8: Tighten the back focus ring’s retaining screw to fix the ring. 4.4. Power Connection For the camera with 230V power supply, please put the power cable into the camera. For the camera with 12V DC/24V AC power supply, connect the power terminal block. 5.

  • Page 8: Lens

    PICT ADJUST: You can set different picture related settings like mirroring, brightness, sharpness, contrast, hue and gain. ATR: This function is used to improve the contrast of the image (similar to WDR). MOTION DET: This function is used to detect moving objects in the monitoring area. NEXT: Choose this option to view the second menu page.

  • Page 9: Shutter/ Agc

    AUTO: Here you can set the operation mode of the lens and adjust the iris speed. - TYPE [DC, VIDEO] : Please do not select VIDEO mode. Please choose DC for this camera model. - MODE [AUTO, OPEN, CLOSE] : Choose whether the lens iris should be controlled automatically or be fixed to open or close.

  • Page 10: White Bal (White Balance)

    LOW LUMINANCE - MODE [AGC, OFF] : When choosing AGC, the auto exposure is controlled by using AGC. - BRIGHTNESS [x0.25, x0.50, x0.75, x1.00] : Sets the value of auto exposure operations. As the value increases, the screen gets brighter. MANUAL: Here you can set the SHUTTER value and the AGC value.
  • Page 11 - SPEED [000~255] : Sets the speed of searching for White Balance when the colour temperature changed. - DELAY CNT [000~255] : This sets the delay time of searching for White Balance, when the colour temperature changed. - ATW FRAME [x0.5, x1.0, x1,5, x2.0] : Adjust ATW by increasing or decreasing the colour temperature.

  • Page 12: Backlight

    MANUAL: This function allows the white balance to be adjusted manually. An increased level produces a strong blue tone on the screen and a decreased level produces a strong red tone on the screen. PUSH LOCK: This mode is set to the current white balance condition and keeps its value. Select this mode and then press the OK key.

  • Page 13: Atr (Adaptive Tone-Curve Reproduction)

    MIRROR [ON, OFF] : This function is used to inverse the camera picture. BRIGHTNESS [000~255] : This function is used to adjust the brightness of the camera picture. CONTRAST [000~255] : This function is used to adjust the contrast of the image (the difference between light and dark areas on the screen).

  • Page 14: Motion Det (Motion Detection)

    6.7. MOTION DET (Motion Detection) MOTION DET [ON, OFF] : This function is used to detect moving objects in the monitored area. There are 4 predefined boxes representing the areas that can be monitored for motion. When choosing ON, the following submenu will appear where you can adjust the settings for the MOTION DET function.

  • Page 15: Privacy

    6.8. PRIVACY When selecting ON, a submenu will appear where you can set the privacy masks and their colours. This function is used to mask specific areas within the frame of the camera. AREA SEL [1/8 ~ 8/8] : Select a mask out of the 8 mask areas and set the options below for the selected mask. If MONITOR AREA in the MOTION DET menu has been set to ON, four areas will be selectable.
  • Page 16 AUTO [BURST, DELAY CNT, DAY→NIGHT, NIGHT→DAY] : This mode automatically switches the video signals between COLOR and B/W when the according ambient illumination/brightness is reached. - BURST: Set this option to ON to output a burst signal in B/W mode. - DELAY CNT: Sets the delay time for switching between COLOR and B/W mode.

  • Page 17: Nr (Noise Reduction)

    EXT1: Please choose this option if a high current flow means “Day Mode” and a low current flow means “Night Mode” for the external LED board you use. EXT2: Please choose this option if a high current flow means “Night Mode” and a low current flow means “Day Mode”...

  • Page 18: Sync

    Steps for programming the Camera ID: 1. Turn on the CAMERA ID mode and enter the submenu. 2. Using the four direction keys, switch between the characters. Press the OK key to make a desired figure. 3. Press CLR if you need to delete letters. NOTE: CHR1 is the preset selection of characters for this camera (letters from A to Z, numerals from 0 to 9, symbols).
  • Page 19 Specifications GCA-B0002B Image Sensor 1/3" CCD Sony 960H Ex-view HAD II Scanning System PAL, 50Hz, 625L (V), 2:1 Inter Line Transfer Pixels - Effective 976(H) x 582(V) Resolution 650 (H) lines Col/B&W Auto (Electronic) / Color / B/W / External Sensitivity Colour 0.01 Lux (50IRE) @ F1.2...
  • Page 20 Dimensions English...

  • Page 21: Ec Declaration Of Conformity

    EC Declaration of Conformity GCA-B0002B 1/3" CCD Colour Camera, 650L, 230VAC GCA-B0302B 1/3" CCD Colour Camera, 650L, 12VDC/24VAC It is hereby certified that the products meet the standards in the following relevant provisions: EC EMC Directive 2004/108/EC Low Voltage Directive 2006/95/EC...
