Grundig GCI-K1555Z Owner's Manual

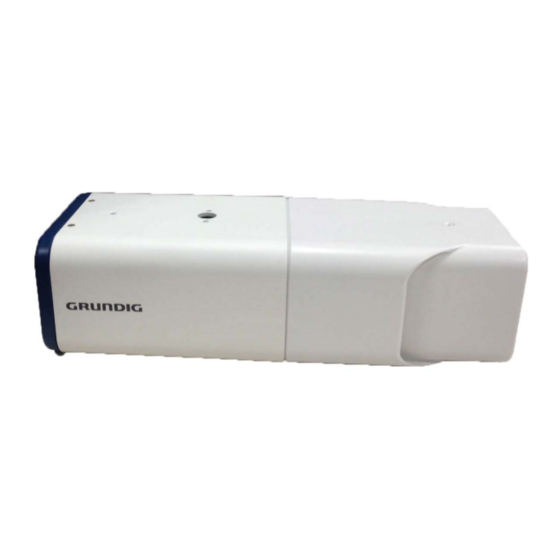

2 megapixel full hd 18x zoom box ip camera icr
Hide thumbs

Advertisement

Quick Links

Download this manual

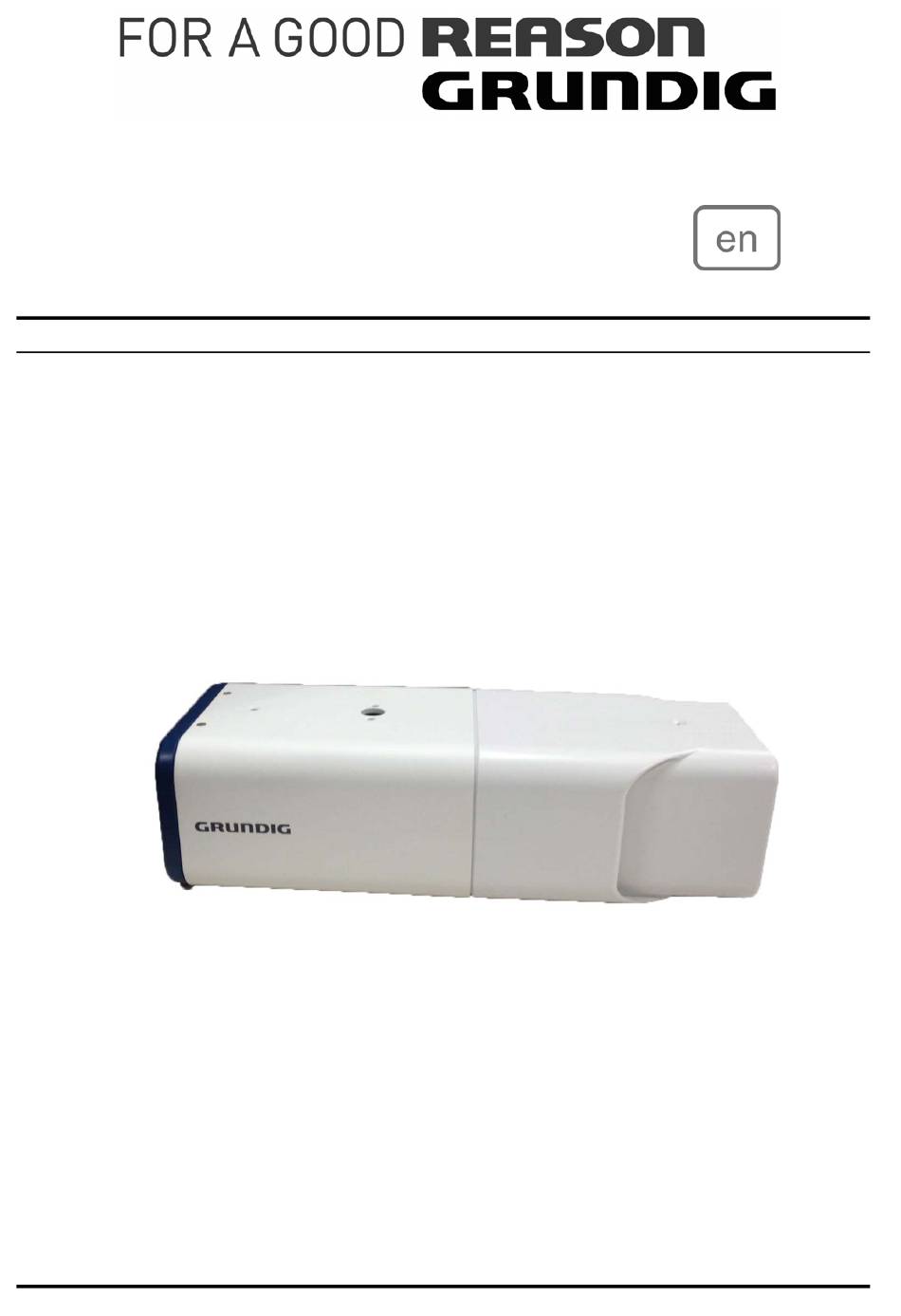

Owner's Manual
IP Cameras
GCI-K1555Z
GCI-K1555Z.124.1.12.08.2013
© ASP AG
2 Megapixel Full HD 18x Zoom Box IP Camera ICR

Advertisement

loading
Need help?

Need help?

Do you have a question about the GCI-K1555Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grundig GCI-K1555Z

Summary of Contents for Grundig GCI-K1555Z

  • Page 1 Owner's Manual IP Cameras GCI-K1555Z 2 Megapixel Full HD 18x Zoom Box IP Camera ICR GCI-K1555Z.124.1.12.08.2013 © ASP AG...
  • Page 3 12. Tampering 16. GRUNDIG Viewer Download Procedure 13. Storage Management (on Camera) 17. Install UPnP Components 14. Recording (on Camera) 18. Deleting the Existing GRUNDIG Viewer 15. Schedule 16. File Location (on PC) 17. View Information 18. Factory Default 19. Software Version 20.
  • Page 4 If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in any way. (GRUNDIG is not liable for problems caused by unauthorised modifications or attempted repair.) To prevent fire or electric shock, do not expose the inside of this device to rain or moisture.
  • Page 5 4.1. Camera Overview 4.2. System Requirements To perform the IP Camera via web browser, please ensure your PC is in good network connection, and meets the system requirements as described below. Personal Computer : 1.) Intel Pentium M, 2.16 GHz or Intel Core 2 Duo, 2.0 GHz 2.) 2 GB RAM or more Operating System : Windows XP / Windows VISTA / Windows 7...
  • Page 6 Finder.exe, which can be found on the supplied CD. GRUNDIG Finder Software Setup : Step 1: Double-click on the program GRUNDIG Finder.exe (see the desktop icon below). Its window will appear as shown below. Then click on the “Find Device” button.
  • Page 7 Step 2: The security alert window will pop up. Click “Unblock” to continue. Device Search : Step 3: Click “Find Device” again, afterwards all IP devices found will be listed on the page, as shown in the picture below. The IP Camera’s default IP address is: 192.168.1.1. English...
  • Page 8 Step 4: Double-click or right-click and select “Browse” to access the camera directly via the web browser. Step 5: Then the dialogue box for entering the default user name and password (as shown below) will appear for login to the IP Dome Camera. The default login ID and password for the Administrator are: Login ID: admin Password: 1234...
  • Page 9 Step 1: In the finding device list, click on the IP Camera of which you would like to change the network property. Right-click on the selected item, and select “Network Setup”. Meanwhile, record the IP Camera’s MAC address for future identification. Step 2: The “Network Setup”...
  • Page 10 16. GRUNDIG Viewer Download Procedure. NOTE: If the Live Video Pane on the Home Page cannot be shown to the users who have installed the GRUNDIG Viewer on the PC previously, please refer to the procedure in chapter 18. Deleting the Existing GRUNDIG Viewer.
  • Page 11 Image and Focus Adjustment : Adjust zoom and focus of the lens as necessary to produce a clear image. To set the correct angle of view and focus, you can use the BNC output on the camera. For this, please connect a PAL monitor to the BNC output. 6.
  • Page 12 Logout : Click on this tab to re-login to the IP Camera with another user name and password. Further details will be interpreted in chapter 13. Logout. Languages : Please choose one of the supported languages (German, English, French, Italian or Russian). 8.
  • Page 13 NOTE: The following functions are not available for the Browsers Firefox, Chrome, Safari and Opera: Full Screen Mode, Audio talk/listen, Snapshot, Playback and Recording. The following functions are additional in the camera model GCI-K1555Z with RS-485 Interface: Pan/Tilt : Here you find the settings for the Pan/Tilt function.
  • Page 14 Optical/Digital Zoom Control : In Normal View display mode, users can implement zoom in/out by clicking in the zoom setting bar and adjusting the zoom manually or by clicking on the "Wide" / "Tele" buttons. In Full Screen mode, users can rotate the mouse wheel to zoom in/out on the image.
  • Page 15 9. System Related Settings The picture below shows all categories under the “System” tab. Each category in the left column will be explained in the following sections. NOTE: The “System” configuration page is only accessible by the Administrator. 9.1. Host Name & System Time Setting Click on the first category <System>...
  • Page 16 Host Name : The name is for camera identification (max. 30 characters). If the alarm function (see section 9.8. 'Application (Alarm Settings)') is enabled and is set to send an alarm message by Mail/FTP, the host name entered here will be displayed in the alarm message.
  • Page 17 <User> : When you click on the <User> tab under the category <Security>, the <User> page will be shown as in the picture below. NOTE: The following characters are valid: A-Z, a-z, 0-9, !#$%&’-.@^_~. Admin Password : Change the administrator’s password by putting in the new password in the “Admin password” and “Confirm password”...
  • Page 18 Manage User : To delete a user, pull down the user list, and select the user name you wish to delete. Then click <Delete> to remove it. To edit a user, pull down the user list and select a user name. Click <Edit> to edit the user’s password and privileges.
  • Page 19 <HTTPS> : <HTTPS> allows secure connections between the IP Camera and the web browser using the <Secure Socket Layer (SSL)> or the <Transport Layer Security (TLS)>, which prevent others from snooping on your camera settings or Username/Password. It is required to install a self-signed certificate or a CA-signed certificate for implemention of <HTTPS>.
  • Page 20 Create self-signed certificate : Before a CA-issued certificate is obtained, users can create and install a self-signed certificate first. Click on the <Create> button under “Create self-signed certificate” and provide the requested information to install a self-signed certificate for the IP Camera. Please refer to the last part of this section: "Provide the Certificate Information"...
  • Page 21 Install signed certificate : Click on the “Create Certificate Request” button to create and submit a certificate request in order to obtain a signed certificate from the CA (Certificate Authority). Provide the requested information in the Create Dialog. Please refer to the section "Provide the Certificate Information"...
  • Page 22 When the signed certificate is returned, install it by uploading the signed certificate. Provide the Certificate Information : To create a Self-signed HTTPS Certificate or a Certificate Request to CA, please enter the information as requested: English...
  • Page 23 - Country: Enter a 2-letter combination code to indicate the country the certificate will be used in. For instance, type in “GB” to indicate Great Britain. - State or province: Enter the local administrative region. - Locality: Enter other geographical information. - Organisation: Enter the name of the organisation to which the entity identified in “Common Name”...
  • Page 24 <IP Filter> : When using the IP filter, access to the IP Camera can be restricted by denying/allowing specific IP addresses. General : - Enable IP Filter: Check the box to enable the IP Filter function. Once enabled, access to the IP Camera will be allowed/denied for the listed IP addresses (IPv4).
  • Page 25 <IEEE 802.1X> : The IP Camera can access a network protected by 802.1X/EAPOL (Extensible Authentication Protocol over LAN). To do this, users need to contact the network administrator to receive certificates, user IDs and passwords. CA Certificate : The CA certificate is created by the Certification Authority for the purpose of validating itself. Upload the certificate for checking the server’s identity.
  • Page 26 9.3. Network When you click on the category <Network>, there will be a drop-down menu with several tabs including <Basic>, <QoS>, <SNMP>, and <UPnP>. <Basic> : Users can choose to connect to the IP Camera through a fixed or dynamic (DHCP) IP address. The IP Camera also provides PPPoE (Point-to-Point Protocol over Ethernet) support for users who connect to the network via PPPoE.
  • Page 27 Click on “Save” to confirm the new setting. When using a static IP address to login to the IP Camera, users can access it either through the “GRUNDIG Finder” software (see 5. Accessing the Camera) or input the IP address in the URL bar and click on “Enter”.
  • Page 28 - Primary DNS: Primary DNS is the primary domain name server that translates hostnames into IP addresses. - Secondary DNS: Secondary DNS is a secondary domain name server that backs up the primary DNS. Use PPPoE : The PPPoE users need to enter the PPPoE Username and Password into the fields, and need to click on the “Save”...
  • Page 29 <QoS> (Quality of Service) : QoS allows providing differentiated service levels for different types of traffic packets which guarantees delivery of priority services especially when network congestion occurs. Adapting the Differentiated Services (DiffServ) model, traffic flows are classified and marked with DSCP (DiffServ Codepoint) values, and thus receive the corresponding forwarding treatment from DiffServ capable routers.
  • Page 30 <SNMP> (Simple Network Management Protocol) : With Simple Network Management Protocol (SNMP) support, the IP Camera can be monitored and managed remotely by the network management system. SNMP v1/v2 : - Enable SNMP: Select the version of SNMP to use by checking the corresponding box. - Read Community: Specify the community name which has read-only access to all supported SNMP objects.
  • Page 31 Traps for SNMP v1/v2/v3 : Traps are used by the IP Camera to send messages to a management system about important events or status changes. - Enable Traps: Check the box to activate trap reporting. - Trap address: Enter the IP address of the management server. - Trap community: Enter the community to use when sending a trap message to the management system.
  • Page 32 UPnP Setting : - Enable UPnP: When UPnP is enabled, whenever the IP Camera is presented to LAN, the icon of the connected IP Cameras will appear in My Network Places to allow for direct access as shown below. NOTE: To enable this function, please make sure the UPnP component is installed on your computer. Please refer to chapter 17.
  • Page 33 9.4. DDNS The Dynamic Domain Name System (DDNS) allows a host name to be constantly synchronised with a dynamic IP address. In other words, it allows those using a dynamic IP address to be associated to a static domain name so that others can connect to it through this name.
  • Page 34 9.5. Mail The Administrator can can set up the sending of an e-mail via Simple Mail Transfer Protocol (SMTP) when an event is triggered. SMTP is a protocol for sending e-mail messages from server to server. SMTP is a relatively simple, text-based protocol, where one or more recipients of a message are specified and to whom the message text is transferred.
  • Page 35 9.6. FTP The Administrator can set the sending of alarm messages to a specific File Transfer Protocol (FTP) site when an event is detected. Users can assign an alarm message to up to two FTP sites. The FTP setting page is shown below.
  • Page 36 9.7. HTTP A HTTP Notification server can listen for notification messages from IP Cameras by triggered events. The HTTP setting page is shown below. Enter the HTTP details, which include the server name (for instance, http://192.168.1.1/admin.php), user name, and password into the fields. <Alarm> triggered and <Motion Detection>...
  • Page 37 9.8. Application (Alarm Settings) The IP Camera is equipped with one alarm input and one relay output for cooperation with the alarm system to catch event images. Please refer to the alarm pin definition below to connect alarm devices to the IP Camera if needed.
  • Page 38 Triggered Action (Multi-option) : The Administrator can specify alarm actions that will take place when the alarm is triggered. All options are listed as follows: - Enable Alarm Output: Select this item to enable alarm relay output. - IR Cut Filter: If you select this item, the camera’s IR cut filter (ICR) will be removed (on) or blocked (off) when the alarm input is triggered.
  • Page 39 The <Pre-trigger buffer> recording function allows users to check what happened to trigger the alarm. The pre- trigger buffer time range is from 1 to 20 frames. On the other hand, the <Post-trigger buffer> is for uploading a certain amount of images after the alarm input is triggered.
  • Page 40 The <Pre-trigger buffer> recording function allows users to check what happened to trigger the alarm. The pre- trigger buffer time range is from 1 to 20 frames. On the other hand, the <Post-trigger buffer> is for uploading a certain amount of images after the alarm input is triggered.
  • Page 41 - Record Stream to SD Card: After selecting this item, the alarm-triggered recording will be saved on your Micro SD card. The pre-trigger buffer recording function allows users to check what happened to trigger the alarm. The pre- trigger buffer time range is from 1 to 3 seconds. Select <Upload for __ sec>...
  • Page 42 Save : After completing all the settings mentioned above, please click on the Save button to save all the settings in this page. 9.9. Motion Detection The Motion Detection function allows detecting suspicious motion and triggers alarms when motion volume in the detected area reaches/exceeds the determined sensitivity threshold value.
  • Page 43 When motion is detected, the signals will be displayed in the Motion window as shown below: The detailed settings of Motion Detection are described as follows: Motion Detection : In each set of the Motion Detection Setting, the default setting for the Motion Detection function is <Off>. Enable this function by selecting <On>.
  • Page 44 - Record Stream to SD Card: When you select this item, the Motion Detection recording will be stored on your Micro SD/SDHC card when motion is detected. The pre-trigger buffer recording function allows users to check what happened to trigger the alarm. The pre- trigger buffer time range is from 1 to 3 seconds.
  • Page 45 - Upload Image by E-Mail: After selecting this item, the Administrator can assign an e-mail address and configure various parameters as shown in the picture below. When a motion is detected, event images will be sent to the appointed e-mail address. The <Pre-trigger buffer>...
  • Page 46 9.10. Network Failure Detection The Network Failure Detection function allows the IP Camera to ping another IP device (e.g. NVR, VSS, Video Server, etc.) within the network periodically and generates some actions in case of network failure occurance, for instance, when a Video Server is somehow disconnected. Being capable of implementing local recording (through Micro SD card) when a network failure happens, the IP Camera can be a backup recording device for the surveillance system.
  • Page 47 - Record Stream to SD Card: When you check this item, the alarm-triggered recording will be stored on your Micro SD/SDHC card when network failure is detected. The pre-trigger buffer recording function allows users to check what happened to trigger the alarm. The pre- trigger buffer time range is from 1 to 3 seconds.
  • Page 48 9.11. Periodical Event The device will send the designated frame numbers to the SD card in a specified time frame/duration. Enable the function by selecting <On>. Set the Time Interval by choosing from 60s to 3600s. - Upload Image by FTP: After selecting this item, the Administrator can assign a FTP site and configure various parameters as shown in the figure below.
  • Page 49 The <Pre-trigger buffer> recording function allows users to check what happened to trigger the alarm. The pre- trigger buffer time range is from 1 to 20 frames. On the other hand, the <Post-trigger buffer> is for uploading a certain amount of images after the alarm input is triggered.
  • Page 50 9.12. Tampering The Tampering Alarm function helps the IP Camera against tampering such as deliberate redirection, blocking, spray paint, lens covering, etc. through video analysis and reaction to such events by sending out notifications or uploading snapshots to the specified destination(s). Detection of camera tampering is achieved by measuring the differences between the older frames of video (which are stored in buffers) and more recent frames.
  • Page 51 The pre-trigger buffer recording function allows users to check what happened to trigger the alarm. The pre- trigger buffer time range is from 1 to 3 seconds. Select <Upload for __ sec> to set the recording duration after the alarm is triggered. The setting range is from 1 to 99999 seconds.
  • Page 52 The <Pre-trigger buffer> recording function allows users to check what happened to trigger the alarm. The pre- trigger buffer time range is from 1 to 20 frames. On the other hand, the <Post-trigger buffer> is for uploading a certain amount of images after the alarm input is triggered.
  • Page 53 NOTE: Please format the Micro SD/SDHC card when using it for the first time. Formatting will also be required when a memory card has already been used on one device and was later transferred to another device with a different software platform. Device Information : When users insert the Micro SD/SDHC card, the card information such as the memory capacity and status will be shown in the Device Information section.
  • Page 54 When the recording mode is set to “Always” (consecutive recording) in the submenu "Recording" and the Micro SD/SDHC card recording is also allowed to be enabled when triggered by events, once the events occur, the system will immediately implement the recorded events to the memory card. After event recording, the device will return to regular recording mode.
  • Page 55 9.14. Recording (on Camera) In the Recording setting page, the Micro SD Card recording schedule supports up to ten sets of time frames. Users can specify the recording schedule to fit their present surveillance requirements. Activating Micro SD/SDHC Card Recording : Two types of schedule mode are offered: "Always"...
  • Page 56 9.15. Schedule This function allows the users to setup schedules for features including: <Alarm Switch>, <Motion Detection> and <Network Failure Detection>. The function supports up to 10 sets of time frames in the time frame list. Setting a schedule: To set a schedule, please select a time frame from the time frame list first. Then check the boxes at the bottom of the time frame to choose the specific weekdays.
  • Page 57 9.16. File Location (on PC) Users can specify a storage location for the snapshots and the live video recording. The default setting is: C:\. Once the setting is confirmed, click on “Save,” and all the snapshots and recordings will be saved in the designated location.
  • Page 58 9.17. View Information <Log File>: Click on the link to view the system log file. The content of this file provides useful information about configuration and connections after system boot-up. English...
  • Page 59 <Parameters>: Click on this item to view the entire system’s parameter setting. 9.18. Factory Default The factory default setting page is shown below. Follow the instructions to reset the IP Camera to factory default setting if needed. English...
  • Page 60 Full Restore : Click on the “Full Restore” button to recall the factory default settings. After 30 seconds the system will restart. NOTE: The IP address will also be restored to default (192.168.1.1). Partial Restore : Click on the “Partial Restore” button to recall the factory default settings, except for the network settings. Reboot : When you click on the “Reboot”...
  • Page 61 Step 5: Go to “Start” on your Windows desktop, activate “Control Panel”, and then double-click on ”Add or Remove Programs“. In the “Currently installed programs” list, select “GRUNDIG Viewer” and click on the button “Remove” to uninstall the existing GRUNDIG Viewer.
  • Page 62 9.21. Maintenance Users can export configuration files to a specified location and retrieve data by uploading an existing configuration file to the IP Camera. This is especially convenient if you want to have the same configuration for multiple cameras. Export: Users can save the system settings by exporting the configuration file (.bin) to a specified location for future use.
  • Page 63 10. Streaming Settings 10.1. Video Format Video Resolution : Under the Video Resolution section, the available video resolution formats include MJPEG and H.264. Click on “Save” to confirm the setting. Text Overlay Settings : Users can select these items to display data (date/time/text) on the live video pane. The maximum length of the string is 18 alphanumeric characters.
  • Page 64 Suppose the displayed image of IP Camera is shown as the figure below. To rotate the image, users can select “Flip video”, for instance. Then the displayed image will be reversed as shown below. GOV Settings : Users can set the GOV length to determine the frame structure (I-frames and P-frames) in a video stream for saving bandwidth.
  • Page 65 10.2. Video Compression Users can specify the values for MJPEG/H.264 compression mode in the video compression page (see the picture below), depending on the application. MJPEG compression setting (MJPEG Q (Quality) factor): A higher value implies higher bit rates and a higher visual quality. The default setting is 35; the setting range is from 1 to 70.
  • Page 66 10.3. Video ROI The "Video ROI" setting can be found under this path: "Streaming" > "Video ROI". ROI stands for Region of Interest. This function allows the users to select a specific monitoring region for H.264-2, H.264-3, H.264-4 and MJPEG streams, instead of showing the full image. NOTE: This function is only available when triple streams or above is selected under <Video Resolution>...
  • Page 67 - Enable the MJPEG ROI Setting: When you check the box, the MJPEG ROI Window will be displayed. To change the size of the MJPEG ROI Window, move the mouse cursor to the edge of the frame and draw it outward / inward. Moving the mouse to the center of the frame can shift the frame to the intended location.
  • Page 68 10.5. Video Frame Rate The video frame rate is for setting the frames per second (fps) if needed. MJPEG/ H.264-1/ H.264-2 Frame Rate: The default setting of the MJPEG Frame Rate is 25 fps; the setting range is from 1 to 25 (PAL). Click on <Save>...
  • Page 69 10.6. Video Mask There are five video masks which can be set by the users. Active Mask Function : - How to add a mask: When you check a Video Mask checkbox ("Enable to display Mask…"), a red frame will come out in the Live Video pane at the right side.
  • Page 70 10.7. Audio (Audio and Bit Rate Settings) The audio setting page is shown below. In the Audio page, the Administrator can select one transmission mode and the audio bit rate. Transmission Mode : - Full-duplex (Talk and Listen simultaneously): In the Full-duplex mode, the local and remote sites can communicate with each other simultaneously, i.e. both sites can speak and be heard at the same time.
  • Page 71 Bit Rate : The selectable audio transmission bit rates include 16 Kbps (G.726), 24 Kbps (G.726), 32 Kbps (G.726), 40 Kbps (G.726), uLAW (G.711) and ALAW (G.711). Both uLAW and ALAW signify 64 Kbps but in different compression formats. A higher bit rate signifies a higher audio quality and requires a bigger bandwidth. Click on “Save”...
  • Page 72 The exposure is the amount of light received by the image sensor and is determined by the width of lens diaphragm opening, the amount of exposure by the sensor (shutter speed) and other exposure parameters. With this item, users can define how the Auto Exposure function works. Auto Mode: - Max Gain: The maximum gain can be set to reduce the image noises.
  • Page 73 Auto Mode : The Auto White Balance mode is suitable for an environment with a light source having a colour temperature range from 2700 ~ 7600K. ATW Mode (Auto Tracking White Balance) : With the Auto Tracking White Balance function, the white balance in a scene will be automatically adjusted while temperature colour is changing.
  • Page 74 11.4. Backlight Setting Based on various lighting situations, users can turn the function of Backlight Compensation on or off to optimise the video quality. The default value of Backlight is: Off. Click on < √ > to confirm the new setting. 11.5.
  • Page 75 The Noise Reduction function is configurable with the following options: - 3DNR Low - 3DNR Mid - 3DNR Hi - SPQ - SPQ + 3DNR Low - SPQ + 3DNR Mid - SPQ + 3DNR Hi Click on < √ > to confirm the new setting. 11.9.
  • Page 76 Press “Pan / Tilt” on the left side of the Main menu page, and the configurable Pan/Tilt settings will be displayed in the left column. Further details of these settings will be specified in the following sections. 12.1. Preset Before setting this function, users must enable the Pan/Tilt Control first. Please refer to section 12.3. Pan/Tilt Control for more details.
  • Page 77 Preset Points Setup: Step 1: Move the camera to the desired position by moving the mouse cursor onto the screen, click on the left mouse button, hold it and drag the red arrow to pan/tilt the camera. Users may adjust the zoom position as well. Step 2: Once a Preset Point is defined, please assign a number (between 1 and 127) to it and enter this number into the input field.
  • Page 78 Sequence Run: Select the specified Sequence No. from the drop-down list and press the arrow/point button. Then the camera will start moving forward by each scene sequentially as programmed. To view the camera executing a Sequence in full screen mode, please move the mouse cursor onto the live view pane, right-click and left-click to select “fullscreen”.
  • Page 79 The GRUNDIG CMS Software gives the user access to monitor multiple IP Cameras and Video Servers, and allows the user to monitor simultaneously 16 sites per group (up to 10 groups) within several clicks.
  • Page 80 15. Internet Security Settings If the ActiveX control installation is blocked, please either set the Internet security level to default or change ActiveX controls and plug-in settings. Internet Security Level : Default Step 1: Start the Internet Explorer. Step 2: Select <Tools> from the main menu of the browser. Then click on <Internet Options>. Step 3: Click on the <Security>...
  • Page 81 Step 4: Down the page, click on “Default level…” and then click “OK” to confirm the setting. Close the browser window, and open a new one later when accessing the IP Camera. ActiveX Controls and Plug-in Settings : Step 1~3: Please refer to the previous section above. Step 4: Down the page, click on “Custom level…”...
  • Page 82 The Security Settings screen is displayed as shown below: Step 5: Under “ActiveX controls and plug-ins”, set ALL items (as listed below) to <Enable> or <Prompt>. Please note that the items may vary depending on the Internet Explorer version you are using. ActiveX controls and plug-in settings: 1.
  • Page 83 The procedure of the GRUNDIG Viewer software download is specified as follows: Step 1: In the GRUNDIG Viewer installation page, click “Next” to start the installation. Step 2: Setup starts. Please wait for a while until the loading bar runs out.
  • Page 84 Step 3: Click on “Finish” to close the GRUNDIG Viewer installation page. Then, the IP Camera’s Home page will be displayed as follows: NOTE: Please note that the function buttons may vary depending on the camera model. English...
  • Page 85 17. Install UPnP Components Please follow the instructions below to install UPnP components. (The procedure is for Windows XP, for other systems please refer to the corresponding manuals.) Step 1: Go to “Start”, click on “Control Panel”, and then double-click on “Add or Remove Programs”. Step 2: Click on “Add/Remove Windows Components”...
  • Page 86 Step 3: Select “Networking Services” from the Components list in the Windows Components Wizard window, and then click on “Details”. Step 4: Select “UPnP User Interface” in the Networking Services’ subcomponents list and then click on “OK”. Step 5: Click on “Next” in the Windows Components Wizard page. English...
  • Page 87 Step 6: Click on “Finish” to complete the installation. 18. Deleting the Existing GRUNDIG Viewer Users who have installed the GRUNDIG Viewer for 1.3 Megapixel Series IP Cameras on the PC need to delete the existing GRUNDIG Viewer first from the PC before accessing this IP Camera.
  • Page 88 STEP 1: Click on the “Tools” tab and select the option “Internet Options”. STEP 2: Click on “Delete” in the first pop-up window. Then tap “Delete Files” in the “Temporary Internet files” section in the next pop-up window. English...
  • Page 89 English...
  • Page 90 Specifications GCI-K1555Z Image Sensor Sony Progressive CMOS Col/B&W On/Off/Auto, IR-cut filter removable (ICR) Pixels - Total 1920(H) x 1080(V) Sensitivity Colour 0.2 lux @ F1.6 Sensitivity B&W 0.02 lux @ F1.6 On/Off + WDR White Balance Auto, Manual, Indoor, Outdoor, ATW...
  • Page 91 EC Declaration of Conformity GCI-K1555Z 2 Megapixel Full HD 18x Zoom Box IP Camera It is hereby certified that the products meet the standards in the following relevant provisions: EC EMC Directive 2004/108/EC Applied harmonised standards and technical specifications: Measurement Procedure EMI:...
