Installation Manual
This Quick Start Guide will take you through the process to install and configure TeleEye NX301 video server for remote
monitoring, recording and playback on a PC.

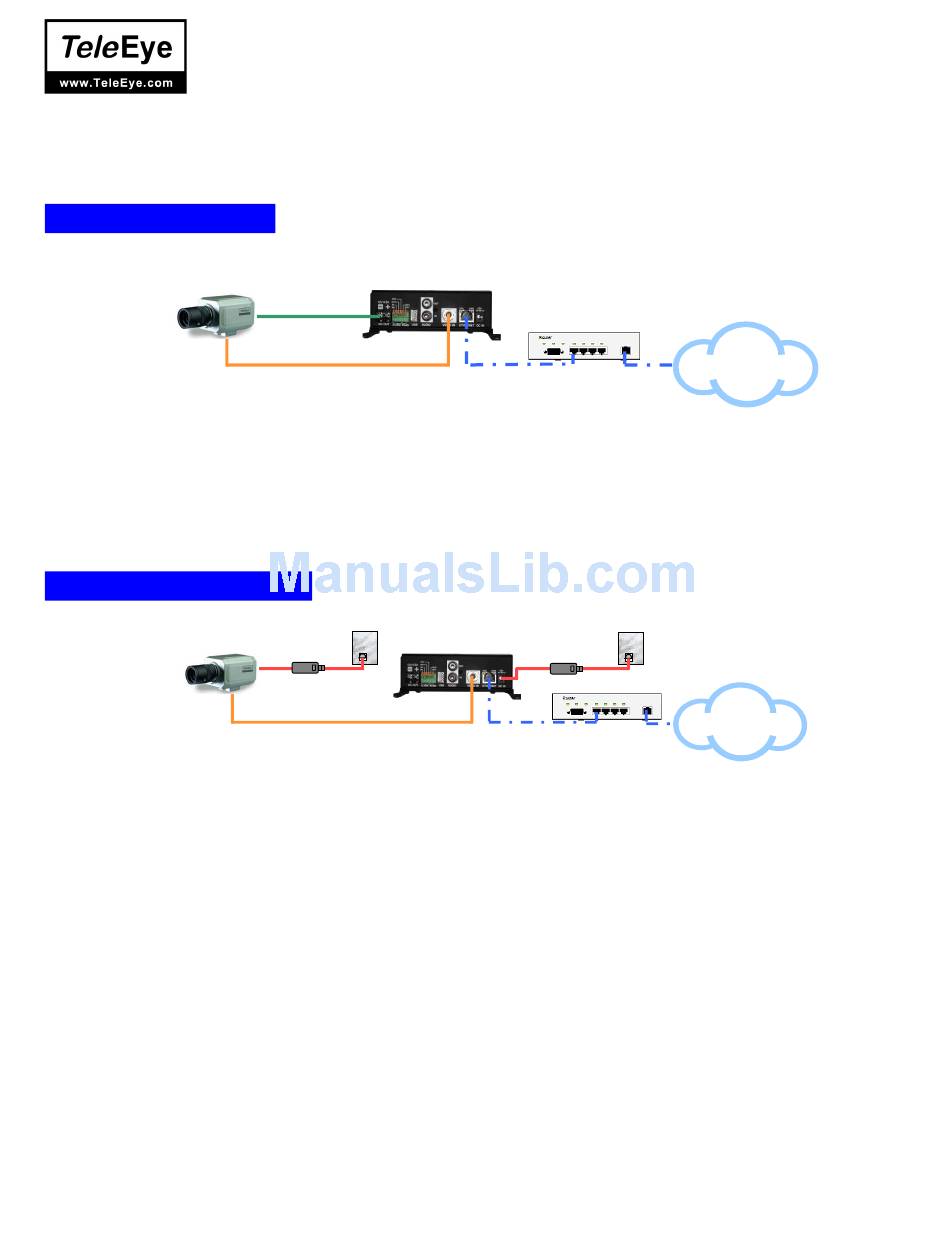

Installation with PoE
TeleEye SF373
Step 1:
Connect the video ouput of the camera to NX301 video input.
Step 2:
Connect NX301 DC output to camera's DC input. Note that the power is 12V DC, 500mA..
Step 3:
Connect NX301 to network switch / router with 802.3af PoE supported.
Step 4:
Wait for around 1 minutes for the NX301 to startup.
Installation without PoE
TeleEye SF373
Step 1:
Connect the video ouput of the camera to NX301 video input.
Step 2:
Connect NX301 to a network switch / router.
Step 3:
Connect NX301 to the power adaptor.
Quick Start Guide
TeleEye NX301 Video Server
TeleEye NX301
210.17.139.146
Power cable
Video cable
TeleEye NX301
210.17.139.146
Camera's
DC Adapter
Video cable
Network Switch / Router
with PoE supported
Straight-through
Ethernet cable
Power Adapter
Network Switch / Router
Straight-through
Ethernet cable
Internet
Internet
1
Advertisement
Related Manuals for TeleEye NX301
Summary of Contents for TeleEye NX301
-
Page 1: Quick Start Guide
Quick Start Guide TeleEye NX301 Video Server This Quick Start Guide will take you through the process to install and configure TeleEye NX301 video server for remote monitoring, recording and playback on a PC. Installation with PoE TeleEye NX301 TeleEye SF373 210.17.139.146... - Page 2 USB 3G Data Modem Camera’s DC Adapter Internet USB cable Step 1: Connect the video ouput of the camera to NX301 video input. Step 2: Connect NX301 to an USB 3G data modem. Step 3: Connect NX301 to the power adaptor. Step 4: Wait for around 1 minutes for the NX301 to startup.
- Page 3 Live Monitoring with Web-Browser Step 1: On the PC side, open a web browser and type in the IP address of the NX301. (NX301’s IP address of this example is 210.17.139.146, type in http://210.17.139.146 in a web browser). Step 2: Type in the Password.
- Page 4 Step 4: A monitoring screen will be shown on the browser. Step 2’s screenshot: Type in the Password Step 4’s screenshot: web-monitoring screen WX-M4Lite Reception Software Users can install WX-M4Lite reception software from the software CD. WX-M4Lite is a back-end application which works in conjunction with NX network camera to build up a complete IP and mobile surveillance system.
