Summary of Contents for TeleEye CY-S450
-

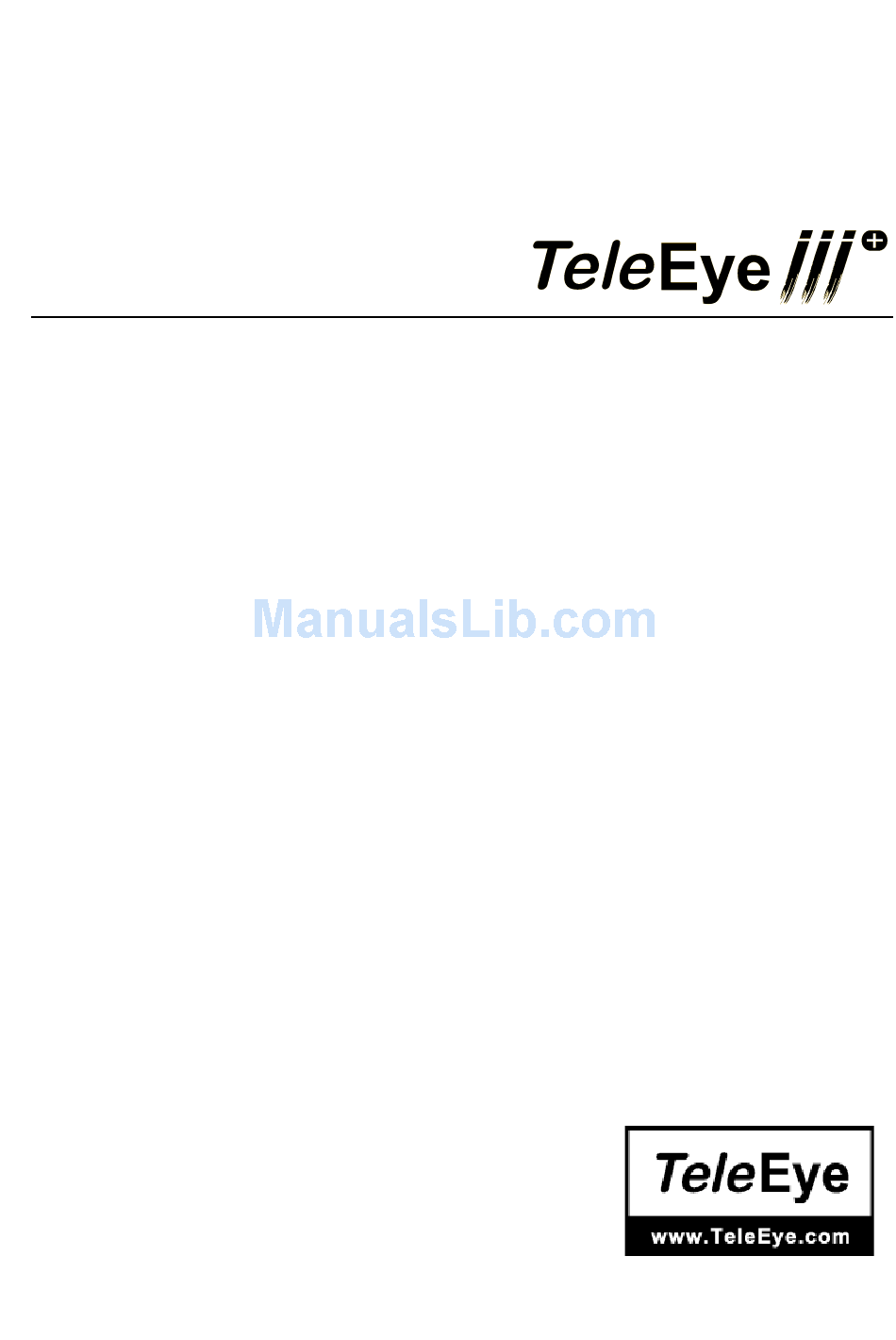

Page 1: User Guide
Cyber Tele Eye Web Video Solution Video Server (CY-S450) User Guide... - Page 2 Notice: Signal Communications Limited reserves the right to make improvements to the product described in this manual at any time and without notice. This manual is copyrighted. All rights are reserved. This manual may not be copied, reproduced or translated in whole or part without prior consent from Signal Communications Limited.
-
Page 3: Table Of Contents
Table of Contents SECTION1 INTRODUCTION About the Cyber TeleEye Web Video Solution – Video Server SECTION2 INSTALLATION What You Have System Requirement Software Installation SECTION3 START SERVER Before you start Connecting to the Video Server Auto Redial Stopping the Server... -
Page 4: Section1
The Cyber Tele Eye Web Video Solution – Video Server configuration is illustrated in the following block diagram. Laptop computer with Microsoft IE TCP/IP TCP/IP TeleEye Video Transmitter Desktop PC with TeleEye Reception software Video Server Pocket PC with M101 Introduction... -
Page 5: Section2
Video Server Software User Guide PAGE 2 SECTION INSTALLATION Cyber TeleEye Web Video Solution – Video Server runs on Pentium, and compatible PC with Microsoft Windows NT, Windows 2000 or Windows XP environment. What You Have Your Cyber TeleEye Web Video Solution – Video Server software package... - Page 6 1. Insert the software CD-ROM into a CD-ROM drive. The CD-ROM will run setup automatically. 2. Click Install Cyber TeleEye Web Video Solution – Video Server to install the software 3. Enter the software serial number which is printed on your CD ROM.
-
Page 7: Section3
SECTION START SERVER Before You Start Cyber TeleEye Web Video Solution – Video Server support TCP/IP (Internet or Intranet) connection only. Before start the server, you should: Make sure your network card work properly. Make sure you have configured the TCP/IP settings. - Page 8 Video Server Software User Guide PAGE 5 You can go to the web site http://www.TeleEye.com to do software registration with the Software Serial Number and Authorization Code provided in this page. After successful registration, you will obtain a Registration Code. Enter this code and press the [OK] button, your software will be registered.
-
Page 9: Connecting To The Video Server
Video Server Software User Guide PAGE 6 Click here to enter the Administration password On the left side of the page, select one of the four sites to configure. Enter the IP address, port number and password of your Tele Eye transmitter, enter a particular server port number, and click [Start]. - Page 10 Video Server Software User Guide PAGE 7 For using Microsoft Internet Explorer, enter the IP address to load the login page and enter the password to view the remote video. Start Server...
-
Page 11: Stopping The Server
Video Server Software User Guide PAGE 8 Stopping the Server You may stop the Video Server by going to the Configuration page. First select one of the four sites on the left hand side of the page. The specific configurations of this site should be shown on the middle page. Click [Stop] button to stop the Video Server connecting to this particular site. -
Page 12: Section4
Video Server Software User Guide PAGE 9 SECTION SERVER ADMINISTRATION The Cyber Tele Eye Web Video Solution – Video Server provides the system administrator the ability to monitor the server statistics, advance server configurations, user statistics and user control. Server Status Page The Server Status Page gives a summary of the server statistics. -
Page 13: User Status Page
Video Server Software User Guide PAGE 10 password, click the change password button as indicated in the following diagram. Click close button to lock the server Click here change Administration To lock the Video Server to normal mode, click the close button. User Status Page The User Status Page provides a summary of all user information including the user IP address, user selected camera, user login time, user login duration and... -
Page 14: Configuration Page
Video Server Software User Guide PAGE 11 To remove/restrict a user, administrator should select the particular user on the summary box, and then click the [Remove User] button. Configuration Page Basically, the Configuration Page provides site configuration and server configuration functions. You should use this page to setup the IP address, port number, password, and server port for a particular site. -
Page 15: History Page
Video Server Software User Guide PAGE 12 Set the max. supported users by the Server Set the max. connection duration of an user Select either [Allow All] or [Restrict All] mode, so that all users are allowed to connect, or all users are restricted to connect Click the [Apply] button to apply all changes... -
Page 16: About Page
Video Server Software User Guide PAGE 13 About Page The About Page shows the version information of the Video Server. Besides, you can do [Software Registration] on this page. Current version information of the software View/Set software registration information Server Administration...
