Summary of Contents for Duncan Palladium Gain Stage
- Page 1 - P A L L A D I U M - G A I N S T A G E U S E R ’ S G U I D E...
-
Page 2: How It Works

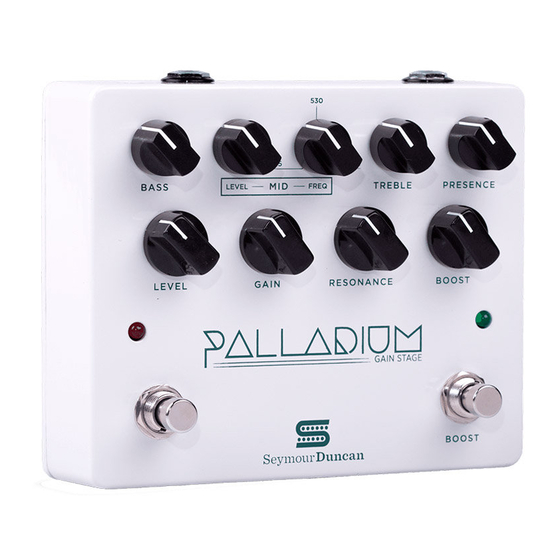

Congratulations, and thank you for your purchase of the Seymour Duncan Palladium Gain Stage pedal. The quest for a pedal that truly sounds and performs like a tube amp has been elusive at best. There is a wealth of options out there, but most suffer from that same flat, one-dimensional characteristic common in pedal designs. - Page 3 Presence – This control lets you boost or cut 5.2kHz by up to 13dB. Level – Sets the output signal level. Gain – Adjusts the amount of distortion at high frequencies. Resonance – Adjusts the amount of distortion at low frequencies. This adds a low-end thump, as you would experience from a 4x12 cabinet.
-
Page 4: Let's Get Started
LET’S GET STARTED! 1. Plug in any regulated 9 volt - 18 volt DC power supply with a negative polarity center terminal. 2. Run good quality, unbalanced, shielded guitar cables from your guitar to the input jack and from the output jack, or jacks, to your amp’s input, or to the next pedal on your pedalboard. -
Page 5: Sample Settings
SAMPLE SETTINGS MotherJamChainsGarden Flash back in time to 1992, when people were flocking to theaters to see Singles and the sound of Seattle ruled the airwaves. Aggressive, edgy and articulate - this setting is perfect for tight chording and chunky rhythm work. Step on the Saturation button to kick in a little extra grit for a great solo tone. - Page 6 Versatile Classic Just enough gain to cover the bases from standard blues riffing to intricate hard rock rhythm playing, this setting nails a wide palette of more traditional rock tones sought after by cover band players. Step on the Saturation button to add a touch of sustain for solos.
- Page 7 Tech Specs: Type of circuitry: Low noise op amps and germanium clipping diodes Bypass: True hard-wire bypass Control Functionality: Bass: Sets amount of bass boost or cut Mid Level: Sets amount of mid frequency boost or cut Mid Freq: Sets location of center frequency of mid boost or cut. Treble: Sets amount of treble boost or cut Presence: Sets amount of boost or cut above the treble frequency range Level: Sets the output signal level...
-
Page 8: Disposal Guidelines
Tone Control Response: Bass - 100Hz center, +/-15dB boost/cut Mid - 255Hz to 1100Hz, +/-12db boost/cut Treble - 2.7kHz center, +/-13dB boost/cut Presence - 5.2kHz center, +/-11dB boost/cut Power: External 9 volt - 18 volt regulated DC adapter (center pin negative) drives internal 24V supply Current Consumption: 180mA Dimensions: 5.6”... -
Page 9: Limited Warranty
COMMITMENT TO QUALITY AND COMMUNITY Seymour Duncan takes pride in designing and crafting our products to create the most amazing sound possible. Our Made in the USA label designates that the products are designed in Santa Barbara, California and manufactured in the USA with quality parts sourced in the United States and around the world. -
Page 10: Personal Settings
PERSONAL SETTINGS USER NOTES USER NOTES... - Page 12 5427 Hollister Ave Santa Barbara, CA 93111 (805) 964-9610 © 2016 Seymour Duncan...
