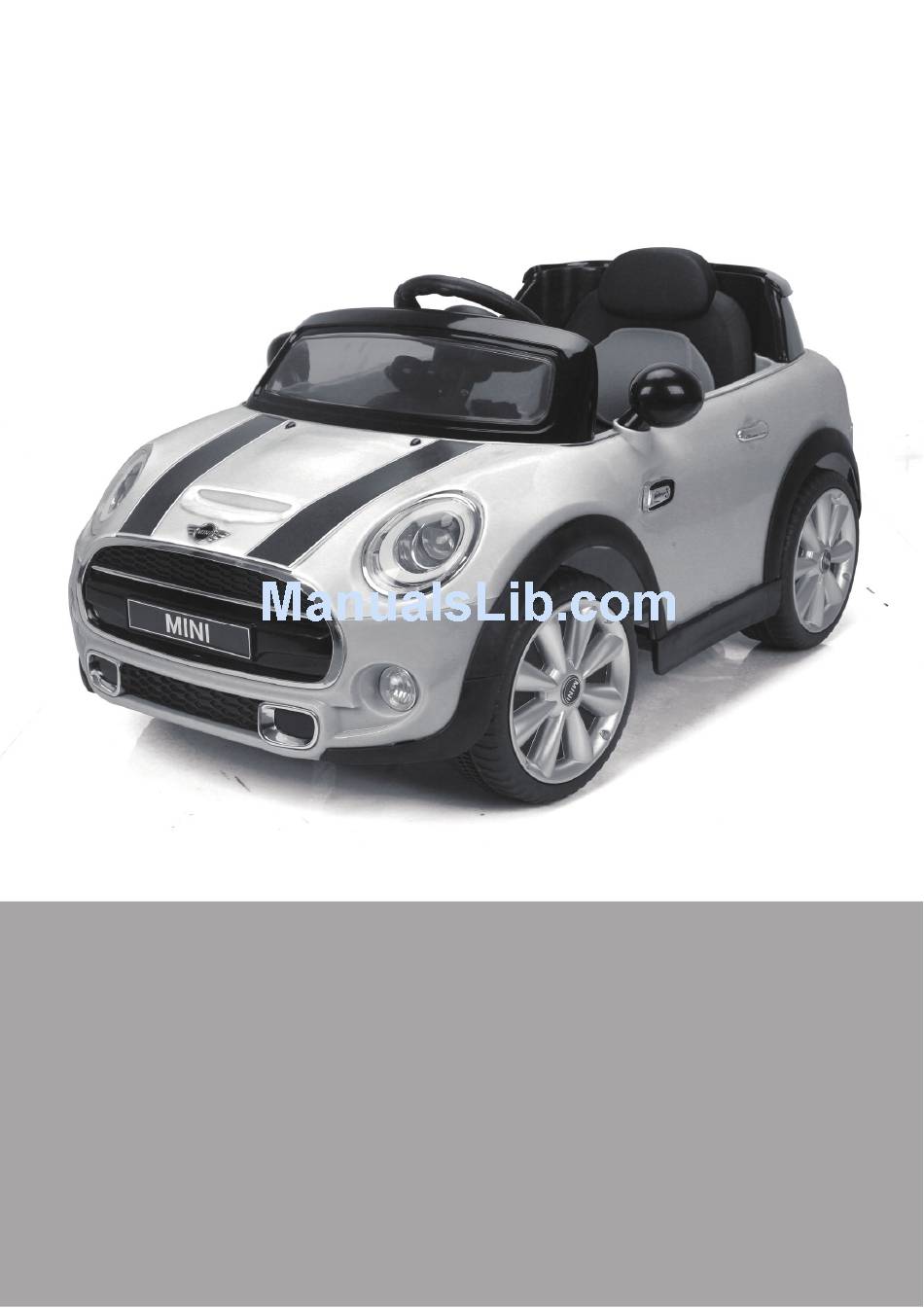

MINI Hatch
Children Electric RIDE ON
Styles and colo(u)rs may vary.
Made in China.
The owner's manual contains important safety information as well as assembly, use and
maintenance instructions.
The Ride-on Car must be assembled by an adult who has read and understands the
instructions in this manual.
Keep the package away from children and dispose of properly before use.
Keep this manual for future reference.
Owner's Manual
with Assembly Instructions

Advertisement

loading

Related Manuals for PlayActive MINI Hatch

Summary of Contents for PlayActive MINI Hatch

  • Page 1 MINI Hatch Children Electric RIDE ON Owner’s Manual with Assembly Instructions Styles and colo(u)rs may vary. Made in China. The owner’s manual contains important safety information as well as assembly, use and maintenance instructions. The Ride-on Car must be assembled by an adult who has read and understands the instructions in this manual.
  • Page 2 Follow the recommendations in this manual, they are designed to improve the safety and operation of your ride-on car and it’s rider. MINI Hatch Children Electric Ride On manufactured by Zhejiang Jiajia Ride-On Co., Ltd. (Add: Xincang Industrial Zone, Pinghu City, Zhejiang Province, P.R.China).
  • Page 3 Parts List │ 2 Q’ty (pcs) PART PART NAME REMARKS Gear box 1pc labeled “L”, and 1pc labeled “R” Driving wheel Ø10 washer Motorhood Placed in a plastic bag Front wheel Bushing 2pcs placed on the front axle, 2pcs placed on the rear axle. Ø10 locknut Dash Vehicle body...
  • Page 4 Parts Diagram │ 3 NOTE: Some parts shown are assembled on both sides of vehicle...

  • Page 5: Battery Information

    Before You Begin Assembly │ 4 WARNING! • CHOKING HAZARD - Small parts. Not suitable for children under 36 months. The product contains small parts, keep children away when assembling. • ADULT ASSEMBLY REQUIRED. • Always remove protective material and poly bags and dispose before assembly. •...
  • Page 6 Attach the Rear Window │ 5 1. Fit the tabs on the rear window into the slots on the rear vehicle. 2. Turn the vehicle body over and tighten two Ø4x12 screws to secure it.
  • Page 7 Attach the Rear Support & Front Axle │ 6 1. Fit the rear support to the vehicle body. 2. Tighten seven Ø4x12 screws to secure it with a screwdriver. 3. Fit the front axle to the vehicle body. 4. Insert eight Ø4x12 screws through the front axle and into the vehicle body wall, and tighten with a screwdriver.
  • Page 8 Attach the Rear Axle │ 7 Remove all the parts from the rear axle. 1. Insert the rear axle into the hole in the vehicle body from Left side. 2. Make the square part on the rear axle match with square opening on the vehicle body.

  • Page 9: Gear Box

    Attach the Rear Wheels │ 8 HINT: If your vehicle was Two Wheels Driving Type, see the next page please. Rear axle 1. Slide the gear box onto the rear axle (Left Side). “R” labeled gear box should be fit to the “R”...

  • Page 10: Ø10 Washer

    Attach the Rear Wheels │ 9 Rear axle 1. Slide the gear box onto the rear axle (Left Side). “R” labeled gear box should be fit to the “R” side of vehicle body; “L” labeled gear box should be fit to “L” side of vehicle body.

  • Page 11: Bushing (

    Attach the Front Wheels │ 10 Front axle Tools required: Spanner Remove all the parts from the front axle. 1. Slide a Ø10 washer onto the front axle. 2. Slide the bushing (ring end first) onto the front axle. 3. Slide the normal wheel (with wheel hubcap) onto the rear axle. and keep the normal wheel match with the bushing.

  • Page 12: Dash.

    Normal type Attach the Steering Column │ 11 HINT: If your vehicle equipped with Remote Control Function, see the next page please! Hole in the front axle linkage Steering Gear Box Turn the vehicle body on its side. 1. Slide a Ø10 washer onto the steering column from the straight end. 2.
  • Page 13 R/C type Attach the Steering Column │ 12 Hole in the front axle linkage Steering Gear Box Turn the vehicle body on its side. Remove the M5x22 machine screw and Ø5 from the R/C driver with a screwdriver. 1. Attach the R/C driver to the steering gear box, and make it match with steering gear box.
  • Page 14 Attach the Dash & Windshield │ 13 Turn the vehicle body upright. 1. Insert the tab on the dash into the slot on the vehicle body. 2. Insert the Ø4x12 BLACK screw through the dash and into the dashboard, and tighten it with a screwdriver.
  • Page 15 Attach the Steering Wheel │ 14 HINT: Batteries not included, refer to the battery information on page 4. Add the Batteries (NON PROVIDED) of Steering Wheel 1. With a screwdriver remove the screw on the battery cover located in the center of the steering wheel. 2.
  • Page 16 Connect the Power Supply │ 15 Fuse box Vehicle connector Battery Motor connector 1. Plug the Vehicle Connector into the Motor Connector on body as shown above. 2. Plug the Red fuse connector into the terminal on battery. 1. Plug the Vehicle Connector into the Motor Connector on body as shown above.
  • Page 17 Attach the Motor Hood │ 16 1. Fit the motor hood on the motor. 2. Tighten four Ø4x12 screws to secure it. 1. Fit the motor hood on the motor. 2. Tighten four Ø4x12 screws to secure it. Repeat the above steps for the other Motor hood.

  • Page 18: Seat

    Attach the Seat │ 17 Tabs 1. Fit the tabs at back of the seat to the holes in the vehicle body. 2. Tighten two M5x16 machine screws with a screwdriver.

  • Page 19: View Mirror

    Attach the View Mirrors │ 18 1. Fit the tabs on the mirror into the holes in the vehicle body. Push until you hear it click into place. 2. Repeat for the other side.
  • Page 20 Safety │ 19 WARNING! PREVENT INJURIES AND DEATHS: • NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS REQUIRED. Always keep child in view when child is in vehicle. • This toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties.
  • Page 21 Use Your Ride-on │ 20 IMPORTANT! Always stop vehicle when changing the speed or direction to avoid damage the gears and motor. 1. Power Switch: Turns the vehicle on and off. 2. Forward/reverse switch: Changes the direction that vehicle moves from forward to reverse.
  • Page 22 Use the Normal Remote Controller (if equipped) │ 21 WARNING: ADULT OPERATING REQUIRED! Indicator Light Left Joystick On-off Switch Right Joystick ASSEMBLY 1. Insert the antenna into the controller by tweak the antenna clockwisely; 2. Lift the battery compartment door on the back of the controller and insert two AA(LR6) batteries.

  • Page 23: Charger

    Charging │ 22 ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY! WARNING! • PREVENT FIRE AND ELECTRIC SHOCK: - Use the only rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery or the charger with another brand. Using another battery or charger may cause a fire or explosion. - Do not use the battery or charger for any other product.
  • Page 24 Charging │ 23 • If your ride-on with a the magnitude of voltage Digital voltmeter(IF EQUIPPED), will tell you how much power is remaining in the battery when you must recharge the battery. Make sure the vehicle is stop! BATTERY MAGNITUDE OF VOLTAGE BATTERY STATE ≥...
  • Page 25 Battery Replacement & Fuse │ 24 The battery features a thermal fuse with a rest fuse that will automatically trip and cut all power to the vehicle if the motor, electric system or battery is overloaded. The fuse will reset and power will be restored after the unit is turned OFF for 20 seconds and then turned ON again.
  • Page 26 Troubleshooting Guide │ 25 Possible Cause Solution Problem Vehicle does not run Battery low on power Recharge battery. Thermal fuse has tripped Reset fuse, see <Fuse> Check that the battery connectors are firmly plugged Battery connector or wires into each other. If wires are loose around the motor are loose contact your distributor please.
  • Page 27 Maintaining │ 26 • It is parents' responsibility to check main parts of the toy before using. Regular examination of transformer or battery charger for any damage to their cord, plug, enclosure and other parts, and that, in the event of such damage, toy must not be used with the transformer or battery charger until such damage has been repaired.
  • Page 28 Our products are suitable for ASTM F963; GB6675; EN71 and EN62115 standard.
