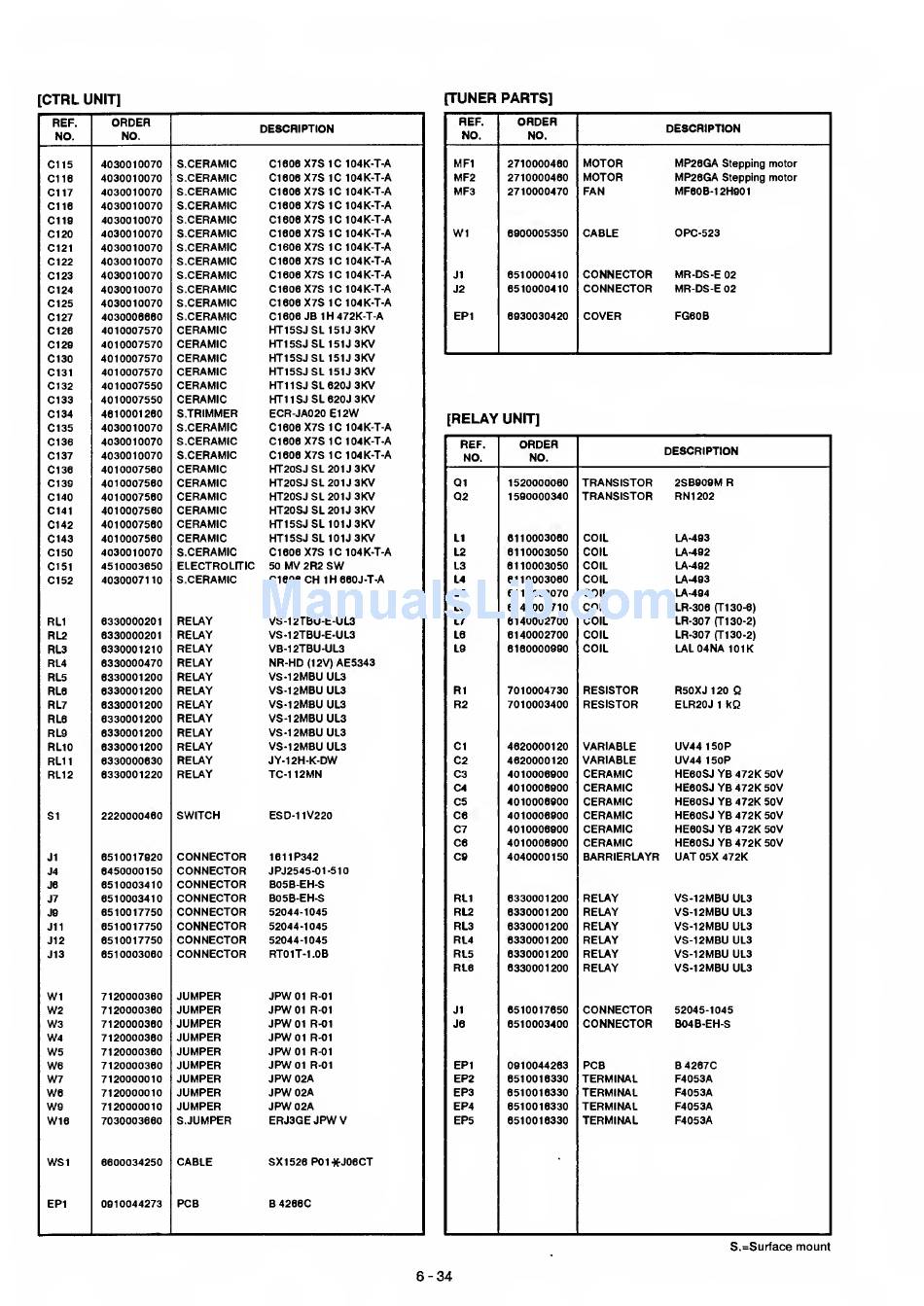

Icom ic-775 Service Manual page 72

[CTRL
UNIT]
[TUNER PARTS]
REF.
NO.
ORDER
NO.
DESCRIPTION
C115
4030010070
S.CERAMIC
C1608
X7S 1C
104K-T-A
C116 4030010070
S.CERAMIC C1608 X7S 1C
104K-T-A
C117 4030010070
S.CERAMIC
C1608
X7S
1C 104K-T-A
C118 4030010070
S.CERAMIC C1608 X7S 1C
104K-T-A
C119 4030010070
S.CERAMIC C1608 X7S 1C 104K-T-A
C120 4030010070
S.CERAMIC C1808 X7S
1C 104K-T-A
C121
4030010070
S.CERAMIC C1608 X7S 1C
104K-T-A
C122 4030010070
S.CERAMIC C1608 X7S 1C
104K-T-A
C123 4030010070
S.CERAMIC C1808 X7S 1C 104K-T-A
C124 4030010070
S.CERAMIC C1608 X7S 1C
104K-T-A
C125 4030010070
S.CERAMIC
C1808
X7S
1C 104K-T-A
C127 4030006880
S.CERAMIC
Cl 608 JB
1H472K-T-A
C128 4010007570
CERAMIC HT15SJSL151J3KV
C129 4010007570
CERAMIC HT15SJSL151J3KV
C130 4010007570
CERAMIC
HT15SJSL151J3KV
C131 4010007570
CERAMIC HT15SJSL151J3KV
C132 4010007550
CERAMIC
HT11SJSL820J3KV
C133 4010007550
CERAMIC HT11SJSL820J 3KV
C134 4610001260
S.TRIMMER ECR-JA020
E12W
C135 4030010070
S.CERAMIC C1808 X7S 1C
104K-T-A
C136 4030010070
S.CERAMIC C1608 X7S 1C 104K-T-A
C137 4030010070
S.CERAMIC C1808 X7S 1C
104K-T-A
C138 4010007580
CERAMIC
HT20SJSL201J3KV
C139 4010007580
CERAMIC HT20SJSL201J3KV
C140 4010007580
CERAMIC HT20SJ SL
201 J
3KV
C141 4010007580
CERAMIC HT20SJ SL
201 J
3KV
C142 4010007560
CERAMIC HT15SJSL101J3KV
C143 4010007560
CERAMIC
HT15SJSL101J3KV
C150 4030010070
S.CERAMIC C1808 X7S 1C
104K-T-A
C151
4510003850 ELECTROLITIC
50
MV
2R2
SW
C152 4030007110 S.CERAMIC C1608
CH
1H680J-T-A
RL1
8330000201
RELAY
VS-12TBU-E-UL3
RL2 6330000201
RELAY
VS-12TBU-E-UL3
RL3
6330001210
RELAY
VB-12TBU-UL3
RL4 6330000470
RELAY NR-HD
(12V)
AE5343
RL5 6330001200
RELAY VS-12MBU UL3
RL8 6330001200
RELAY VS-12MBU
UL3
RL7
6330001200
RELAY VS-12MBU
UL3
RL8 6330001200
RELAY VS-12MBUUL3
RL9
6330001200
RELAY VS-12MBUUL3
RL10 6330001200
RELAY
VS-12MBUUL3
RL11
6330000830
RELAY
JY-12H-K-DW
RL12 6330001220
RELAY TC-112MN
SI
2220000460
SWITCH
ESD-11V220
J1
6510017920
CONNECTOR
1811P342
J4
6450000150
CONNECTOR
JPJ2545-01-510
J6
6510003410
CONNECTOR
B05B-EH-S
J7
6510003410
CONNECTOR
B05B-EH-S
J9
6510017750
CONNECTOR
52044-1045
J11
6510017750
CONNECTOR
52044-1045
J12
6510017750
CONNECTOR
52044-1045
J13
6510003080
CONNECTOR
RT01T-1.0B
W1
7120000380
JUMPER JPW01
R-01
W2
7120000380
JUMPER
JPW
01 R-01
W3
7120000380
JUMPER JPW01
R-01
W4
7120000380
JUMPER JPW
01 R-01
W5
7120000380
JUMPER JPW
01 R-01
W6
7120000380
JUMPER JPW
01
R-01
W7
7120000010
JUMPER JPW02A
W8
7120000010
JUMPER
JPW
02A
W9
7120000010
JUMPER
JPW
02A
W18
7030003860
S.JUMPER
ERJ3GEJPWV
WS1
8600034250
CABLE
SX1528
P01#J08CT
EP1 0910044273
PCB
B 4288C
REF.
NO.
ORDER
NO.
DESCRIPTION
MF1 2710000460
MOTOR MP28GA
Stepping motor
MF2
2710000460
MOTOR
MP28GA
Stepping motor
MF3
2710000470 FAN MF60B-12H901
W1
8900005350
CABLE
OPC-523
J1
6510000410
CONNECTOR
MR-DS-E
02
J2
6510000410
CONNECTOR
MR-DS-E 02
EP1 8930030420
COVER
FG60B
REF.
NO.
ORDER
NO.
DESCRIPTION
Q1 1520000080
TRANSISTOR 2SB909M R
Q2
1590000340
TRANSISTOR
RN1202
LI
6110003060 COIL U-493
L2
6110003050 COIL LA-492
L3
6110003050
COIL
LA-492
L4
8110003060 COIL
U-493
L5
6110003070 COIL
U-494
L6
6140002710
COIL LR-308
(T130-8)
L7
6140002700 COIL LR-307
(T130-2)
L8
6140002700 COIL
LR-307 (T130-2)
L9
6180000990 COIL
UL04NA
101K
R1 7010004730
RESISTOR
R50XJ 120
Q
R2 7010003400
RESISTOR
ELR20J
1
kO
Cl
4620000120 VARIABLE UV44 150P
C2 4620000120 VARIABLE UV44 150P
C3
4010006900
CERAMIC HE80SJ YB 472K 50V
C4
4010006900
CERAMIC HE80SJ YB 472K 50V
C5 4010006900
CERAMIC
HE80SJ
YB
472K 50V
C6
4010006900
CERAMIC
HE80SJ
YB
472K 50V
C7 4010006900
CERAMIC
HE80SJ
YB
472K 50V
C8 4010006900
CERAMIC
HE80SJ
YB
472K 50V
C9
4040000150
BARRIERLAYR
UAT
05X 472K
RL1 6330001200
RELAY VS-12MBU
UL3
RL2
6330001200
RELAY
VS-12MBU UL3
RL3
6330001200
RELAY VS-12MBU
UL3
RL4 8330001200
RELAY
VS-12MBU UL3
RL5
6330001200
RELAY VS-12MBU UL3
RL6
6330001200
RELAY VS-12MBU
UL3
J1
8510017650
CONNECTOR
52045-1045
J6
6510003400
CONNECTOR
B04B-EH-S
EP1 0910044263
PCB
B 4287C
EP2
6510018330
TERMINAL F4053A
EP3
6510018330
TERMINAL
F4053A
EP4
6510018330
TERMINAL
F4053A
EP5
6510018330
TERMINAL F4053A
6-34
