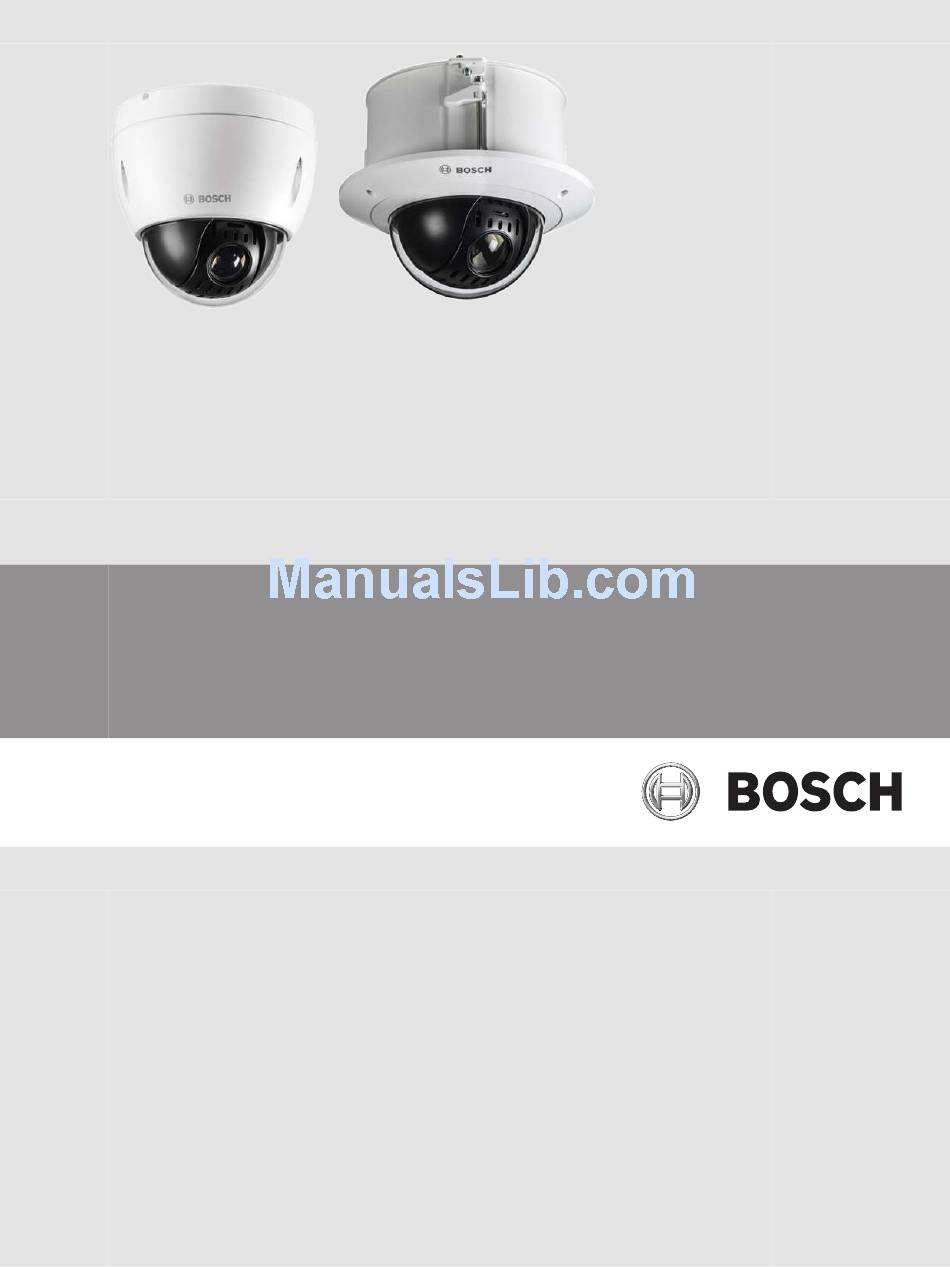

- Page 1 AUTODOME IP 4000 HD NEZ-4xxx-xxxxx Installation Manual...
-
Page 3: Table Of Contents
Install a Wall Mount and Camera Parts List Installation Requirements Installing the Wall Mount Install a Pipe Mount and Camera Parts List Installing the Pipe Mount Connection Troubleshooting Maintenance Decommissioning 12.1 Transfer 12.2 Disposal Technical data Bosch Security Systems Installation Manual 2015.03 | 0.1 |... -
Page 4: Safety
Legal Information Copyright This manual is the intellectual property of Bosch Security Systems, Inc. and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered trademarks and must be treated accordingly. -
Page 5: Safety Precautions
Electrical Code (NEC)), Canadian Electrical Code, Part I (also called CE Code or CSA C22.1), ® and all applicable local codes. Bosch Security Systems, Inc. accepts no liability for any damages or losses caused by incorrect or improper installation. Warning! Bosch’s version of High PoE:... -
Page 6: Connection In Applications
Video loss - Video loss is inherent to digital video recording; therefore, Bosch Security Systems cannot be held liable for any damage that results from missing video information. - Page 7 FUNCTIONS OF THIS PRODUCT. Notice! This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Bosch Security Systems Installation Manual 2015.03 | 0.1 |...
- Page 8 The user may find the following booklet, prepared by the Federal Communications Commission, helpful: How to Identify and Resolve Radio-TV Interference Problems. This booklet is available from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4. 2015.03 | 0.1 | Installation Manual Bosch Security Systems...
- Page 9 AUTODOME IP 4000 HD Safety | en Bosch Security Systems Installation Manual 2015.03 | 0.1 |...
-
Page 10: Customer Support And Service
| Safety AUTODOME IP 4000 HD Customer Support and Service If this unit needs service, contact the nearest Bosch Security Systems Service Center for authorization to return and shipping instructions. Service Centers Telephone: 800-366-2283 or 585-340-4162 Fax: 800-366-1329 Email: cctv.repair@us.bosch.com... -
Page 11: Unpacking
Verify that all the parts listed in the Parts List below are included. If any items are missing, notify your Bosch Security Systems Sales or Customer Service Representative. – Do not use this product if any component appears to be damaged. Please contact Bosch Security Systems in the event of damaged goods. –... -

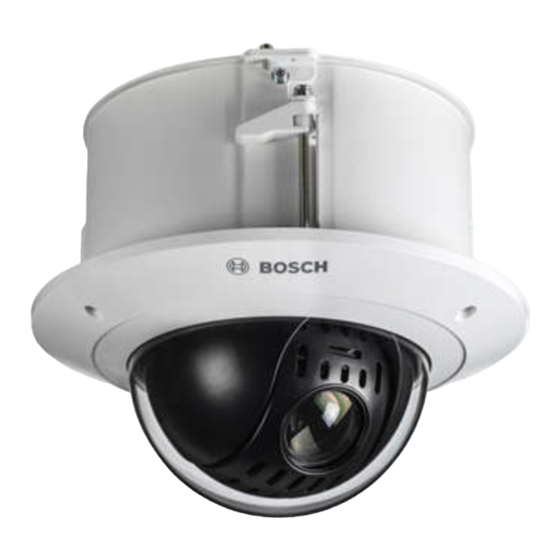

Page 12: Product Description
The camera’s aesthetic design and flexible mounting options allow unobtrusive surveillance of large halls, reception areas, or waiting areas that would otherwise require multiple cameras for effective surveillance. 2015.03 | 0.1 | Installation Manual Bosch Security Systems... -
Page 13: Mounting Accessories
AUTODOME IP 4000 HD cameras. Model Number Description Application VEZ-A2-WW1 Wall mount kit Indoor/outdoor vertical walls VEZ-A2-PW1 Pipe mount kit Indoor/outdoor high ceilings NEZ-A4-SMB Surface mount kit Indoor hard-ceiling Bosch Security Systems Installation Manual 2015.03 | 0.1 |... -
Page 14: Installation Overview
(NEC)), Canadian Electrical Code, Part I (also called CE Code or CSA C22.1), ® and all applicable local codes. Bosch Security Systems, Inc. accepts no liability for any damages or losses caused by incorrect or improper installation. 1. Select the mounting location. -
Page 15: Installing A Surface Mount
Install a 4 in. gang box or square metal junction box (not supplied). Ensure junction box and mounting screws are capable of supporting a maximum load of 11.33 kg (25 pounds). Bosch Security Systems Installation Manual 2015.03 | 0.1 |... -
Page 16: Installing The Camera To The Mounting Plate
Attach grounding wire from unit to junction box. Attach user supplied ground to junction box. Connect the mating connectors with the flying leads to the user supplied wiring (see Preparing the Wiring for wiring information). 2015.03 | 0.1 | Installation Manual Bosch Security Systems... - Page 17 Unlock the single safety locking screw on the base of the unit using the user-supplied Allen wrench. Figure 6.3: Unlock Safety Locking Screw Plug the matching connectors from the camera into the mating connectors from the ceiling. Bosch Security Systems Installation Manual 2015.03 | 0.1 |...
- Page 18 (Item 3) to the right of the safety locking screw (item 2). Note: Do not loosen the three brass buttons (item 4). These brass buttons engage the slotted tabs (item 5) on the mounting plate. 2015.03 | 0.1 | Installation Manual Bosch Security Systems...
- Page 19 Brass Button (total of three on housing) Slotted Tab (total of three on mounting plate) Rotate the camera approximately 15 degrees in a clockwise direction to lock firmly into place, as shown in the next illustration. Bosch Security Systems Installation Manual 2015.03 | 0.1 |...
- Page 20 Figure 6.6: Attach Dome to Mounting Plate Vertical tab Secure the safety locking screw with the user supplied locking torx wrench (T-10). See also – Preparing the Surface Mount for an Indoor Installation, page 15 2015.03 | 0.1 | Installation Manual Bosch Security Systems...
-
Page 21: Install A Wall Mount And Camera
The wall is thick enough to install the expansion bolt. – The wall can sustain at least 8 times the combined weight of the camera (>4.5 Kg (>10 lb)), the bracket, and the accessories. Bosch Security Systems Installation Manual 2015.03 | 0.1 |... -
Page 22: Installing The Wall Mount
The illustration below shows the required parts for the wall mount. Refer to the steps that follow for instructions. Wall Mount Base Safety Tether Washers (4 pieces) Adaptor M10x25L Phillips Screws (4 pieces) Camera 2015.03 | 0.1 | Installation Manual Bosch Security Systems... - Page 23 Place the top of the camera (6) inside the Adaptor (5) and turn clockwise until the camera latches to the adaptor. Fasten the M5x8L screw using the T20 Security Torx wrench (shipped with the camera) to secure the camera to the adaptor. Bosch Security Systems Installation Manual 2015.03 | 0.1 |...
-
Page 24: Install A Pipe Mount And Camera
200 mm (7.87 in.) Pipe Extension M38 to M38 Connection Ring M38 to M33 Connection Ring 3/4 x 260 in. Roll Teflon Tape 5g Container Silicon Grease M10x25L Phillips Screws and Washers Rubber Gasket Installation Manual 2015.03 | 0.1 | Installation Manual Bosch Security Systems... -
Page 25: Installing The Pipe Mount
M38 to M33 Pipe Connector M10x25L Phillips Screws (4 pieces) Safety Tether Pipe Extension, 300 mm (11.81 in.) Adaptor M38 to M38 Pipe Connector Dome Camera Pipe Extension, 200 mm (7.87 in.) Bosch Security Systems Installation Manual 2015.03 | 0.1 |... - Page 26 Attach the hook at the end of the Safety Tether (7) to the loop attached to the top of the Dome Camera (9). Connect all cables to the camera back plate. 2015.03 | 0.1 | Installation Manual Bosch Security Systems...
- Page 27 Place the top of the Dome Camera (9) inside the Adaptor (8) and turn clockwise until the Dome Camera latches to the Adaptor. Fasten the M5x8L screw using the T20 Security Torx wrench (shipped with the camera) to secure the Dome Camera to the Adaptor. Bosch Security Systems Installation Manual 2015.03 | 0.1 |...
-
Page 28: Connection
If supplying power to the camera by PoE+ or by a midspan device, you must install additional surge protection. Warning! Bosch’s version of High PoE: If supplying power to the camera by HPoE or a midspan device, you must install additional surge protection. - Page 29 ALARM_OUT Alarm Out Brown ALARM_IN1 Alarm In 1 White ALARM_IN2 Alarm In 2 Blue AUDIO OUT Audio Out Grey Ground Black AUDIO GND Audio Ground Green AUDIO IN Audio In Purple Bosch Security Systems Installation Manual 2015.03 | 0.1 |...
-
Page 30: Troubleshooting
Check that the camera lens cover is removed. If O.K., then: – Check that the maximum Ethernet cable distance has not been exceeded. If O.K., then: – Restore all camera settings via the Settings menu. 2015.03 | 0.1 | Installation Manual Bosch Security Systems... - Page 31 - In the Base frame rate field, choose either 25 ips or 30 ips. – Check the integrity of all connectors and splices of the Ethernet cable. If O.K., then: – Contact Bosch Technical Support. Loss of Privacy when – Web browsers, BVC or BVMS using Privacy Mask –...
-
Page 32: Maintenance
Notice! To avoid excessive moisture saturation inside the housing, limit the amount of time that the bubble is disconnected from the housing. Bosch recommends that the bubble be removed from the housing for no more than five (5) minutes. Bubble Handling The bubble may be packaged with a protective plastic sheet. - Page 33 Never scrub the bubble with any abrasive material or cleaners. Bosch recommends cleaning the exterior of the bubble with NOVUS “No. 1” Plastic Clean & Shine (or equivalent), according to manufacturer’s instructions. Refer to www.novuspolish.com to order or to find a local distributor.
-
Page 34: Decommissioning
(in accordance with the European Waste Electrical and Electronic Equipment Directive). To dispose of old electrical or electronic devices, you should use the return and collection systems put in place in the country concerned. 2015.03 | 0.1 | Installation Manual Bosch Security Systems... -
Page 35: Technical Data
AUTODOME IP 4000 HD Technical data | en Technical data For product specifications, see the datasheet for your camera, available on the appropriate product pages of the Online Product Catalog at www.boschsecurity.com. Bosch Security Systems Installation Manual 2015.03 | 0.1 |... - Page 38 Bosch Security Systems, Inc. Bosch Sicherheitssysteme GmbH 1706 Hempstead Road Robert-Bosch-Ring 5 Lancaster, PA, 17601 85630 Grasbrunn Germany www.boschsecurity.com © Bosch Security Systems, Inc., 2015...
