Finisher Unit Installation Guide

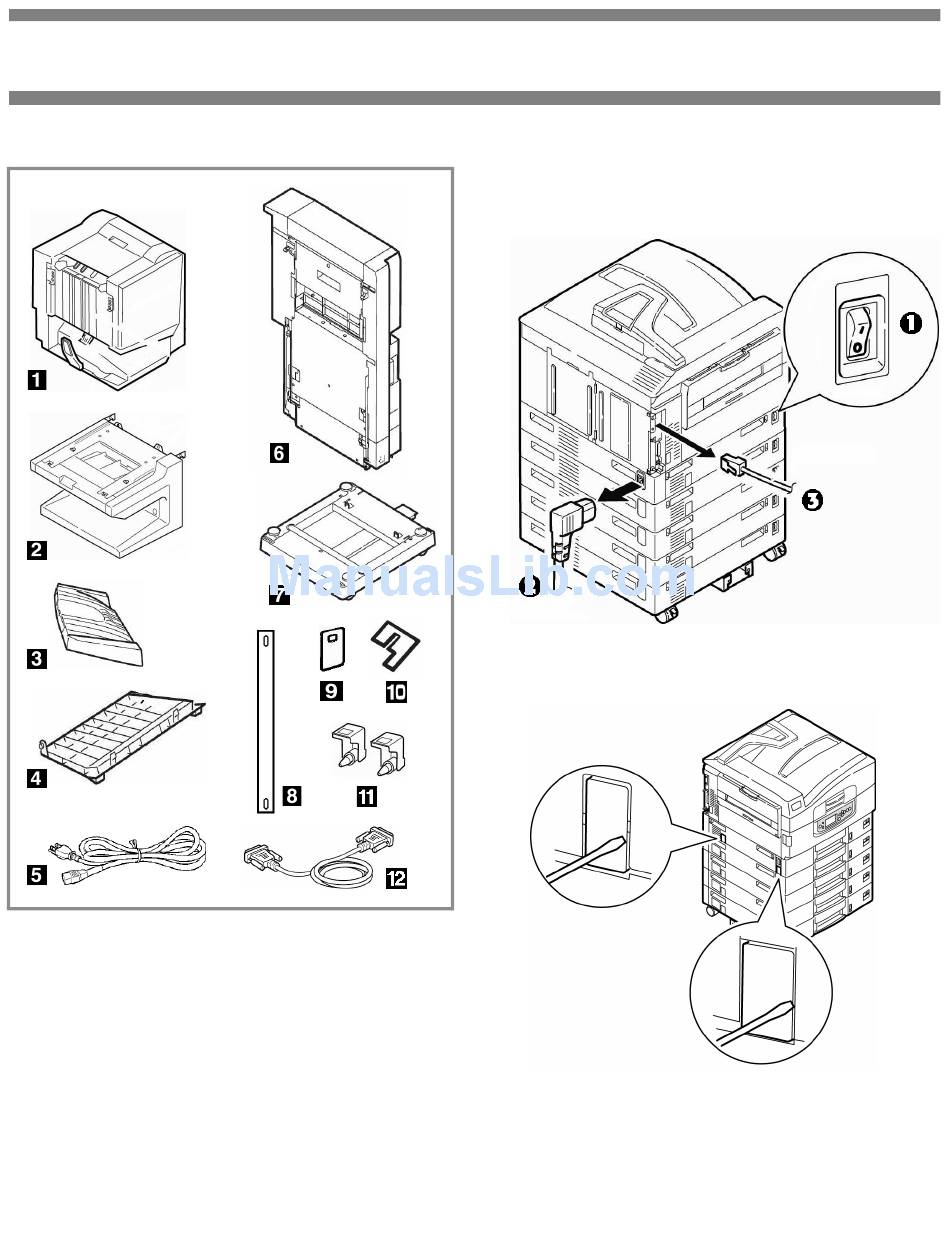

Components
Finisher Unit
1
Finisher stand
2
Finisher Stacker
3
Finisher Cover
4
Power Cord
5
Inverter Unit
6
Not illustrated: Screws
Inverter Stand
7
Clear Band
8
Band Stopper, Small
9
Band Stopper, Large
10
Metal Brackets
11
Cable (inverter to printer)
12
Step 1: Prepare the Printer
1. Turn the printer off (
"
power cord (
) and interface cable (
2. Using a screwdriver, remove the breakout
panels on the side of the printer.
!
) and disconnect the
#
).
Advertisement
Table of Contents
Related Manuals for Oki 58374501
Summary of Contents for Oki 58374501
- Page 1 Not illustrated: Screws Step 1: Prepare the Printer 1. Turn the printer off ( ) and disconnect the " power cord ( ) and interface cable ( 2. Using a screwdriver, remove the breakout panels on the side of the printer.
- Page 2 3. Install the metal brackets where the breakout panels were. 4. Open the face-up stacker ( the flap and press it onto the stacker surface " 5. Close the stacker. Step 2: Prepare the Inverter Before assembling the finisher, you must adjust the height of the inverter unit to match the finisher: "...
- Page 3 2. Remove the two bottom caps: a. Turn the inverter over. b. Remove the two screws securing the bottom caps on either side of the inverter. c. Remove the end caps and store them along with the four screws in case you ever need to convert the unit back.
- Page 4 5. Pull forward on the extension plate to disengage the pins from the top channel stops, then slide it down into the inverter and push back to engage the pins on the bottom channel stops. 6. Reattach the extension plate using the screws you removed earlier.
- Page 5 3. Attach the back of the inverter to the stand using one screw on either side. 4. Attach the guard rail on the inverter stand to the printer using 2 screws. Step 4: Assemble the Finisher 1. Hook the finisher stand onto the inverter.
- Page 6 3. Place the finisher cover near the back of the finisher. Locate the tab ( ) on the right side of the cover. 4. Hold the clear band perpendicular to the cover and slip one end over the tab ( "...
- Page 7 8. Pull the finisher platform about half way out, then loosen the screw on the locking piece ( viewed from the opposite direction) so that it drops through the slot below it. This keeps the platform from moving while you attach the finisher to it.
- Page 8 ) on inverter, then connect it to a suitable grounded outlet. 3. Reconnect the printer’s interface cable. 4. Plug in the printer’s power cord and turn on the printer. When the printer is turned on, power Note: is supplied to both the printer and the finisher.
