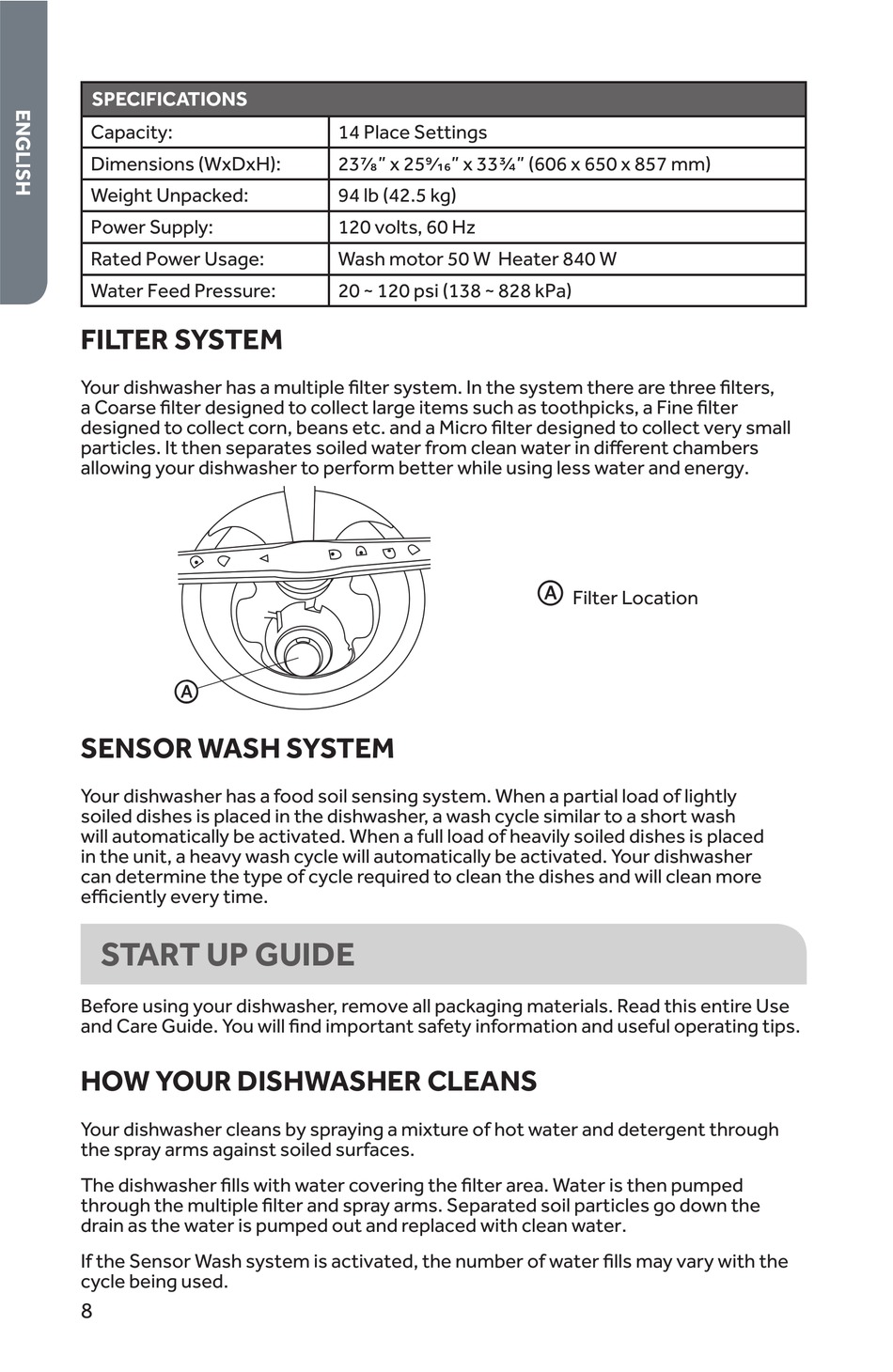

SPECIFICATIONS
Capacity:
Dimensions (WxDxH):
Weight Unpacked:
Power Supply:
Rated Power Usage:
Water Feed Pressure:

FILTER SYSTEM

Your dishwasher has a multiple filter system. In the system there are three filters,
a Coarse filter designed to collect large items such as toothpicks, a Fine filter
designed to collect corn, beans etc. and a Micro filter designed to collect very small
particles. It then separates soiled water from clean water in different chambers
allowing your dishwasher to perform better while using less water and energy.
a

SENSOR WASH SYSTEM

Your dishwasher has a food soil sensing system. When a partial load of lightly
soiled dishes is placed in the dishwasher, a wash cycle similar to a short wash
will automatically be activated. When a full load of heavily soiled dishes is placed
in the unit, a heavy wash cycle will automatically be activated. Your dishwasher
can determine the type of cycle required to clean the dishes and will clean more
efficiently every time.

START UP GUIDE

Before using your dishwasher, remove all packaging materials. Read this entire Use
and Care Guide. You will find important safety information and useful operating tips.

HOW YOUR DISHWASHER CLEANS

Your dishwasher cleans by spraying a mixture of hot water and detergent through
the spray arms against soiled surfaces.
The dishwasher fills with water covering the filter area. Water is then pumped
through the multiple filter and spray arms. Separated soil particles go down the
drain as the water is pumped out and replaced with clean water.
If the Sensor Wash system is activated, the number of water fills may vary with the
cycle being used.
8
14 Place Settings
237/8" x 259/16" x 333/4" (606 x 650 x 857 mm)
94 lb (42.5 kg)
120 volts, 60 Hz
Wash motor 50 W Heater 840 W
20 ~ 120 psi (138 ~ 828 kPa)
a
Filter Location
