Summary of Contents for SKY-HERO Spyder

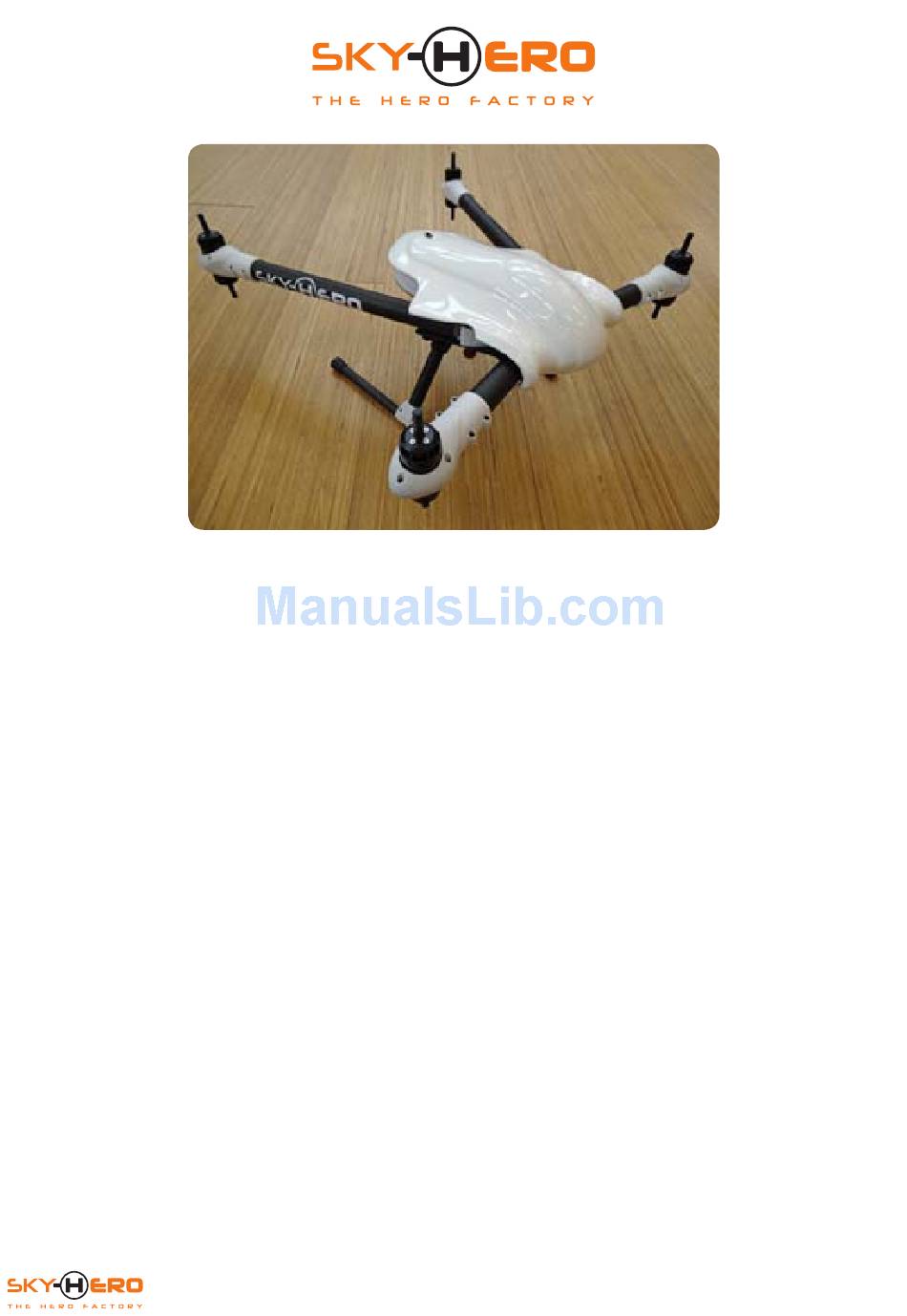

- Page 1 Y o u ’ v e n e r o … o b e a H e s o c l o s e t Assembly instructions Spyder / Kits SKH00-401, SKH00-402 & SKH00-403 / Page...
- Page 2 Connect your ESC to your motors. Tip : Check your cable lenght depending on your frame size and flight controller. Check your motor rotation depending on your flight controller recommendations. Assembly instructions Spyder / Kits SKH00-401, SKH00-402 & SKH00-403 / Page...
- Page 3 Tip : The center of your frame is the hole… Use the 45 * 45 mm pattern for suitable flight controllers. Mount the canopy standoff on upper main frame. Screws used: M4*10mm Assembly instructions Spyder / Kits SKH00-401, SKH00-402 & SKH00-403 / Page...
- Page 4 Remove the 4 first M4*40 screws, mount them in the right direction. Screws used: M4 locknuts + M4 shims Tip : Use the correct hole depending on your frame size. Mount your inertic plate. Screws used: M4 red knuckle Assembly instructions Spyder / Kits SKH00-401, SKH00-402 & SKH00-403 / Page...
- Page 5 Tip : Drill first a small hole, and use a reamer to get the right size, use thich CA glue Mount the grommet into holder, fix the canopy with the body clip. Assembly instructions Spyder / Kits SKH00-401, SKH00-402 & SKH00-403 / Page...
