Summary of Contents for SKY-HERO Little Spyder

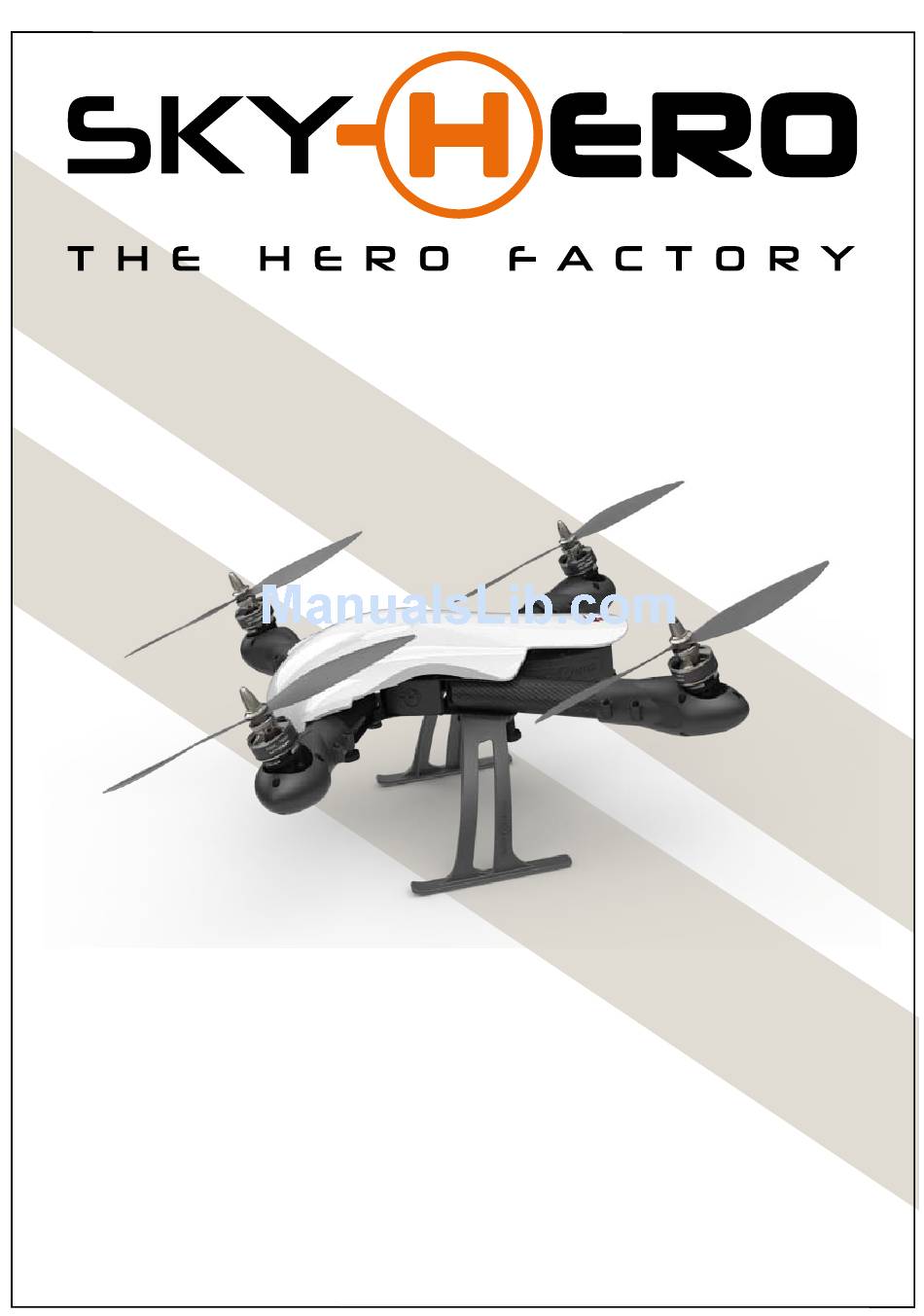

- Page 1 Motor Wedges Motor Wedges Instruction Manual...
-
Page 2: Introduction
CONGRATULATIONS! You have just purchased a SKY-HERO Little Spyder «motor wedges kit». We hope that it will provide you lots of fun during your many flights. This manual will help you to com- plete the installation and to find the references of the parts needed. -
Page 3: Table Of Contents
TABLE OF CONTENTS • Introduction. page 2 • Tools needed. page 4 • Hardware components. page 5 • 1. Motor assembly. page 6 • 2. Identify the supports (front and rear). page 8 • 3. Assemble the motor wedges. page 9 •... -
Page 4: Tools Needed
TOOLS NEEDED • 2 mm hex wrench • 2.5 mm hex wrench • 3 mm hex wrench • 7 mm wrench • Blue thread (Loctite) -
Page 5: Hardware Components
HARDWARE COMPONENTS Button Head screw M3 X 6mm Button Head screw M3 X 10mm Flat Head screw M4 X 14mm Hex Nut Nylstop M4 Washer M3 Socket Head Screw M3 X 10mm... -
Page 6: Motor Assembly
1. MOTOR ASSEMBL Y. • First identify the frontside of the metal support You fly this • Then attach your motor using M3 washers (N°2), M3 X 6MM screws (N°3) and Loctite :... - Page 7 • Note : 2 motors should have the wires routed to the rear left side and 2 motors with the cables to the rear right side. Left Motors Right Motors...
-
Page 8: Identify The Supports (Front And Rear)
2. IDENTIFY THE FRONT AND REAR SUPPORTS. Zoom A FRONT Détail A Détail B Zoom B REAR You fly this... -
Page 9: Assemble The Motor Wedges
3. ASSEMBL Y THE MOTOR WEDGES front supports and • Assemble one motor with wires to the left and one with wires to the right on repeat that operation on rear supports. Use the flat head screw M4 X 14mm (N° 4) and the M4 nut (N°5). -
Page 10: Select Your Angle
4. SELECT YOUR ANGLE. • Use the button head screw M3 X 10mm (N°6) to secure position (use Loctite). • Now you can tight the center main screw (N°4) 20° 10° Use this hole Use this hole... -
Page 11: Mount The Supports On Your Motor Frames
5. MOUNT THE SUPPORTS ON YOUR MOTOR FRAME. • Use the button head screw M3 X 10mm (N°6) and the washer M3 (N°2). Note : Do not use Loctite on screws or mounts now to avoid any contact between loctite and plastic. See page 12 for how to apply Loctite red holes •... -
Page 12: Apply Loctite From The Top
6. APPL Y LOCTITE FROM THE TOP... -
Page 13: Listing And Parts References
LISTING AND PARTS REFERENCES N° DESCRIPTION PART NUMBER MOTOR WEDGE UP SKH08-45 WASHER M3 SKH08-45 BUTTON HEAD SCREW M3 X 6MM SKH08-45 FLAT HEAD SCREW M4 X 14MM SKH08-45 HEX NUT NYLSTOP SKH08-45 SOCKET HEAD SCREW M3 X 10MM SKH08-45 MOTOR WEDGE DOWN FRONT AND REAR SKH08-45 MOTOR FRAME BLACK... -
Page 14: Limited Warranty
LIMITED WARRANTY What this Warranty Covers SKY HERO warrants to the original purchaser that the product purchased (the «Product») will be free from defects in materials and workmanship at the date of purchase. What is Not Covered This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (iii) modification of or to any part of the Product, (iv) attempted service by anyone other than a SKY HERO authorized service center, (v) Product not purchased from... - Page 15 For questions or assistance, please visit our website at www.sky-hero.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative.
-
Page 16: Contact
CONTACT SKY-HERO 42, rue des Vétérinaires, 1070 Anderlecht. Belgique. SAV@sky-hero.com +32(0)23301845...
