Service Guide ML520/521
Chapter 2 Principles of Operation

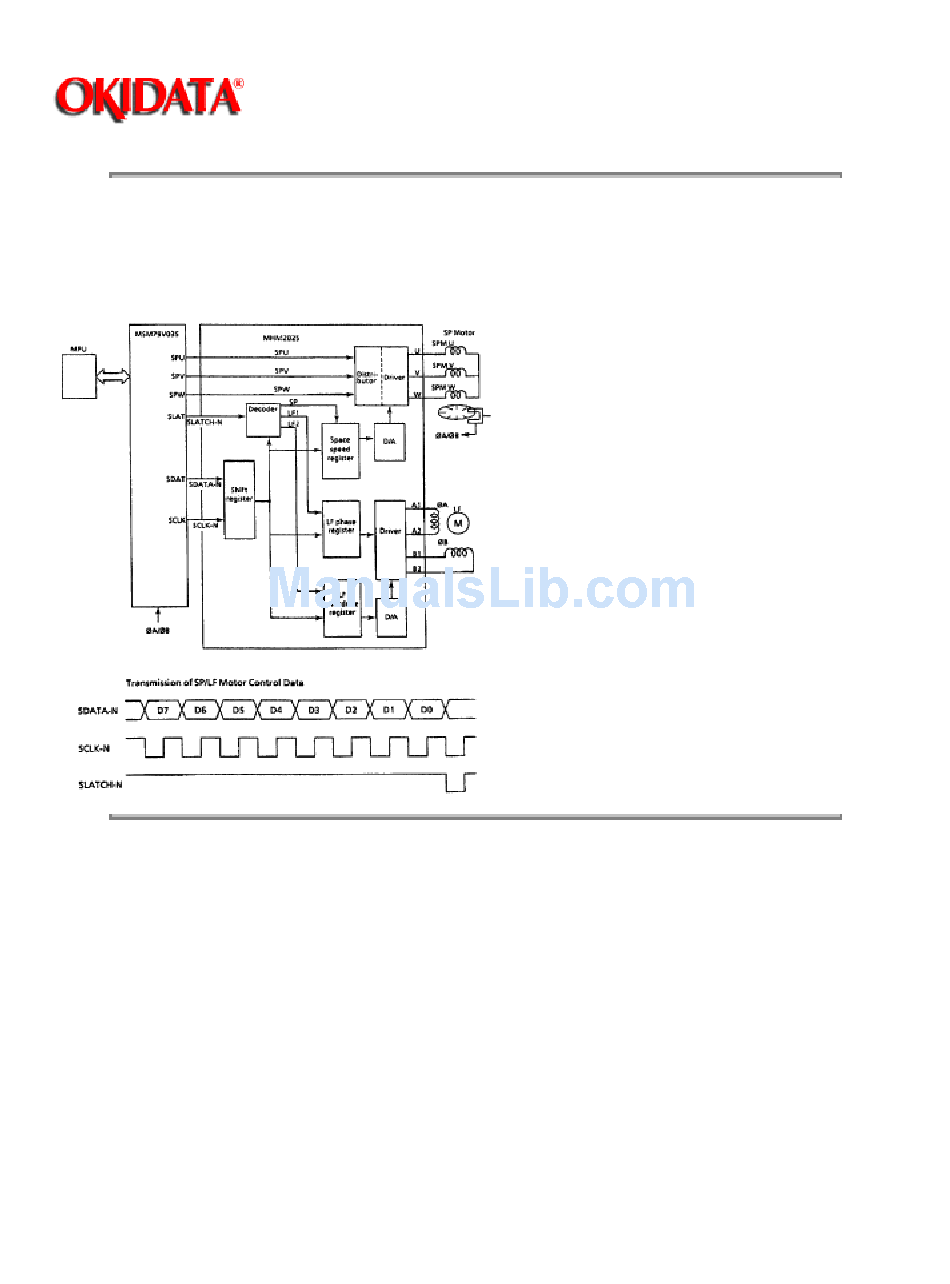

2.1.05 Space and Line Feed (SP/LF) Motor Control
The LSI (Location 04B: MSM79V035) generates the space motor and the line feed motor control signals
according to commands received from the MPU. These signals are sent to the SP/LF motor driver.
Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business
