4.9.02 Printhead

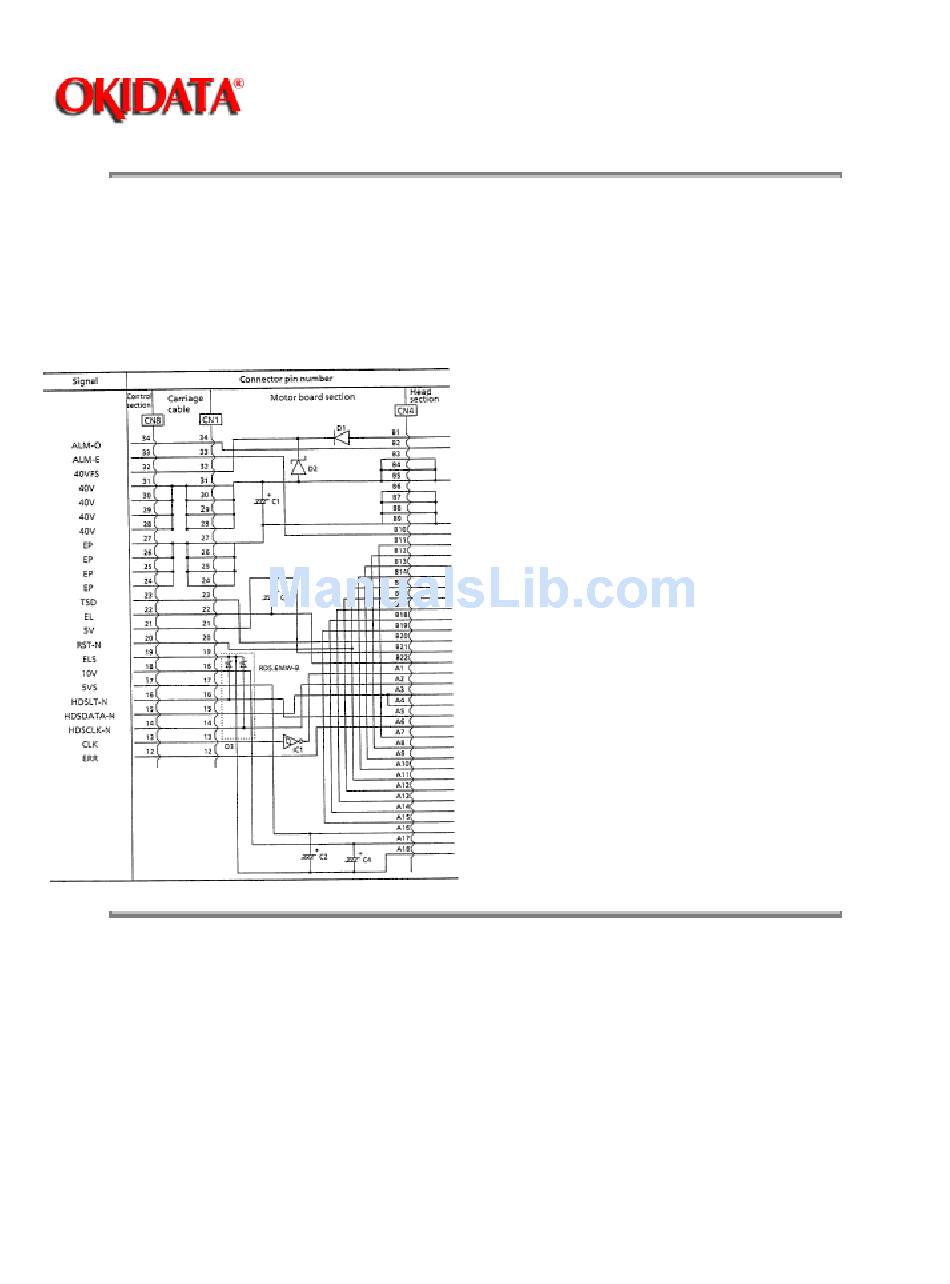

Interconnect Diagram: Control Board to Printhead
NOTE:
The printhead coil resistance values ARE NOT LISTED.
The individual printwire control lines CANNOT be accessed on this printhead.
Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business
Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Service Guide ML520/521
Chapter 4 Failure & Repair Analysis
Page: 153
