be used to connect to a Server such as Web Server or a Mail Server, etc. Use the network cable of the
10/100BaseT to connect to the Switch or Hub of the Private LAN, and then use the network cable of the
10/100BaseT to connect to the Administrator's PC. If it is necessary to connect the PC or wireless AP
directly to the Private LAN, then we need to use the cross over line.
5. Turn on the power.
Plug the bundled power supply connector into the socket and then turn on the power.
6. Check the LED indicating light.
After the power is on, the power indicating light should be lit. The WAN and indicating lights should be lit
when the WAN and ports are properly connected to the network equipment. The corresponding
indicating lights also should be lit when the Public LAN and Private LAN ports are properly connected.

4. Quick Installation

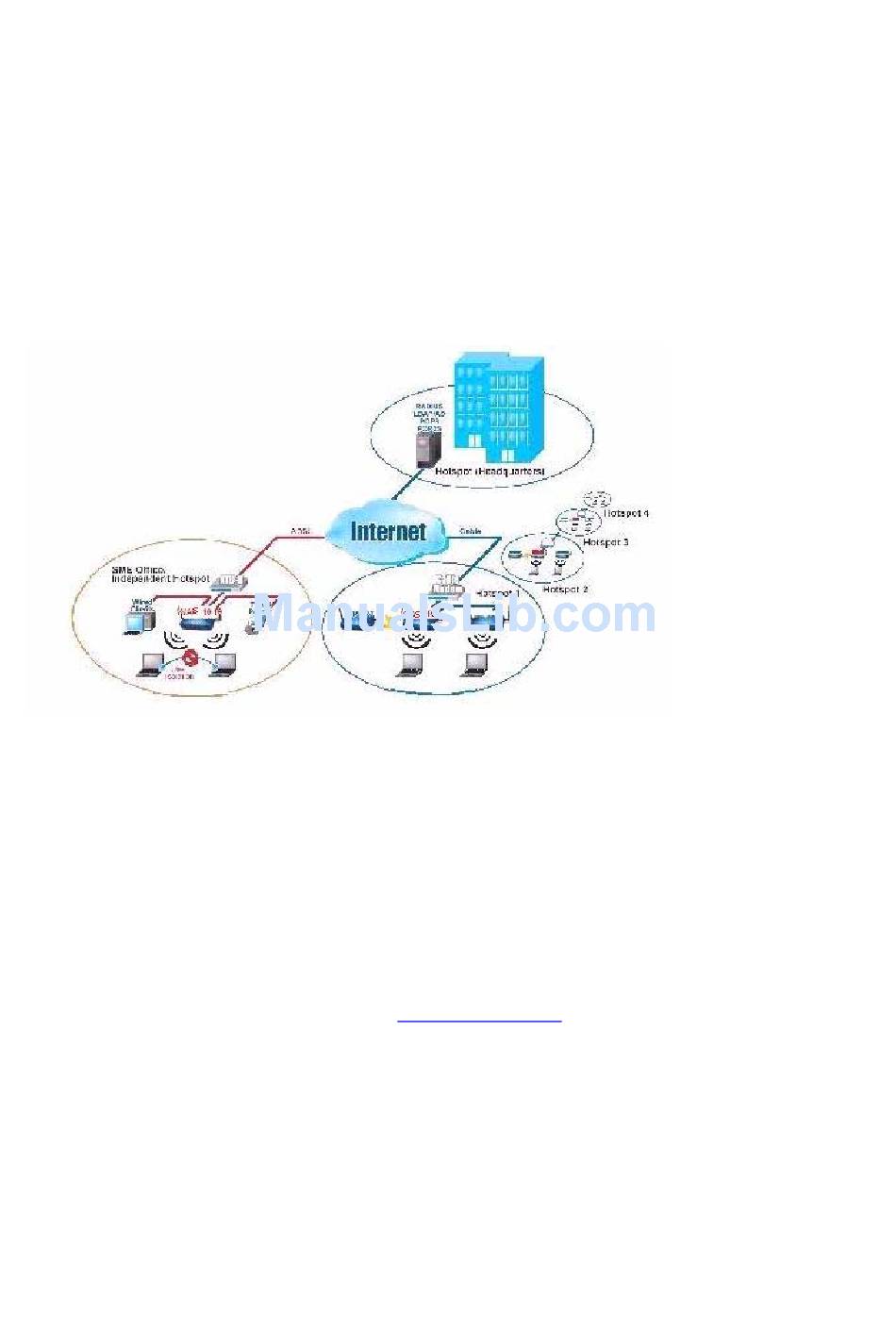

In the following sections, we will guide you step by step to set up a system composed by individual WAS
101.This example only provide brief instructions , Please refer to Administrator's Manual "Chapter 5 Web
Management Interface" for the detailed description of each function.
1. Opening Browser
After the WAS 101 is installed and the foregoing setup is completed, use the network cable of the
10/100BaseT to connect to the Private LAN port, please open the browser (such as Microsoft IE). In the
website, enter the administrator's URL such as https://192.168.2.254. IF you can't get the login screen, may
be you wouldn't obtain an IP address automatically from Private LAN port, please specify an IP address such
as 192.168.2.xx then do it again.
