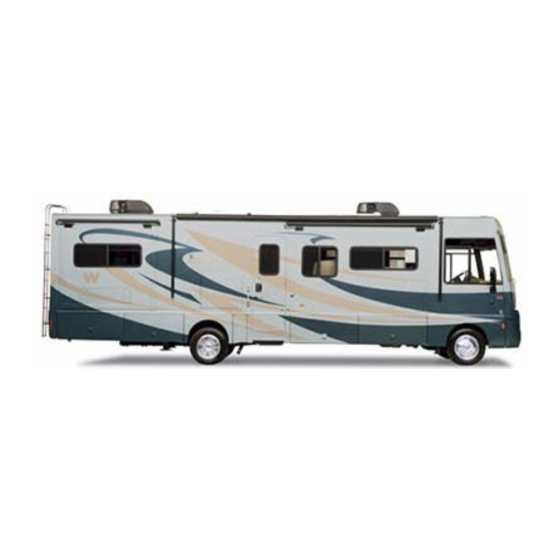

Winnebago Sightseer 30A Operator's Manual
  1. Manuals
  2. Brands
  3. Winnebago Manuals
  4. Motorhomes
  5. SIGHTSEER 30A
  6. Operator's manual

Winnebago Sightseer 30A Operator's Manual

Hide thumbs Also See for Sightseer 30A:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
About this Manual ............................................................................................................................. 1-1
2012 New Vehicle Limited Warranty ............................................................................................... 1-2
Safety Messages Used in this Manual ............................................................................................... 1-4
Pre-Delivery Inspection .................................................................................................................... 1-4
Front Axle Tire Alignment ................................................................................................................ 1-4
Service and Assistance ...................................................................................................................... 1-4
Reporting Safety Defects .................................................................................................................. 1-4
Occupant and Cargo Carrying Capacity Label ................................................................................. 1-5
Vehicle Certification Label ............................................................................................................... 1-6
Specifications and Capacities ............................................................................................................ 1-7
Owner and Vehicle Information ........................................................................................................ 1-8
General Warnings .............................................................................................................................. 2-1
Driving Safety ................................................................................................................................... 2-1
Fuel and Propane Gas ........................................................................................................................ 2-1
LP Gas Leaks .................................................................................................................................... 2-2
Propane Gas Leak Detector ............................................................................................................... 2-2
Carbon Monoxide Warning ............................................................................................................... 2-3
Carbon Monoxide Alarm .................................................................................................................. 2-3
Smoke Alarm .................................................................................................................................... 2-4
Fire Extinguisher ............................................................................................................................... 2-4
Electrical ........................................................................................................................................... 2-5
Loading ............................................................................................................................................. 2-5
Maintenance ...................................................................................................................................... 2-5
Emergency Exits ............................................................................................................................... 2-5
Slideout Rooms ................................................................................................................................. 2-6
Formaldehyde Information ................................................................................................................ 2-6
Mold, Moisture, and Your Motor Home ........................................................................................... 2-7
Roof and Ladders .............................................................................................................................. 2-8
Roadside Emergency ......................................................................................................................... 2-8
Jump Starting .................................................................................................................................... 2-9
Engine Overheat ................................................................................................................................ 2-9
Seats - Driver/Co-Pilot ..................................................................................................................... 3-1
Seat Belts ........................................................................................................................................... 3-2
Child Restraints ................................................................................................................................. 3-3
Passenger Workstation ...................................................................................................................... 3-4
KeyOne™ Lock System .................................................................................................................... 3-5
Rev. 1218120702

TABLE OF CONTENTS

Copyright 2011 Winnebago Industries, Inc. All rights reserved.
Part No. 161500-12-012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sightseer 30A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winnebago Sightseer 30A

Summary of Contents for Winnebago Sightseer 30A

  • Page 1: Table Of Contents

    3 – DRIVING YOUR MOTOR HOME Seats – Driver/Co-Pilot ........................3-1 Seat Belts ............................3-2 Child Restraints ..........................3-3 Passenger Workstation ........................3-4 KeyOne™ Lock System ........................3-5 Rev. 1218120702 Part No. 161500-12-012 Copyright 2011 Winnebago Industries, Inc. All rights reserved.
  • Page 2 Table Of Contents Rearview Monitor System ........................ 3-5 Front Drop-Down Solar/Night Shade (12-Volt) ................3-6 Mirrors – Power Electric ........................3-6 Brake-Shift Interlock ........................3-7 Park Brake – Foot Pedal ........................3-7 Tow/Haul Transmission Mode ......................3-8 Map Light Switch ..........................3-8 Hazard Warning Flashers ........................
  • Page 3 Table Of Contents 6 – ELECTRICAL Electrical Cautions ..........................6-1 Electrical System – House 120-Volt AC ..................6-1 External Power Cord ......................... 6-1 Inverter Unit – 1000W ........................6-2 Power Center ............................. 6-3 Circuit Breakers – House 120-Volt AC .................... 6-4 Electrical Outlets –...
  • Page 4 Table Of Contents TV Digital Satellite System – Manual ....................8-7 Exterior Entertainment Center ......................8-8 9 – FURNITURE AND SOFTGOODS Lounge Chair - Swivel ........................9-1 Buffet Table and Chairs ........................9-1 Sleeping Facilities ..........................9-2 Dinette/Bed Conversion - Dream Dinette™ ..................9-2 Extendable Sectional U-Shaped Dinette ............................
  • Page 5 Table Of Contents Vehicle Storage – Removal ......................11-11 Chassis Service and Maintenance ....................11-12 Coach Maintenance Chart ......................11-13 12 – MISCELLANEOUS Loading the Vehicle ........................12-1 Weighing Your Loaded Vehicle ..................... 12-1 Car or Trailer Towing ........................12-3 Trailer Wiring Connector ........................

  • Page 7: Introduction

    The instructions included in this manual are intended as a guide, and in no way extend the responsibilities of Winnebago Industries beyond the standard written warranty as presented in this manual. The descriptions, illustrations, and...

  • Page 8: 2012 New Vehicle Limited Warranty

    Winnebago Industries, Inc. Except as noted in the paragraph entitled, “Factory Repair,” to (“Winnebago”) and provides coverage so long as the motor home is obtain warranty repairs, you must, at your own cost, present your used exclusively for recreational purposes in the U.S.A.
  • Page 9 Winnebago does not own or control, and shall not be warranty disputes for recreational vehicles. This program reviews...

  • Page 10: Safety Messages Used In This Manual

    If you need warranty repairs while traveling, you may take your vehicle to any authorized NOTICE ® Winnebago Industries dealership and request their assistance. NOTICE is used to address practices not See the Service Dealer Directory in your related to personal injury.

  • Page 11: Occupant And Cargo Carrying Capacity Label

    SECTION 1 – INTRODUCTION National Highway Traffic Safety Administration (NHTSA) in addition to notifying Winnebago Industries, Inc. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.

  • Page 12: Vehicle Certification Label

    These pressure levels must be maintained to assure proper handling, safety, 2. Chassis manufacture date. and fuel economy. 3. Month and year of manufacture at Winnebago ® 9. Rear Axle Wheel Configuration: Single or Industries Dual as it relates to the inflation.

  • Page 13: Specifications And Capacities

    SECTION 1 – INTRODUCTION SPECIFICATIONS AND CAPACITIES ® ® ® ® Ford Ford Ford Ford Winnebago Sightseer 22,000 lb. 22,000 lb. 22,000 lb. 22,000 lb. Chassis with Chassis with Chassis with Chassis with 22.5" Tires 22.5" Tires 22.5" Tires 22.5" Tires...

  • Page 14: Owner And Vehicle Information

    Motor Home Serial Number __________________________________________________________ Chassis Vehicle Identification No. (VIN) ________________________________________________ Vehicle Mileage at Delivery __________________________________________________________ Selling Dealer Name ________________________________________________________________ Address __________________________________________________________________________ __________________________________________________________________________ ® YOUR WINNEBAGO INDUSTRIES DEALER /SERVICE CENTER Name ____________________________________________________________________________ Address __________________________________________________________________________ __________________________________________________________________________ Contact ____________________________________________Phone ________________________ CHASSIS SERVICE CENTER...

  • Page 15: Safety And Precautions

    SECTION 2 – SAFETY AND PRECAUTIONS • Use care when accelerating or decelerating on GENERAL WARNINGS a slippery surface. Abrupt speed changes can cause skidding and loss of control. • Only seats equipped with seat belts are to be occupied while the vehicle is moving. •...

  • Page 16: Lp Gas Leaks

    SECTION 2 – SAFETY AND PRECAUTIONS • All pilot lights must be extinguished and asphyxiation is greater when the appliance is appliances turned off while refilling the fuel used for long periods of time. Failure to comply tank or LP gas tank. could result in death or serious injury.

  • Page 17: Carbon Monoxide Warning

    SECTION 2 – SAFETY AND PRECAUTIONS The best protection against carbon monoxide entry into the vehicle body is a properly WARNING maintained engine exhaust and ventilation system. It is recommended that the exhaust system and body be inspected by a qualified EXPLOSION HAZARD: DO NOT use an motor home service center: open flame to test for gas leaks.

  • Page 18: Smoke Alarm

    InfoCase for further instructions. that is also listed for RV application. We Replacement recommend obtaining a replacement from your ® Winnebago Industries dealer. When replacing this alarm, we recommend replacing only with the same model, or with one Further Information that is also listed for RV application.

  • Page 19: Electrical

    MAINTENANCE your coach. We recommend obtaining a replacement only from your Winnebago • Do not remove the radiator cap while engine ® Industries dealer or a reliable RV parts supplier.

  • Page 20: Slideout Rooms

    SECTION 2 – SAFETY AND PRECAUTIONS SLIDEOUT ROOMS WARNING Your motor home may have more than one slideout room. Understand which switch operates which slideout room prior to operation. Make sure all slideout rooms are clear of people who could be harmed Escape Window or obstacles that could cause damage (Lift latch handles upward to open)

  • Page 21: Mold, Moisture, And Your Motor Home

    Winnebago Industries ® of the nature of the use of a motor home, it is natural for a motor home to be introduced into an If Winnebago Industries determines that mold environment with mold spores. ® ® is present in the Winnebago...

  • Page 22: Roof And Ladders

    SECTION 2 – SAFETY AND PRECAUTIONS warranty period, Winnebago Industries will not • Make sure you are physically capable to provide any financial assistance to the repair of safely use the ladder. Strength, flexibility, and the condition. stability are required.

  • Page 23: Jump Starting

    We recommend that you ask for an underlift (wheel lift or frame lift) type towing assembly for safe towing. NOTICE ® Winnebago Industries does not assume responsibility for damage incurred while towing Do not attempt to push start this vehicle. this vehicle.
  • Page 24 SECTION 2 – SAFETY AND PRECAUTIONS NOTICE Operating a vehicle under a severe overheating condition can result in damage to the vehicle. For information on what to do in case of overheating, consult your chassis manual. 2-10...

  • Page 25: Driving Your Motor Home

    SECTION 3 – DRIVING YOUR MOTOR HOME The information in this section refers only to features installed or adapted to the dash and Lift to Recline driver compartment area by Winnebago ® Industries . It also includes passenger seating in the living area of the coach.

  • Page 26: Seat Belts

    SECTION 3 – DRIVING YOUR MOTOR HOME Armrest Adjustment -If Equipped The armrests may be swung upward out of the way for easy exit or access to the front seats. A roller on the underside of the front of the armrest also lets you adjust the resting angle for personal comfort, whether the seat is upright or reclined.

  • Page 27: Child Restraints

    SECTION 3 – DRIVING YOUR MOTOR HOME Unfastening 1- Insert tab into buckle Press the release button in the buckle. Hold slot until it “clicks” and is onto the tongue when you release it from the locked buckle to keep it from retracting too rapidly. When the lap-shoulder belt is in use, the lap belt must ride low across the hip area and the 3- Press to...

  • Page 28: Passenger Workstation

    SECTION 3 – DRIVING YOUR MOTOR HOME may have a greater chance of being injured in an accident if they are seated in a child restraint system which is not properly secured. A child restraint system is designed to be secured in a vehicle seat by a lap belt or the lap belt portion of a lap-shoulder belt.

  • Page 29: Keyone Lock System

    • Pressing UP increases brightness, contrast, our factory database, so if you ever lose your color, or tint level. ® keys, any Winnebago Industries dealership can • Pressing DN decreases brightness, contrast, order a new key for you. color, or tint level.

  • Page 30: Front Drop-Down Solar/Night Shade (12-Volt)

    NIGHT SHADE (12-VOLT) Should the Automatic Safety Retraction –If Equipped feature deploy, go to your nearest Winnebago Your coach may be equipped with a 12V ® Industries dealer for service before operating Front Drop-Down Solar/Night Shade that the shade again.

  • Page 31: Brake-Shift Interlock

    SECTION 3 – DRIVING YOUR MOTOR HOME Move Selector Switch L or R to select mirror. Center “neutral” position disables arrows to avoid unintentionally moving a mirror Mirror Head Pivot Lock Loosen Allen head set screw Press Arrow Buttons to move to pivot mirror head.* mirror surface in direction indicated (Torque 75-100 in/lbs)

  • Page 32: Tow/Haul Transmission Mode

    SECTION 3 – DRIVING YOUR MOTOR HOME TOW/HAUL TRANSMISSION MODE ® Ford Chassis only This mode locks out Overdrive and helps reduce gear “hunting” by the automatic transmission while towing. It also improves power delivery and uses engine braking to help control vehicle speed when descending hills.

  • Page 33: Battery Boost Switch

    SECTION 3 – DRIVING YOUR MOTOR HOME A small amount of air will blow out of all BATTERY BOOST SWITCH of the defrost and dash vents regardless of the mode setting. The Battery Boost switch can be used to draw emergency starting power from the house Further Information batteries to start the engine if the chassis battery...

  • Page 34: Radio - In-Dash

    SECTION 3 – DRIVING YOUR MOTOR HOME Defrost Fan Switch Radio Power Switch -Typical View • Press HOUSE to listen to the radio while parked without the ignition key on. • Press ENGINE (ENG) to listen while driving. RADIO - IN-DASH The dash radio in your coach can receive AM/ Further Information FM stereo.

  • Page 35: Front Service Access

    SECTION 3 – DRIVING YOUR MOTOR HOME • Press top edge of Hood Panel in firmly with FRONT SERVICE ACCESS palms of hands to ensure proper latching. (HOOD) ENGINE ACCESS – INTERIOR The Hood Panel can be opened for access to service items such as the engine oil dipstick, oil Front Engine Cover fill, radiator fill, power steering reservoir, and...

  • Page 36: Engine Cooling System

    SECTION 3 – DRIVING YOUR MOTOR HOME NOTICE When refilling the coolant system of a vehicle equipped with a rear auxiliary automotive heater and motoraid water heater, be sure to allow for additional coolant capacity of the heater and its supply and return hoses.

  • Page 37: Tires

    SECTION 3 – DRIVING YOUR MOTOR HOME TIRES LIGHTS Improper tire pressure can result in tire All exterior lights should be checked for overloading and abnormal wear and also affects proper operation each time the vehicle is handling, ride characteristics, and fuel economy. prepared for a trip.
  • Page 38 SECTION 3 – DRIVING YOUR MOTOR HOME 3-14...

  • Page 39: Appliances And Systems

    SECTION 4 – APPLIANCES AND SYSTEMS The appliances installed in your motor home are manufactured by reputable RV appliance makers and have been tested by independent laboratories to meet all applicable standards and codes set for RV appliances. See Section 2 - Safety and Precautions of this manual for any safety and precautions you need to take regarding the operation of your appliances.

  • Page 40: Ice Maker

    SECTION 4 – APPLIANCES AND SYSTEMS NOTE: A water shut-off valve for the ice maker is located near the water faucet filter inside the galley cabinet beneath the sink. Further Information See the refrigerator manufacturer’s operation, care and maintenance information in your InfoCase.

  • Page 41: Range And Oven

    SECTION 4 – APPLIANCES AND SYSTEMS Oven Burner Knob –If Equipped • Pilot On position keeps pilot flame lit for repeated Refrigerator Access Compartment use of oven while vehicle is parked • Turn oven knob to Pilot Off position while traveling or refilling propane gas tank RANGE AND OVEN To Light Oven Pilot...

  • Page 42: Microwave Oven/Range Hood

    SECTION 4 – APPLIANCES AND SYSTEMS Further Information See the manufacturer’s user guide provided WARNING inside the appliance for complete operating instructions and replacement of vent hood light bulbs and replacement or cleaning of grease filter Portable fuel-burning equipment elements. including wood and charcoal grills and stoves, shall not be used inside the recreational vehicle.
  • Page 43 SECTION 4 – APPLIANCES AND SYSTEMS Tank Levels Switch Battery Levels Switch The approximate fluid levels are measured by To get an accurate reading: electronic sensors on the sides of the tanks. Tank • Both the chassis engine and the generator levels are displayed as 1/3, 2/3, and Full (F).

  • Page 44: Water Heater - Gas/ Electric

    SECTION 4 – APPLIANCES AND SYSTEMS has gone into “lockout” mode and must be restarted. If this happens, turn the Water Heater LP switch off for about 5 minutes, then turn it back on. Water Pump Switch Refer to Section 7 - Plumbing for additional information on the water pump and initial start- Propane Gas Water Heater Switch NOTE: Some models may be equipped with a...

  • Page 45: Motoraid Water Heater

    SECTION 4 – APPLIANCES AND SYSTEMS Further Information See the Water Heater manufacturer’s operation manual provided in your InfoCase for complete operating instructions, safety warnings, and maintenance information. MOTORAID WATER HEATER –If Equipped The motoraid uses heat from the chassis engine cooling system to heat water in the water heater while driving.

  • Page 46: Power Control System (Pcs)

    SECTION 4 – APPLIANCES AND SYSTEMS PCS Display Panel (Located near monitor panel) • Lift handle straight out to open P-T valve -Typical View when water heater is cold Further Information 4. Let the handle of the P-T valve snap shut. Refer to the manufacturer’s user guide 5.

  • Page 47: Heat Pump

    SECTION 4 – APPLIANCES AND SYSTEMS 2. Move THERMOSTAT switch from Off to HEAT PUMP Heat and press the Temp Selector button (Up/ Down arrows) until the desired temperature is –If Equipped shown in the display. Your coach may be equipped with an air 3.

  • Page 48: Ducted Roof Air Conditioning System

    SECTION 4 – APPLIANCES AND SYSTEMS Further Information Refer to the air conditioner manufacturer’s information in your InfoCase for complete operating instructions. AIR CONDITIONER FILTER The washable foam air conditioner filter is located in the ceiling-mounted return A/C grille in the lounge area of the coach. It is recommended to check the filter monthly for dirt build-up and cleaned or replaced, as •...

  • Page 49: Propane Gas

    SECTION 5 – PROPANE GAS PROPANE GAS SUPPLY The propane gas system supplies fuel for the gas range/oven, water heater, furnace, and refrigerator (while in gas mode). When used and handled properly, this system is safe and economical and provides modern living conveniences wherever you travel.

  • Page 50: Safe Use Of The Propane Gas System

    SECTION 5 – PROPANE GAS phone directory yellow pages for locations of local propane gas refilling stations or bulk DAN G E R dealerships. NOTE: If you travel outside the U.S. with your DO NOT FILL CONTAINER TO MORE motor home, you may find butane or THAN 80 PERCENT OF CAPACITY.

  • Page 51: Propane Gas Warnings And Precautions

    SECTION 5 – PROPANE GAS • Exercise caution at all times. Be familiar with PROPANE GAS WARNINGS the distinctive odor of propane gas. If a leak is AND PRECAUTIONS suspected, turn off the supply valve immediately. Have the propane gas system It is illegal for vehicles equipped with propane checked by your dealer or other qualified tanks to travel on certain roadways or through...

  • Page 52: Propane Gas Pressure Regulator

    SECTION 5 – PROPANE GAS WARNING WARNING Propane cylinders shall not be placed or Visually inspect the pressure regulator stored inside the vehicle. Propane vent periodically for blockage by cylinders are equipped with safety accumulated debris or insect nests, etc. devices that relieve pressure by Vent obstruction could result in excessive discharging propane to the atmosphere.

  • Page 53: Propane Vaporization In Cold Weather

    SECTION 5 – PROPANE GAS This means that in extremely cold weather when a large volume of gas is being used by the furnace for heating, it is possible to experience a loss of gas pressure. At first, this problem may appear to be caused by an empty tank or a regulator freeze-up, but is actually caused by failure of the liquid gas to vaporize as fast as it is needed by the furnace.

  • Page 55: Electrical

    SECTION 6 – ELECTRICAL Your coach is equipped with an electrical the power converter automatically changes a system consisting of two separate voltages: portion of the 120-volt current to 12-volt DC current. All equipment in the motor home that is •...

  • Page 56: Inverter Unit - 1000W

    SECTION 6 – ELECTRICAL be used is designed to mate with the prongs of the power cord plug, the electrical connection can be expected to carry rated load. Connecting The Power Cord To connect to an external source, remove the cord from the utility compartment and plug it into a suitable 50-amp power receptacle to provide external power to the coach and converter/...

  • Page 57: Power Center

    SECTION 6 – ELECTRICAL NOTE: The inverter is not intended for steady use while “dry camping”. Batteries will deplete quickly with use of the inverter. The inverter is intended for limited, short term power usage when not connected to shoreline or generator power. The inverter can also be used while driving the motor home because the Inverter Control Panel...

  • Page 58: Circuit Breakers - House 120-Volt Ac

    SECTION 6 – ELECTRICAL Charging Section The converter charges house batteries while 120-volt external power is connected. The converter will automatically “sense” the condition of the battery. If it is below “full charge”, the Charging Section will start charging the batteries. If the house batteries have been extremely discharged, they will accept charge at a relatively high amperage rate.

  • Page 59: Electrical Outlets - House 120-Volt Ac

    SECTION 6 – ELECTRICAL component itself. When an overload or short GROUND FAULT CIRCUIT develops, the breaker will open preventing INTERRUPTER damage to the system. Shut off the equipment (example: roof air Bath, galley, and exterior outlets are conditioner) and allow a brief cooling period. connected to a GFCI (Ground Fault Circuit Then reset the breaker by moving the switch to Interrupter), which is an extremely sensitive...

  • Page 60: Electrical Generator

    SECTION 6 – ELECTRICAL ELECTRICAL GENERATOR –If Equipped WARNING Careless handling of the generator and electrical components can be fatal. Never touch electrical leads or appliances when your hands are wet, or when standing in water or on wet ground. Do not attempt to repair the generator Automatic Power Transfer Box yourself.

  • Page 61: Electrical System - House 12-Volt Dc

    SECTION 6 – ELECTRICAL Operation Warnings and Cautions WARNING The exhaust of all internal combustion engines contains carbon monoxide (CO). This poisonous gas is colorless, odorless, tasteless, and lighter than air. The exhaust systems of both your motor home engine and your generator engine have Generator Start/Stop Buttons been installed with your safety in mind.

  • Page 62: House/Coach Battery Disconnect Switch

    SECTION 6 – ELECTRICAL Converter Always leave this switch ON while using the coach. See “Power Center.” NOTE: Some electronic displays and memory Chassis Battery functions may need to be reset after The chassis battery is used to operate the power has been reconnected.

  • Page 63: Battery Care

    SECTION 6 – ELECTRICAL The two best defenses against sulfating and insufficient charge are to: 1. Turn off the House/Coach Battery Disconnect switch to avoid parasitic discharge (the trickle discharge caused by directly connected components like propane gas detectors or digital clock displays, etc.) 2.

  • Page 64: Circuit Breakers And Fuses - House 12-Volt

    If your coach is going to be unoccupied for metal parts. Should the cable be ® two weeks or more, Winnebago Industries damaged, a short circuit could result in recommends disconnecting the chassis batteries personal injury or damage to equipment.
  • Page 65 SECTION 6 – ELECTRICAL House 12V Breakers -Typical View Battery Charge Meter See related item under “Systems Monitor Panel” in Appliances section. Battery Boost Switch See Driving Your Motor Home section for information on the Battery Boost Switch. 6-11...

  • Page 67: Plumbing

    SECTION 7 – PLUMBING FRESH WATER SYSTEM The Fresh Water System provides water to the galley sink, shower, bathroom lavatory, toilet, and water heater. Water may be supplied by either of two sources: • A fresh water tank and water pump located within the motor home, or •...

  • Page 68: Water Pump

    SECTION 7 – PLUMBING 5. Turn OFF city water supply and disconnect tank vent tube onto the ground and the from City Water Connection. water pump will run without delivering water to faucets. 6. Turn Fresh Water valve to Normal position to use the water pump.
  • Page 69 SECTION 7 – PLUMBING Initial Waterline Priming pump system. Thereafter, remember to check it at least yearly, and be sure to 1. Make sure that all water drain valves are empty water from it during winterization closed, including water heater valve. procedures.

  • Page 70: Ice Maker Water Filter

    SECTION 7 – PLUMBING NOTE: When removing the coach from storage, ICE MAKER WATER FILTER always disinfect and flush the water system thoroughly before installing a –If Equipped new filter. If the refrigerator in your coach is equipped with an ice maker, an ice maker filter is provided, DISINFECTING YOUR FRESH which removes chlorine and odors for clean, WATER SYSTEM...
  • Page 71 SECTION 7 – PLUMBING tank capacity into the empty filter canister, 6. Open each faucet again and run fresh water to then screw the canister back onto the filter flush chlorinated water from the lines. Run the base. water until there is no odor of chlorine detected in the water discharged.

  • Page 72: Shower Hose Vacuum Breaker

    SECTION 7 – PLUMBING SHOWER HOSE VACUUM BREAKER After using the shower, you may notice water dripping from the shower faucet assembly. The dripping results when vacuum in the shower hose (after closing the shower faucet) slowly releases and allows water remaining in the hose to drain Important “Don’ts”...

  • Page 73: Dumping Holding Tanks

    SECTION 7 – PLUMBING appropriate waste water disposal site. This means NOTE: Black and Gray waste tank drain valve you can use the toilet, sinks, and shower even in positions may be reversed, depending on areas where utility hookups are not available. floorplan and tank location.

  • Page 74: Waterline & Tank Drain Valves

    SECTION 7 – PLUMBING Using On-Site Sewer Hook-Ups The sewage drain hose may remain attached to D R A I N D R A I N the sewage drain outlet and be routed out the C L O S E C L O S E bottom of the compartment while the motor home is parked and connected to an on-site...

  • Page 75: Water Heater Bypass Valve

    SECTION 7 – PLUMBING WINTERIZING PROCEDURES You can winterize the water and plumbing system of your coach using one of the following two methods – 1) Blow out waterlines using compressed air or – 2) Fill waterlines with RV water system antifreeze. Method 1 –...
  • Page 76 A blow-out plug can be purchased must also be drained. ® ® at any Winnebago or Itasca dealer. (See “Winterizing Optional Appliances” instructions at the end of this section.) If not, proceed to the next numbered step.
  • Page 77 SECTION 7 – PLUMBING Dump and Clean Holding Tanks 17. Completely drain the sewage and waste water holding tanks at an approved waste disposal NOTICE site. Drain the sewage tank first so the following waste water can rinse any waste Limit air pressure to 30 psi to avoid solids from the dump outlet and sewer hose.
  • Page 78 SECTION 7 – PLUMBING 5. Turn the Winterization valve so that it points toward the antifreeze siphon tube. WARNING Antifreeze Siphon Tube Never use automotive antifreeze/coolant • Insert into in your RV water system. Auto antifreeze container of contains ethylene glycol which, if RV water ingested, can cause blindness and can system...

  • Page 79: Winterizing Optional Appliances

    SECTION 7 – PLUMBING Drain Optional Appliances 10. Turn the Winterization valve so it points toward the waterline to the water pump. This 15. At this time, if your coach is equipped with an will stop the flow from the antifreeze siphon optional refrigerator ice maker, the waterlines tube and revert the tank line flow to the water for that must also be drained.

  • Page 80: Water System Drain Valve Locations

    SECTION 7 – PLUMBING 4. Be sure water has drained from ice maker supply line, then reconnect to inlet valve. 5. Ice maker is now winterized. To use Ice Maker again: Flush antifreeze from the waterlines, then 1. Close all drain valves. 2.
  • Page 81 SECTION 7 – PLUMBING Waterlines • Inside driver side compartment behind rear wheel. Remove panel to access. Also, place the tip of your finger inside the city water connection and gently press the backflow valve (small “button” in center of connector) to drain any water left in the city waterline.
  • Page 82 SECTION 7 – PLUMBING Waterlines • (2) waterline drain valves in driver side compartment (second compartment behind driver door). • Open exterior shower faucet and lay shower head on ground. Also, place the tip of your finger inside the city water connection and gently press the backflow valve (small “button”...

  • Page 83: Entertainment

    SECTION 8 – ENTERTAINMENT Further Information TV – EXTENDABLE See the television manufacturer’s user guide (Model 30A) provided in your InfoCase for complete operating –If Equipped instructions. Your coach may be equipped with an FRONT TV IGNITION SWITCH extendable galley TV for your convenience. INTERLOCK To Extend TV –If Equipped...

  • Page 84: Dvd Player

    SECTION 8 – ENTERTAINMENT • When the main menu screen appears, use the DVD PLAYER arrow buttons on the DVD remote to select the desired entry or press the ENTER PLAY buttons on the remote (or “ ” button on Play DVD player) to begin playing the feature.

  • Page 85: Flip-Down Screen Video Players

    SECTION 8 – ENTERTAINMENT • Insert DVD into player. DVD will begin to • Turn On the radio and press the MODE button load automatically. TV screen will typically on the remote or the radio until it displays AV- show “READING” or “LOADING”. IN1.
  • Page 86 SECTION 8 – ENTERTAINMENT Remote Control and Wireless • The DVD may load directly to the main title/ menu screen or it may begin to play previews. Sound You may be able to skip previews if desired by • A sensor array pressing the NEXT button on the remote until above the you see the main menu screen.

  • Page 87: Audio/Video System Cables

    SECTION 8 – ENTERTAINMENT AUDIO/VIDEO SYSTEM CABLES A set of standard, color-coded AV System Cables are provided in the front overhead entertainment center cabinet for connection of your choice of DVD player or home theater system. Bedroom DVD/Satellite Receiver Connection -Typical View TV ANTENNA - DIGITAL ®...

  • Page 88: Tv Signal Amplifier

    SECTION 8 – ENTERTAINMENT NOTE: Refer to television manufacturer’s instructions to scan for available channels. Further Information See the antenna manufacturer’s user guide provided in your InfoCase for complete operating and maintenance information. TV SIGNAL AMPLIFIER Digital Antenna Power Switch The TV Signal Amplifier is built into the (Located in an overhead cabinet or antenna and can be turned on or off with a power...

  • Page 89: Tv Digital Satellite System Wiring

    A second connection may be included in an overhead cabinet in the bedroom for the rear TV (if equipped). ® See your authorized Winnebago Industries dealer for proper installation and sealing of roof mounted components. Digital Satellite Dish Control (Located on ceiling)

  • Page 90: Exterior Entertainment Center

    SECTION 8 – ENTERTAINMENT Further Information See the Digital Satellite System user guide provided in your InfoCase for complete operating instructions. EXTERIOR ENTERTAINMENT CENTER –If Equipped The exterior entertainment center contains a TV, stereo radio/CD/DVD player, and audio/ video hook-ups for your outdoor listening or viewing pleasure.

  • Page 91: Furniture And Softgoods

    SECTION 9 – FURNITURE AND SOFTGOODS LOUNGE CHAIR - SWIVEL –If Equipped (Typical View - Your coach may differ in appearance, depending on model) This chair is not equipped with a seat belt and is not intended for seating while the vehicle is in motion.

  • Page 92: Sleeping Facilities

    SECTION 9 – FURNITURE AND SOFTGOODS SLEEPING FACILITIES WARNING Sleeping facilities are not intended for use while vehicle is in motion. For safety, passengers must use safety belted seating positions while vehicle is in motion. DINETTE/BED CONVERSION - 2. Bind chairs together with the provided strap, DREAM DINETTE ensuring the strap goes through the ring ™...

  • Page 93: Extendable Sectional U-Shaped Dinette

    SECTION 9 – FURNITURE AND SOFTGOODS Reverse steps to convert back into dinette seating. 3. Rotate lock rod counter-clockwise (right) to EXTENDABLE SECTIONAL secure table in the lowered position. U-SHAPED DINETTE –If Equipped Dinette and Table Extension 1. Engage and Hold the black lever (located on the end of dinette seat) and fully extend dinette sectional extension.
  • Page 94 SECTION 9 – FURNITURE AND SOFTGOODS 4. Push front of seat cushion rearward to secure into seated position, ensuring the bracket on the underside of the seat cushion engages with the metal catch on the front side of the dinette sectional extension.
  • Page 95 SECTION 9 – FURNITURE AND SOFTGOODS 6. Repeat Steps 1 through 5 on opposite dinette seat. Table Extension • Remove table extension from beneath rear bed. • Press Table Leg Release Button (one located on each table leg) and extend both legs. Remove Support Bar and set aside.

  • Page 96: Sofa/Bed Conversion

    SECTION 9 – FURNITURE AND SOFTGOODS • Arrange dinette cushions to cover bed area. • Lower dinette table, ensuring bottom of table is flush with the wood cleats attached to dinette benches. • Lock both locking latches on the air-assisted dinette table pedestal leg to secure table in lowered position.

  • Page 97: Comfort Sofa Sleeper

    SECTION 9 – FURNITURE AND SOFTGOODS COMFORT SOFA SLEEPER –If Equipped (Typical View - your coach may vary according to floorplan) Your coach may be equipped with a Comfort Sofa Sleeper, which is featured with an air bed that can be adjusted to the firmness of your choice by the touch of a button.
  • Page 98 SECTION 9 – FURNITURE AND SOFTGOODS 3. Rotate the lever lock (located on the bottom 5. Unfold the air mattress so it is covering the right-hand side of the sofa air bed) sofa bed. “clockwise” to release the bottom section of the sofa air bed.
  • Page 99 SECTION 9 – FURNITURE AND SOFTGOODS Bed to Sofa Air Mattress Hand Control (Located on the back side of the sofa) 1. Press and Hold the DEFLATE button on the hand control OR open the Deflation Valve (for quick deflation) until air mattress is completely deflated.

  • Page 100: Extendable Sectional Sofa

    SECTION 9 – FURNITURE AND SOFTGOODS NOTE: Leaving the Deflation Valve open while converting back into sofa position will help remove any remaining air for more compact storage. 5. Grasp the pull strap and proceed to bring sofa all the way up. Once the sofa is back in original position, replace the sofa back 3.
  • Page 101 SECTION 9 – FURNITURE AND SOFTGOODS The sofa also converts into additional sleeping 3. Grasp the pull strap (located on the front side space. Refer to “Sofa/Bed Conversion” of the sectional extension seat cushion) and elsewhere in this section. pull UP and OUT. WARNING Stow sectional sofa extension before retracting slide rooms.

  • Page 102: Roller Shades (Manual) - Solar Day/Night

    No matter which species you choose for your new Winnebago Industries motorhome cabinetry, please keep in mind that no two pieces Further Information of wood are exactly the same.
  • Page 103 SECTION 9 – FURNITURE AND SOFTGOODS Additionally, wood species exhibit other defining characteristics, such as mineral deposits/streaks, knots, sap runs, pin holes, and wormholes. These markings make the wood unique and contribute to its enduring beauty. Therefore, since wood is a product of nature and will have certain natural characteristics and variances, they are not covered under the warranty.

  • Page 105: Slideout Rooms And Leveling

    SECTION 10 – SLIDEOUT ROOMS AND LEVELING To Release SLIDEOUT ROOM TRAVEL • Press and Hold the UNLOCK side of the LOCKS - ELECTRIC Slideout Room Lock switch for about 7 –If Equipped seconds. (You may be able to hear the lock motor sound stop).

  • Page 106: Slideout Room Travel Lock

    SECTION 10 – SLIDEOUT ROOMS AND LEVELING NOTICE Release and remove Slideout Prop-Lock Rod before attempting to extend slideout room. Damage to the vehicle will result if this is not done. Position and secure Prop-Lock before driving vehicle. See following instructions. To Release Lock Rod Slideout Lock Drain Line •...

  • Page 107: Slideout Room Operation - Electric

    SECTION 10 – SLIDEOUT ROOMS AND LEVELING Master Keylock SLIDEOUT ROOM OPERATION A master keylock switch is located near the – ELECTRIC power switch for the front slideout room. This keylock must be turned on to provide power to the slideout control switches. WARNING Your motor home may have more than one slideout room.
  • Page 108 SECTION 10 – SLIDEOUT ROOMS AND LEVELING The slideout room system uses 12-volt DC motorized mechanisms with an electronic control system to provide smooth operation and positive NOTICE weather seal. NOTE: We recommend that you KEEP THE Release slideout room travel latch before ENGINE RUNNING WHILE attempting to extend slideout room.

  • Page 109: Slideout Room - Extreme Weather Precaution

    SECTION 10 – SLIDEOUT ROOMS AND LEVELING compartments, which could be crushed or • Press the Slideout Room “RETRACT/IN” cause damage to floor covering or cabinets switch and hold until the room is fully when the room is retracted. retracted, then release the switch. •...

  • Page 110: Slideout Room Troubleshooting

    SECTION 10 – SLIDEOUT ROOMS AND LEVELING SLIDEOUT ROOM • Light will flash fault TROUBLESHOOTING • Light will flash if code if system park brake not set malfunctions Battery Voltage or Circuit Breaker Problems If the slideout room will not work: •...
  • Page 111 SECTION 10 – SLIDEOUT ROOMS AND LEVELING Manual Mode Manual Mode lets you individually move the • Light will flash fault • Light will flash if code if system two room arms by pressing the IN and OUT park brake not set malfunctions buttons on the touchpad.

  • Page 112: Slideout Emergency Retraction - Electric

    SECTION 10 – SLIDEOUT ROOMS AND LEVELING SLIDEOUT EMERGENCY 3) Use 3/4”socket on gearbox RETRACTION - ELECTRIC shaft to crank room in (Front Slideout Room) -If Equipped If the slideout mechanism is malfunctioning and the room will not retract using the interior control switch, you may need to access the motor/gear assembly and manually crank the room in to the travel position.

  • Page 113: Slideout Emergency Retraction - Bedroom

    SECTION 10 – SLIDEOUT ROOMS AND LEVELING Further Information 1) Lift tab inside See the Slideout Room operating guide protrusion on boot to included in your InfoCase for further instructions disengage motor brake and troubleshooting information. SLIDEOUT EMERGENCY RETRACTION - BEDROOM -If Equipped If the slideout mechanism is malfunctioning and the room will not retract using the interior...

  • Page 114: General Slideout Care

    SECTION 10 – SLIDEOUT ROOMS AND LEVELING GENERAL SLIDEOUT CARE • Keep slideout room seals clean. • Clean the floors inside the coach before retracting the slideout room to avoid floor scratches or carpet pile snags. • Wipe outer slideout room seals occasionally with talc or 303 brand protectant for smooth, quiet operation.
  • Page 115 SECTION 10 – SLIDEOUT ROOMS AND LEVELING WARNING • Keep all people clear of the coach while the leveling system is operating. • When extending the rear stabilizers, do not lift the wheels beyond ground contact. This makes it possible for the Auto Level Remote Switch vehicle to roll unexpectedly forward (or (Located inside entrance door)

  • Page 116: Checking Hydraulic Oil Level

    SECTION 10 – SLIDEOUT ROOMS AND LEVELING CHECKING HYDRAULIC OIL LEVEL NOTICE See the Leveling System Operation Guide provided in your InfoCase for complete • Do not try to drive vehicle unless maintenance instructions and information. “TRAVEL” light is glowing with ignition All maintenance should be done as part of the switch on.
  • Page 117 SECTION 10 – SLIDEOUT ROOMS AND LEVELING Hydraulic Oil Reservoir -Typical View NOTE: Overfilling the hydraulic reservoir can cause leakage of oil through the breather cap. Hydraulic Fluid Recommendation ® ® Dexron II or Mercon automatic transmission fluid is recommended for use in your Leveling System.

  • Page 119: Maintenance And Storage

    • Have the sealant replaced if you notice any of attention. Delaying these repairs may allow water the above. Your local Winnebago Industries leakage and result in damage to interior ceiling dealer has the correct and necessary parts and and body panels, upholstery, etc., which is not experience to help you maintain your sealants.

  • Page 120: Exterior Automotive Paint Finish

    SECTION 11 – MAINTENANCE AND STORAGE weight to the vehicle. This, in effect, reduces the initial 60-day cure stage, a coat of wax or amount of cargo you can carry and remain within polish can help protect the surface from these GVWR and GAWR limits.
  • Page 121 SECTION 11 – MAINTENANCE AND STORAGE Bug Removal to clean heavy road films on semi trailers and are often dirty. They are not • Rinse the loose debris off with water and designed for custom painted RV’s and allow the remaining residues to soak and they will scratch the clearcoat finish.

  • Page 122: Exterior Graphic Care

    EXTERIOR LIGHTS called "spider cracks" or "hairline cracks" caused by normal flexing of the fiberglass exterior are ® Most Winnebago Industries vehicles have normal and typically pose no threat to the polycarbonate lenses on exterior lamps, which integrity of the vehicle other than appearance.

  • Page 123: Interior Soft Goods

    SECTION 11 – MAINTENANCE AND STORAGE INTERIOR SOFT GOODS We recommend a weekly routine of NOTICE vacuuming all fabrics and carpet throughout the motor home to prevent an accumulation of dirt, Do not use citrus-based cleaners on which can detract from the appearance and polycarbonate finishes.

  • Page 124: Cabinetry - Cleaning

    SECTION 11 – MAINTENANCE AND STORAGE Draperies, Curtains, and resistance to soils and stains of vinyl fabrics. It is also tougher than real calfskin and has superior Bedspreads resistance to punctures, snags, and rips. These items may be woven from a variety of For most soils and stains, the fabric fabrics.

  • Page 125: Stainless Steel Appliances

    SECTION 11 – MAINTENANCE AND STORAGE If a stain has dried on, allow the cleaner or replacement. If one of these materials does spill soapy water time to soften the area, after which or drip onto the counter surface, wipe it up the stain will wipe off.

  • Page 126: Galley Sink

    SECTION 11 – MAINTENANCE AND STORAGE Coffee and Tea Stains • Never use steel wool. Particles of steel from the wool pad can embed into the sink surface, Prepare a sodium bicarbonate solution and hot then become rusty and unsightly. water.

  • Page 127: Bathroom

    SECTION 11 – MAINTENANCE AND STORAGE Corrosion, paint, and grass stains: • Do not use undiluted bleach or leave a dilution of bleach on the floor for longer than one hour. • Treat as soon as possible with a soft nylon pad and non-abrasive mild detergent or resilient Maintenance Tips floor cleaner.

  • Page 128: Doors And Windows

    SECTION 11 – MAINTENANCE AND STORAGE Marks or Discoloration sulfating. If connecting a charger directly to batteries, turn the House/Coach Battery A color-matched automotive scratch remover Disconnect switch off to avoid electrical compound may be used to remove stubborn arcing when attaching and detaching charge marks or discoloration.

  • Page 129: Vehicle Storage - Removal

    SECTION 11 – MAINTENANCE AND STORAGE that can be damaged by freezing temperatures. 12. Check around all appliances for obstructions See “Winterizing Procedure” in Section 7 - and ensure that all vent openings are clear. Plumbing. 13. Start refrigerator and check for proper cooling.

  • Page 130: Chassis Service And Maintenance

    SECTION 11 – MAINTENANCE AND STORAGE CHASSIS SERVICE AND MAINTENANCE Consult the appropriate sections in your chassis manual for specific information regarding operating safety, service recommendations, and maintenance schedules for the chassis section of your motor home. 11-12...

  • Page 131: Coach Maintenance Chart

    SECTION 11 – MAINTENANCE AND STORAGE COACH MAINTENANCE CHART These recommendations apply for normal recreational use. Heavy duty or full-time use may require more frequent maintenance intervals. Always use specified sections or manufacturer’s guide for further information and instructions. Propane Gas System Have propane gas system checked for leaks Pressure Regulator - inspect and adjust if needed Check propane tank condition, mounting, and fittings...
  • Page 132 SECTION 11 – MAINTENANCE AND STORAGE COACH MAINTENANCE CHART These recommendations apply for normal recreational use. Heavy duty or full-time use may require more frequent maintenance intervals. Always use specified sections or manufacturer’s guide for further information and instructions. Safety Equipment Check operation of the following items: Headlights, Taillights, and Marker Lights Turn Signals...
  • Page 133 SECTION 11 – MAINTENANCE AND STORAGE COACH MAINTENANCE CHART These recommendations apply for normal recreational use. Heavy duty or full-time use may require more frequent maintenance intervals. Always use specified sections or manufacturer’s guide for further information and instructions. Sealants Inspect (see “Sealants - Inspection and General Information”...

  • Page 135: Miscellaneous

    SECTION 12 – MISCELLANEOUS NOTE: We recommend that you dump all LOADING THE VEHICLE holding tanks before traveling to avoid carrying unnecessary weight. NOTE: Your motor home’s load capacity is designated by weight, not by volume, so you cannot necessarily use all available space when loading your motor home.
  • Page 136 SECTION 12 – MISCELLANEOUS Corner Weighing (Side-to-Side) You will first drive only your front wheels onto the scale pad, then drive ahead so that the The most accurate method of weighing a whole vehicle is on the scale, then finally pull off motor home is to weigh each “corner”...

  • Page 137: Car Or Trailer Towing

    SECTION 12 – MISCELLANEOUS axle is 12,000 lbs., then the load on each rear dual listed Gross Weight Ratings. See “Vehicle set (left rear duals or right rear duals) should not Certification Label” in the Introduction section exceed 6,000 lbs. for information on gross weight ratings.

  • Page 138: Trailer Wiring Connector

    SECTION 12 – MISCELLANEOUS Before descending a steep or long grade when TRAILER WIRING towing a trailer, reduce speed and shift into a CONNECTOR lower gear to control vehicle speed. Avoid prolonged or frequent application of brakes Your coach is pre-wired for trailer or car which could cause overheating and brake failure.

  • Page 139: Entry Step - Electric

    350 vehicle drive train: engine and cooling systems, lbs. All Winnebago Industries models transmission, drive line, drive axle, and others. equipped with a Class IV hitch have a...

  • Page 140: Windows

    SECTION 12 – MISCELLANEOUS Stationary Extended Mode - Step Switch OFF (Step Remains Extended) With the Step power switch in the OFF position, the step will extend when the screen door is opened and will stay extended whether the door is opened or closed. NOTE: The step switch is “locked”...

  • Page 141: Power Roof Ventilator

    SECTION 12 – MISCELLANEOUS Vertical Slider Windows Vertical windows have spring-loaded catches on both sides of the window that pop out to hold • Pull out the lever on the crank-out handle and the window in its fully raised position. Press the begin cranking out the window counter- catches outward toward the frames while clockwise to the position desired.

  • Page 142: Power Awning

    SECTION 12 – MISCELLANEOUS Further Information Manual Dome Fuse Fan Speed See the power ventilator manufacturer’s Crank Knob Selector operating instructions supplied in your InfoCase for further instructions, care, and cleaning information. POWER AWNING Your coach is equipped with a Power Patio Awning to provide protection against outdoor elements, such as sun, rain, and wind.

  • Page 143: Storage Compartment Doors

    SECTION 12 – MISCELLANEOUS Further Information For complete operating instructions, features, safety precautions, and maintenance care, refer to the awning manufacturer’s information provided in your InfoCase. STORAGE COMPARTMENT DOORS The high-density gaskets used on the exterior storage compartments are designed to provide a Compartment Lights Switch more positive seal against dust and weather.

  • Page 144: Effects Of Prolonged Occupancy

    SECTION 12 – MISCELLANEOUS Before Using the Ladder Humidity and Condensation Moisture condensing on the inside of • Inspect the ladder to make sure it is not windows is a visible indication that there is too damaged. Never use a damaged ladder. much humidity inside the coach.
  • Page 145 INDEX 2012 New Vehicle Limited Warranty ..1-2 Ducted Roof Air Conditioning System ..4-10 About this Manual ........1-1 DVD Player ..........8-2 Air Conditioner Filter ........ 4-10 Effects of Prolonged Occupancy ..... 12-10 Air Conditioner/Heater – Electrical ............2-5 Automotive (Dash) ........
  • Page 146 Index Heater – Rear Coach (Automotive) ..... 3-9 Rearview Monitor System ......3-5 House/Coach Battery Disconnect Switch ..6-8 Refrigerator ..........4-1 Ice Maker ............. 4-2 Refrigerator Service Access Compartment .. 4-2 Ice Maker Water Filter ......... 7-4 Reporting Safety Defects ......1-4 Interior Soft Goods ........
  • Page 147 Index TV Digital Satellite System – Manual ..8-7 TV Digital Satellite System Wiring ..... 8-7 TV Signal Amplifier ........8-6 Undercarriage ..........11-1 Vehicle Certification Label ......1-6 Vehicle Storage – Preparation ....11-10 Vehicle Storage – Removal ..... 11-11 Vinyl Flooring ..........

This manual is also suitable for:

Sightseer 33cSightseer 35jSightseer 36v

Table of Contents
