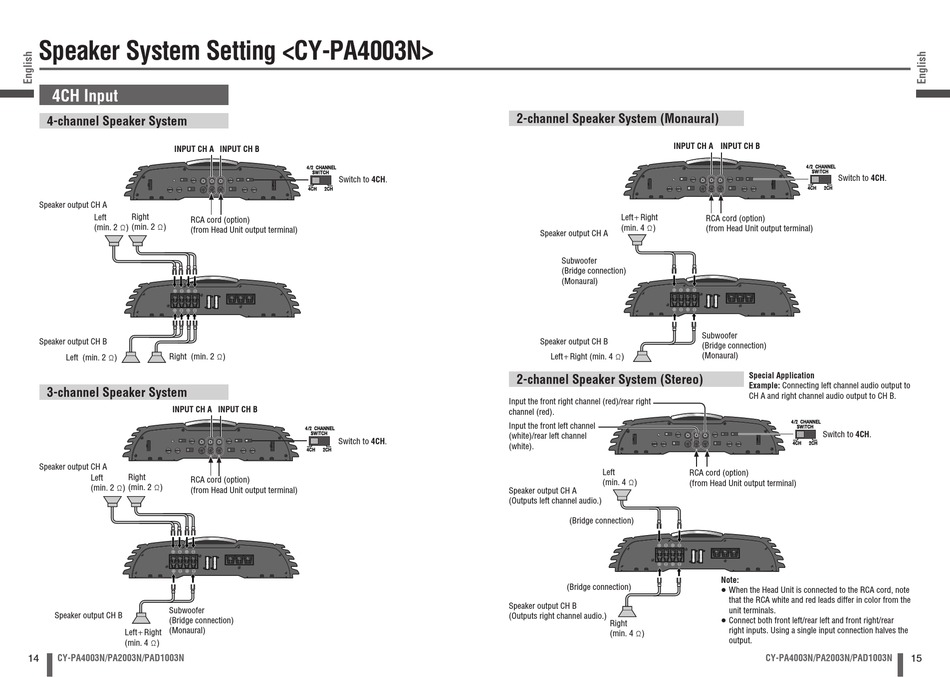

Speaker System Setting <CY-PA4003N>
4CH Input
4-channel Speaker System
INPUT CH A
Speaker output CH A
Right
Left
RCA cord (option)
(min. 2 ) (min. 2 )
(from Head Unit output terminal)
Speaker output CH B
Right (min. 2 )
Left (min. 2 )
3-channel Speaker System
INPUT CH A INPUT CH B
Speaker output CH A
Left Right
RCA cord (option)
(min. 2 )
(min. 2 )
(from Head Unit output terminal)
Subwoofer
Speaker output CH B
(Bridge connection)
(Monaural)
LeftRight
(min. 4 )
14 CY-PA4003N/PA2003N/PAD1003N
INPUT CH B
Switch to 4CH.
Switch to 4CH.
2-channel Speaker System (Monaural)
INPUT CH A INPUT CH B
LeftRight
(min. 4 )
Speaker output CH A
Subwoofer
(Bridge connection)
(Monaural)
Speaker output CH B
LeftRight (min. 4 )
2-channel Speaker System (Stereo)
Input the front right channel (red)/rear right
channel (red).
Input the front left channel
(white)/rear left channel
(white).
Left
(min. 4 )
Speaker output CH A
(Outputs left channel audio.)
(Bridge connection)
(Bridge connection)
Speaker output CH B
(Outputs right channel audio.)
Right
(min. 4 )
Switch to 4CH.
RCA cord (option)
(from Head Unit output terminal)
Subwoofer
(Bridge connection)
(Monaural)
Special Application
Example: Connecting left channel audio output to
CH A and right channel audio output to CH B.
Switch to 4CH.
RCA cord (option)
(from Head Unit output terminal)
Note:
 When the Head Unit is connected to the RCA cord, note
that the RCA white and red leads differ in color from the
unit terminals.
 Connect both front left/rear left and front right/rear
right inputs. Using a single input connection halves the
output.
CY-PA4003N/PA2003N/PAD1003N 15
