Cable routing:

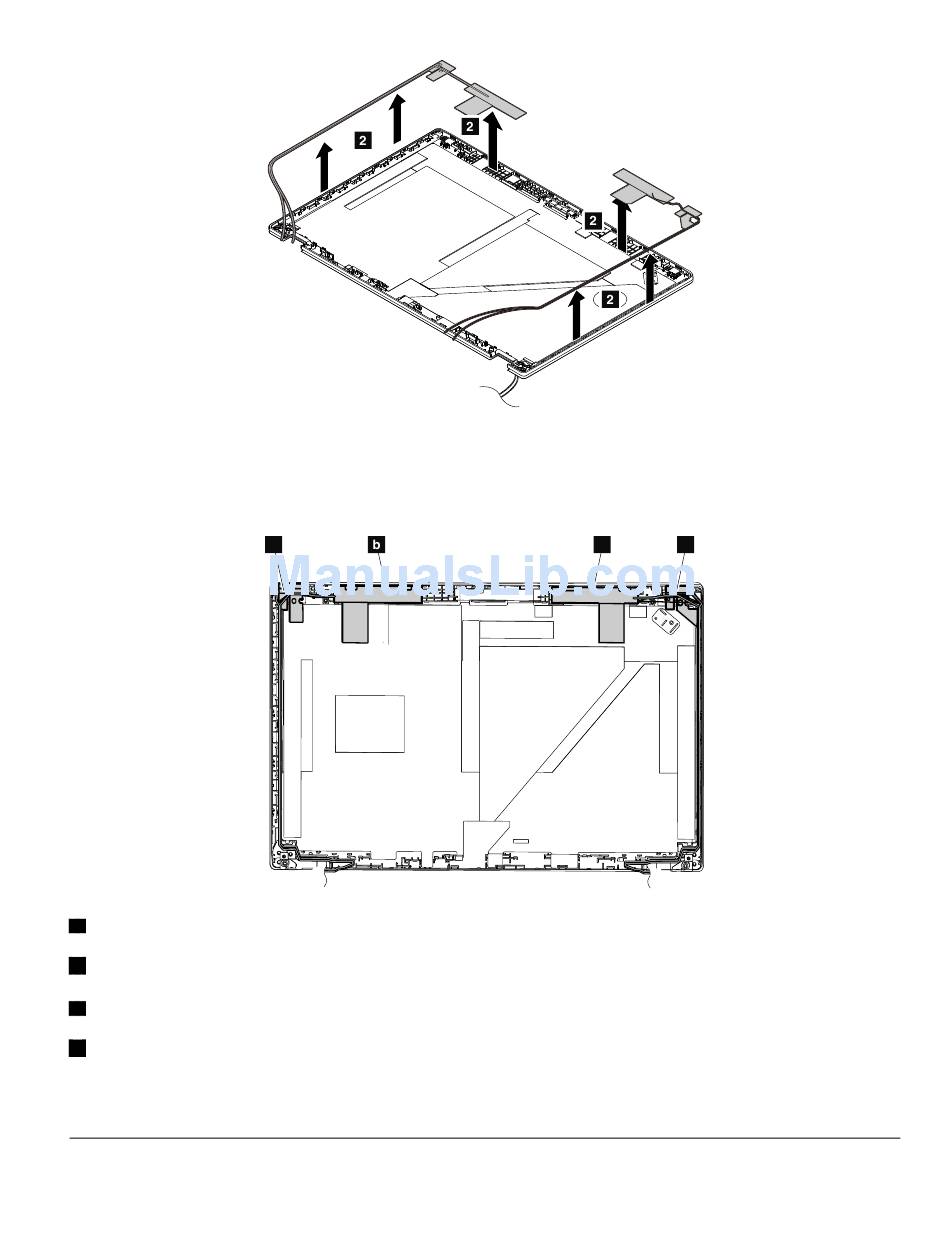

When you install the antenna kit, route the cables as shown in the following illustration.
a
Wireless LAN auxiliary antenna (black)
b
Wireless WAN auxiliary antenna (blue)
c
Wireless WAN main antenna (orange)
d
Wireless LAN main antenna (grey)
Attention: As you route the cables, ensure that they are not subject to any tension. Tension could cause the
cables to be damaged by the cable guides, or a wire to be broken.
Removing an LCD FRU for touch models
This section provides instructions on how to remove an LCD FRU for models with touch feature.
a
c
d
.
Chapter 9
Removing or replacing a FRU
105
