PX9210 / PU9220 / PU9220+
Digital Projector
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PX9210 and is the answer not in the manual?

Questions and answers

Related Manuals for BenQ PX9210

Summary of Contents for BenQ PX9210

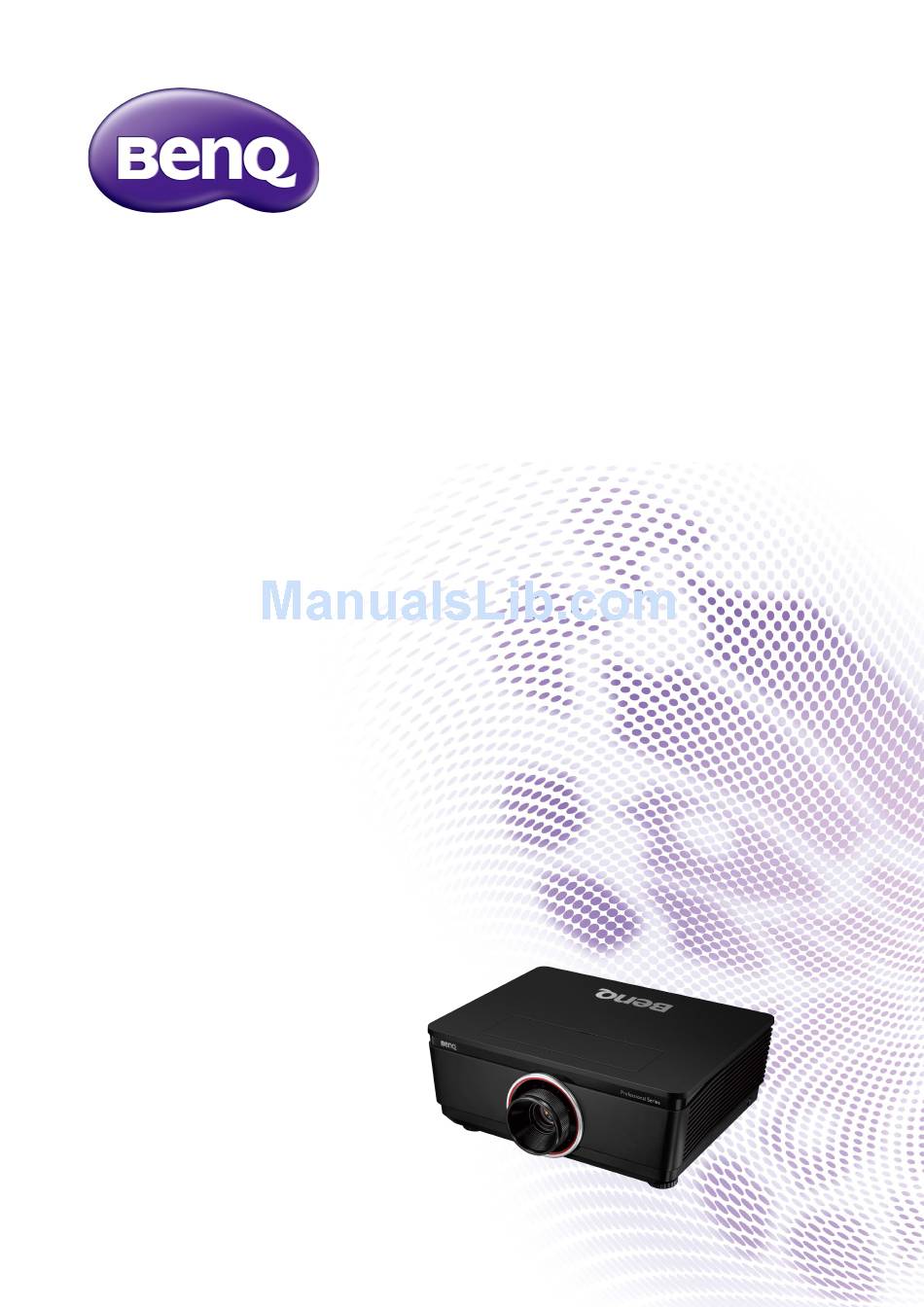

  • Page 1 PX9210 / PU9220 / PU9220+ Digital Projector Installation Guide...

  • Page 2: Table Of Contents

    Table of Contents Product information ................3 Lens information ................... 3 Notice (when edge blending) ............... 3 Product information ................4 Lens shift range ..................6 Projector dimensions ................8 Clearance around the exhaust vent ............ 9 Lens dimensions ..................10 Ceiling mount dimensions ..............

  • Page 3: Product Information

    Aspect ratio 16:10 Brightness 6000 Lumens 5000 Lumens Lamp Wattage 370W Power consumption(Max) 480W Lens information Model Name Lens Type BenQ Part Number Optical Spec Screen Size LS2ST3 Wide fix 5J.JDH37.001 F=2.5, f=11.5mm 80˝~180˝ LS2ST1 Wide zoom 5J.JDH37.011 F=2.05~2.27, f=16.64~19.5 mm 80˝~350˝...

  • Page 4: Product Information

    Product information PX9210 Formulas: Definitions: W = Image Width H = Image Height (size) C = Throw distance 4:3 Screen Formulas: W = H x 4/3 H = W x 3/4 Diagonal = W x 5/4 PX9210 Part Number 5J.JDH37.001 5J.JDH37.011...
  • Page 5 PU9220/PU9220+ Formulas: Definitions: W = Image Width H = Image Height (size) C = Throw distance 16:10 Screen Formulas: W = H x 16/10 H = W x 10/16 Screen Diagonal = W x 18.868/16 PU9220/PU9220+ Part Number 5J.JDH37.001 5J.JDH37.011 5J.JDH37.021 5J.JDH37.031 LS2ST3...

  • Page 6: Lens Shift Range

    Lens shift range Lens shift adjustable range The adjustable range for lens shift is tabulated below and subject to the conditions listed. Note: The drawings below apply to the standard lens only. Normal projection position Desk-Front Projection Max 0.5V Vertical Shift Height of projected image Vertical Shift Max 0.1V...

  • Page 7: Ceiling Mount Installation

    WUXGA Normal projection position Desk-Front Projection Max 0.55V Vertical Shift Height of projected image Vertical Shift Max 0.15V 0.05H 0.05H Width of projected image Ceiling Mount-Front Projection Height of projected image Shift to Left Shift to Right Vertical Shift 0.55V Ceiling Mount Installation 0.1H Screen Top...

  • Page 8: Projector Dimensions

    Projector dimensions 431.9 216.0 321.0 55.5 220.0 110.0 AIR EXHAUST AIR INLET M4X12L 260.0 283.0 AIR EXHAUST...

  • Page 9: Clearance Around The Exhaust Vent

    Clearance around the exhaust vent For proper ventilation of the projector, make sure to leave some space around the projector as shown in the illustration below: Min. 500mm Min. 500mm Min. 500mm Min. 300mm Min. 500mm...

  • Page 10: Lens Dimensions

    Lens dimensions Optional Lens (Wide Fix: LS2ST3) LS2ST3, Wide Fix lens Optional Lens (Wide Zoom: LS2ST1) LS2ST1, Wide Zoom lens Optional Lens (Standard: LS2SD) LS2SD, Standard lens...
  • Page 11 Optional Lens (Semi Long Throw: LS2LT1) LS2LT1, Semi Long Throw lens Optional Lens (Long Throw 1: LS2LT2) LS2LT2, Long Throw 1 lens...

  • Page 12: Ceiling Mount Dimensions

    Ceiling mount dimensions Ceiling Mount (Part Number: 5J.JCY10.001) Note: • Mark A: PW9500/PX9600 • Mark B: PU9730/PX9710/PW9620 • Mark C: PX9210/PU9220 ±20°...

  • Page 13: Io Panel

    IO panel • HDMI Connection to HDMI source. • DVI-D Connection to DVI source. • DisplayPort Connection to device or PC featuring DisplayPort. • LAN Connection to network (via router/access point). • USB (Type A) Support 5V/1.5A output. • 3D Sync Out Connection to 3D IR sync signal transmitter.

  • Page 14: Rs232 Command

    Caution: Make sure the port is valid before inserting a wired remote controller. The remote controller may be damaged in case of an invalid port, e.g. a wired remote controller is connected to trigger output. RS232 command RS232 pin assignment Signal NC (Data carrier detect) RX (Receive data)
  • Page 15 Function Type Description ASCII Read Volume Status <CR>*vol=?#<CR> Write Audio pass Through off <CR>*audiosour=off#<CR> Audio source Write Audio-Computer1 <CR>*audiosour=RGB#<CR> select Write Audio-Computer2 <CR>*audiosour=RGB2#<CR> Write Audio-Video/S-Video <CR>*audiosour=vid#<CR> Write Audio-Component <CR>*audiosour=ypbr#<CR> Audio source Write Audio-HDMI <CR>*audiosour=hdmi#<CR> select Read Audio pass Status <CR>*audiosour=?#<CR> Write Dynamic <CR>*appmod=dynamic#<CR>...
  • Page 16 Function Type Description ASCII Write Contrast + <CR>*con=+#<CR> Write Contrast - <CR>*con=-#<CR> Read Contrast value <CR>*con=?#<CR> Write Brightness + <CR>*bri=+#<CR> Write Brightness - <CR>*bri=-#<CR> Read Brightness value <CR>*bri=?#<CR> Write Color + <CR>*color=+#<CR> Write Color - <CR>*color=-#<CR> Read Color value <CR>*color=?#<CR> Write Sharpness + <CR>*sharp=+#<CR>...
  • Page 17 Function Type Description ASCII Write Projector Position-Front Table <CR>*pp=FT#<CR> Write Projector Position-Rear Table <CR>*pp=RE#<CR> Write Projector Position-Rear Ceiling <CR>*pp=RC#<CR> Write Projector Position-Front Ceiling <CR>*pp=FC#<CR> Write Quick auto search - on <CR>*QAS=on#<CR> Write Quick auto search - off <CR>*QAS=off#<CR> Read Quick auto search status <CR>*QAS=?#<CR>...
  • Page 18 Function Type Description ASCII Read Model Name <CR>*modelname=?#<CR> Write Blank On <CR>*blank=on#<CR> Write Blank Off <CR>*blank=off#<CR> Read Blank Status <CR>*blank=?#<CR> Write Freeze On <CR>*freeze=on#<CR> Write Freeze Off <CR>*freeze=off#<CR> Read Freeze Status <CR>*freeze=?#<CR> Write Menu On <CR>*menu=on#<CR> Write Menu Off <CR>*menu=off#<CR> Write <CR>*up#<CR>...
