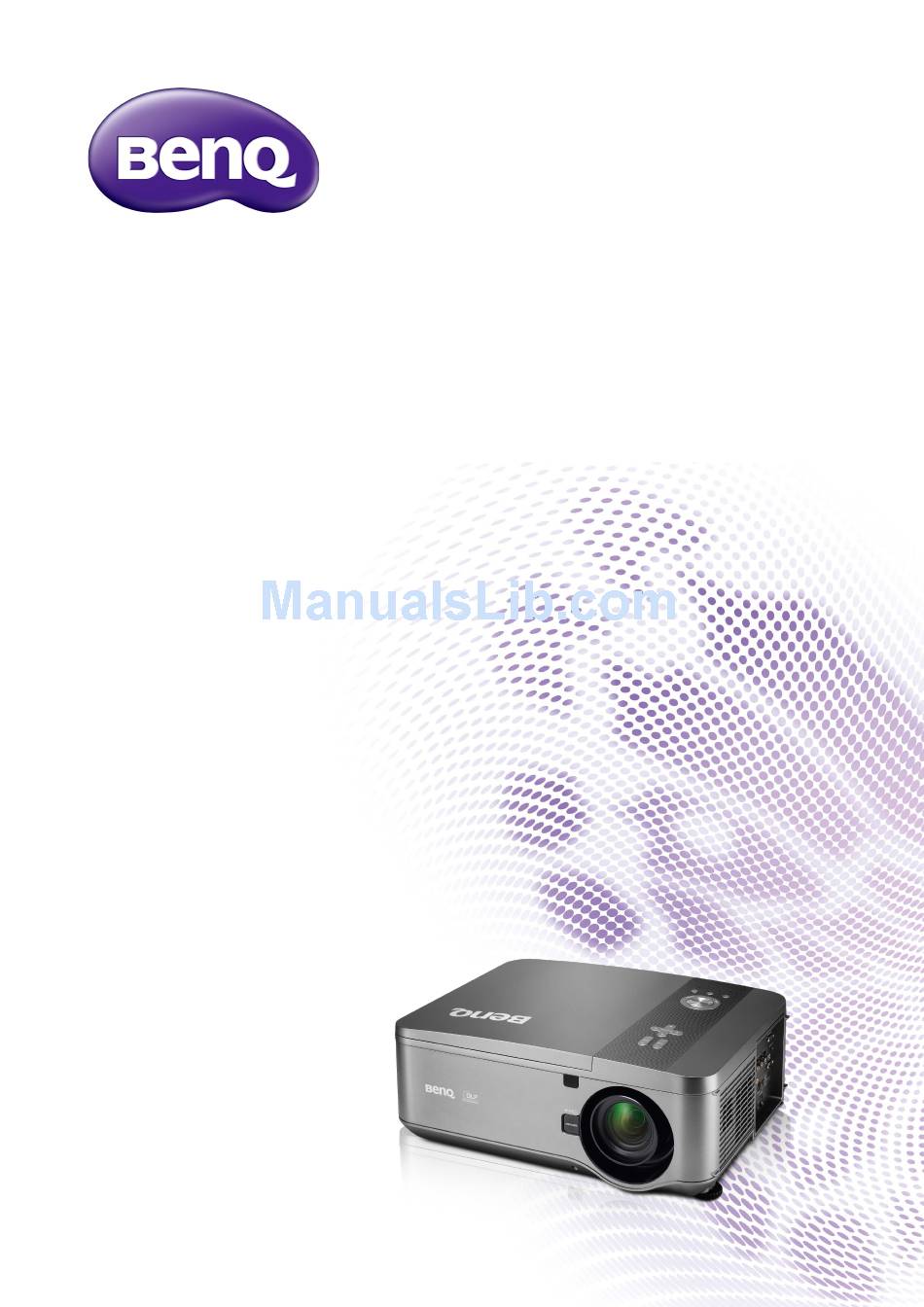

- Page 1 PX9510 / PW9520 / PU9530 Digital Projector Installation Guide...
-
Page 2: Table Of Contents
Table of Contents Product information ................3 Lens information ................... 3 Notice (when edge blending) ............... 3 Product information ................4 Lens shift range ..................7 Projector dimension ................9 Clearance around the exhaust vent ............ 10 Lens dimension ..................11 Ceiling mount dimension .............. -
Page 3: Product Information
16:10 Brightness 6500 Lumens 6000 Lumens 6000 Lumens Lamp Wattage 280W x2 Power consumption(Max) 730W Lens information Model Lens Type BenQ Part Number Optical spec Screen Size Name LS1ST3 Wide fix 5J.JAM37.011 F=1.85, f=11.6mm 40˝~500˝ LS1ST2 Ultra wide 5J.JAM37.061 F=1.96-2.3 40˝~500˝... -
Page 4: Product Information
Product information PX9510 Formulas: Definitions: W = Image Width H = Image Height (size) C = Throw distance 4:3 Screen Formulas: W = H x 4/3 H = W x 3/4 Diagonal = W x 5/4 PX9510 Part Number 5J.JAM37.011 5J.JAM37.021... - Page 5 PW9520 Formulas: Definitions: W = Image Width H = Image Height (size) C = Throw distance 16:10 Screen Formulas: W = H x 16/10 H = W x 10/16 Screen Diagonal = W x 18.868/16 PW9520 Part Number 5J.JAM37.011 5J.JAM37.021 5J.JAM37.001 5J.JAM37.051 LS1ST3...
- Page 6 PU9530 Formulas: Definitions: W = Image Width H = Image Height (size) C = Throw distance 16:10 Screen Formulas: W = H x 16/10 H = W x 10/16 Screen Diagonal = W x 18.868/16 PU9530 Part Number 5J.JAM37.011 5J.JAM37.021 5J.JAM37.001 5J.JAM37.051 LS1ST3...
-
Page 7: Lens Shift Range
Note: • Ceiling installation must be done by a qualified professional. Contact your dealer for more information. It is not recommended you install the projector yourself. • Only use the projector on a solid, level surface. Serious injury and damage can occur if the projector is dropped. •... -
Page 8: Ceiling Mount Installation
Ceiling mount installation Screen Top 0.1H Shift Range Screen Center Only for Lenses: LS1ST3: X = 312.6 LS1ST2: X = 323.2 No Offset from Mount Pipe LS1ST1: X = 300.3 X = Distance from lens to mount center LS1SD: X = 274.5 C = Distance from lens to screen LS1LT1: X = 293.7 LS1LT2: X = 310.5... -
Page 9: Projector Dimension
Projector dimension 445 (17 1/2) 270.8 (10 11/16) AIR INLET 5-M4XP0.7X12 (4 15/16) (4 15/16) AIR INLET AIR EXHAUST AIR INLET 504.9 (19 7/8) -
Page 10: Clearance Around The Exhaust Vent
Clearance around the exhaust vent For proper ventilation of the projector, make sure to leave some space around the projector as shown in the illustration below: Right / Left / Top side 30cm above 50cm above 50cm above Back / Top side 30cm above 70cm above Celing mount / Back side... -
Page 11: Lens Dimension
Lens dimension Optional Lens (Wide Fix: LS1ST3) New Wide Fix Lens Optional Lens (Wide Zoom: LS1ST1) Wide Zoom Lens Optional Lens (Ultra Wide: LS1ST2) Ultra Wide Lens... - Page 12 Optional Lens (Standard: LS1SD) Standard Lens Optional Lens (Semi Long Throw: LS1LT1) Semi Long Throw Lens Optional Lens (Long Throw 1: LS1LT2) Long 1 Lens...
- Page 13 Optional Lens (Long Throw 2: LS1LT3) Long 2 Lens...
-
Page 14: Ceiling Mount Dimension
Ceiling mount dimension Ceiling Mount (Part Number: 5J.JCY10.001) Note: • Mark A: PW9500/PX9600 • Mark B: PU9730/PX9710/PW9620 • Mark C: PX9210/PU9220 ±20°... -
Page 15: Io Panel
IO panel • LAN/HDBaseT For connection to RJ45 Cat5/Cat6 Ethernet cable to input uncompressed high-definition video (HD), control signals. • DVI-D (HDCP) Connection to DVI source. • HDMI (HDCP) Connection to HDMI source. • Computer-1 15-pin VGA port for connection to RGB, component HD source, or PC. •... -
Page 16: Rs232 Command
RS232 command RS232 pin assignment Description Description 1 NC 2 TXD 3 RXD 4 NC 5 GND Function Type Description ASCII Write Power On <CR>*pow=on#<CR> Power Write Power off <CR>*pow=off#<CR> Read Power Status <CR>*pow=?#<CR> Write COMPUTER/YPbPr <CR>*sour=RGB#<CR> Write COMPUTER 2/YPbPr2 <CR>*sour=RGB2#<CR>... - Page 17 Function Type Description ASCII Read Sharpness value <CR>*sharp=?#<CR> Write Color Temperature-Warm <CR>*ct=warm#<CR> Write Color Temperature-Normal <CR>*ct=normal#<CR> Write Color Temperature-Cool <CR>*ct=cool#<CR> Write Color Temperature-lamp na- <CR>*ct=native#<CR> tive Read Color Temperature Status <CR>*ct=?#<CR> Write Aspect 4:3 <CR>*asp=4:3#<CR> Write Aspect 16:9 <CR>*asp=16:9#<CR> Write Aspect 16:10 <CR>*asp=16:10#<CR>...
- Page 18 Function Type Description ASCII Write 19200 <CR>*baud=19200#<CR> Write 38400 <CR>*baud=38400#<CR> Operation Set- Write 57600 <CR>*baud=57600#<CR> tings Write 115200 <CR>*baud=115200#<CR> Read Current Baud Rate <CR>*baud=?#<CR> Read Lamp Hour <CR>*ltim=?#<CR> Read Lamp2 Hour <CR>*ltim2=?#<CR> Write Lamp hour reset <CR>*ltim=reset#<CR> Write Lamp2 hour reset <CR>*ltim2=reset#<CR>...
- Page 19 Function Type Description ASCII Read 3D Sync Status <CR>*3d=?#<CR> Write Trigger on <CR>*trigger=on#<CR> Write Trigger off <CR>*trigger=off#<CR> Read Trigger status <CR>*trigger=?#<CR> Write High Altitude mode on <CR>*Highaltitude=on#<CR> Write High Altitude mode off <CR>*Highaltitude=off#<CR> Read High Altitude mode status <CR>*Highaltitude=?#<CR> Read Error Code <CR>*error=report#<CR>...
