3. Expansion Video Monitor (EX-700H)

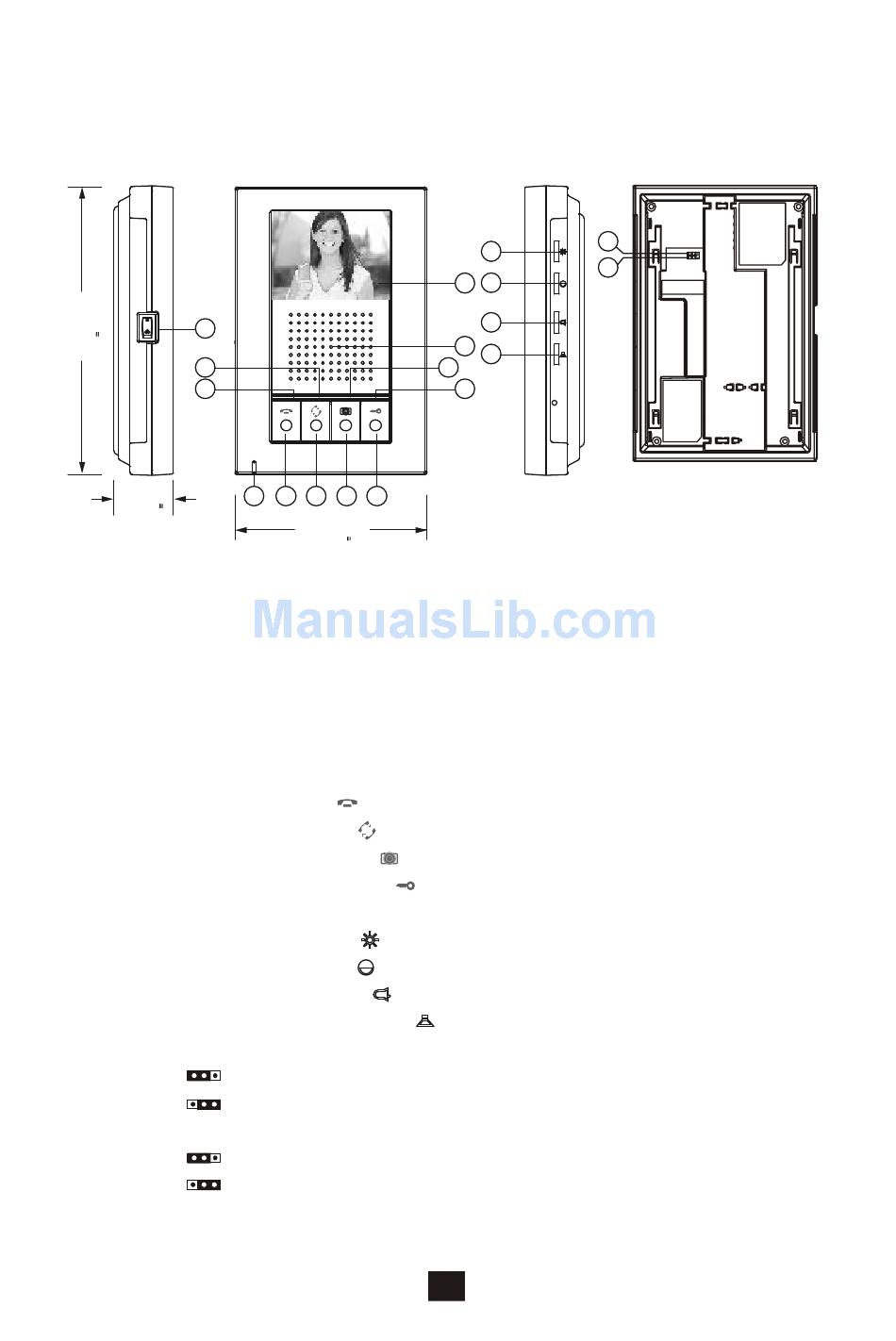

3.1. EX-700H Identification

178mm
12
(7.0 )
5
6
36mm
(1.42 )
1. 3.5" Color TFT Screen
2. Speaker
3. In use LED
4. Monitor LED
5. Intercom LED
6. Communication LED
7. Microphone
8. Cut-off button( )
9. Intercom button( )
10. Monitoring button( )
11. Door release button( )
12. Power switch
13. Brightness tuner( )
14. Sharpness tuner( )
15. Bell Volume tuner( )
16. Speaker Volume tuner( )
17. JP1, video display option during door release operation
18. JP2, door status report option
[E X-700H]
7 8 9 10 11
118mm
(4.65 )
Enable video display (JP1 left) (default)
Disable video display (JP1 right)
Bell tone indication (JP2 left) (default)
LED light on Door Open Button (JP2 right)
