4. Expansion Audio Monitor (EX-700A)

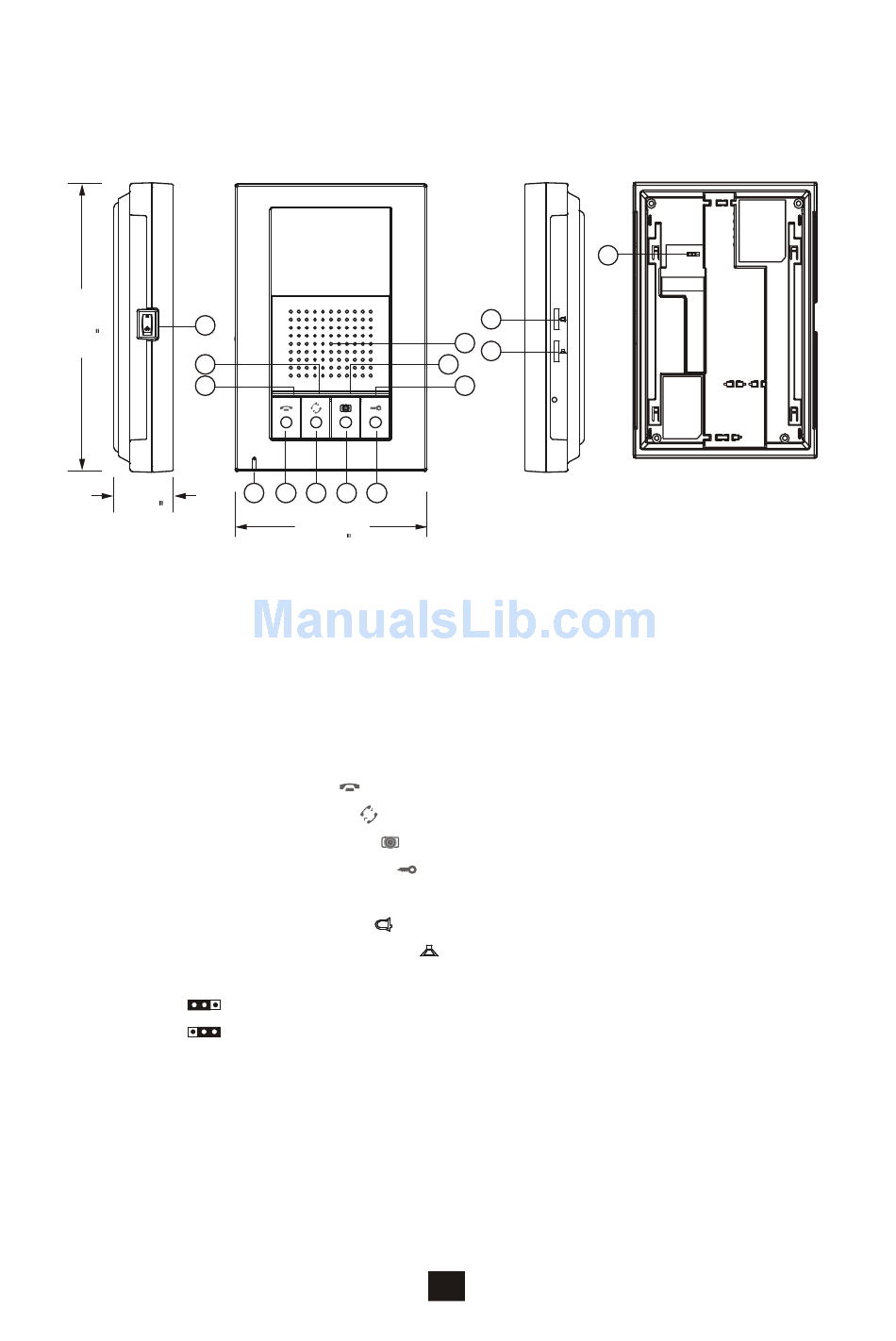

4.1. EX-700A Identification

178mm
11
(7.0 )
4
5
36mm
(1.42 )
1. Speaker
2. In use LED
3. Monitor LED
4. Intercom LED
5. Communication LED
6. Microphone
7. Cut-off button( )
8. Intercom button( )
9. Monitoring button( )
10. Door release button( )
11. Power switch
12. Bell Volume tuner( )
13. Speaker Volume tuner( )
14. JP2, door status report option
[E X-700A]
6 7 8 9 10
118mm
(4.65 )
Bell tone indication (JP2 left) (default)
LED light on Door Open Button (JP2 right)
14
12
1
13
3
2
7
