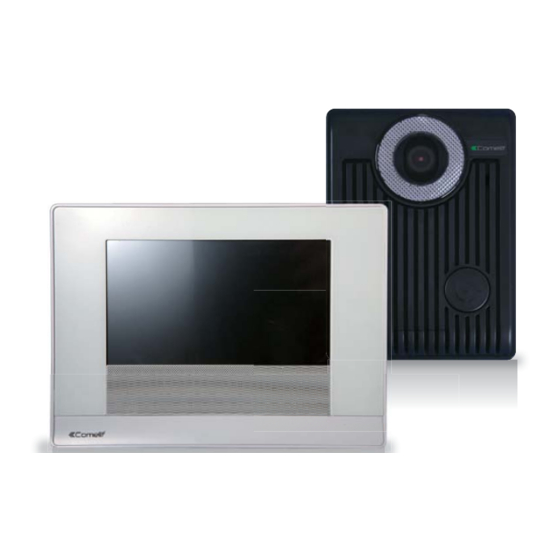

- Page 1 HANDS-FREE 7" TOUCH SCREEN VIDEO INTERCOM SYSTEM HFX-900R OWNER S MANUAL INSTALLATION GUIDE...
-
Page 2: Table Of Contents
Section 1: Article Operation 1.Introduction 2.Parts Identification 2.1.Contents of the package 2.2.Main monitor function 2.3.Video door phone function 3.Expansion and accessories 3.1.EX-900H expansion monitor 3.2.EX-VIN external camera signal converter 3.3.EX-HUB home run configuration hub Section 2: Article Installation 1.System layout 1 2.System layout 2 3.Wiring and its terminals 4.Installation... -
Page 3: Section 1: Article Operation
For more information regarding the complete line of our products, please visit www.comelitusa.com 2.Parts Identification 9.06in 1.25in HFX-900R Main monitor identification 5. External chime type Jumper 1. Microphone 6. Power button 2. 7" Color TFT Screen 7. SD slot (micro SD card not 3. -
Page 4: System Layout
HFX-900R Door Camera identification 3.86in 1.42in... -
Page 5: Contents Of The Package
2.1.Contents of the package Main monitor Flush mount bracket Wall mount bracket Door camera Power adapter HANDS-FREE 7" TOUCH SCREEN VIDEO INTERCOM SYSTEM HFX-900R OWNER S MANUAL INSTALLATION GUIDE Removable wiring terminals Manual Manual Spring Anchor plate... -
Page 6: Main Monitor Function
2.2.Main monitor function Home Page Features... - Page 7 2.2.1 Clock Adjustment Icon Clock Adjust 2.2.2 Privacy Mode Icon Privacy ON Privacy OFF Privacy Privacy ON Privacy OFF...
-
Page 8: Call Forwarding
2.2.3 Call Forwarding Mode Icon Call Forwarding Call Forwarding ( XXX ) 1234567 Delay Call Forwarding Call Forwarding Call Forwarding ( 123 ) 1234567 ( 123 ) 1234567 Delay : Delay : Delay : Delay : Delay : Delay :... -
Page 9: Doorbell Cam
2.2.4 Day/Night Mode Function Icon Day Mode ( master-only ) Day Mode Night Mode ( master-only ) ( call-all ) Night Mode ( call-all ) Day/Night Mode 2.2.5 Auto-unlock Mode Icon Normal Mode Auto-Unlock : DOORBELL CAM 01 DOORBELL CAM 02 Auto door release upon call No Doorbell Camera... - Page 10 2.2.6 Intercom All-page with other monitors Icon Intercom Conversation Established All-Page Initiated Intercom Conversation Established...
- Page 11 2.2.7 Door camera monitoring Icon DOORBELL CAM 01 DOORBELL CAM 02 NONE NONE Monitor Recording Camera 01 DOORBELL CAM 01...
- Page 12 2.2.8 Video Recording playback Icon 01.01.2013 Free Space: XXXXXX MB PM 10:52:23 10 MB Memory Reviewing 1 / 2 2.2.9 Multi-media screen saver function Icon Screen Saver Screen Saver 1 / 2...
-
Page 13: Video Door Phone Function
2.2.10 Settings Interface DR1 : Doorbell camera DR2 : Camera DR3 : None DR4 : None System Settings 1 / 4 Operating Instructions 2.3. Video door phone function... -
Page 14: Expansion And Accessories
3. Expansion and accessories 3.1. EX-900H Home Page Features... - Page 15 3.1.1 Clock Adjustment Icon Clock Adjust 3.1.2 Privacy Mode Icon Privacy ON Privacy OFF Privacy Privacy ON Privacy OFF...
- Page 16 3.1.3 Intercom w/ other monitor Icon Intercom Conversation Established All-Page Initiated Intercom Conversation Established...
-
Page 17: Operating Instructions
3.1.4 Camera surveillance Icon Recording Camera 01 3.1.5 Settings Icon DR1 : Doorbell camera DR2 : Camera DR3 : None DR4 : None System Settings 1 / 4 Operating Instructions... -
Page 18: Ex-Vin External Camera Signal Converter
C. The power LED is "on" during normal operation. D. The HFX-900R series has the ability to connect 2 EX-HUB units together to expand to a total of 8 Monitors... -
Page 19: Section 2: Article Installation
Monitors. For alternative application please consult our technical support engineer first. Maximum wiring distance (using dry contact lock control at doorbell camera) Maximum wiring distance (using the 12VDC/300mA lock control at doorbell camera) NOTE : CAT-5 is not recommended for this type of installation. EX-720D EX-900H HFX-900R KIT... -
Page 20: System Layout 2
NOTE 2: the system is capable of expanding up to a total of 5 monitors with 1 EX-HUB. Maximum wiring distance (using dry contact lock control at doorbell camera) Maximum wiring distance (using the 12VDC/300mA lock control at doorbell camera) NOTE : CAT-5 is not recommended for this type of installation. HFX-900R EX-720D EX-900H... -
Page 21: Wiring And Its Terminals
3.Wiring and its terminals 3.1 HFX-900R Wire the system from terminal to terminal accordingly. Terminals for expansion monitor(w/polarity). Connect to a N.C. magnetic switch sensor for door status detection. Trigger a N.O. external chime or strobe light which is synchronized with door bell trigger. - Page 22 DG1/DG2 for external chime control Dry contact (NO) when bell is ringing (factory setting) Current output to drive external device Terminals for door strike. Terminals to main monitor (no polarity). 3.2. EX-900H CON3 CON2 Connect to a N.C. magnetic switch sensor for door status detection. Terminals for power adapter.
-
Page 23: Installation
4. Installation 1.25in 9.06in Wallmount Wiring terminals are REMOVABLE... - Page 24 Flushmount Wiring terminals are REMOVABLE Door camera 3.86in 1.42in...
-
Page 25: Technical Specifications
5. Technical specification 5.1. HFX-900R (main monitor) 7" digital TFT-LCD Display: 800 x 480 pixels Resolution: 30 seconds time out; Auto Timer (visitor call): 90 seconds for conversation 20 seconds time out; Auto Timer (intercom): 90 seconds for conversation F ~ 140... - Page 26 5.4. EX-900H (optional video monitor) 7" digital TFT-LCD Display: 800 x 480 pixels Resolution: 30 seconds time out; Auto Timer (visitor call): 90 seconds for conversation 20 seconds time out; Auto Timer (intercom): 90 seconds for conversation F ~ 140 F, indoor Operating Temperature: 9.06"(L) x 6.6"(W) x 1.25"(D)
-
Page 27: Trouble Shooting
6.Trouble shooting Note: Before requesting service, check the troubleshooting quide to solve the problem. Solution Problem Make sure AC plug is firmly inserted into the AC outlet. Make sure the power terminal is No power firmly connected into the monitor unit. Check (no picture on monitor) to ensure polarity is correct. -
Page 28: Section 3: Appendix
Section 3: Appendix 1: WARNING WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE MONITOR OR POWER ADAPTER TO WATER OR MOISTURE. CAUTION: DO NOT OPEN. RISK OF ELECTRICAL SHOCK. CAUTION! TO REDUCE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER OR BACK, NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. -
Page 29: Important Safety Instructions
2: IMPORTANT SAFETY INSTRUCTIONS WARING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE MONITOR OR POWER ADAPTER TO WATER OR MOISTURE. Read Instructions -All the safety and operating instructions should be read before operating this equipment. These instructions should be retained for future reference. -
Page 30: Fcc Class B Notice
3: FCC CLASS B NOTICE NOTE: This equipment has been Certified and found to comply with the limits regulated by FCC,and CE. Therefore, it is designed to provide reasonable protection against interference and will not cause interference with other appliance usage. However, it is imperative that the user follows this manuals guidelines to avoid improper usage which may result in damage to the unit, electrical shock, and fire hazard or injury. -
Page 31: Service And Warranty
Breakdown caused by transport,or through careless treatment by customer. Breakdown caused by unauthorized repair or modification. Breakdown caused by natural disaster or electric power surge. Comelit USA Technical Support Department 2021 S Myrtle Ave. Monrovia, CA 91016 (866)692-9739 option 2 (626)930-0388 option 2 tech@comelitusa.com... - Page 32 http:// www.comelitusa.com Info@comelitusa.com...
