2. HFX-700M KIT

2.1.HFX-700M KIT Parts Identification

178mm
12
(7.0 )
5
6
36mm
(1.42 )

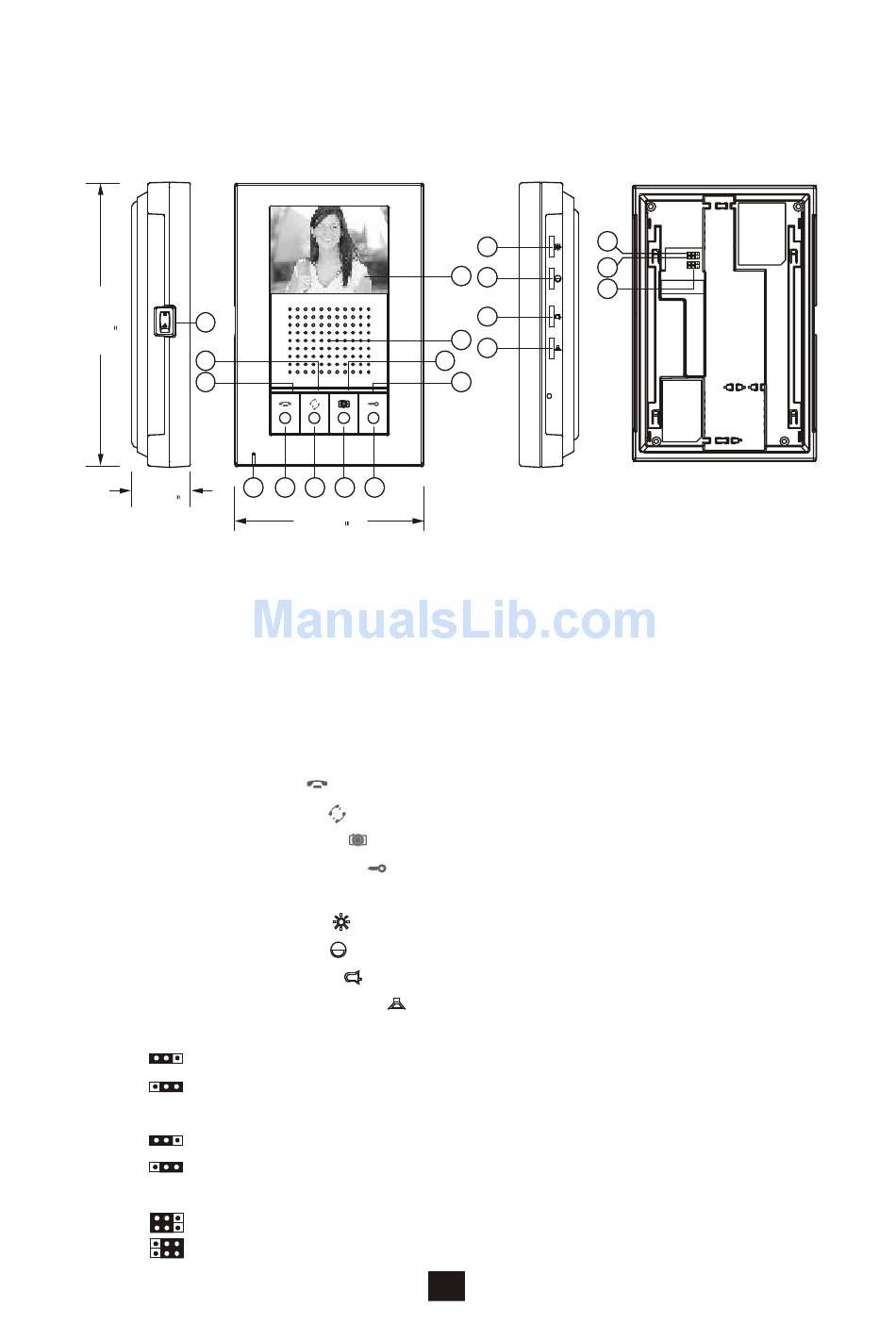

2.1.1 HFX-700M Main monitor identification

1. 3.5" Color TFT Screen
2. Speaker
3. In use LED
4. Monitor LED
5. Intercom LED
6. Communication LED
7. Microphone
8. Cut-off button(
9. Intercom button(
10. Monitoring button(
11. Door release button(
12. Power switch
13. Brightness tuner(
14. Sharpness tuner(
15. Bell Volume tuner(
16. Speaker Volume tuner(
17. JP1, video display option during door release operation
Enable video display (JP1 left) (default)
Disable video display (JP1 right)
18. JP2, door status report option
Bell tone indication (JP2 left) (default)
LED light on Door Open Button (JP2 right)
19. JP3, external doorbell trigger option
N.O. dry contact (default) (allow bypass current of 24VDC/1A)
12VDC150mA current output
