Lock
Body
1. Attach bracket to wood overlay
2. Insert lock body
3. Add and tighten nut
4. Add lock strike
5. Add lock washer and screw
6. Use key to turn the lock and verify that the lock and unlock positions of the strike are correct
(unlock should be up) (lock should be horizontal)
7. Adjust lock if necessary
8. Attached overlay with lock assembly to the door assembly
9. Attach lock bracket to unit
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice
18" SHALLOW-DEPTH SERIES
Operation/Installation Manual
Bracket
Nut
Lock Strike
Lock Washer
Screw
Lock
Bracket
9

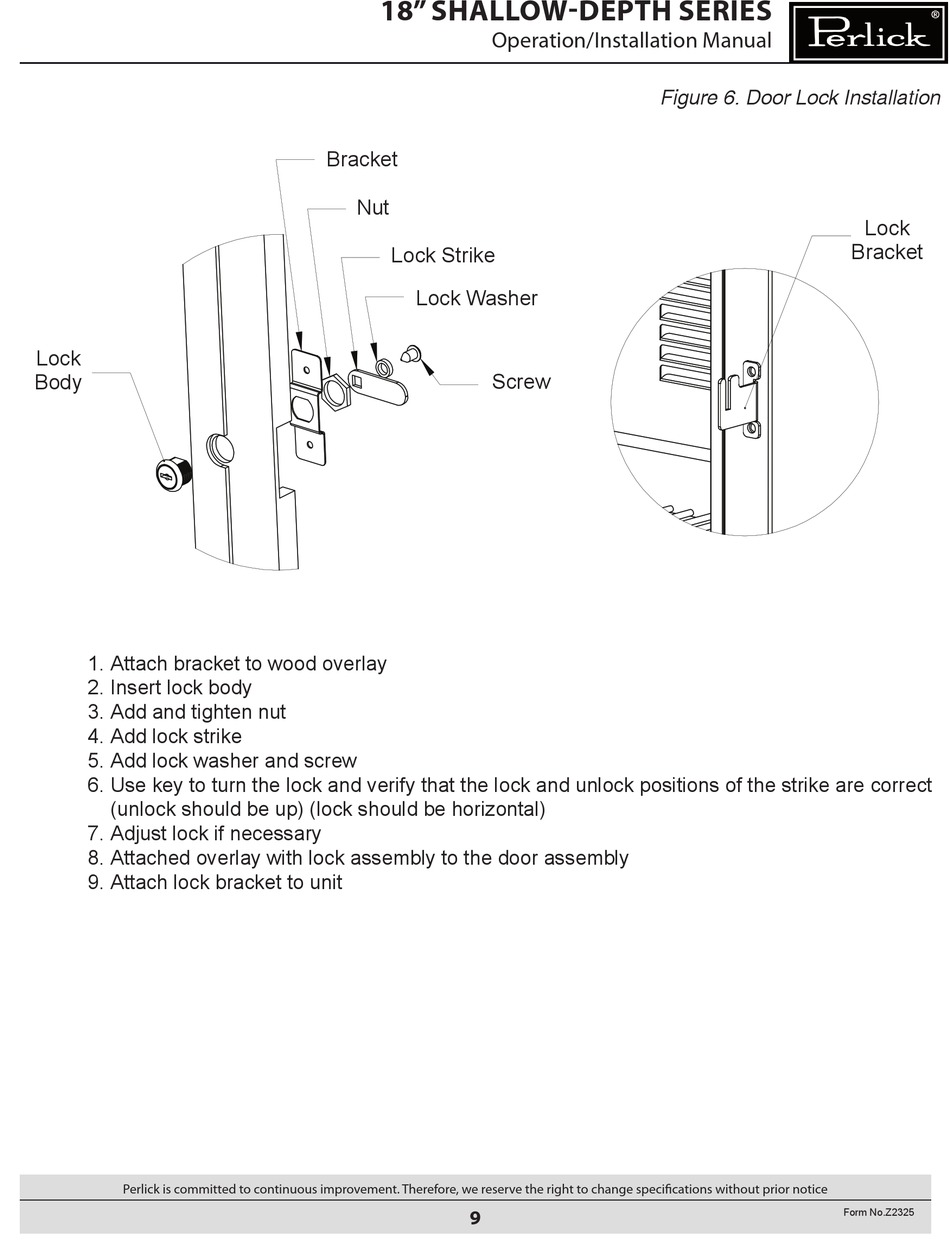

Figure 6. Door Lock Installation
Lock
Bracket
Form No.Z2325
