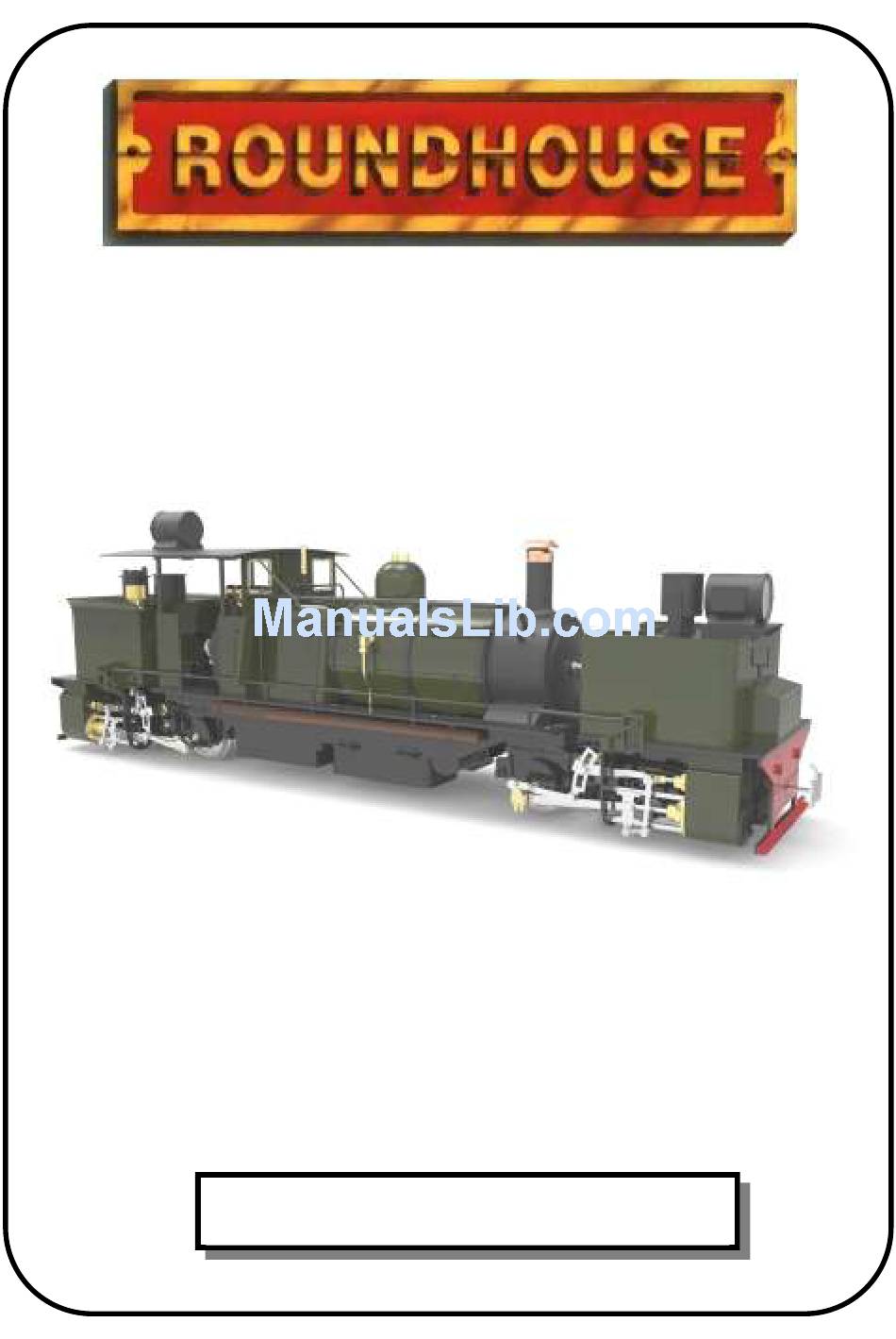

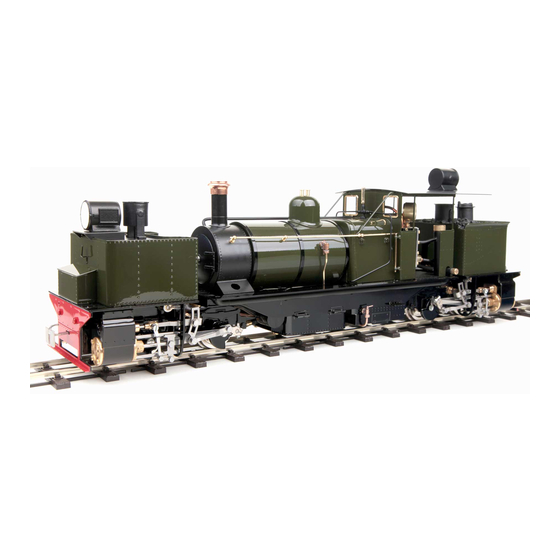

- Page 1 Darjeeling ‘D’ Class Garratt Owners Handbook...
-
Page 2: Operating Instructions
Operating Instructions IMPORTANT: Read these instructions carefully before operating the locomotive The following items are required for running this engine and are not included with the model. Butane gas. See ’Gas System’ section. Fuel Water See 'Filling the boiler' section. General Lubricating oil See 'Lubrication' section. -
Page 3: Table Of Contents
CONTENTS Tool kit Page 4 Running in Page 4 Handling & transporting Page 4 Access to controls Page 5 Identification of parts of the locomotive Page 6 Preparing for operation Page 7 1. Filling the gas tank Page 7 2. Filling the boiler Page 8 3. -
Page 4: Tool Kit
TOOL KIT The following items are included with your locomotive: One 60ml bottle of special steam oil for use in the lubricator. One 60ml syringe with plastic tube for filling the boiler with water. One water top up pump bottle and ‘swan neck’. One set of spare washers and ‘O’... -
Page 5: Access To Controls
Holding the loco by the front and rear footplates, roll it off onto the track, lining up the wheels as they exit the cradle base. Because the loco wheels sit in cut-outs in the base, it is necessary to lift the model very slightly... -
Page 6: Identification Of Parts Of The Locomotive
IDENTIFICATION OF LOCOMOTIVE MAIN CONTROLS Rear Bunker Water Gas Jet With cab roof and dummy top up Holder Regulator valve Union coal removed Nuts Steam Regulator Pressure Gauge Filler Valve Water Gauge Displacement Displacement Lubricator Lubricator Filler Cap Drain Screw Front Bunker With cover and steam dome removed. -
Page 7: Preparing For Operation
A Gas Filler Adapter is obtainable from your local garden railway supplier or direct from ROUNDHOUSE. Mixed gasses are also available and may be used if ordinary butane or iso-butane are not available, but see the ‘Gas System’... -
Page 8: Filling The Boiler
full. Remove the canister immediately. Filling times will vary depending on the temperature of the locomotive and are for guidance only. 2) FILLING THE BOILER There are two methods of filling the boiler 1/ Quick filling when cold. The brass dome in the centre of the boiler can be lifted off to allow access to the safety valve. - Page 9 making filter to remove any particles or debris in the water. Do not use deionised water as this may cause long term damage to the boiler and fittings. There has to be a space above the water to allow steam to be raised so, insert the end of the plastic pipe into the boiler and withdraw 30 ml of water with the syringe.
-
Page 10: Lubrication
maintaining this downward pressure. Keep pumping until the water level in the water gauge is almost at the top of the glass. Remove the plastic tube. Note that a small amount of water will remain in the top of the valve but will evaporate away as the valve heats up. 3) LUBRICATION Regular lubrication of all working parts is important and should be carried out before each operating session. -
Page 11: Lighting The Burner
(closed to fully open) is achieved within the first half to three quarters of a turn of the gas regulator knob. Any more is unnecessary. As the gas tank is mounted in the rear bunker, unlike other Roundhouse models, it does not benefit from any heating from the boiler. However, full... -
Page 12: Running The Locomotive
steam pressure should be raised in about 4 minutes with a cold boiler. If, after 5 or 6 minutes, pressure is not rising, shut off the gas and re-light. If this still does not improve matters, see the section on the gas system in the Troubleshooting. -
Page 13: Batteries
damage will result if the gas is turned off immediately and the engine left to cool naturally. Never add cold water to a hot, empty boiler in an attempt to cool it and never re-fill the gas tank without first checking the water level in the boiler. -
Page 14: Water Top-Up System
NOTE: Ensure that the valve gear is fully in gear for the required direction when the engine is moving. The model is fitted with a simplified Walschaerts type valve gear which is not suitable for 'notching up' (altering the cut off). Always bring the locomotive to a halt by closing the regulator before changing direction. - Page 15 glass as you pump so allow the level to settle after a few pumps. Carefully pull the plastic pipe out of the water top up valve whilst steadying the engine. Sometimes, small particles of dirt will find their way in with the water and may cause the water filling valve to leak back a little when the pipe is removed.
-
Page 16: Troubleshooting & Maintenance
TROUBLESHOOTING & MAINTENANCE On a working model of this nature, it is important to keep all working parts well lubricated as detailed in the lubrication section. With constant heating up, cooling down and the stresses of hard work, screws etc. can work loose so, it is good practice to check all fixings and cylinder screws regularly, particularly when the model is new but, remember - never over tighten. -
Page 17: Water Top-Up System
kit is available which includes replacement gaskets and seals and full instructions for fitting. WATER TOP-UP SYSTEM Over a period of time the end of the plastic filling tube that pushes in the boiler top-up valve will become a loose fit due to the heat of the fitting. To cure this, simply cut approximately 6mm from the end of the tube when necessary. -
Page 18: Gas Jet Removal
gasses, i.e. Butane with a proportion of Propane mixed in. The mixed gas come in a variety of mixes ranging from 90/10 to 60/40 with one of the most common being 70/30. The figures refer to the proportions of the mix i.e. -
Page 19: Gas Regulator Maintenance
Note when connecting or disconnecting the gas pipe or gas jet holder, do not use excessive force. Wash out the jet in fast evaporating thinner (Cellulose or similar). Blow through the jet from the front, which should clear most blockages. Although the hole through the jet is tiny, if you hold it up to the light you should be able to see quite clearly if it is blocked or not. -
Page 21: Boiler And Gas Tank Certificate, Pages 21
ROUNDHOUSE ENGINEERING CO. LTD. Units 6-9 Churchill Business Park. Churchill Road. Wheatley. Doncaster. DN1 2TF. England Telephone 01302 328035 Fax 01302 761312 Email:- mail@roundhouse-eng.com www.roundhouse-eng.com EC Declaration Of Conformity I hereby declare that the model described: Model: Darjeeling ‘D’ Class Serial No.:... - Page 22 Please refer to the ‘owners handbook’ for your particular model of locomotive, for details on correct use of these pressure vessels. Pressure vessel care and maintenance Gas tank The gas tank is used for the storage of LPG (liquefied petroleum gas) in the form of butane, iso-butane or as set out in the ‘owners handbook’.
- Page 23 Gas Burner 1). Gas Jet Holder retaining screw. 2). Gas Jet. 3). Gas Jet Holder. 4). Gas Pipe. 5). Gas Burner fixing screw. 6). Air Inlet Holes.
- Page 24 WARRANTY, SERVICE AND PARTS This model is covered by the standard Roundhouse warranty as detailed on a separate card. The gas firing system is set up and tested during manufacture and may be adversely affected by any alterations or modifications. As...
