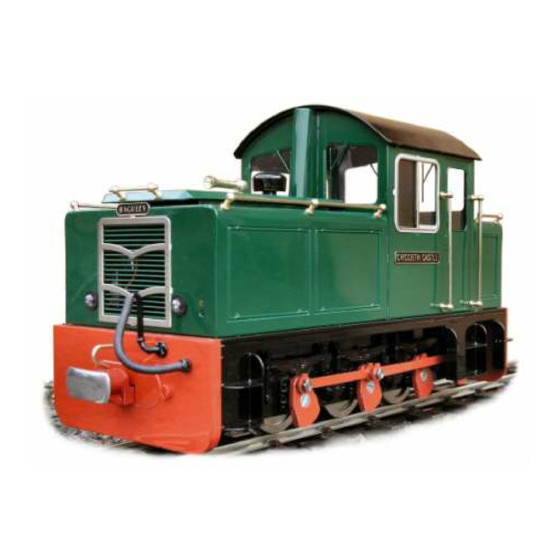

- Page 1 Criccieth Castle Owners Handbook For the Criccieth Castle Diesel Locomotive...
-
Page 2: Operating Instructions
Operating Instructions IMPORTANT: Please read these instructions carefully before operating the locomotive SAFETY PRECAUTIONS This is a working battery diesel model locomotive. Provided it is operated with reasonable care and attention, no problems should arise. The motor used in this locomotive is very powerful and you should avoid touching the moving parts when in motion. - Page 3 place by 2 small grub screws. Manually moving the steel motor worm drive with your index finger will turn the wheels and bring the grub screws into a position where they can be loosened using the Allen key provided. Note that there are 2 grub screws on each wheel.
- Page 4 Connecting the Charger to the locomotive. The cab roof is held in position by magnets. To remove the roof, simply lift it straight up. Remove the cab roof and insert the charging jack into the charging socket, located in the cab. The LED on the charger should light up red.
- Page 5 Operating the locomotive. Fit AA alkaline batteries into the bottom of the Transmitter Handset. Lift up the ‘Flip Cover’ at the top, rear of the transmitter. Turn on the Transmitter by moving the ON / OFF toggle switch to the Left. Do not adjust any of the other switches or controls on the Transmitter.
- Page 6 Running the locomotive. With the transmitter and the locomotive both switched on, use the hand wheel on the transmitter to move the locomotive in either forward or reverse direction. When the hand wheel is released, it will spring back to the mid gear position and the locomotive will stop.
- Page 7 Sound Effects (if fitted). The sound unit, if fitted, is switched on or off with the toggle switch that is located on the left hand side of the model under the footplate. The sound does not need to be switched on for the locomotive to operate.
- Page 8 Your dealer is; ROUNDHOUSE If your dealer is unable to help, please contact the Factory directly: ROUNDHOUSE ENGINEERING CO. LTD. Units 6-10 Churchill Business Park. Churchill Road. Wheatley. Doncaster. DN1 2TF. England Telephone 01302 328035 Fax 01302 761312 e-email support@roundhouse-eng.com...
