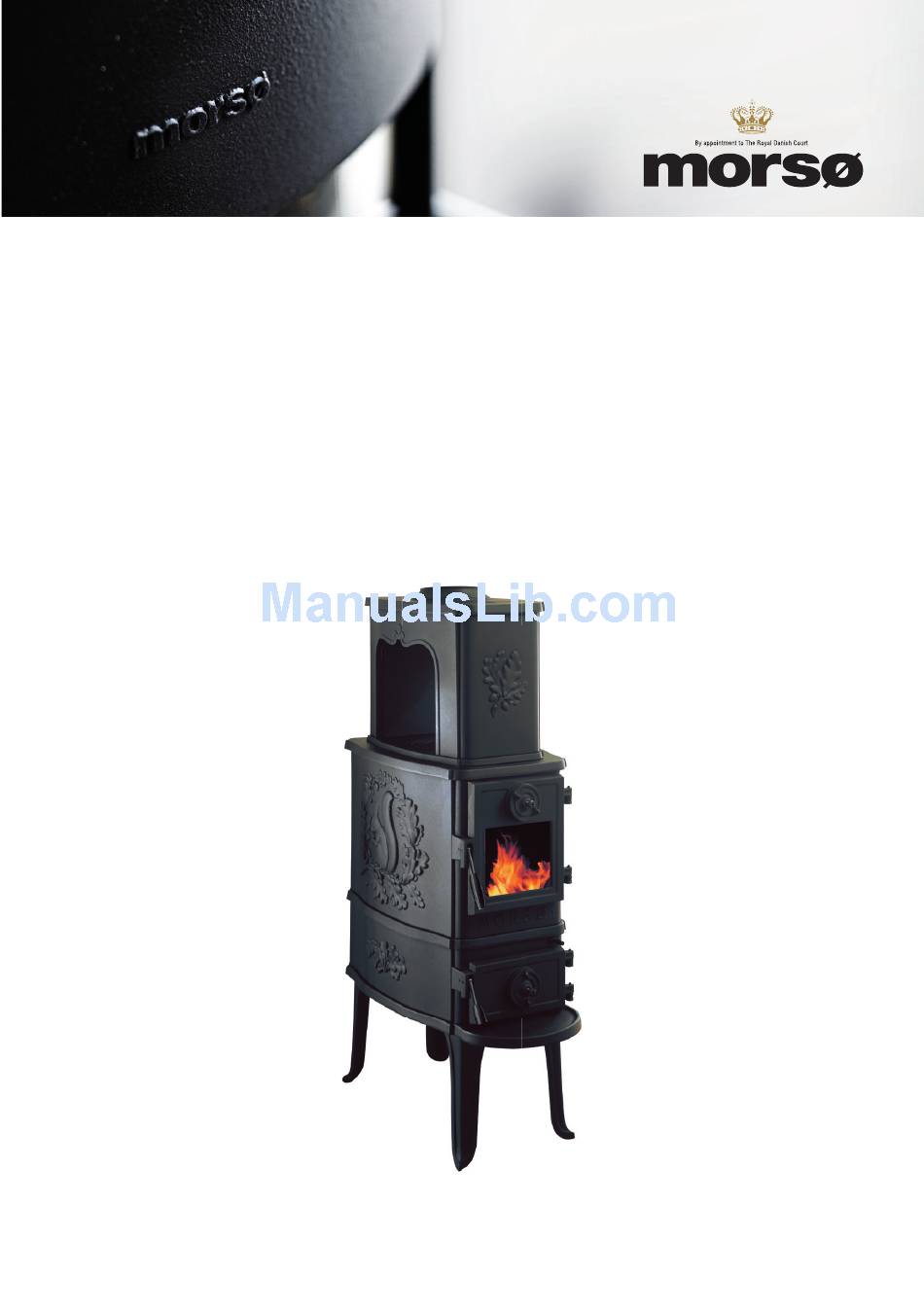

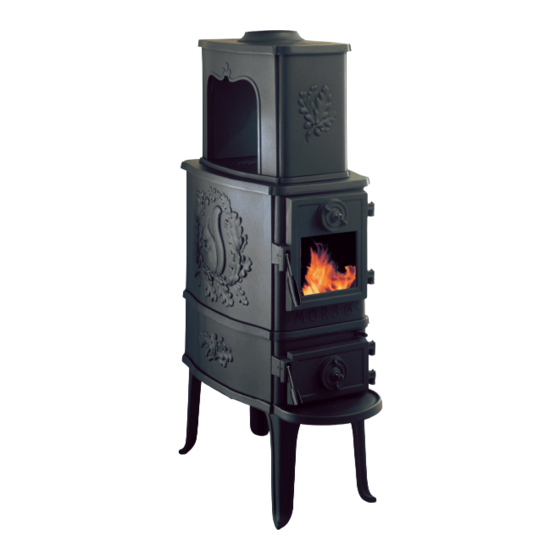

- Page 1 Installation and Operating Instructions Morsø 2B Classic For use in North America MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS E-Mail: stoves@morsoe.com · Website: www.morsoe.com...
-
Page 2: Table Of Contents
Operation Before you start firing Lighting & loading intervals Maintenance Exterior maintenance Internal maintenance Cleaning the stove & the flue Leaving the stove for extended periods Parts diagram for model Morsø 2B Classic Parts list for model Morsø 2B Classic... - Page 3 The Morsø 2B Classic meets the U.S. Environmental Protection Agency’s emission limits for wood heaters sold on or after July 1, 1990 The Morsø 2B Classic have been tested by OMNI-Test Laboratories, Inc. The test standards are ANSI/UL-1482 for the United States and ULC S627 for Canada.
-
Page 4: Installation Of Your Morsø Stove
1.0 Installation of your Morsø stove Installation of woodburning stoves must be safe and legal. If your Morsø stove is not installed correctly, it may cause a house fire. To reduce the risk of fire, the installation instructions must be followed carefully. Contact the local building officials about restrictions and installation inspection in your area. -
Page 5: Unpacking The Stove
1.1 Unpacking the stove 2B Classic: After removing the outer packaging, flatten it and lay onto the floor close to the stove; this can then act as protective work surface during the assembly process. Next, remove the legs and bolts from inside the stove. Gently lay the stove onto its back and unscrew it from the wooden pallet. - Page 6 How to fit the Smoke Cover Place the smoke cover by the smoke vent in front of the stove. This is easily done by leading the smoke cover down through the flue collar before fitting the pipe. It is also possible to fit the smoke cover through the access door opening.
- Page 7 How to fit the Vertical Baffle Lead the vertical baffle through the door as shown below (picture 1 & 2). Place the baffle into the right position (picture 3 & 4). The baffle insulation is placed on the baffle. Standard Accessories A Morsø...
-
Page 8: The Chimney / Flue System
1.3 The chimney / flue system Note that the flue system must be independently secured and must not rely on the stove for support. The stove must not be connected to a chimney flue serving any other appliance. (Sev- eral flues may run up a single chimney stack; use one flueway per appliance). Use a residential type masonry or listed type HT factory-built chimney. -
Page 9: Flue Connection
1.4 Flue Connection A flue collar is placed in the firebox area. Use a 24 MSG black or blue chimney connector or listed double wall chimney connector. Re- fer to local codes and the chimney manufacturer’s instructions for precautions required for passing a chimney through a combustible wall or ceiling. -
Page 11: Positioning The Stove
1.6 Positioning the stove Distance to walls and lintel When the stove is positioned near combustible materials, observe all current local and na- tional building regulations with regards to clearances. Whatever regulations apply to your area, do not in any case install the stove within 8 inches of combustible materials around the sides or 16 inches above the top of the stove (fireplace installations require greater clear- ances above the stove - see below in the clearance chart). - Page 12 Floor protection requirements Non-combustible materials be- neath stove Canada A. Extending distance, back 200 mm B. Extending distance, right side 6” 200 mm C. Extending distance, left side 6” 200 mm D. Extending distance, front 16” 450 mm In the US, floor protection must be constructed of a non-combustible material and installed to extend beneath the heater and 16’’...
-
Page 13: Operation
2.0 Operation 2.1 Before you start firing For use with solid wood fuel only. Do not overfire; if heater or chimney connector glows, you are overfiring. Inspect and clean chimney frequently. Under certain conditions of use, creosote buildup may occur rapidly. Because of risk of smoke and flame spillage, operate only with door fully closed. -
Page 14: Lighting & Loading Intervals
In principle Your stove is fitted with Primary and Secondary air inlets. Primary Air is controlled using the spinner on the door. Open the spinner will allow a supply of preheated air to enter the firebox via the ‘airwash’ system situated inside the stove and above the glass. - Page 15 5. When ready to reload, use a poker to spread the ember across the firebox floor, bringing plenty towards the front of the stove. 6. Lay three pieces of wood onto the embers. Leave half an inch (1 cm) or more between each piece. 7.
-
Page 16: Draft Conditions
The maximum recommended weight of wood fuel per load is 2.5 kg/h/5.5Ibs (approx 3 split logs). Under normal firing, the average flue temperature in the stove pipe, measured 20 cm above the stove, is approx. 300° C (550°F). The maximum flue temperature in the stove pipe must not exceed 450°... -
Page 17: Maintenance
3.0 Maintenance When perfoming maintenance on your stove, always protect yourself, using safety gog- gles and gloves 3.1 Exterior Maintenance The stove surface is painted with heat-resistant Senotherm paint. It is best kept clean by vacuuming with a soft brush attachment or by wiping with a lint-free cloth. Over a period of time, the painted surface may become slightly grey. - Page 18 1. Lift the door off the hinges and place it face down on a sheet of cardboard or other non- abrasive fabric. 2. Unscrew the 4 bolts that secure the glass. (In the event that a bolt sheers off when being unscrewed, remove the remaining body of the bolt by drilling down its centre with 1/8 inch high speed steel drill bit.
-
Page 19: Cleaning The Stove & The Flue
Gasket The gasket around the perimeter of the door may harden over a period of time. It should be replaced if it becomes difficult to close the doors or if air starts to leak in around the perim- eter of the doors, causing the fire to become a little less controllable. A Morsø rope gasket kit is available from your stove supplier. -
Page 20: Leaving The Stove For Extended Periods
Chimney sweeping Inspect the system regularly during the heating season as part of a regular maintenance sched- ule. To inspect the chimney, let the stove cool completely. Then, using a mirror, sight up through the flue collar into the chimney flue. If you cannot inspect the flue system in this fashion, the stove must be disconnected to provide better viewing access. -
Page 21: Parts Diagram For Model Morsø 2B Classic
3.5 Parts diagram for model Morsø 2B Classic 53 52 35 81 83 80 Material: Weight: Model no. Drawingtype: Location of file: This drawing is... -
Page 22: Parts List For Model Morsø 2B Classic
3.6 Parts list for model Morsø 2B Classic Pos. No. Parts Squirrel side panel 54200321 Rear plate 44203821 Smoke valve 44200800 Horizontal baffle 44203600 Vertical baffle 44203800 Front 44201521 Side panel for upper part 44202521 Rear plate for lower part... - Page 23 3.6 Parts list for model Morsø 2B Classic Pos. No. Parts Inside top - upper part 44211621 Top - upper part 44211721 Cover - upper part 44211800 Access door upper part 44211921 Bolt Washer Brick - bace 79209200 Baffle - standless steel...
- Page 25 Guarantee Product Registration MORSØ 10 YEAR GUARANTEE CERTIFICATE Behind every Morsø stove is more than 160 years of dedicated stove design and manufacturing experi- ence. Quality control has always been at the heart of the production process and detailed measures have been put into place at all key stages of the build.
- Page 26 IMPORTANT! How to heat safely for the environ- ment and yourself! • Use only dry wood Use only dry (max. 20% moisture content) and untreated wood. The fuel must be split and 8 - 12 cm thick. • Light Light with dry kindling (use 1 - 2 kg). Leave the door ajar and stay close to the stove during the lighting phase.
