Morsø Air Kit Set Installation Instructions

For 3112, 3142, 3600, 7110

Available languages

Morsø 3112 - 3142 - 3600 - 7110

Kit contents:

(1) Air duct adaptor

(2) 3.5 x 6.5 mm sheet metal screws

1. Place adaptor flange against the shield aligning the three pre-drilled holes of the flange

to the holes on the shield.

2. Install the three sheet metal screws securing the flange to the shield.

3. Installation is now complete. You may now connect your air duct to the stove.

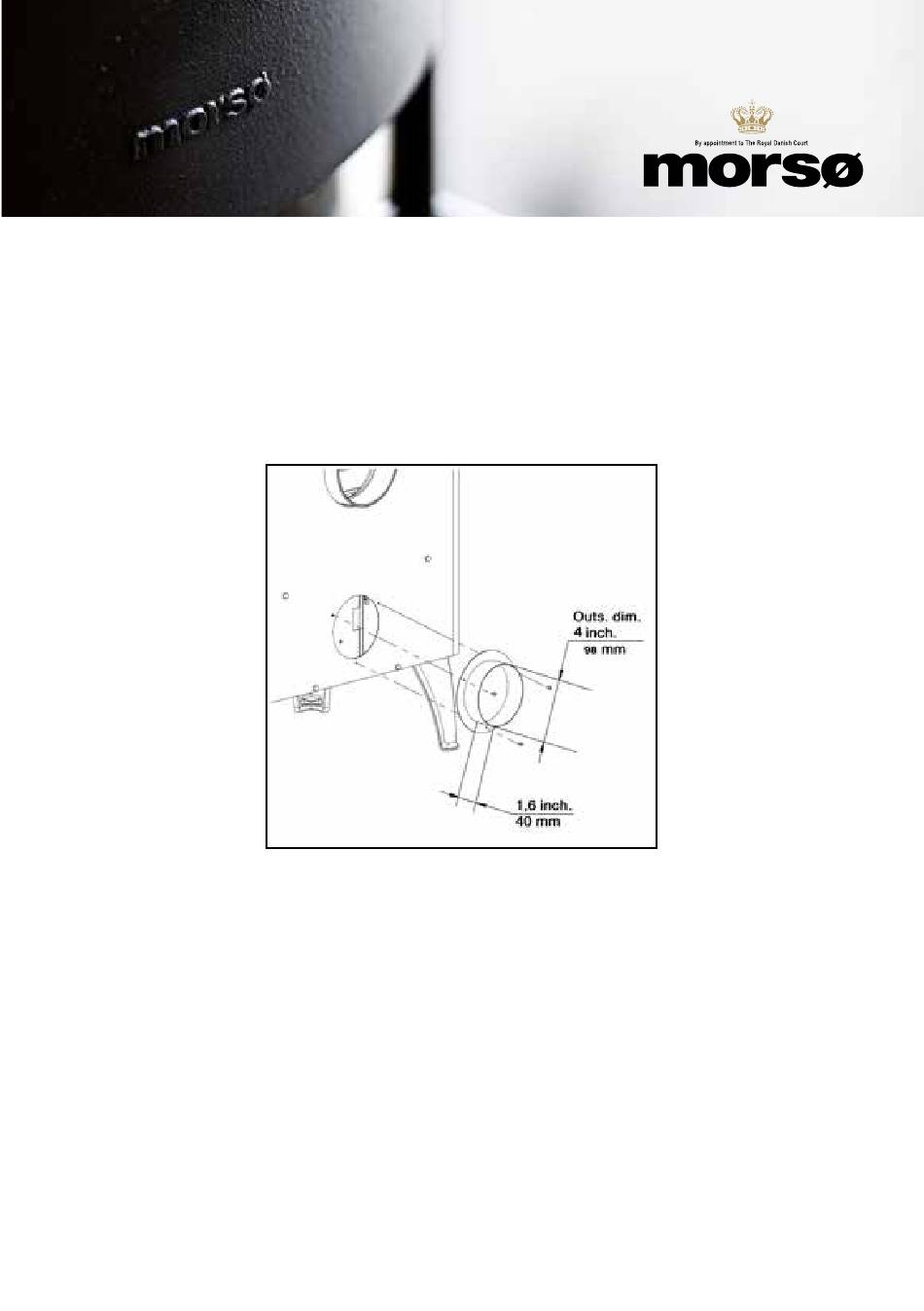

Morsø 3112:

317 mm (12.5")

Morsø 3142:

368 mm (14.5")

Morsø 3600:

322 mm (12.7")

Morsø 7100 - 206 mm legs: 324.5 mm (12.8")

Morsø 7100 - 276 mm legs: 394.5 mm (15.5")

If you have any further questions, please contact your authorized Morsø dealer.

Installation instructions

Air Kit Set

MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS

E-Mail: stoves@morsoe.com · Website: www.morsoe.com
