Specifications And Features - Lectrosonics UCR310 Operating Instructions Manual

Operating Frequencies (MHz):
Block 21 537.600 - 563.100
Block 22 563.200 - 588.700
Block 23 588.800 - 614.300
Block 24 614.400 - 639.900
Block 25 640.000 - 665.500
Block 26 665.600 - 691.100
Block 27 691.200 - 716.700
Frequency Adjustment Range:
Receiver Type:
Frequency Stability:
Front end bandwidth:
Sensitivity
20 dB Sinad:
60 dB Quieting:
Squelch quieting:
AM rejection:
Modulation acceptance:
Image and spurious rejection:
Third order intercept:
Diversity method:
FM Detector:
Antenna inputs:
Audio outputs
Rear Panel XLR:
Front Panel Controls and Indicators:
Rear Panel Controls and features:
Power Options:
Weight:
Dimensions:
+6

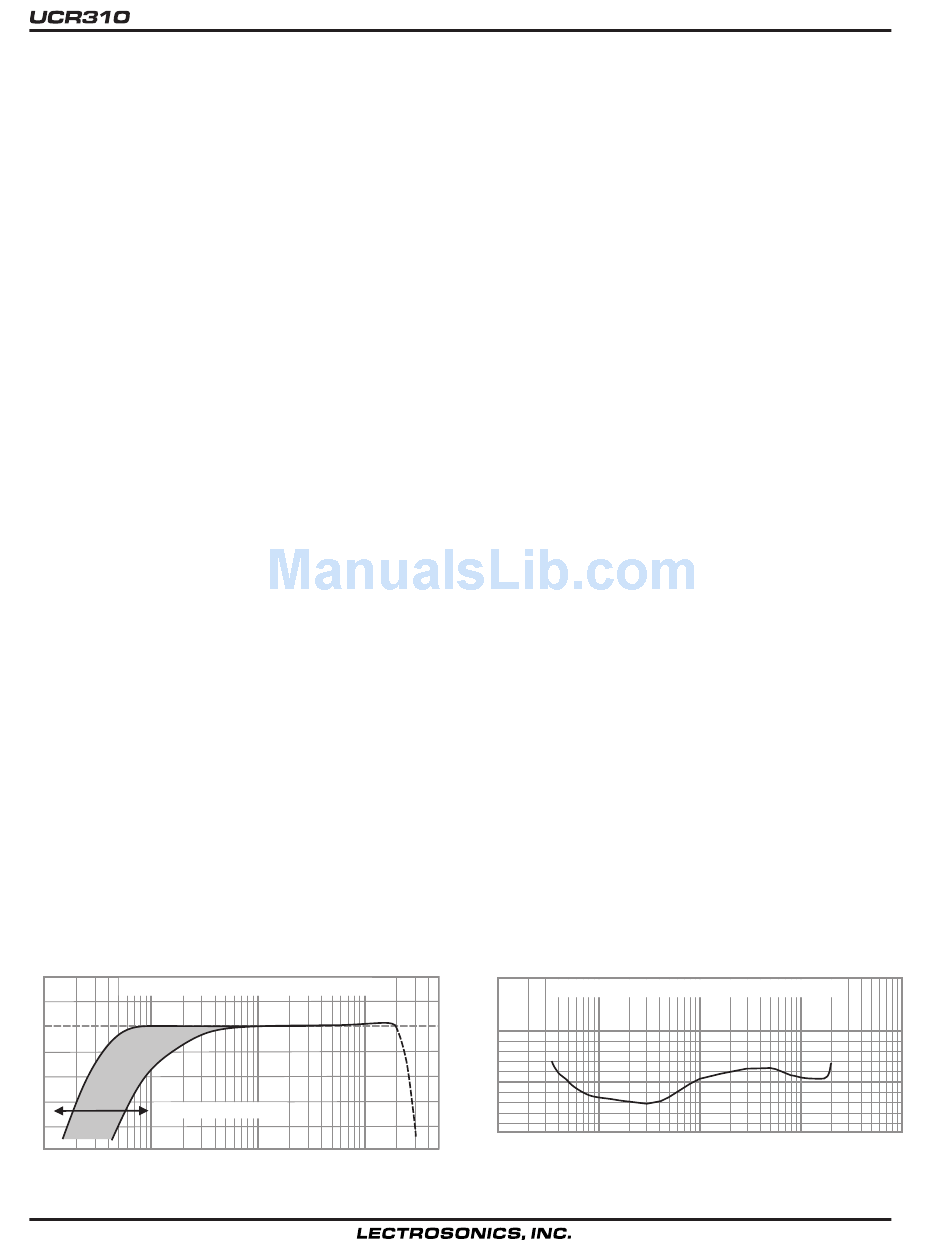

Overall System Frequency Response
+3
0dB
-3
-6
-9
Adjustable LF Roll-off
-12
30 100
12

SPECIFICATIONS AND FEATURES

Block 28
Block 29
Block 30
Block 31
Block 32
Block 33
25.5 MHz in 100kHz steps
Triple conversion, superheterodyne, 71MHz , 10.7MHz and 300kHz
±0.002 %
+/- 5.5MHz @ -3dB
0.8 uV (-109 dBm), A weighted
1.12 uV (-106 dBm), A weighted
Greater than 125 dB
Greater than 60 dB, 2 uV to 1 Volt (Undetectable after processing)
50 kHz
>85 dB
+12 dBm
Phased antenna diversity
Digital Pulse Counting Detector operating at 300kHz
Dual BNC female; 50 Ohm impedance
Nominal 600 Ohm balanced, three level ranges:
LO - Variable -50 dBm to -20 dBm
MID - Variable -30 dBm to 0 dBm
HI - +7 dBm line level.
Main and Diversity antenna BNC connectors; Rotary volume control; Power switch and
LED; 3 stage pilot tone LED; Three LED, 10 stage RF signal level;
Two LED, 5 stage TX mod level; 4 stage RX battery level LED;
4 stage TX battery level LED; Two diversity LED's.
XLR audio output jack; Frequency selection switches; External DC input;
Audio level range select switch.
Minimum 9 Volts to maximum 16 Volts DC; 1.6 W, 130 mA at 12VDC
20oz.
3.23" wide x 1.25" high x 6" deep
Specifications subject to change without notice.
1kHz 10k 20k
716.800 - 742.300
742.400 - 767.900
768.000 - 793.500
793.600 - 819.100
819.200 - 844.700
844.800 - 862.000
2.0%
Comparative Overall System THD + Noise
1.0%
0.5%
0%
30 100
50% modulation (25 kHz deviation)
1kHz 10k 20k
