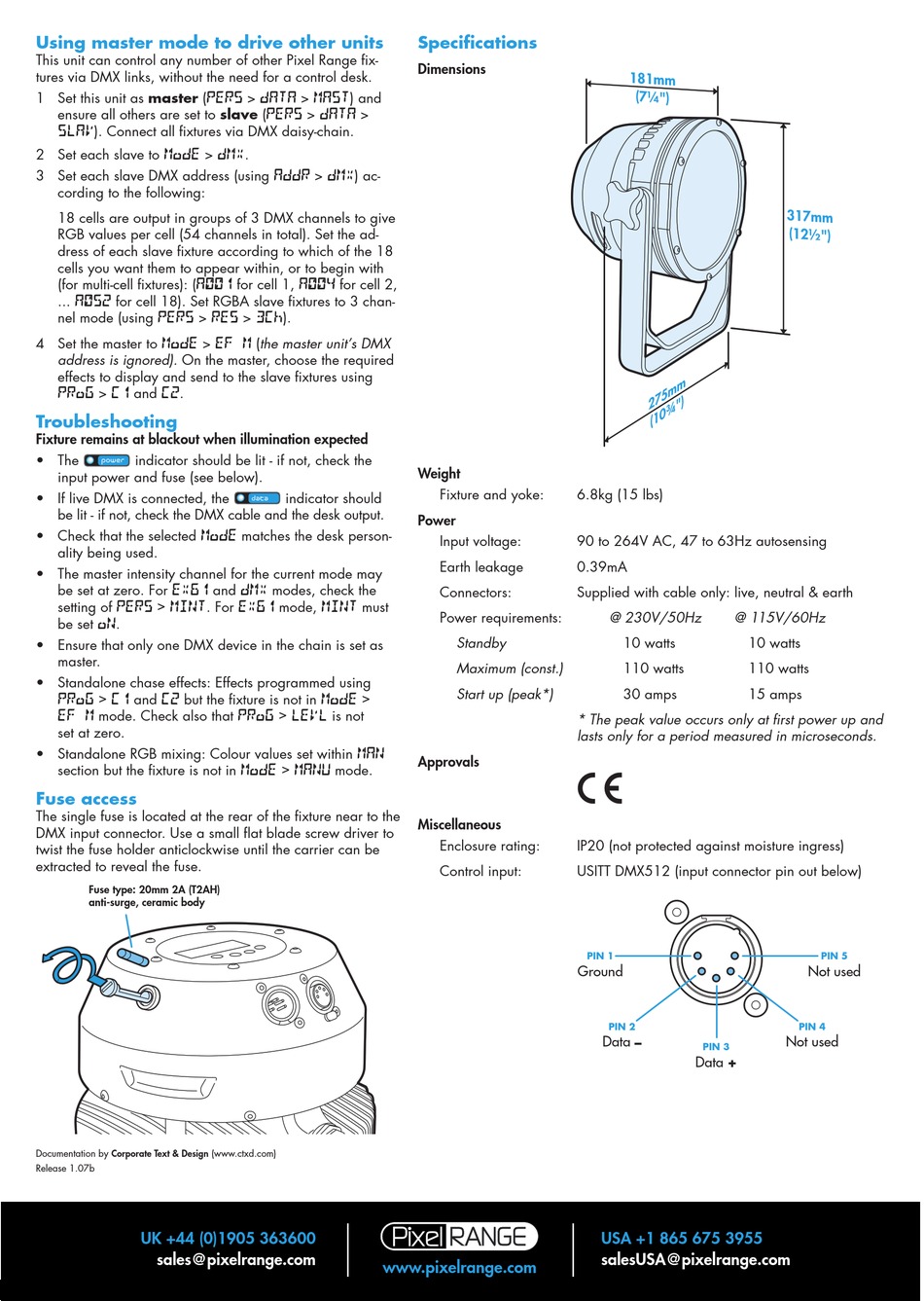

Specifications; Troubleshooting - PixelRange pixelpar 90 User Manual

Using master mode to drive other units
This unit can control any number of other Pixel Range fix-
tures via DMX links, without the need for a control desk.
1 Set this unit as master (PERS > DATA > MAST) and
ensure all others are set to slave (PERS > DATA >
SLAV). Connect all fixtures via DMX daisy-chain.
2 Set each slave to Mode > DMX.
3 Set each slave DMX address (using ADDR > DMX) ac-
cording to the following:
18 cells are output in groups of 3 DMX channels to give
RGB values per cell (54 channels in total). Set the ad-
dress of each slave fixture according to which of the 18
cells you want them to appear within, or to begin with
(for multi-cell fixtures): (A001 for cell 1, A004 for cell 2,
... A052 for cell 18). Set RGBA slave fixtures to 3 chan-
nel mode (using PERS > RES > 3ch).
4 Set the master to Mode > EF m (the master unit's DMX
address is ignored). On the master, choose the required
effects to display and send to the slave fixtures using
PROG > C1 and C2.

Troubleshooting

Fixture remains at blackout when illumination expected
• The indicator should be lit - if not, check the
input power and fuse (see below).
• If live DMX is connected, the
be lit - if not, check the DMX cable and the desk output.
• Check that the selected MODE matches the desk person-
ality being used.
• The master intensity channel for the current mode may
be set at zero. For EX61 and DMX modes, check the
setting of PERS > MINT. For EX61 mode, MINT must
be set ON.
• Ensure that only one DMX device in the chain is set as
master.
• Standalone chase effects: Effects programmed using
PROG > C1 and C2 but the fixture is not in MODE >
EF M mode. Check also that PROG > LEVL is not
set at zero.
• Standalone RGB mixing: Colour values set within MAN
section but the fixture is not in MODE > MANU mode.
Fuse access
The single fuse is located at the rear of the fixture near to the
DMX input connector. Use a small flat blade screw driver to
twist the fuse holder anticlockwise until the carrier can be
extracted to reveal the fuse.
Fuse type: 20mm 2A (T2AH)
anti-surge, ceramic body
Documentation by Corporate Text & Design (www.ctxd.com)
Release 1.07b
UK +44 (0)1905 363600
sales@pixelrange.com
4

Specifications

Dimensions
Weight
Fixture and yoke:
indicator should
Power
Input voltage:
Earth leakage
Connectors:
Power requirements:
Standby
Maximum (const.)
Start up (peak*)
Approvals
Miscellaneous
Enclosure rating:
Control input:
www.pixelrange.com
6.8kg (15 lbs)
90 to 264V AC, 47 to 63Hz autosensing
0.39mA
Supplied with cable only: live, neutral & earth
@ 230V/50Hz @ 115V/60Hz
10 watts 10 watts
110 watts 110 watts
30 amps 15 amps
* The peak value occurs only at first power up and
lasts only for a period measured in microseconds.
IP20 (not protected against moisture ingress)
USITT DMX512 (input connector pin out below)
PIN
Ground
PIN 2
Data –
PIN 3
Data +
USA +1 865 675 3955
salesUSA@pixelrange.com
PIN 5
Not used
PIN 4
Not used
