PixelLine Micro W
General set up

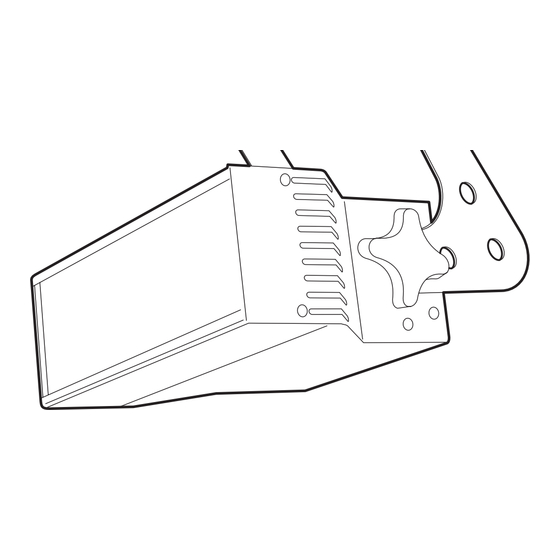

 Mount the fixture in the required position. The integral yoke can
act as a floor stand or hanger.
Important
• When suspended off ground, always use a safety wire rated
to a minimum of 11kg (25lbs) around the yoke.
• Do not position the fixture close to fog machines. The fog oil
mist will be drawn in by the cooling fan and will short out
important components. The warranty will be void for all
fixtures returned in such a condition.
2 Where external control is to be used, connect a DMX lead (XLR
5-pin female) to the input socket at the rear of the fixture.
3 Where other fixtures are to be used in a control daisy-chain, con-
nect a DMX lead (XLR 5-pin male) to the output socket at the rear
of the fixture.
4 Connect power to the fixture using a Neutrik
tor. Insert the connector and twist it clockwise until it clicks into
place.
Important
• When daisy-chaining fixtures, do not exceed a total load of
3kW in a single daisy chain (subject to supply and cabling
restrictions). Maximum power requirements per fixture:
Micro Wash units - 66 watts. See also the 'Start up (peak)'
note on page 4.
Fuse holder
(on underside, see
page 4 for details)
5 Use the control panel to access the internal menu and choose
the appropriate operation mode and related settings (see over).
DMX out (XLR
5pin female)
socket
U P
N
W
D O
R
T E
E N
N U
n s
M E o m
t io
e . c
u c
s t r
n g g in
l r a t in
e r a
i x e
o p
w . p e r
r o p
r p
w w
l fo
u a
a n
t m
u c
r o d
o p
r t
e fe
* R
DMX in
(XLR 5pin
male)
socket
PowerCon connec-
® ®
Power out socket
(Neutrik PowerCon
® ®
NAC3FCB connector
required)
U P
N
W
D O
R
T E
E N
N U
o m n s
M E
t io
e . c u c
s t r
n g g in
l r a t in
e r a
i x e o p
e r
w . p
r o p
r p
w w
l fo
u a
a n
t m
u c
r o d
o p
r t
e fe
* R
Power in
socket
Neutrik PowerCon
®
(NAC3FCA)
connector
Version 1.01 firmware Version 1.01 firmware
User Manual User Manual
When suspended
off ground, always
use a safety wire
rated to a minimum
of 11kg (25lbs)
around the yoke
Operation modes
The PixelLine Micro Wash fixture provides a range of operation
modes. These are selected using the MODE section of the control
menu:
Allows RGBA control via DMX input. Using the RES
DMX
(resolution) option you can determine the number of
DMX channels required: either 3 or 4 channels. In 3
channel mode, the red and amber channels are com-
bined, whereas in 4 channel mode, the red and amber
channels are controlled separately. Internal chase ef-
fects are not available within this mode.
Provides RGBA colour mixing independently of any
MANU
external control. Use the internal control menu (MAN
section) to select the required colour values.
Allows the display of the dual internal chase effects,
EF M
independently of any external control. Use the internal
control menu (PROG section) to select the required
chase effects, speeds and cross fades.
Provides control of RGBA mixing and selection of the
4+E
dual internal chase effects via DMX input. Requires 11
DMX channels.
PixelLine Micro fixture personalities are available for a variety of
controllers. Please see www.pixelrange.com for details.
Neutrik PowerCon
®
(NAC3FCA) connector
wiring
Note
• To optionally clear all previous settings: At the rear panel,
®
press the middle two buttons (
address is displayed (e.g. A001, A002, etc). The four digit
display will show FACT then SET to indicate that the fixture
has been returned to its default condition.
®
N
Neutral
L
and ) while the DMX
Live
Earth
