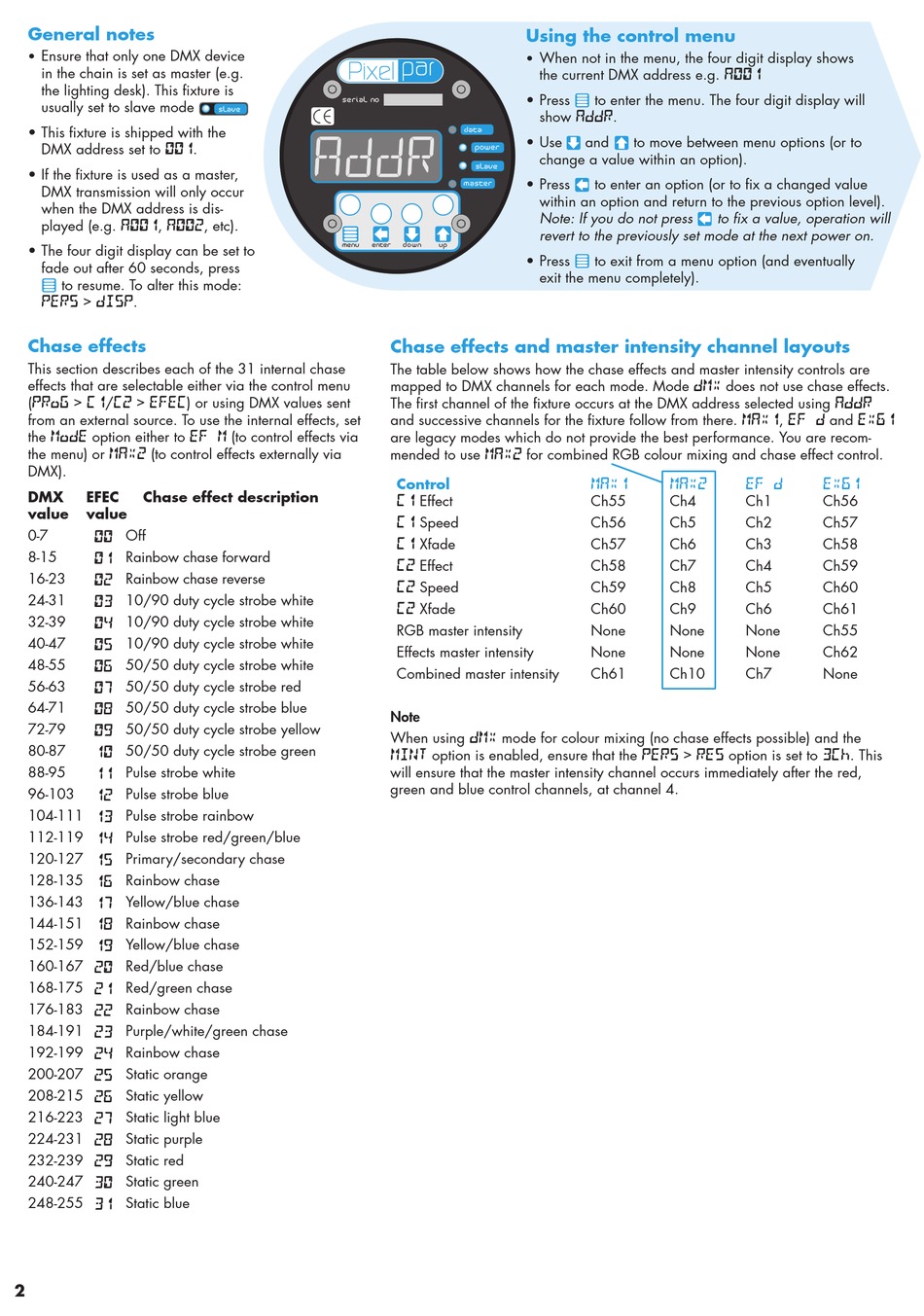

PixelRange pixelpar 90 User Manual page 2

General notes
Ensure that only one DMX device
•
in the chain is set as master (e.g.
the lighting desk). This fixture is
usually set to slave mode
• This fixture is shipped with the
DMX address set to 001.
• If the fixture is used as a master,
DMX transmission will only occur
when the DMX address is dis-
played (e.g. A001, A002, etc).
• The four digit display can be set to
fade out after 60 seconds, press
to resume. To alter this mode:
PERS > DISP.
Chase effects
This section describes each of the 31 internal chase
effects that are selectable either via the control menu
(PROG > C1/C2 > EFEC) or using DMX values sent
from an external source. To use the internal effects, set
the MODE option either to EF M (to control effects via
the menu) or MAX2 (to control effects externally via
DMX).
DMX EFEC Chase effect description
value value
0-7 00 Off
8-15 01 Rainbow chase forward
16-23 02 Rainbow chase reverse
24-31 03 10/90 duty cycle strobe white
32-39 04 10/90 duty cycle strobe white
40-47 05 10/90 duty cycle strobe white
48-55 06 50/50 duty cycle strobe white
56-63 07 50/50 duty cycle strobe red
64-71 08 50/50 duty cycle strobe blue
72-79 09 50/50 duty cycle strobe yellow
80-87 10 50/50 duty cycle strobe green
88-95 11 Pulse strobe white
96-103 12 Pulse strobe blue
104-111 13 Pulse strobe rainbow
112-119 14 Pulse strobe red/green/blue
120-127 15 Primary/secondary chase
128-135 16 Rainbow chase
136-143 17 Yellow/blue chase
144-151 18 Rainbow chase
152-159 19 Yellow/blue chase
160-167 20 Red/blue chase
168-175 21 Red/green chase
176-183 22 Rainbow chase
184-191 23 Purple/white/green chase
192-199 24 Rainbow chase
200-207 25 Static orange
208-215 26 Static yellow
216-223 27 Static light blue
224-231 28 Static purple
232-239 29 Static red
240-247 30 Static green
248-255 31 Static blue
2
Using the control menu
When not in the menu, the four digit display shows
•
the current DMX address e.g. A001
• Press
show ADDR.
• Use and
change a value within an option).
• Press
within an option and return to the previous option level).
Note: If you do not press
revert to the previously set mode at the next power on.
• Press
exit the menu completely).
Chase effects and master intensity channel layouts
The table below shows how the chase effects and master intensity controls are
mapped to DMX channels for each mode. Mode DMX does not use chase effects.
The first channel of the fixture occurs at the DMX address selected using ADDR
and successive channels for the fixture follow from there. MAX1, EF D and EX61
are legacy modes which do not provide the best performance. You are recom-
mended to use MAX2 for combined RGB colour mixing and chase effect control.
Control
C1 Effect
C1 Speed
C1 Xfade
C2 Effect
C2 Speed
C2 Xfade
RGB master intensity
Effects master intensity
Combined master intensity
Note
When using DMX mode for colour mixing (no chase effects possible) and the
MINT option is enabled, ensure that the PERS > RES option is set to 3CH. This
will ensure that the master intensity channel occurs immediately after the red,
green and blue control channels, at channel 4.
to enter the menu. The four digit display will
to move between menu options (or to
to enter an option (or to fix a changed value
to fix a value, operation will
to exit from a menu option (and eventually
MAX1 MAX2 EF D
Ch55 Ch4 Ch1
Ch56 Ch5 Ch2
Ch57 Ch6 Ch3
Ch58 Ch7 Ch4
Ch59 Ch8 Ch5
Ch60 Ch9 Ch6
None None None
None None None
Ch61 Ch10 Ch7
EX61
Ch56
Ch57
Ch58
Ch59
Ch60
Ch61
Ch55
Ch62
None
