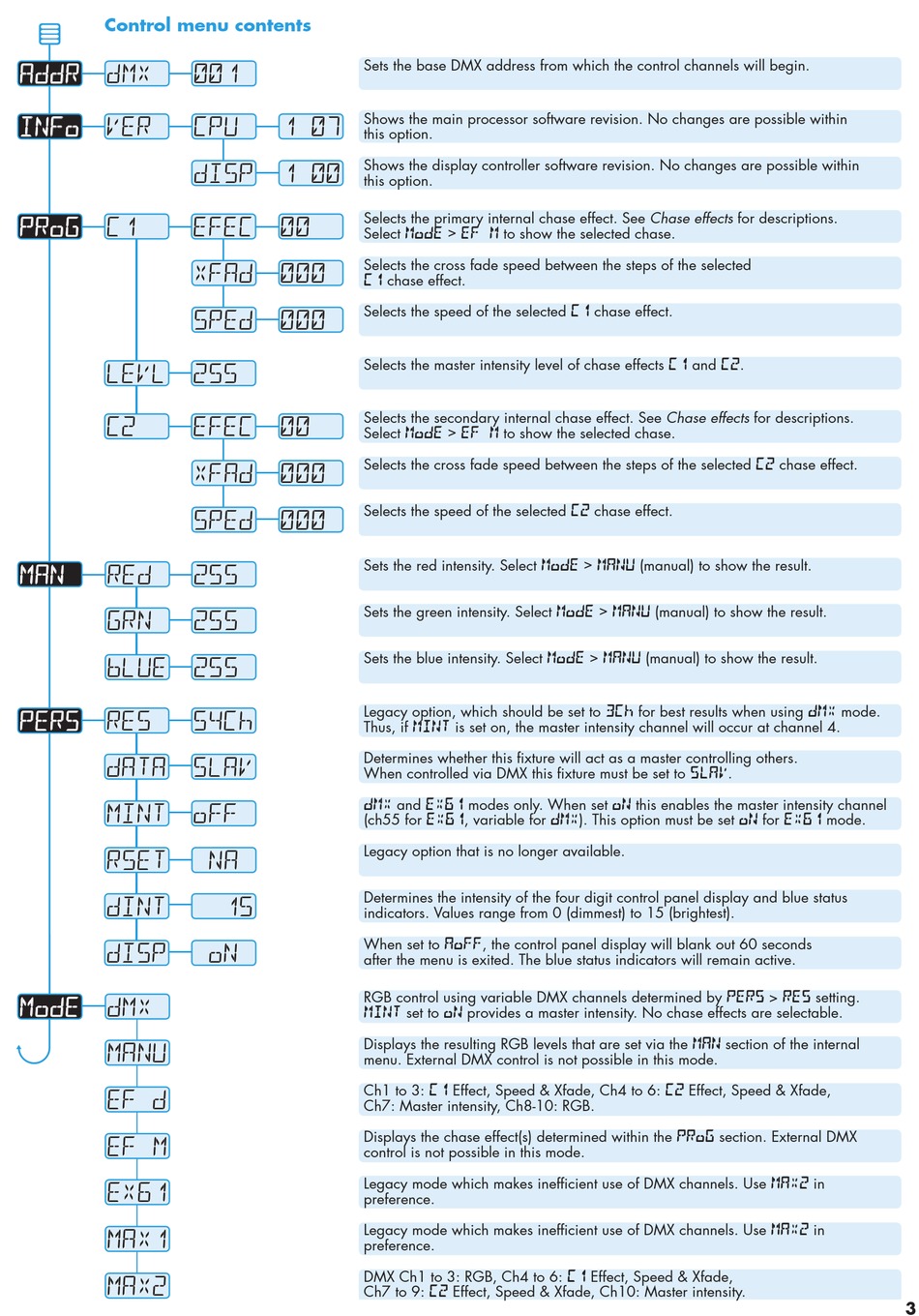

Control menu contents
Sets the base DMX address from which the control channels will begin.
Shows the main processor software revision. No changes are possible within
this option.
Shows the display controller software revision. No changes are possible within
this option.
Selects the primary internal chase effect. See Chase effects for descriptions.
Select MODE > EF M to show the selected chase.
Selects the cross fade speed between the steps of the selected
C1 chase effect.
Selects the speed of the selected C1 chase effect.
Selects the master intensity level of chase effects C1 and C2.
Selects the secondary internal chase effect. See Chase effects for descriptions.
Select MODE > EF M to show the selected chase.
Selects the cross fade speed between the steps of the selected C2 chase effect.
Selects the speed of the selected C2 chase effect.
Sets the red intensity. Select MODE > MANU (manual) to show the result.
Sets the green intensity. Select MODE > MANU (manual) to show the result.
Sets the blue intensity. Select MODE > MANU (manual) to show the result.
Legacy option, which should be set to 3CH for best results when using DMX mode.
Thus, if MINT is set on, the master intensity channel will occur at channel 4.
Determines whether this fixture will act as a master controlling others.
When controlled via DMX this fixture must be set to SLAV.
DMX and EX61 modes only. When set ON this enables the master intensity channel
(ch55 for EX61, variable for DMX). This option must be set ON for EX61 mode.
Legacy option that is no longer available.
Determines the intensity of the four digit control panel display and blue status
indicators. Values range from 0 (dimmest) to 15 (brightest).
When set to AOFF, the control panel display will blank out 60 seconds
after the menu is exited. The blue status indicators will remain active.
RGB control using variable DMX channels determined by PERS > RES setting.
MINT set to ON provides a master intensity. No chase effects are selectable.
Displays the resulting RGB levels that are set via the MAN section of the internal
menu. External DMX control is not possible in this mode.
Ch1 to 3: C1 Effect, Speed & Xfade, Ch4 to 6: C2 Effect, Speed & Xfade,
Ch7: Master intensity, Ch8-10: RGB.
Displays the chase effect(s) determined within the PROG section. External DMX
control is not possible in this mode.
Legacy mode which makes inefficient use of DMX channels. Use MAX2 in
preference.
Legacy mode which makes inefficient use of DMX channels. Use MAX2 in
preference.
DMX Ch1 to 3: RGB, Ch4 to 6: C1 Effect, Speed & Xfade,
Ch7 to 9: C2 Effect, Speed & Xfade, Ch10: Master intensity.
