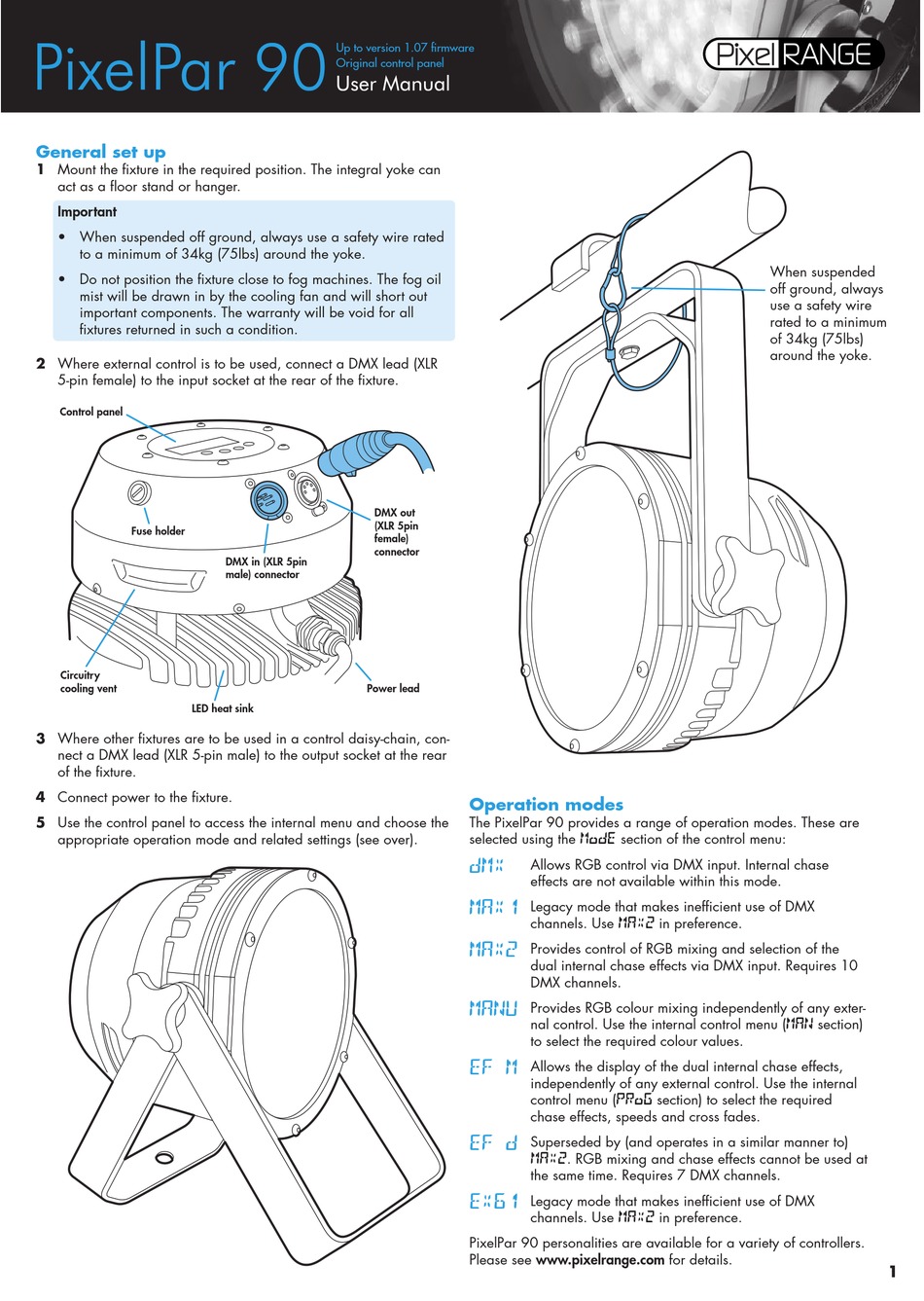

General set up
Mount the fixture in the required position. The integral yoke can
act as a floor stand or hanger.
Important
• When suspended off ground, always use a safety wire rated
to a minimum of 34kg (75lbs) around the yoke.
• Do not position the fixture close to fog machines. The fog oil
mist will be drawn in by the cooling fan and will short out
important components. The warranty will be void for all
fixtures returned in such a condition.
2 Where external control is to be used, connect a DMX lead (XLR
5-pin female) to the input socket at the rear of the fixture.
Control panel
Fuse holder
Circuitry
cooling vent
LED heat sink
3 Where other fixtures are to be used in a control daisy-chain, con-
nect a DMX lead (XLR 5-pin male) to the output socket at the rear
of the fixture.
4 Connect power to the fixture.
5 Use the control panel to access the internal menu and choose the
appropriate operation mode and related settings (see over).
Up to version 1.07 firmware
Original control panel
DMX out
(XLR 5pin
female)
connector
DMX in (XLR 5pin
male) connector
Power lead
Operation modes
The PixelPar 90 provides a range of operation modes. These are
selected using the MODE section of the control menu:
Allows RGB control via DMX input. Internal chase
DMX
effects are not available within this mode.
Legacy mode that makes inefficient use of DMX
MAX1
channels. Use MAX2 in preference.
Provides control of RGB mixing and selection of the
MAX2
dual internal chase effects via DMX input. Requires 10
DMX channels.
Provides RGB colour mixing independently of any exter-
MANU
nal control. Use the internal control menu (MAN section)
to select the required colour values.
Allows the display of the dual internal chase effects,
EF M
independently of any external control. Use the internal
control menu (PROG section) to select the required
chase effects, speeds and cross fades.
Superseded by (and operates in a similar manner to)
EF D
MAX2. RGB mixing and chase effects cannot be used at
the same time. Requires 7 DMX channels.
Legacy mode that makes inefficient use of DMX
EX61
channels. Use MAX2 in preference.
PixelPar 90 personalities are available for a variety of controllers.
Please see www.pixelrange.com for details.
When suspended
off ground, always
use a safety wire
rated to a minimum
of 34kg (75lbs)
around the yoke.
Advertisement
Related Manuals for PixelRange pixelpar 90
Summary of Contents for PixelRange pixelpar 90
- Page 1 4 Connect power to the fixture. Operation modes 5 Use the control panel to access the internal menu and choose the The PixelPar 90 provides a range of operation modes. These are appropriate operation mode and related settings (see over). selected using the MODE section of the control menu: Allows RGB control via DMX input. Internal chase effects are not available within this mode. Legacy mode that makes inefficient use of DMX MAX1 channels. Use MAX2 in preference. Provides control of RGB mixing and selection of the MAX2 dual internal chase effects via DMX input. Requires 10 DMX channels. Provides RGB colour mixing independently of any exter- MANU nal control. Use the internal control menu (MAN section) to select the required colour values. Allows the display of the dual internal chase effects, EF M independently of any external control. Use the internal control menu (PROG section) to select the required chase effects, speeds and cross fades. Superseded by (and operates in a similar manner to) EF D MAX2. RGB mixing and chase effects cannot be used at the same time. Requires 7 DMX channels. Legacy mode that makes inefficient use of DMX EX61 channels. Use MAX2 in preference. PixelPar 90 personalities are available for a variety of controllers. Please see www.pixelrange.com for details.
- Page 2 General notes Using the control menu Ensure that only one DMX device • When not in the menu, the four digit display shows • in the chain is set as master (e.g. the current DMX address e.g. A001 the lighting desk). This fixture is • Press to enter the menu. The four digit display will usually set to slave mode show ADDR. • This fixture is shipped with the • Use and to move between menu options (or to DMX address set to 001. change a value within an option). • If the fixture is used as a master, • Press to enter an option (or to fix a changed value DMX transmission will only occur within an option and return to the previous option level). when the DMX address is dis- Note: If you do not press to fix a value, operation will played (e.g. A001, A002, etc).
- Page 3 Control menu contents Sets the base DMX address from which the control channels will begin. Shows the main processor software revision. No changes are possible within this option. Shows the display controller software revision. No changes are possible within this option. Selects the primary internal chase effect. See Chase effects for descriptions. Select MODE > EF M to show the selected chase. Selects the cross fade speed between the steps of the selected C1 chase effect. Selects the speed of the selected C1 chase effect. Selects the master intensity level of chase effects C1 and C2. Selects the secondary internal chase effect. See Chase effects for descriptions. ...
-
Page 4: Specifications
IP20 (not protected against moisture ingress) twist the fuse holder anticlockwise until the carrier can be extracted to reveal the fuse. Control input: USITT DMX512 (input connector pin out below) Fuse type: 20mm 2A (T2AH) anti-surge, ceramic body PIN PIN 5 Ground Not used PIN 2 PIN 4 Data – Not used PIN 3 Data + Documentation by Corporate Text & Design (www.ctxd.com) Release 1.07b UK +44 (0)1905 363600 USA +1 865 675 3955 sales@pixelrange.com salesUSA@pixelrange.com www.pixelrange.com...
