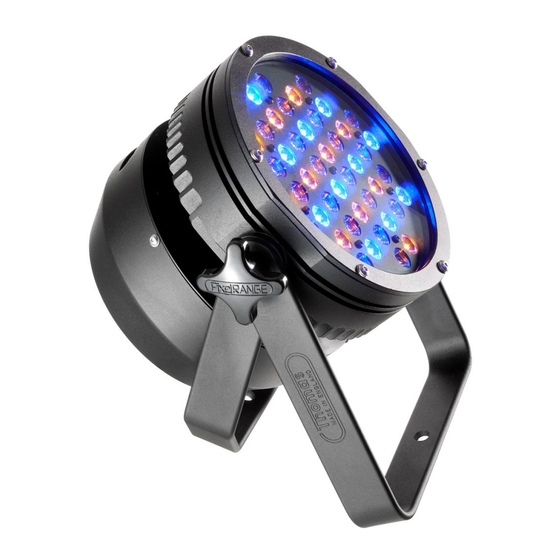

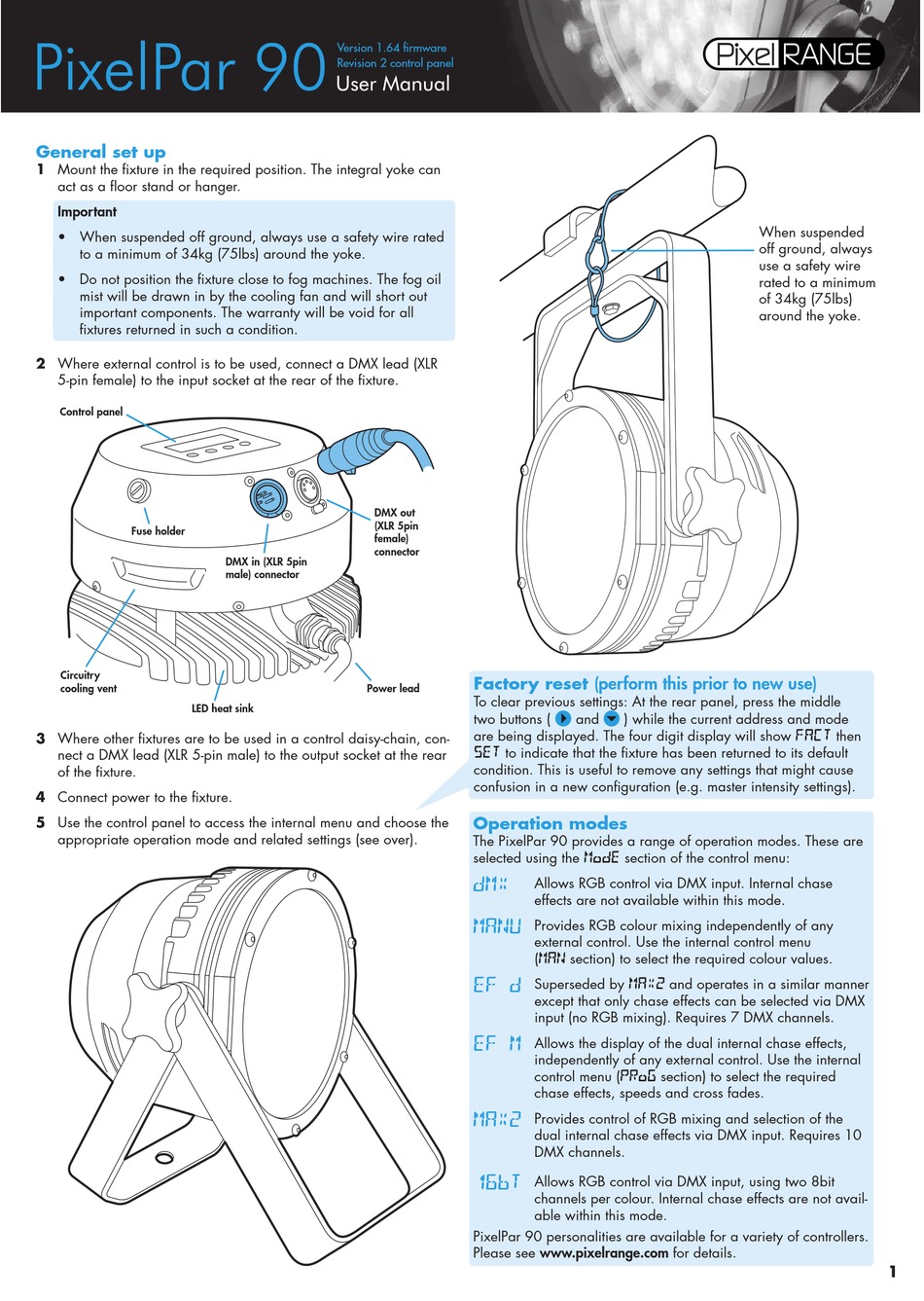

PixelRange PixelPar 90 User Manual

General set up
 Mount the fixture in the required position. The integral yoke can
act as a floor stand or hanger.
Important
• When suspended off ground, always use a safety wire rated
to a minimum of 34kg (75lbs) around the yoke.
• Do not position the fixture close to fog machines. The fog oil
mist will be drawn in by the cooling fan and will short out
important components. The warranty will be void for all
fixtures returned in such a condition.
2 Where external control is to be used, connect a DMX lead (XLR
5-pin female) to the input socket at the rear of the fixture.
Control panel
Fuse holder
Circuitry
cooling vent
LED heat sink
3 Where other fixtures are to be used in a control daisy-chain, con-
nect a DMX lead (XLR 5-pin male) to the output socket at the rear
of the fixture.
4 Connect power to the fixture.
5 Use the control panel to access the internal menu and choose the
appropriate operation mode and related settings (see over).
Version 1.64 firmware
Revision 2 control panel
DMX out
(XLR 5pin
female)
connector
DMX in (XLR 5pin
male) connector
Power lead
Factory reset (perform this prior to new use)
To clear previous settings: At the rear panel, press the middle
two buttons ( and ) while the current address and mode
are being displayed. The four digit display will show FACT then
SET to indicate that the fixture has been returned to its default
condition. This is useful to remove any settings that might cause
confusion in a new configuration (e.g. master intensity settings).
Operation modes
The PixelPar 90 provides a range of operation modes. These are
selected using the MODE section of the control menu:
Allows RGB control via DMX input. Internal chase
DMX
effects are not available within this mode.
Provides RGB colour mixing independently of any
MANU
external control. Use the internal control menu
(MAN section) to select the required colour values.
Superseded by MAX2 and operates in a similar manner
EF D
except that only chase effects can be selected via DMX
input (no RGB mixing). Requires 7 DMX channels.
Allows the display of the dual internal chase effects,
EF M
independently of any external control. Use the internal
control menu (PROG section) to select the required
chase effects, speeds and cross fades.
Provides control of RGB mixing and selection of the
MAX2
dual internal chase effects via DMX input. Requires 10
DMX channels.
Allows RGB control via DMX input, using two 8bit
16bt
channels per colour. Internal chase effects are not avail-
able within this mode.
PixelPar 90 personalities are available for a variety of controllers.
Please see www.pixelrange.com for details.
When suspended
off ground, always
use a safety wire
rated to a minimum
of 34kg (75lbs)
around the yoke.
