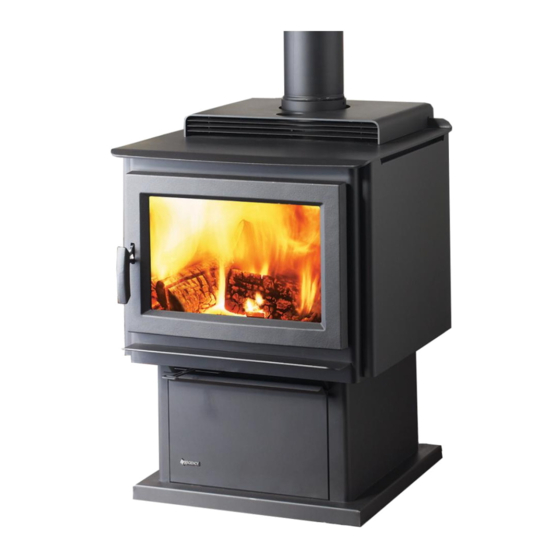

Regency F3500 Owners & Installation Manual

Pro series freestanding woodstove

Hide thumbs Also See for F3500:

Owners & installation manual (36 pages)

Owners and installation manual (40 pages)

Instruction manual (8 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the F3500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Regency F3500

Page 1 Installation Manual French Manual Download: http://ow.ly/Zv1Hq www.regency-fire.com Manuel en Français: http://ow.ly/Zv1Hq MODEL: F3500 Tested by: Installer: Please complete the details on the back cover and leave this manual with the homeowner. Homeowner: Please keep these instructions for future reference. 219-S-18-2 919-552a FPI FIREPLACE PRODUCTS INTERNATIONAL LTD.
Page 2 Note: Due to the high efficiency of the F3500 unit. Double wall pipe is recommended from the stove top to either wall or roof exit. A minimum of 36" vertical rise is required prior to using any elbows.
Page 3: Table Of Contents
Safety Label for F3500 ..........4 Draft Control ..............23 Unit Dimensions ............5 First Fire ..............23 Residential Installation ...........6 Fan Operation ..............24 Modular Installation Options ..........6 Ash Disposal ..............24 Room Air - Important .............6 Safety Guidelines and Warnings .........24 Stove Assembly Maintenance ..............26...
Page 4: Safety Label For F3500
SAFETY LABEL FOR F3500 DO NOT REMOVE THIS LABEL LISTED ROOM HEATER, SOLID FUEL TYPE, ALSO FOR USE IN MOBILE HOME INSTALLATION MODEL: REGENCY FREESTANDING STOVE - F3500 OMNI-Test Laboratories, Inc. TESTED TO: UL-1482 -2011 / ULC-S627-00 219-S-18-2 Report # INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPERATING INSTRUCTIONS.
Page 5: Unit Dimensions
DIMENSIONS UNIT DIMENSIONS 26" [660mm] 6" Flue Collar 30-1/4" [768mm] 24-7/16" [621mm] 22" 23" [584mm] [559mm] F3500 Regency Freestanding Woodstove...
Page 6: Residential Installation
WARNING: ONLY USE SPECIFIED COMPONENTS. The following items are required when assembling your Regency Stove. F3500 unit - the Rear Heat Deflector is supplied with the stove, but if you choose not to use it you must use the Airmate instead.
Page 7: Stove Assembly Prior To Installation
The F3500 unit requires the pedestal attached front bottom left from the flue collar from overheating the rear to the base. The F3500 stove requires either corner of the wall. The rear heat deflector is installed on top of the Airmate or Rear Heat Deflector on top of pedestal cover the rear heat shield, as shown in Diagram 4.
Page 8: Minimum Clearance To Combustible Materials
521mm Minimum Alcove Clearance to Combustible Materials The Regency Freestanding models have been alcove approved and must be installed with a listed double wall connector to the ceiling level. Note: Minimum alcove ceiling height - 83" (2108 mm) Vertical Termination} H = Maximum depth of alcove - 48"...
Page 9: Wall Exit Clearance Factory Built Chimney
Horizontal Maximum of 36" with 1/4" rise per foot. NOTE: Recommend using 2-45º instead of 90º to improve draft and performance. 6" 18" Note: Minimum ceiling height roof - 83" (2108 mm) [152mm] [457mm] Max. 36" Horizontal Min. 36" Vertical Rise 5" [127mm] F3500 Regency Freestanding Woodstove...
Page 10: Masonry Fireplace
45º elbows be used instead of a 90º elbow to improve draft and performance. If not adhered to this, it will result in poor performance overfiring and or dangerous operating conditions which may void your warranty. F3500 Regency Freestanding Woodstove...
Page 11: Combustible Wall Chimney Connector Pass-Throughs
Cover opening with and support chimney section on both sides with 24 gage minimum sheet metal supports. See that the supports are fastened securely to wall surfaces on all sides. Make sure fasteners used to secure chimney flue liner. F3500 Regency Freestanding Woodstove...
Page 12 46-1/2 8" 46-1/2 8" Canada 48-1/2" 8" 48-1/2" 8" 48-1/2" 8" The rear clearance to combustibles is less than 6" (for corner installations the rear corners may be angled to take advantage of the closer clearances. F3500 Regency Freestanding Woodstove...
Page 13: Step-By-Step Chimney And Connector Installation
6. Fasten the raincap with spark screens (if required) to the top of your chimney. Horizontal Installation 7. For optimum efficiency when installing into a masonry chimney, size accordingly, i.e. the 6" (152.4mm) flue dia. is 28.28 sq.in. (718.31mm). F3500 Regency Freestanding Woodstove...
Page 14: Recommended Heights For Woodstove Flue
16.0 18.5 20.0 7000-8000 15.5 16.5 19.0 20.5 8000-9000 16.0 17.0 20.0 21.0 9000-10000 16.5 17.5 20.5 22.0 NOTE: No more than one offsets (two elbows) allowed. Two 45 elbows equal one 90 elbow. Table 1 F3500 Regency Freestanding Woodstove...
Page 15: Mobile Home Installation
11. WARNING: DO NOT INSTALL IN A SLEEP- ING ROOM OF A MOBILE HOME. 12. Use silicone to create an effective vapour barrier at the location where the chimney or other component penetrates to the exterior of the structure. F3500 Regency Freestanding Woodstove...
Page 16: Optional Outside Air Kit
Mark the position of your unit as outlined in the "General Information" and "Clearances to Combustibles" section of the manual. Pipe fresh air into the pedestal area by using a minimum 4" duct pipe with a mesh grill at the outside termination. Rear View F3500 Regency Freestanding Woodstove...
Page 17: Listed Components For Mobile Home Installation
FOR MOBILE HOME 6DVL8693 Connector Kit 6DP-MH9096 Mobile Home Kit INSTALLATION ICC EXCEL 2100 The Regency F3500B Freestanding pedestal Qty.Part # Description units are approved for installation in a Mobile 6CL48 48" Chimney length (also in Home if one of the following pipe systems is used.
Page 18: Stainless Steel Smoke Deflector Installation / Replacement
WARNING: Operation of the unit with out proper installation of smoke deflector will void warranty. Incorrect Install: Return edge of smoke deflector seated under glass wash. Ensure defector is seated so bolts are situated at the top of the keyhole before tightening. Hand tighten bolts only. F3500 Regency Freestanding Woodstove...
Page 19: Brick Installation
PREVIOUS REVISION F3500 MODEL # QTY. THIS DRAWING IS THE PROPERTY OF FPI LTD., IT MAY NOT BE COPIED IN WHOLE OR IN PART, OR DISCLOSED TO A THIRD PARTY WITHOUT OUR PRIOR WRITTEN CONSENT. Final Install F3500 Regency Freestanding Woodstove...
Page 20: Removable Door Handle
REMOVABLE DOOR HANDLE The F3500 has a removable door handle that can be stored when not in use. Hook Handle The cool to touch door handle is designed to be inserted from the bot- tom up and slide off when not held in place. Once in position, the door can be opened.
Page 21: Fan Installation
Wiring errors can cause improper and dangerous operation. Neutral Green Manual/ Live Ground Auto 120V AC Switch Switch 60 Hz Fan Thermodisc (normally open) Black Black Black Ground Wiring Diagram 908-126a 04/08/14 F3500 Regency Freestanding Woodstove...
Page 22: Seasoned Firewood
Two dry pieces banged together sound hollow; wet pieces sound solid and dull. • Dry wood weighs much less than wet wood. • Split a piece of wood. If the exposed surface feels damp, the wood is too wet to burn. F3500 Regency Freestanding Woodstove...
Page 23: Operating Instructions
- slide to the left to open, and to decrease - slide to 3. With the catalytic by-pass damper still in the reaches temperature. the right closed. The F3500 unit has a secondary fully open position, add two or three seasoned draft system that continually allows combustion air logs to your fire.
Page 24: Fan Operation
Switching from "AUTO" to "MAN" or "HIGH" to 7. Your Regency stove can be very hot. You may be "LOW" may be done anytime. seriously burned if you touch the stove while it is...
Page 25: Troubleshooting Guide
Burning coal will cause a sulfur-based compound to coat the catalyst. Revert to burning wood and fire the combustor to elevated temperatures for one hour. F3500 Regency Freestanding Woodstove...
Page 26: Maintenance
Cracked glass can cause the heater to overfire. DOOR GASKET If the door gasket requires replacement 5/8" diameter material must be used. Regency uses a gasket rope 5/8" Medium Density (Part #846-530). A proper high temperature gasket adhesive is required. See your Regency Dealer.
Page 27: Catalytic Combustor
– off has been achieved, to the 14.000 amount of smoke leaving the chimney when the smoke is not routed (by- pass open) through the combustor. F3500 Flamegaurd & Catalyst F3500 Regency Freestanding Woodstove Mass = 4.649 pounds TOTAL AREA FOR AIR FLOW = 37.396...
Page 28 NOTE: Replacement combustors can be retrieved from Applied Ceramics or Contact your local Regency Dealer for details. DO NOT OPERATE THE APPLIANCE IF COMBUSTOR BECOMES INACTIVE - DO NOT OPERATE WITHOUT COMBUSTOR.
Page 29: Bypass Door Gasket Replacement
5. Reverse steps to reinstall - ensure the pass rod is seated with the channel on the pass door. (Unit viewed as transparent to facilitate view) Channel Pass rod Loosen 3 rear bolts F3500 Damper Assembly Draft F3500 Regency Freestanding Woodstove...
Page 30: Secondary Air Tube Removal / Installation
Align tab on right side air channel with notch on right hand end of air tube. Firmly grip center of air tube with vise grips, use hammer to tap vise grips from left to right until the tube bottoms out into the air channel on right. F3500 Regency Freestanding Woodstove...
Page 31 Use only high temperature anti seize lube. (ie. never seize) Check glass for cracks Replace if required. Clean blower motor Disconnect power supply. Remove and clean blower. *DO NOT LUBRICATE* Inspect and clean chimney Annual professional chimney cleaning recommended. F3500 Regency Freestanding Woodstove...
Page 32: F3500 Stove Main Assembly
PARTS LIST F3500 STOVE MAIN ASSEMBLY Part # Description Part # Description 051-018 Handle holder Firebox assembly 042-520 Cast door assembly # 5 846-515 Fan - free standing stove 051-530 Catalytic Combustor Assembly (not shown) 042-912 Airmate - medium assembly 033-953 Airtube 1"...
Page 33: F3500 Stove Brick Layout
PARTS LIST F3500 STOVE BRICK LAYOUT 042-960 Brick Set Complete Fire bricks Size 4-1/2" x 9" 4" x 9" 3-1/2" x 4-1/2" 1-3/4" x 4-1/2" 4-1/2" x 7-5/8" 1-3/4" x 9" 802-146 1.750 x 9.000 BRICK 802-165 7.375 x 4.500 CUT BRICK 802-128 1.875 x 4.500 BRICK...
Page 34: Door Assembly
PARTS LIST DOOR ASSEMBLY Part # Description Part # Description 042-201 Door cast black (F3500) 846-530 5/8" Medium Door gasket kit 106-541/P Aligner assembly 042-021 Gasket bracket 156-514 Removable cast handle assembly 904-513 Hex bolt 1/4-20 x 3/4 LG.
Page 35 NOTES notes F3500 Regency Freestanding Woodstove...
Page 36 The authorized selling dealer, or an alternative authorized FPI dealer if pre-approved by FPI, is responsible for all in-field diagnosis and service work related to all warranty claims. FPI is not responsible for results or costs of workmanship of unauthorized FPI dealers or agents in the negligence of their service work. F3500 Regency Freestanding Woodstove...
Page 37: Warranty
Freight damages for products or parts are not covered under the terms of the warranty. F3500 Regency Freestanding Woodstove Products made or provided by other manufacturers and used in conjunction with the FPI appliance without prior authorization from FPI may void this warranty.
Page 38 Product Registration and Customer Support: Thank you for choosing a Regency Fireplace. Regency strives to be a world leader in the design, manufacture, and marketing of hearth products. To provide the best support for your product, we request that you complete a product registration form at http://www.regency-ﬁre.com/Customer-Care/Warranty-Registration.aspx...
Page 39 Product Registration and Customer Support: Thank you for choosing a Regency Fireplace. Regency strives to be a world leader in the design, manufacture, and marketing of hearth products. To provide the best support for your product, we request that you complete a product registration form found on our Web Site under Customer Care within ninety (90) days of purchase.
Page 41 Any and all claims for catalytic combustor must be ﬁ led by the consumer directly with APPLIED CERAMICS (full address below). FPI/Regency does not handle these claims. Please follow the instructions below for returning your catalytic converter under warranty. To learn more about the care and maintenance or the catalytic converter, please visit our website: www.ﬁ...
Page 42 All warranty claims must be sent to: Regency Fireplace Products By Authorized Regency Dealer * Prices subject to change. * Regency reserves the right to reject any claim if it is determined the damage is a result of misuse, abuse or improper cleaning/ handling. F3500 Regency Freestanding Woodstove...
Page 44 Dealer Name & Address: ______________________________________________ ___________________________________________________________________ Installer: ___________________________________________________________ Phone #: ___________________________________________________________ Date Installed: ______________________________________________________ Serial No.: __________________________________________________________ Regency is a trademark of FPI Fireplace Products International Ltd. © Copyright 2016, FPI Fireplace Products International Ltd. All rights reserved. Printed in Canada...
